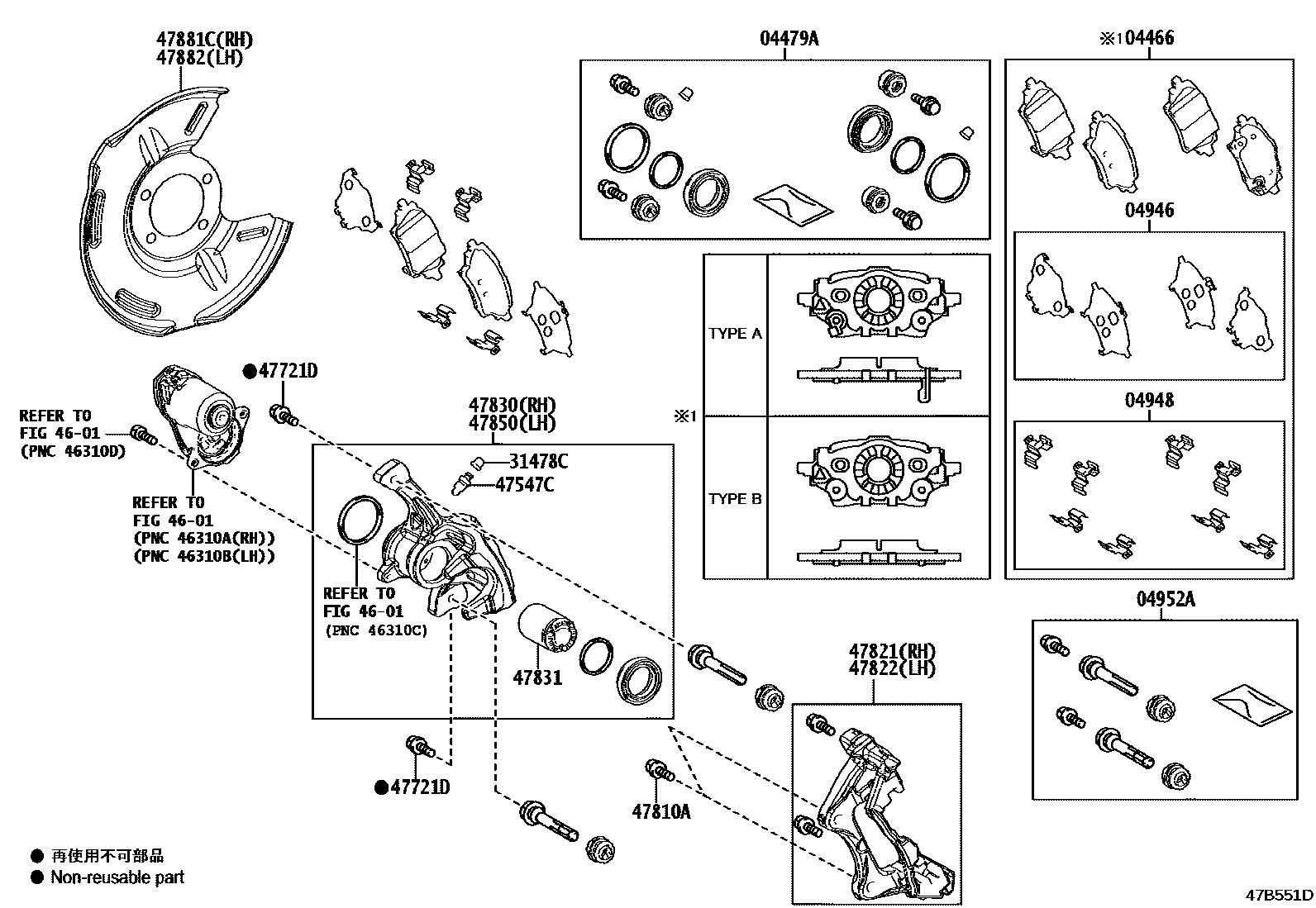

Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-02400 · 04466-02401 |
| 04479A | Rear disc brake cylinder assembly | 04479-F4010 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-02140 |
| 04948 | Rear disc brake mounting assembly | 04948-F4010 |
| 04952A | Rear disc brake cylinder sliding pin assembly | 04952-F4020 |
| 31478C | Bleed plug cap (for rear disc brake) | 90069-39027 |
| 47547C | Bleed plug (for rear disc brake) | 47547-F4030 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90069-31417 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-12174 |
| 47821 | Right rear disc brake cylinder retainer | 47821-09100 |
| 47822 | Left rear disc brake cylinder retainer | 47822-09100 |
| 47830 | Right rear disc brake cylinder assembly | 47830-02360 |
| 47831 | rear disc brake piston | 47831-F4030 |
| 47850 | Left rear disc brake cylinder assembly | 47850-02350 |
| 47881C | Right rear disc brake dust cover | 47881-02190 |
| 47882 | Left rear disc brake dust cover | 47882-02190 |
