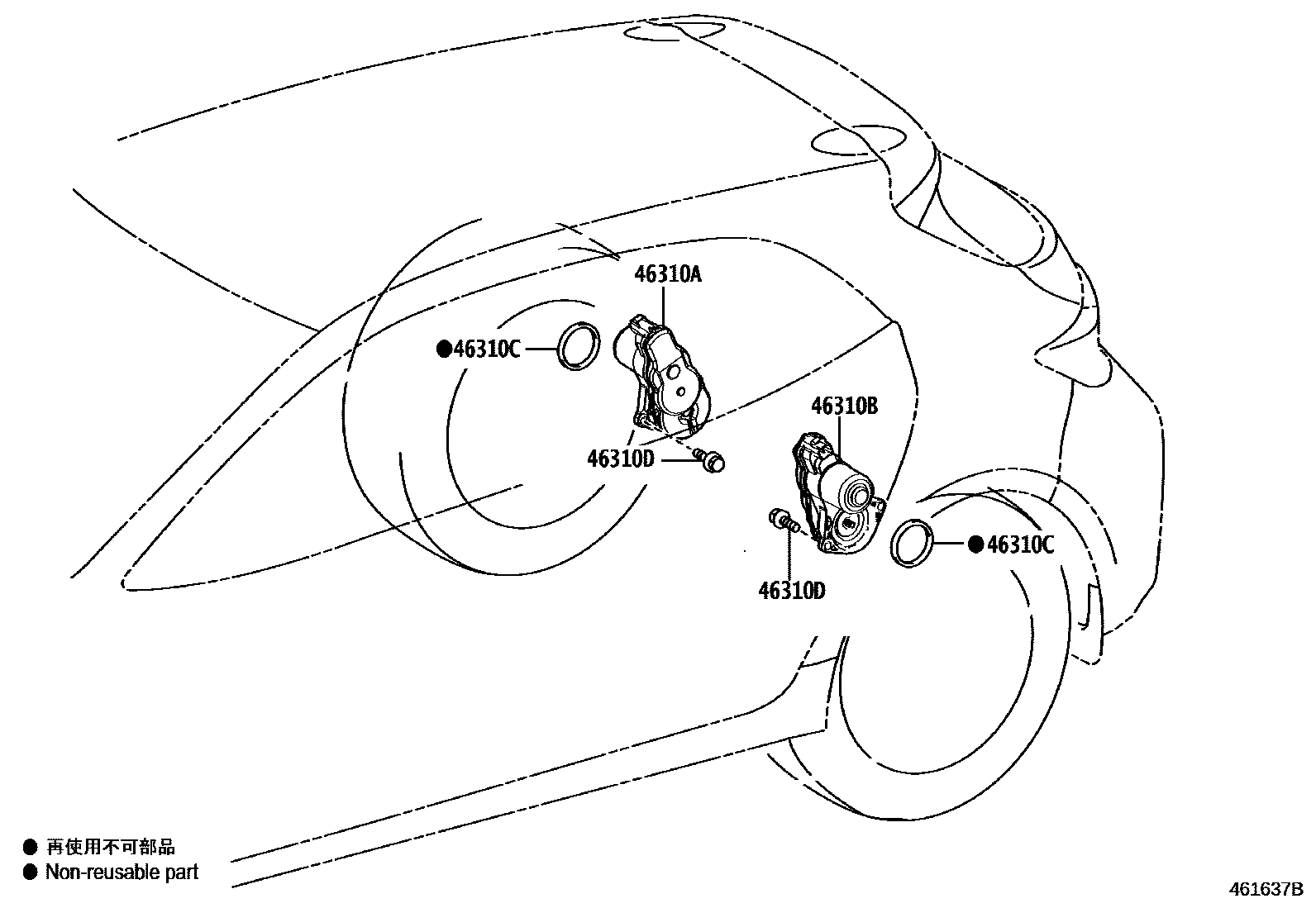

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46310A | Right parking brake actuator assembly | 46310-F4011 |
| 46310B | Left parking brake actuator assembly | 46310-F4011 |
| 46310C | Seal (for parking brake actuator) | 90069-38055 |
| 46310D | Bolt (for parking brake actuator) | 90069-31414 |
