Toyota COROLLA 冷却器和配管(HEV 或 BEV 或 FCEV) — Figure 3914

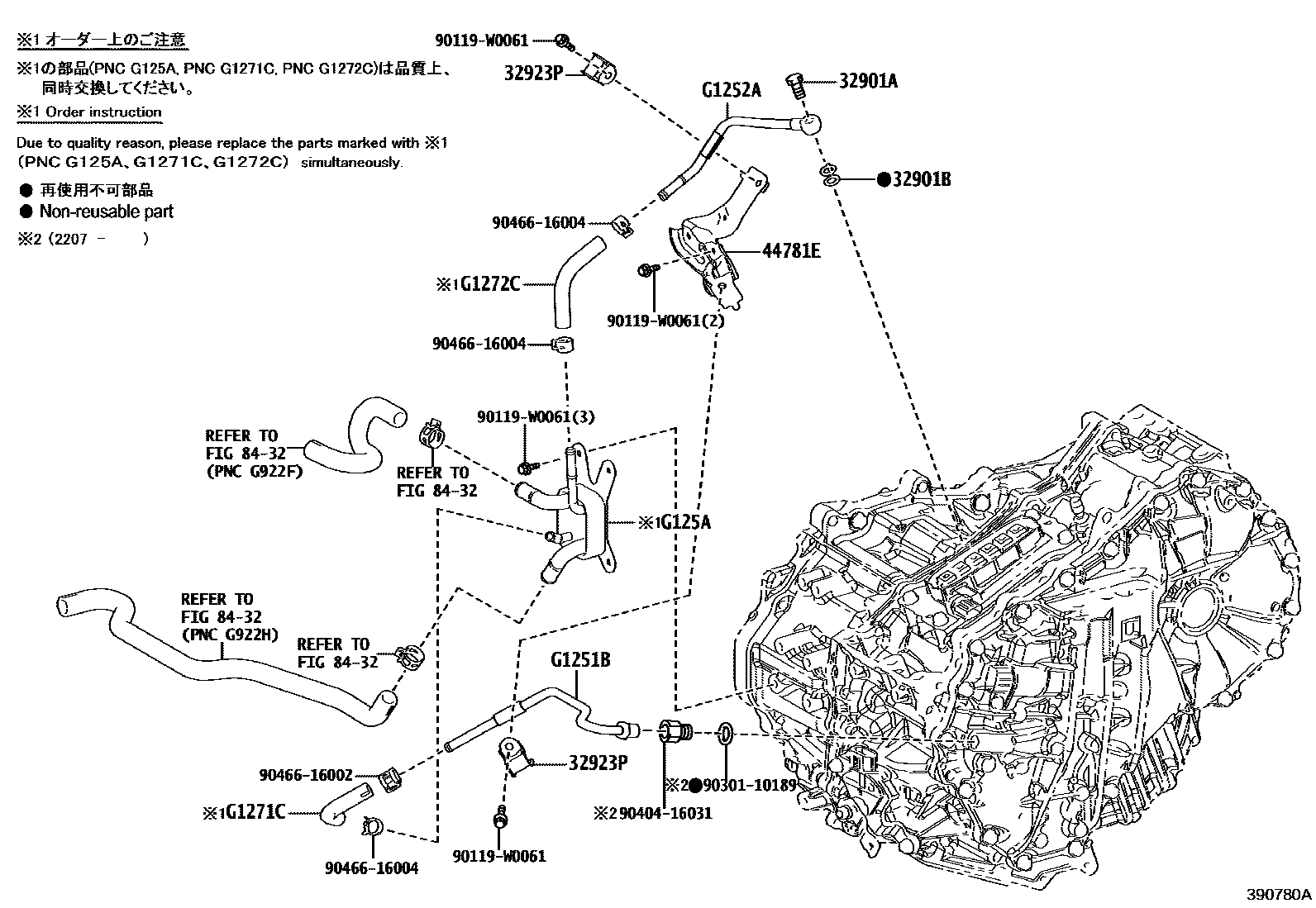

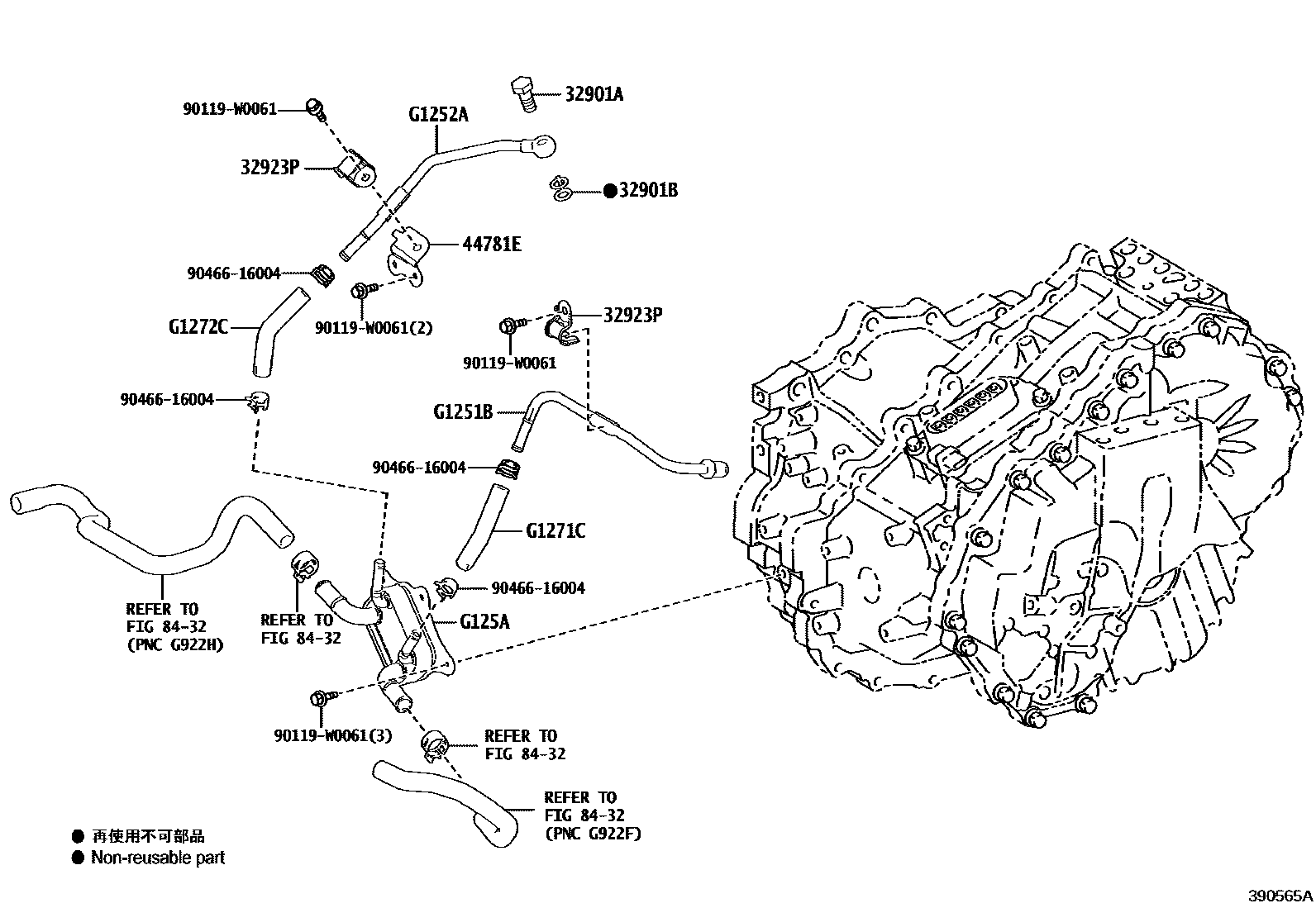

Toyota COROLLA EPC diagram 3914, 冷却器和配管(HEV 或 BEV 或 FCEV), with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32901A | Connector bolt (for oil cooler) | 90401-12039 |
| 32901B | Gasket (for transmission oil cooler connector) | 90430-12037 |
| 32923P | No. 1 transmission oil cooler pipe clamp | 32923-52040 |
| 44781E | hose holder | 44781-12070 · 44781-47010 |
| G1251B | No. 1 motor cooling pipe | G1251-12010 · G1251-47010 |
| G1252A | No. 2 motor cooling pipe | G1252-12010 · G1252-47010 |
| G125A | Motor cooler | G125A-12010 · G125A-47010 |
| G1271C | No. 1 motor cooling hose | G1271-12010 · G1271-47010 |
| G1272C | No. 2 motor cooling hose | G1272-12010 · G1272-47010 |
