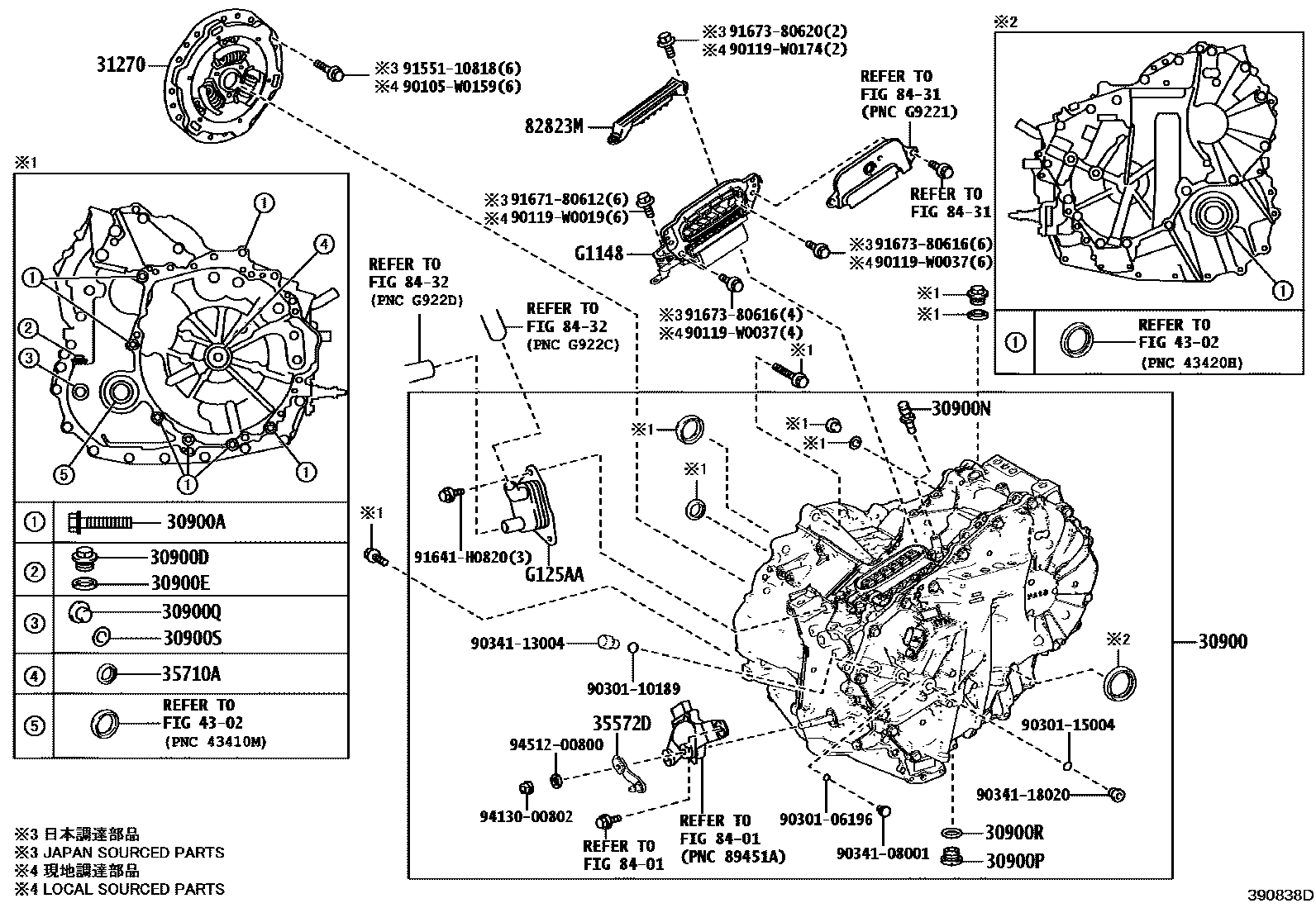

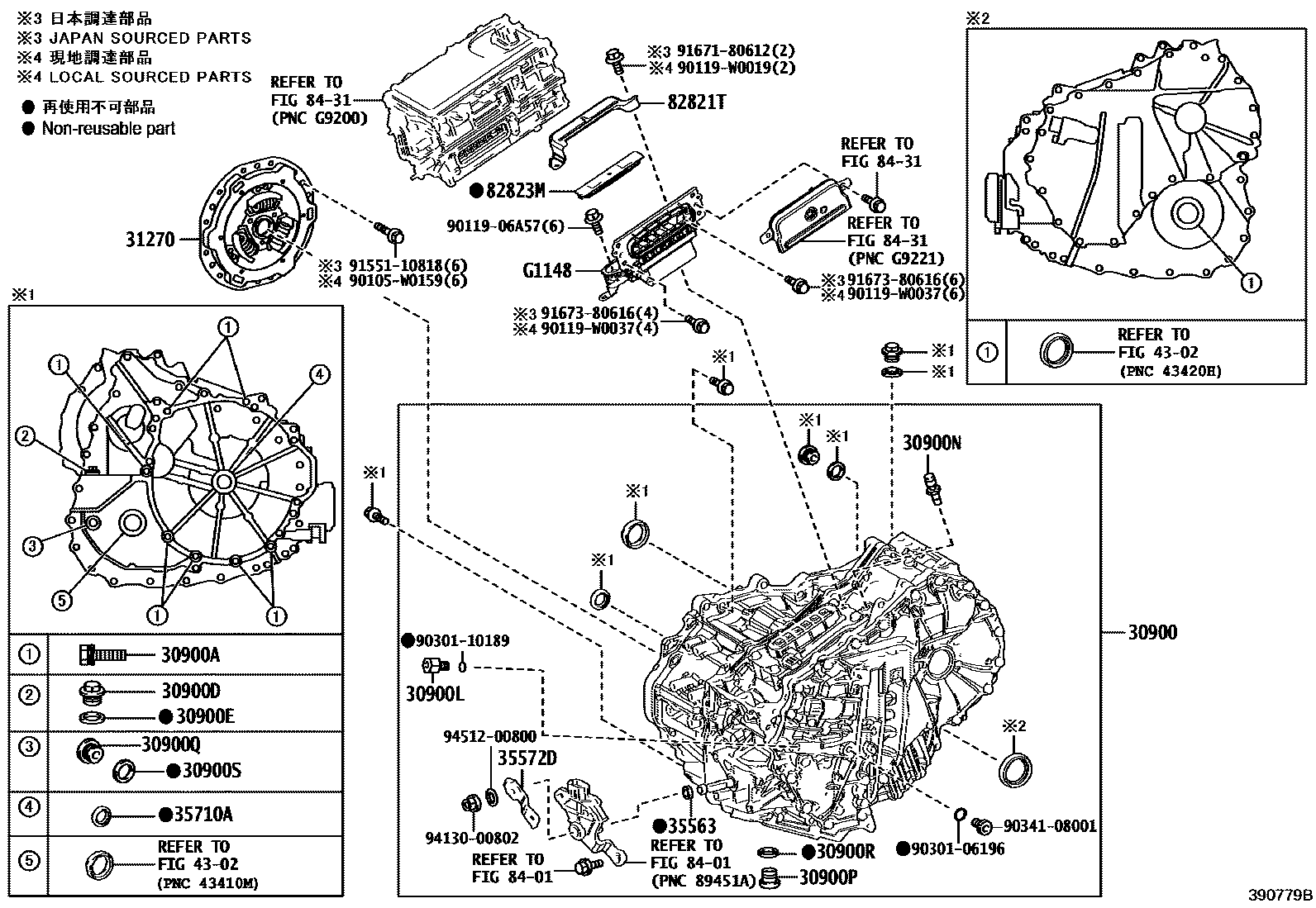

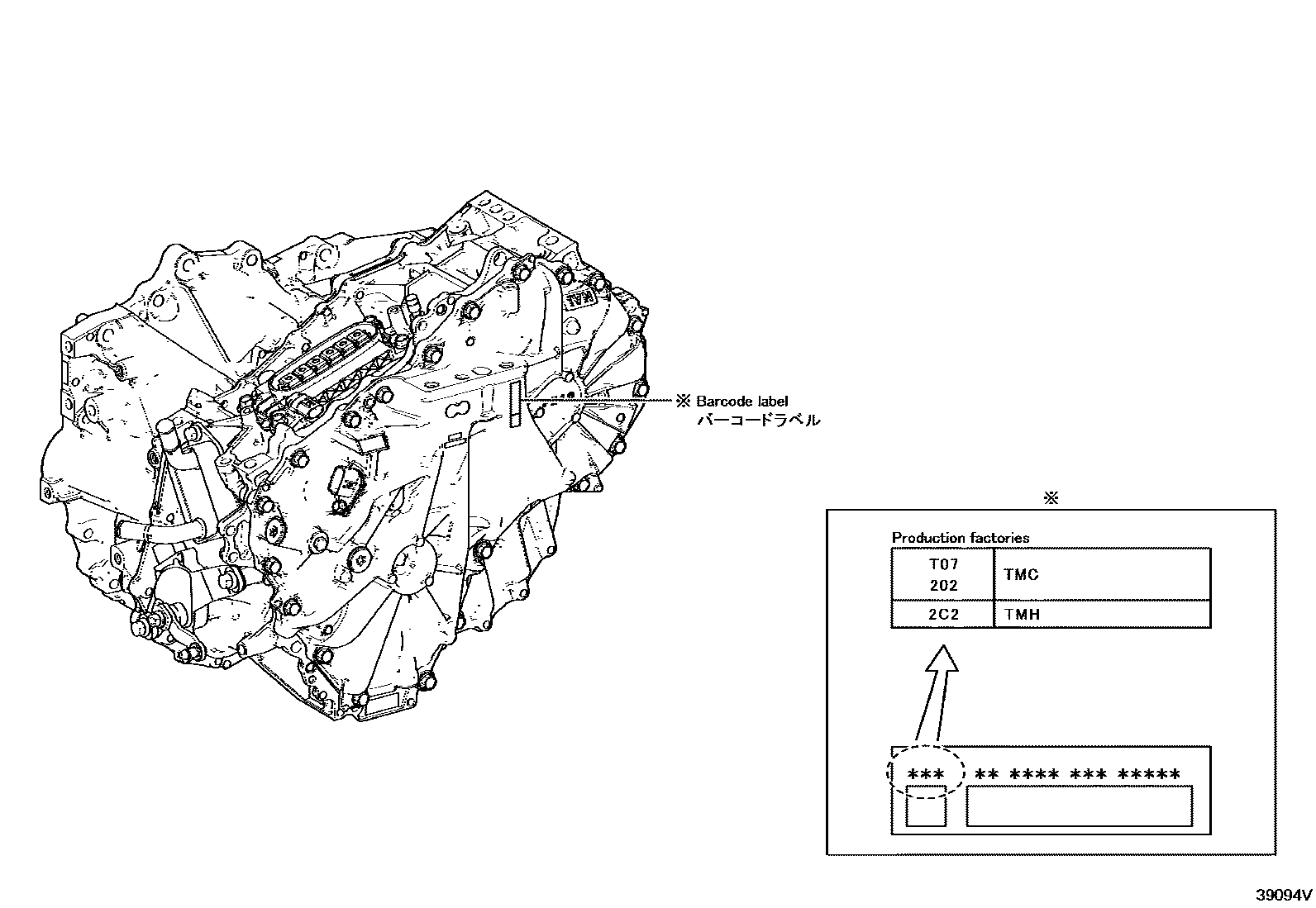

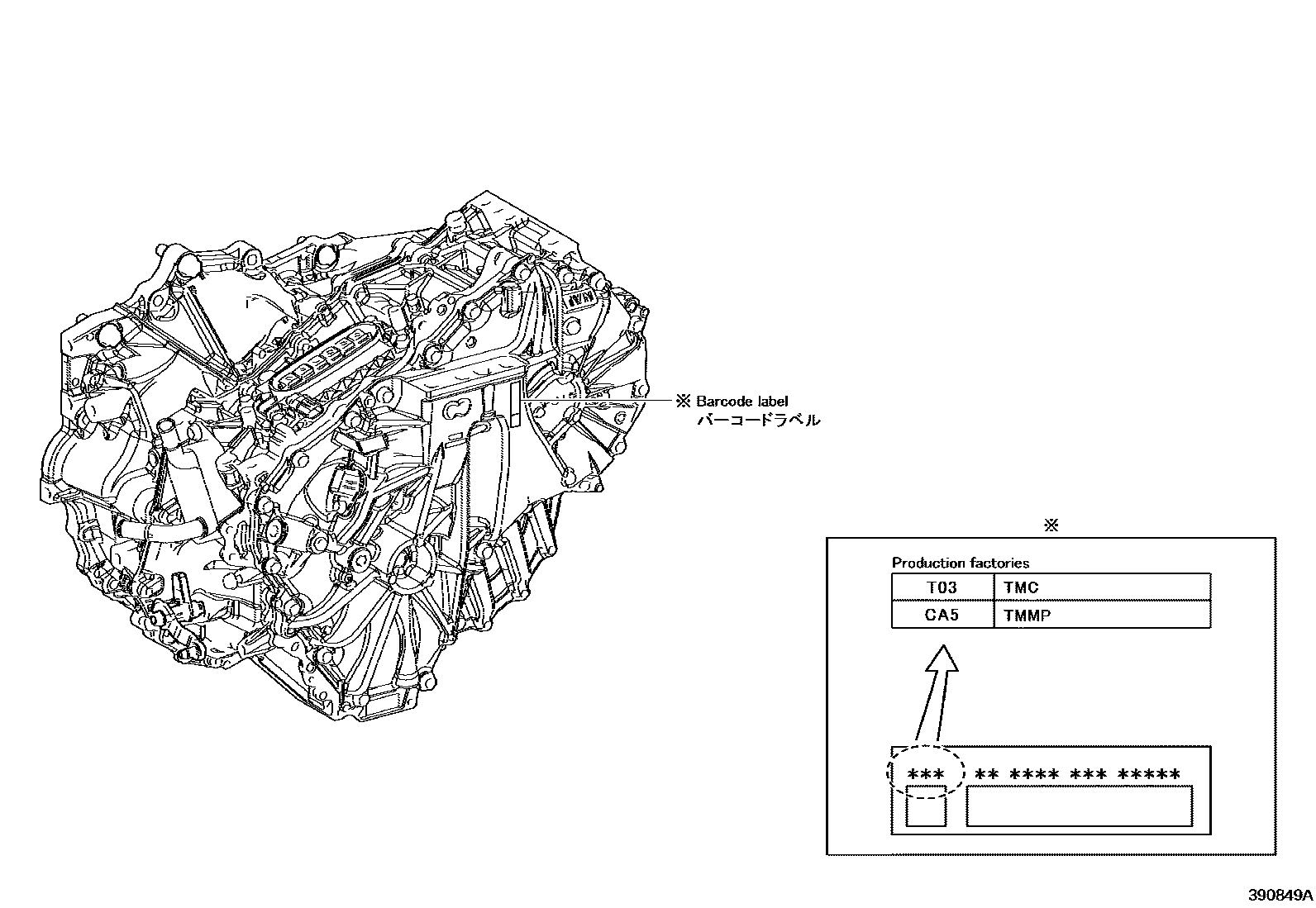

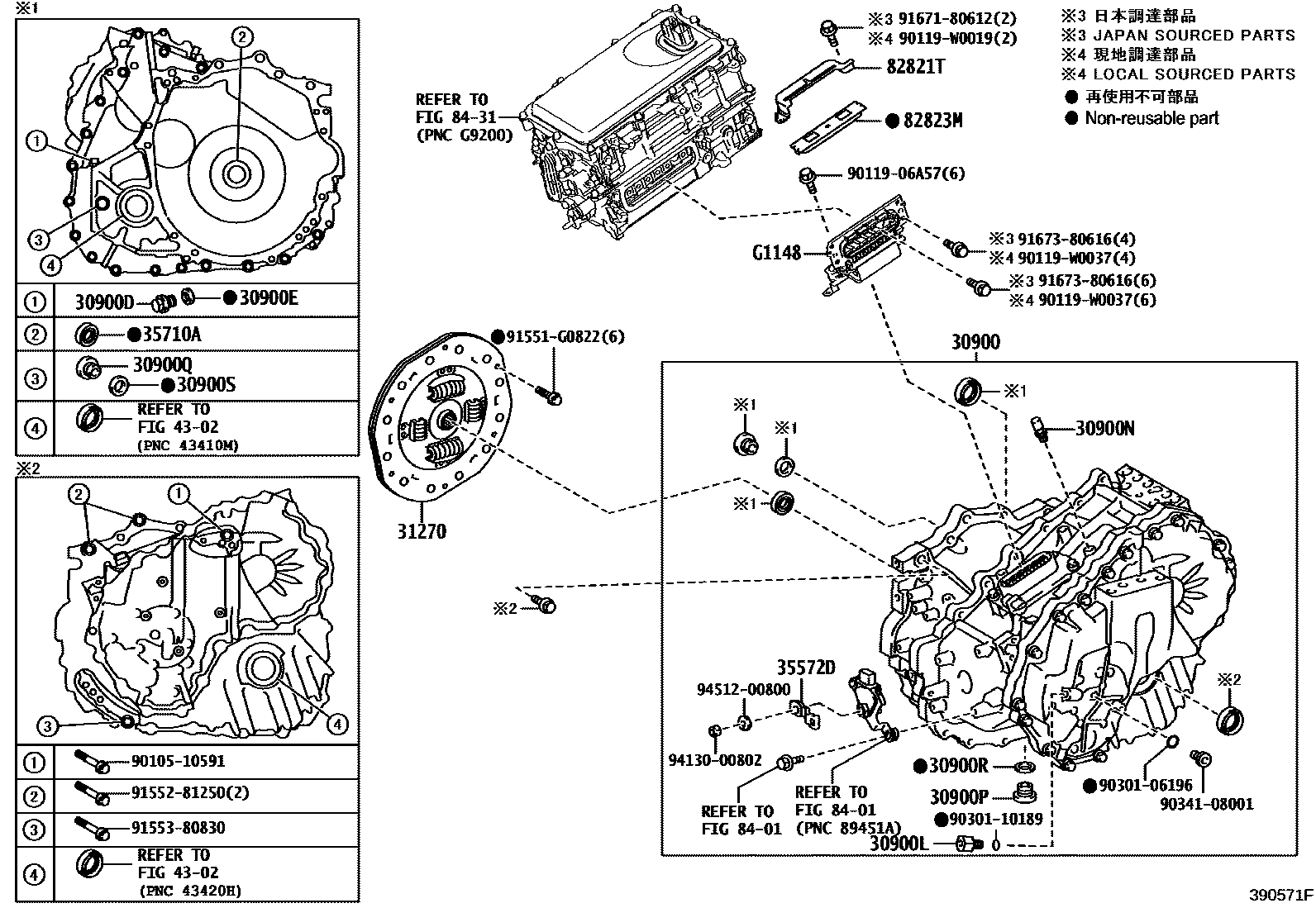

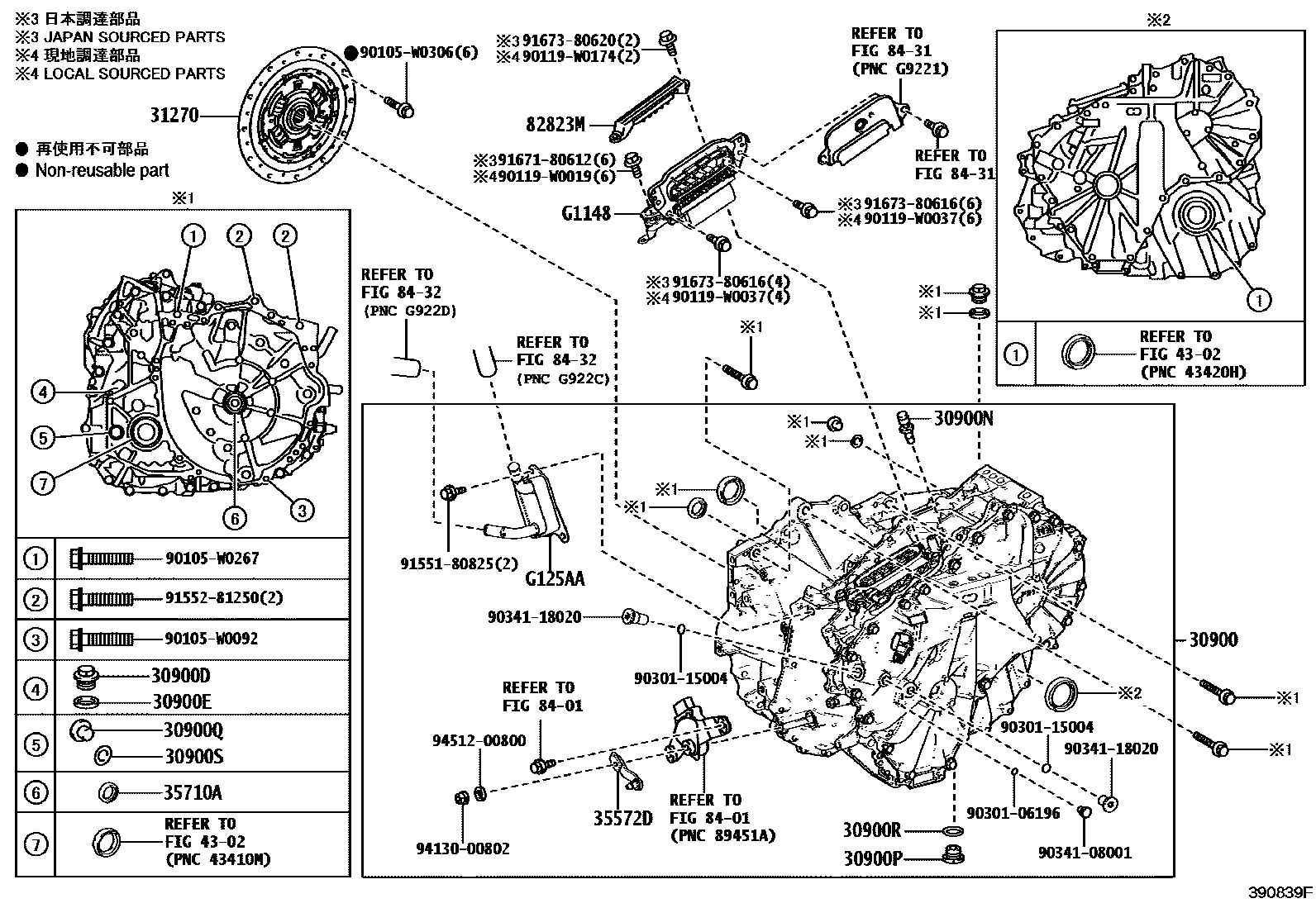

Toyota COROLLA 传动桥总成(HEV 或 BEV 或 FCEV) — Figure 3901
Toyota COROLLA EPC diagram 3901, 传动桥总成(HEV 或 BEV 或 FCEV), with 6 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-02050 · 30900-02060 · 30900-12010 · 30900-12020 · 30900-12040 · 30900-12060 · 30900-12090 |
| 30900A | Bolts (used to secure the transaxle and engine of hybrid vehicles) | 90119-W0155 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900L | Connector (for transaxle housing) | 90404-16031 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | Drain plug (HEV) | 90341-18016 |
| 30900Q | Oil filling plug (HEV) | 90341-18016 · 90341-18090 |
| 30900R | Drain plug gasket (HEV) | 90430-18008 |
| 30900S | Oil filling plug gasket (HEV) | 90430-18008 |
| 31270 | Transmission input damper assembly | 31270-02020 · 31270-02030 · 31270-12010 · 31270-28020 · 31270-47070 · 31270-63010 |
| 35563 | Shift control actuator seal | 90311-12016 |
| 35572D | transmission control lever | 35572-10040 · 35572-28140 · 35572-33070 · 35572-63020 |
| 35710A | T-type oil seal (for input shaft) | 90311-25025 · 90311-25035 · 90311-27011 · 90311-27012 |
| 82821T | Connector cover | 82821-47240 |
| 82823M | Terminal cover | 82823-28110 · 82823-47040 |
| G1148 | Motor cable | G1148-28040 · G1148-28041 · G1148-33050 · G1148-47070 · G1148-63010 · G1148-63011 |
| G125AA | Motor cooler | G125A-02020 · G125A-28010 · G125A-63010 |
