Toyota COROLLA vacuum tube — Figure 1708

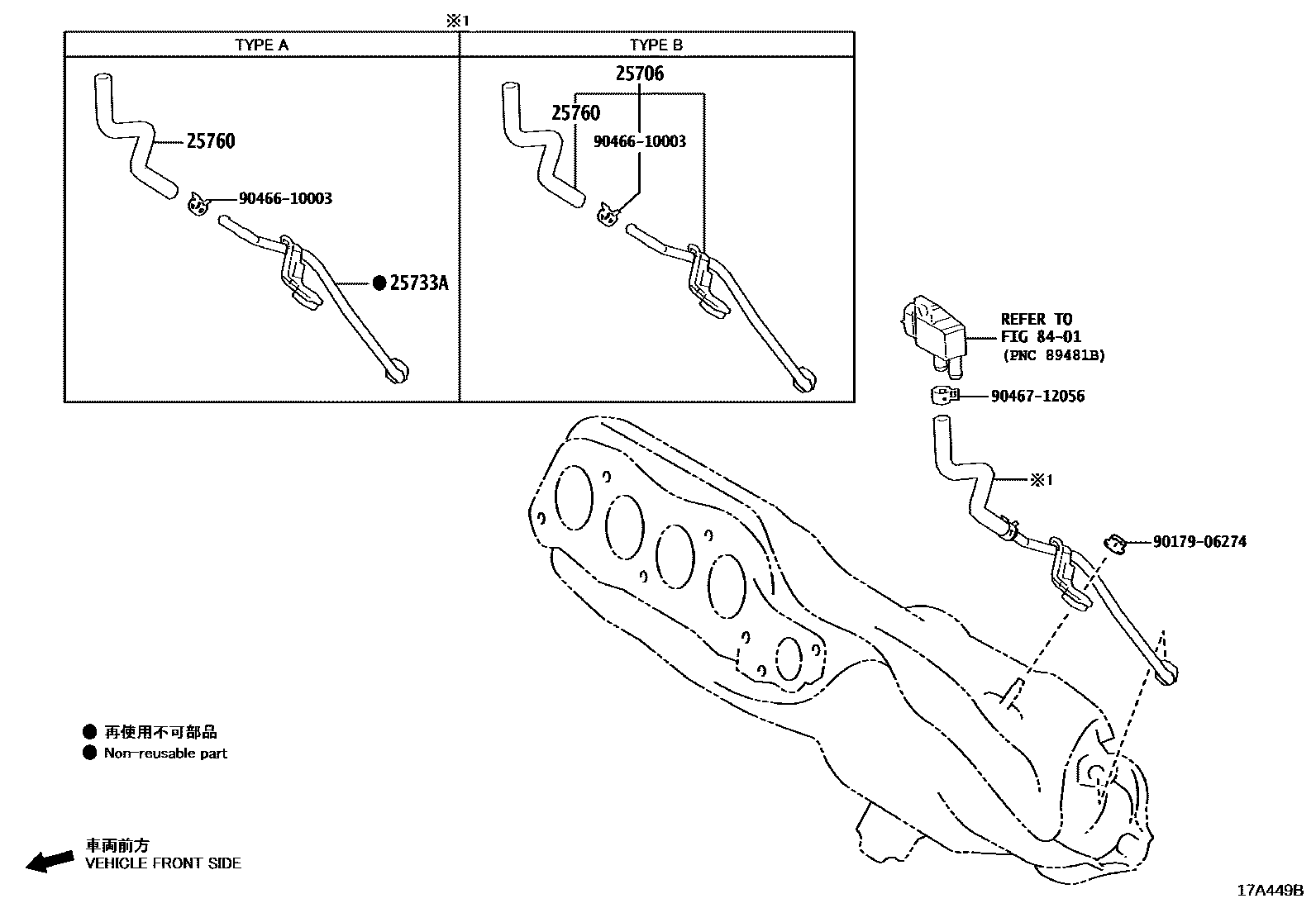

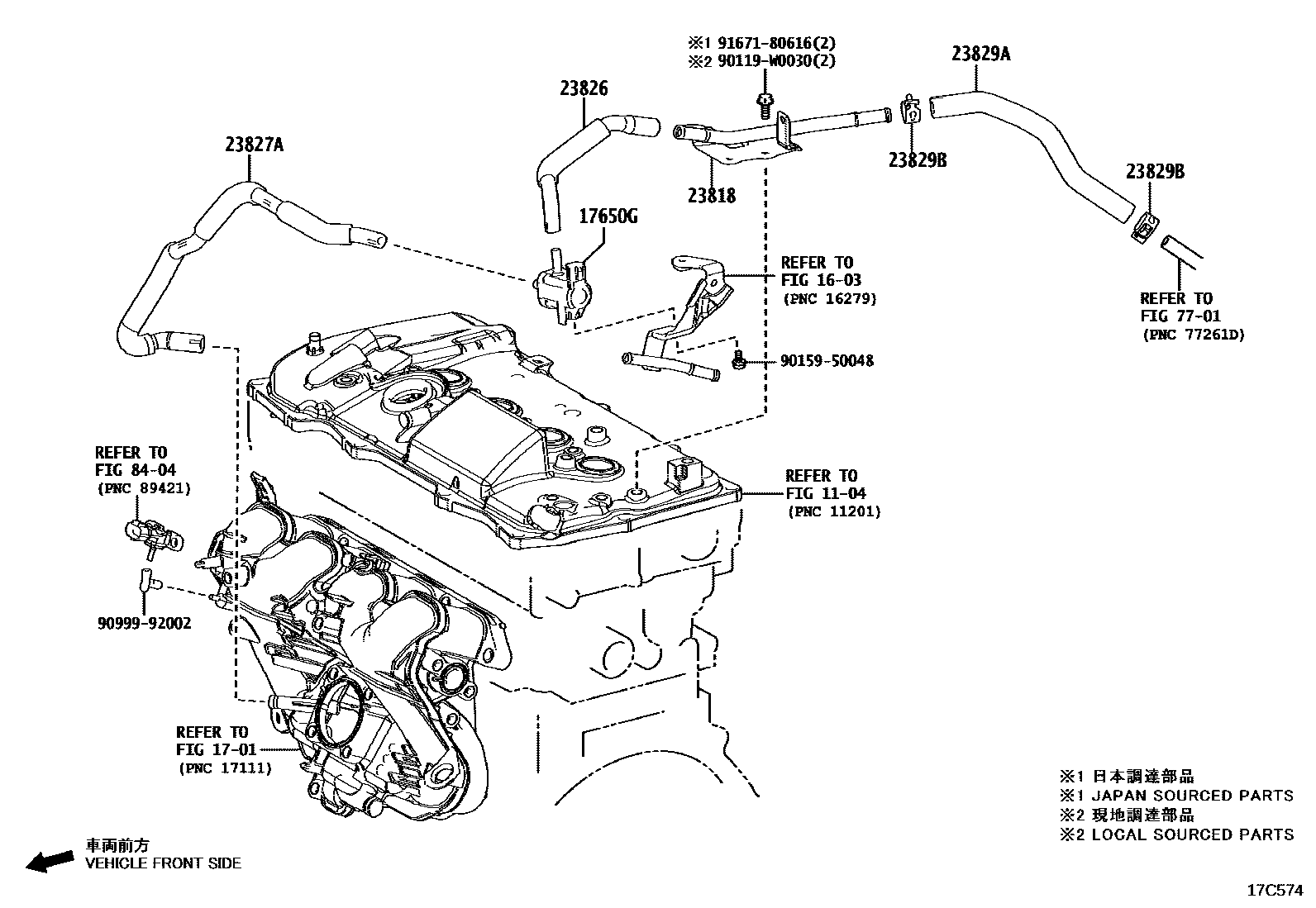

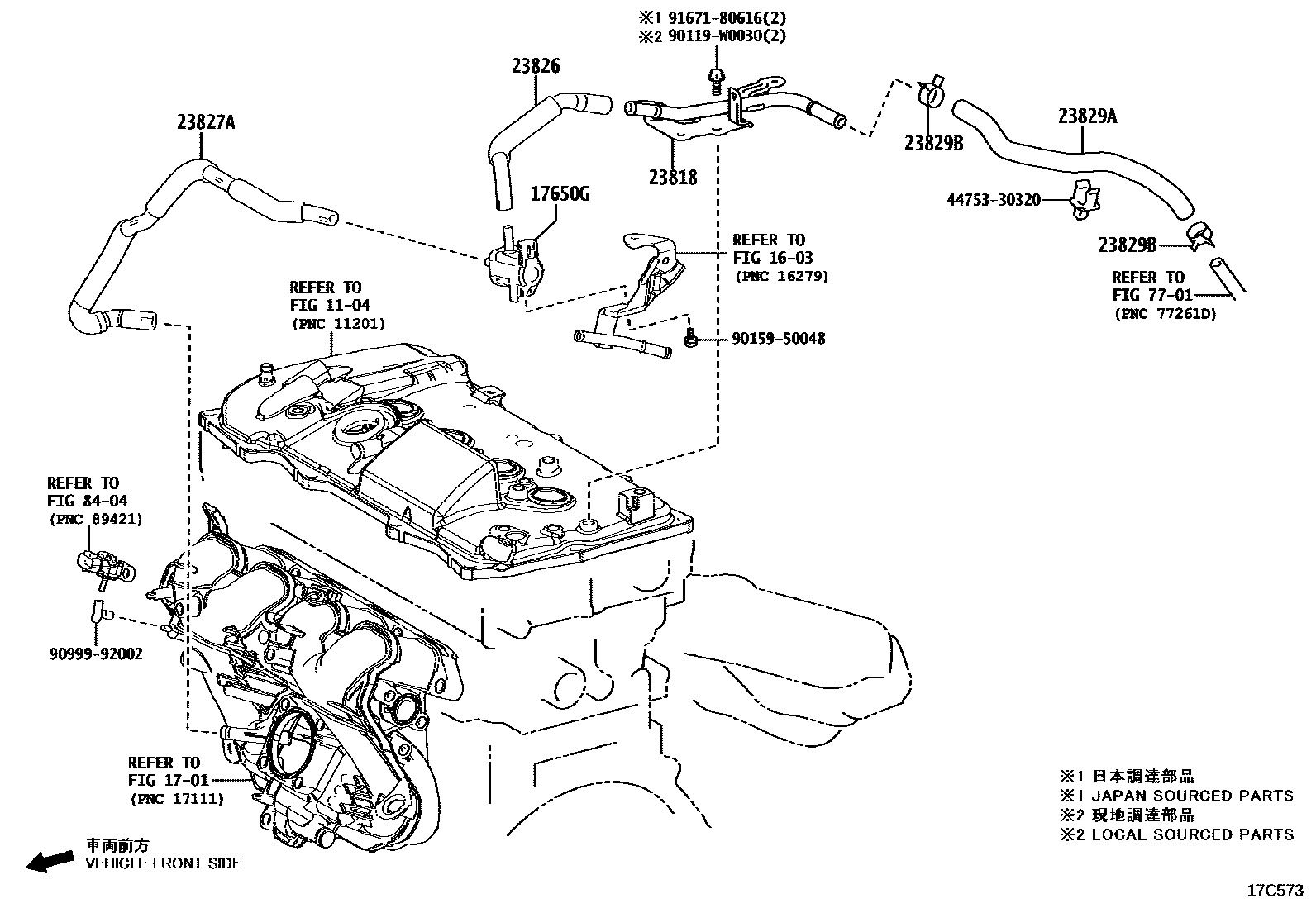

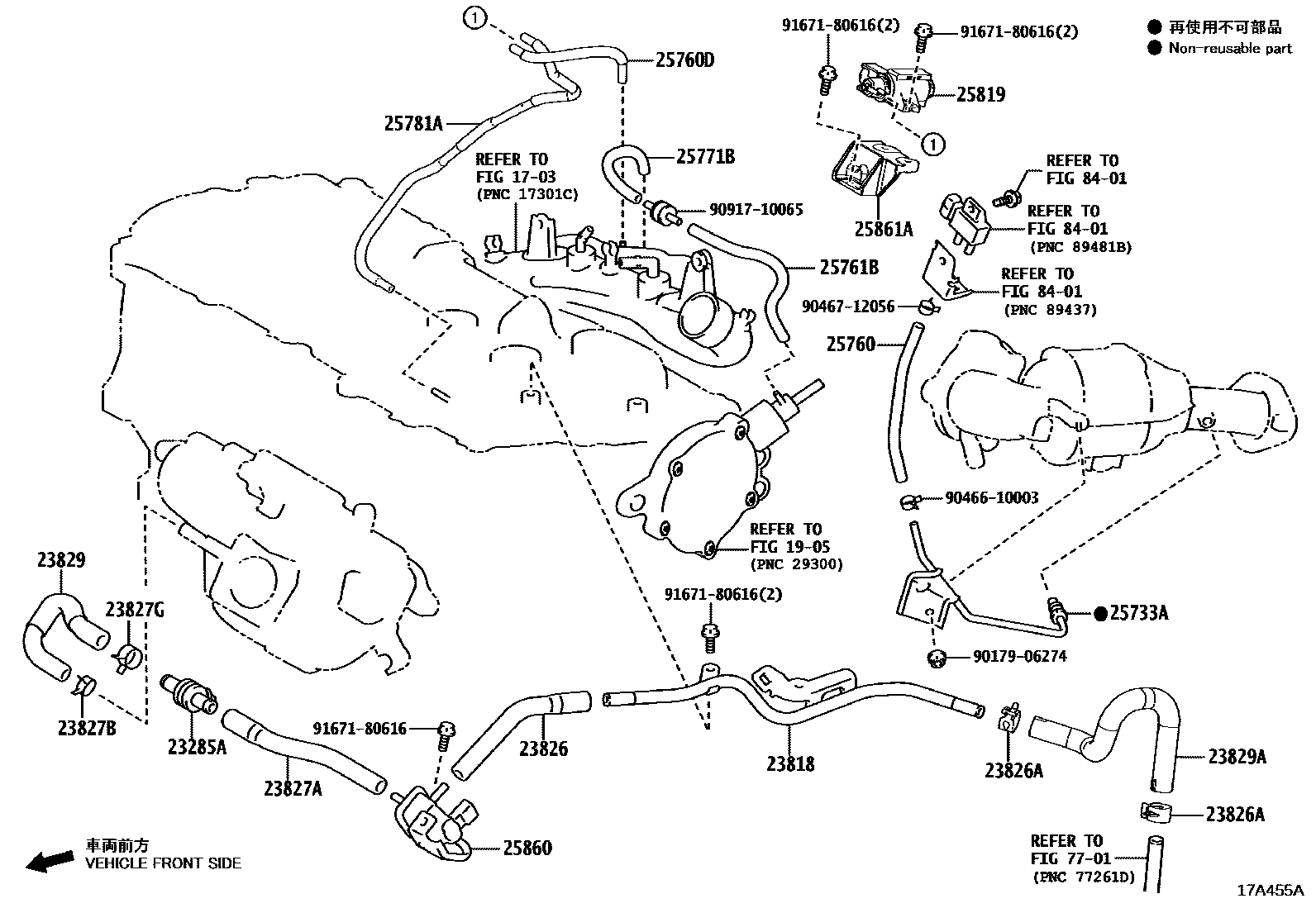

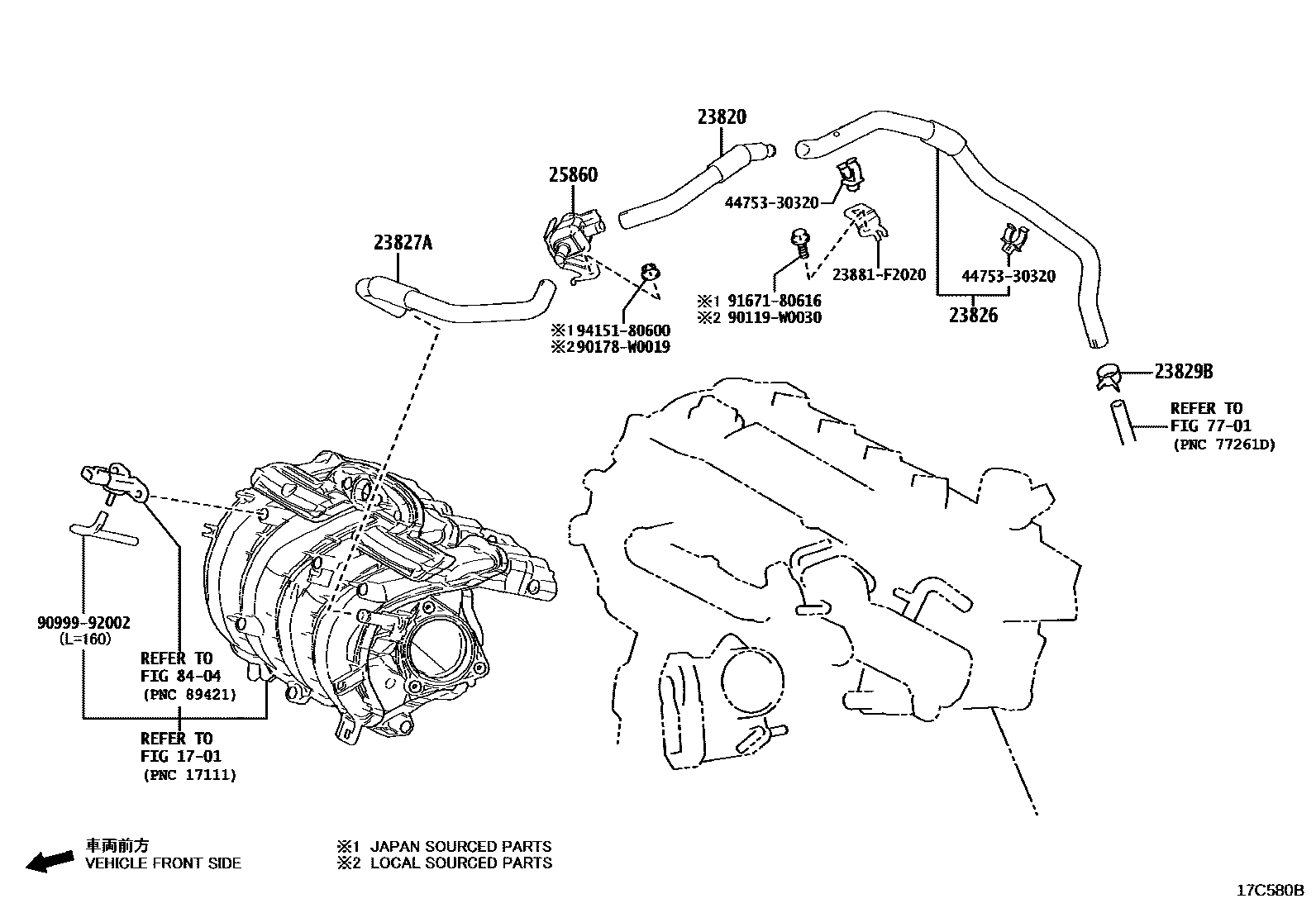

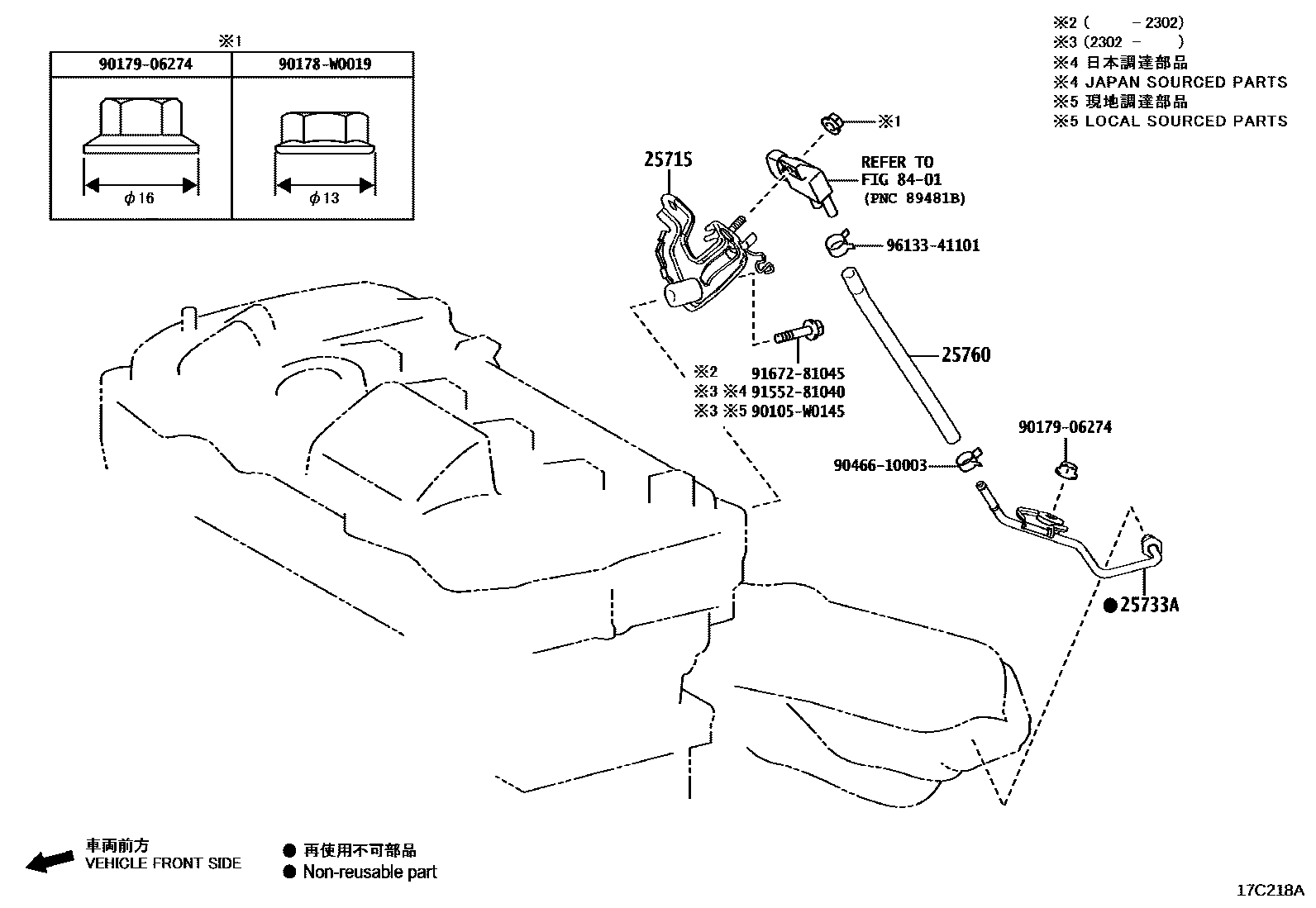

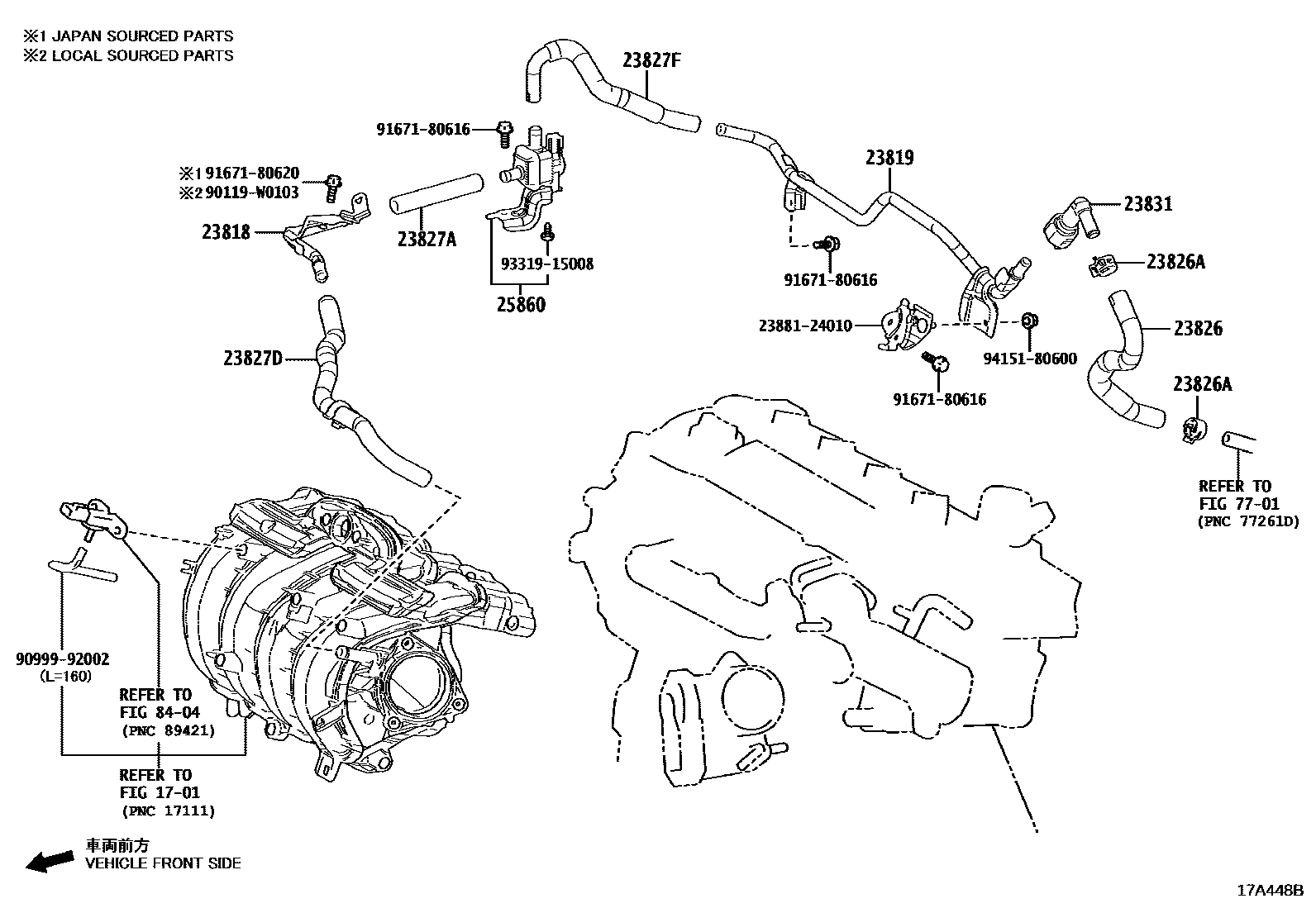

Toyota COROLLA EPC diagram 1708, vacuum tube, with 7 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 |
| 23285A | No. 1 one-way valve | 25748-25030 · 25748-36010 |
| 23818 | Fuel vapor supply pipe | 23818-0T030 · 23818-24030 · 23818-37030 · 23818-37040 · 23818-47020 |
| 23819 | No. 2 fuel vapor supply pipe | 23819-24010 |
| 23820 | Fuel vapor supply hose assembly | 23820-24020 · 23820-F2090 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0T300 · 23826-24120 · 23826-24190 · 23826-37250 · 23826-37340 · 23826-47090 · 23826-F2170 · 23826-F2250 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96136-41901 |
| 23827A | No. 2 fuel vapor supply hose | 23826-24200 · 23826-F2260 · 23827-0T050 · 23827-24010 · 23827-37070 · 23827-47130 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96136-41901 |
| 23827D | No. 2 fuel vapor supply hose | 23826-24060 |
| 23827F | No. 3 fuel vapor supply hose | 23828-24010 |
| 23827G | Clamp (for No. 3 fuel vapor supply hose) | 96136-42201 |
| 23829 | No. 3 fuel vapor supply hose | 23829-47010 |
| 23829A | Fuel vapor supply hose | 23826-0T260 · 23826-0T590 · 23826-0Y350 · 23826-37420 |
| 23829B | Clamp (for fuel vapor supply hose) | 96136-41901 |
| 23831 | Fuel vapor supply connector No. 1 | 23831-24010 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-F2010 |
| 25715 | Emission control valve bracket | 25715-0T010 · 25715-37040 · 25715-37041 |
| 25733A | No. 1 vacuum tube | 25733-0T010 · 25733-0T020 · 25733-24050 · 25733-37010 · 25733-37020 · 25733-47010 |
| 25760 | Vacuum transfer hose assembly | 25760-0T010 · 25760-24010 · 25760-37030 · 25760-F2060 · 25761-47020 |
| 25760D | No. 4 vacuum transmission hose assembly | 25791-47020 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-47010 |
| 25771B | No. 2 vacuum transfer hose | 25771-47010 |
| 25781A | No. 3 vacuum transfer hose | 25781-47050 |
| 25819 | Vacuum regulating valve assembly | 25819-0W020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-24060 · 25860-24110 · 25860-47050 |
| 25861A | No. 2 vacuum switch valve bracket | 25862-47020 |
