Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 5 images and 14 PNC and OE references.

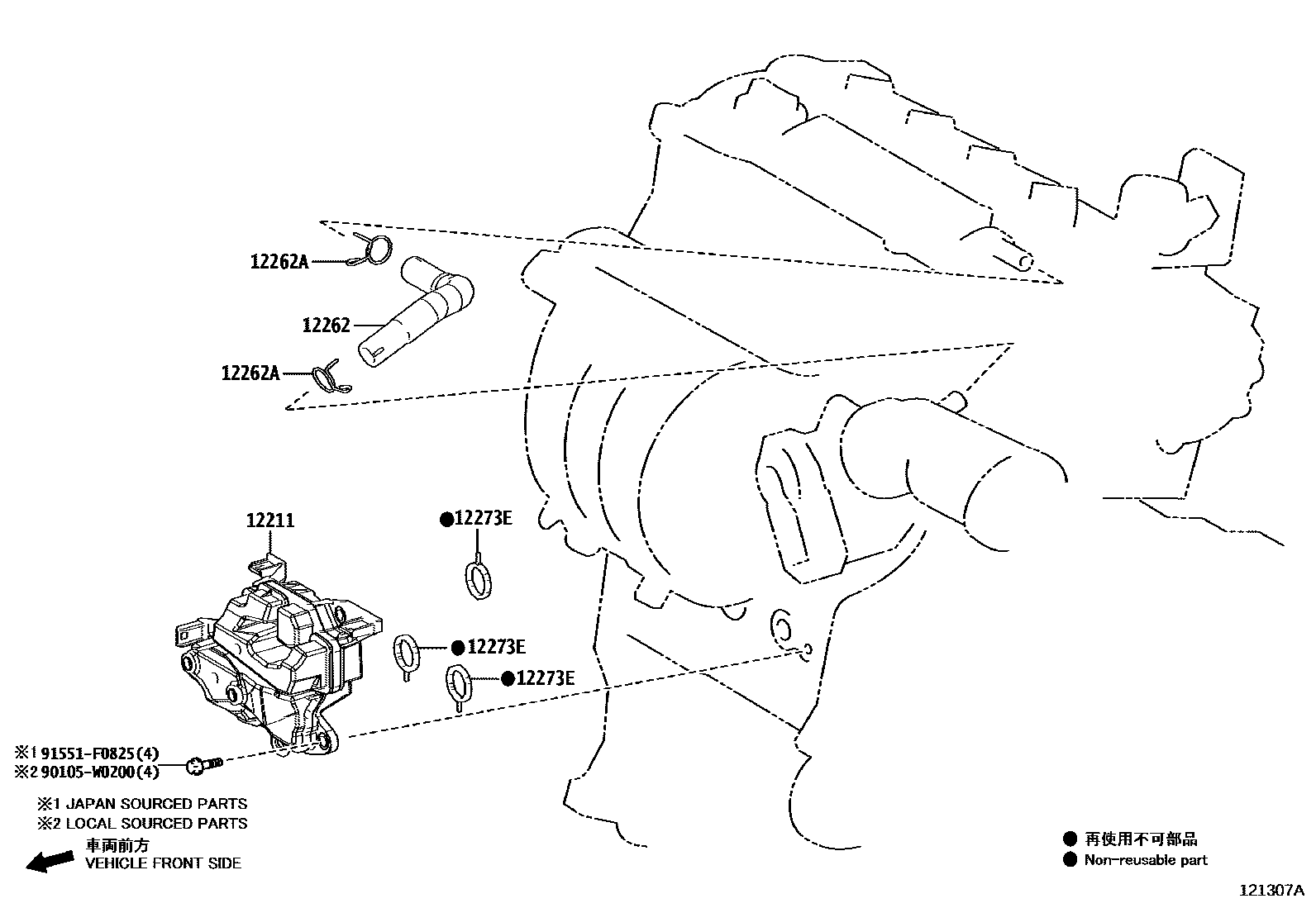

Toyota COROLLA Ventilation Hose EPC diagram — 121307A
Ventilation Hose — 121307A (201902 – 999999)

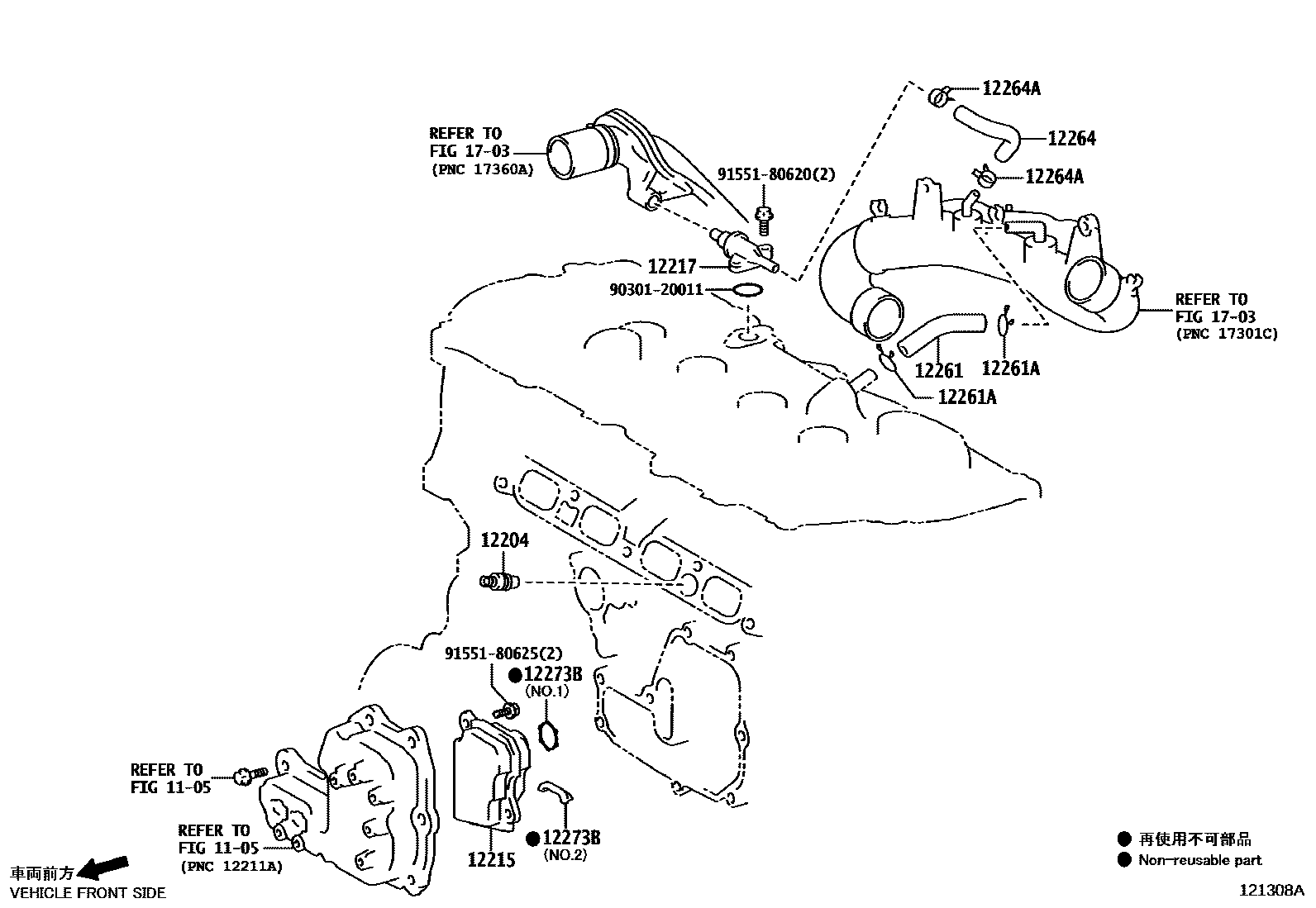

Toyota COROLLA Ventilation Hose EPC diagram — 121308A
Ventilation Hose — 121308A (201901 – 999999)

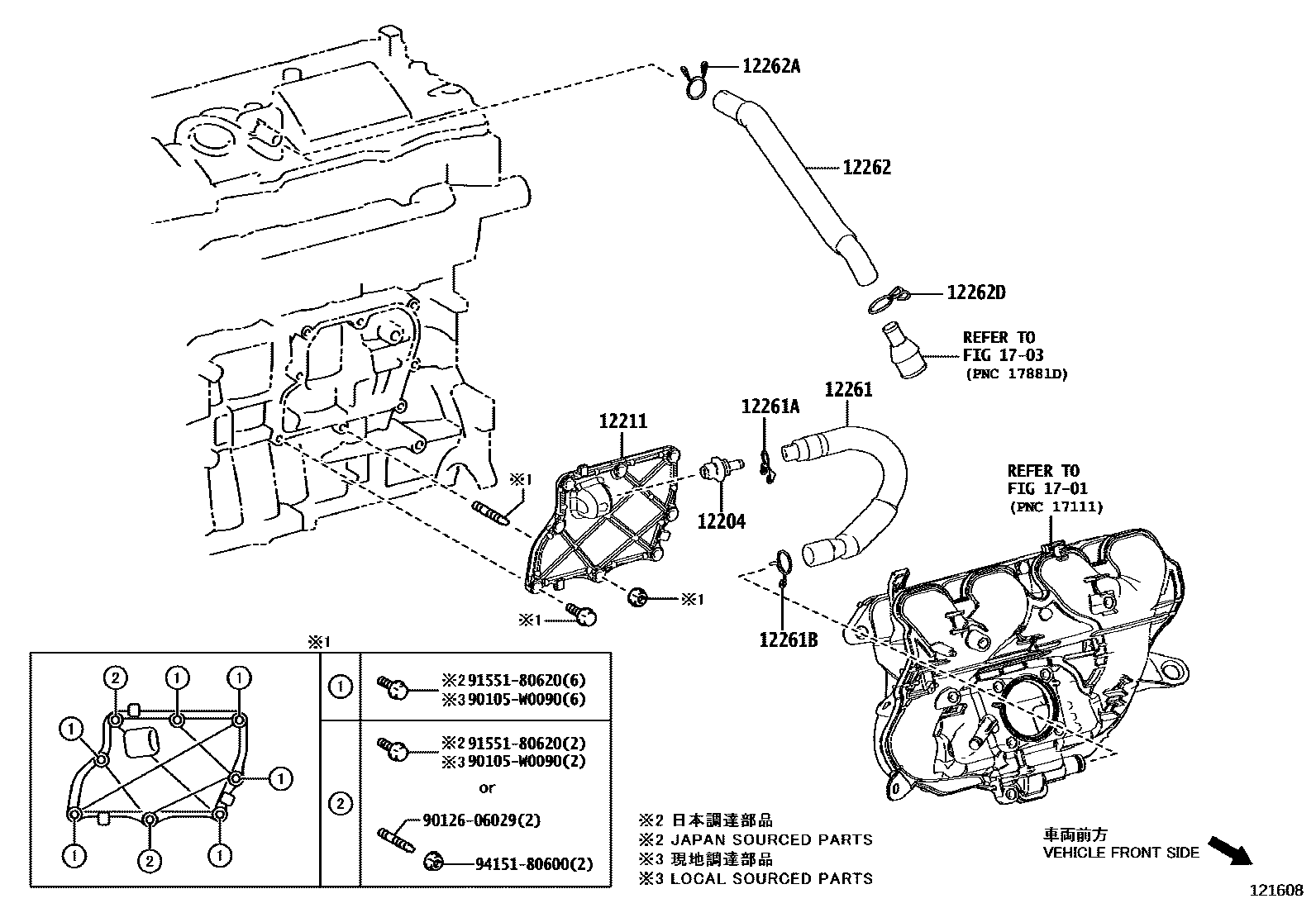

Toyota COROLLA Ventilation Hose EPC diagram — 121608
Ventilation Hose — 121608 (201901 – 999999)

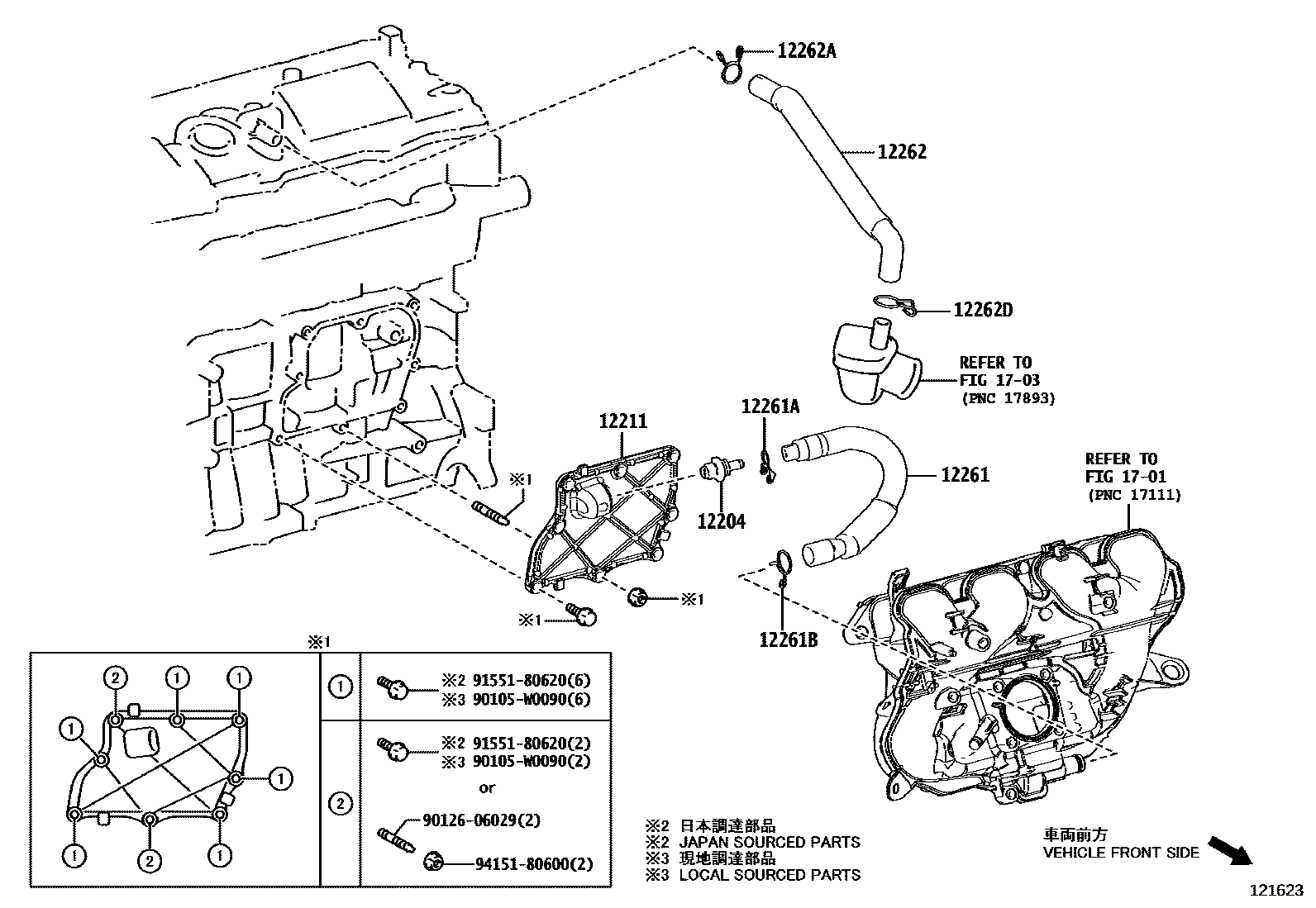

Toyota COROLLA Ventilation Hose EPC diagram — 121623
Ventilation Hose — 121623 (202301 – 999999)

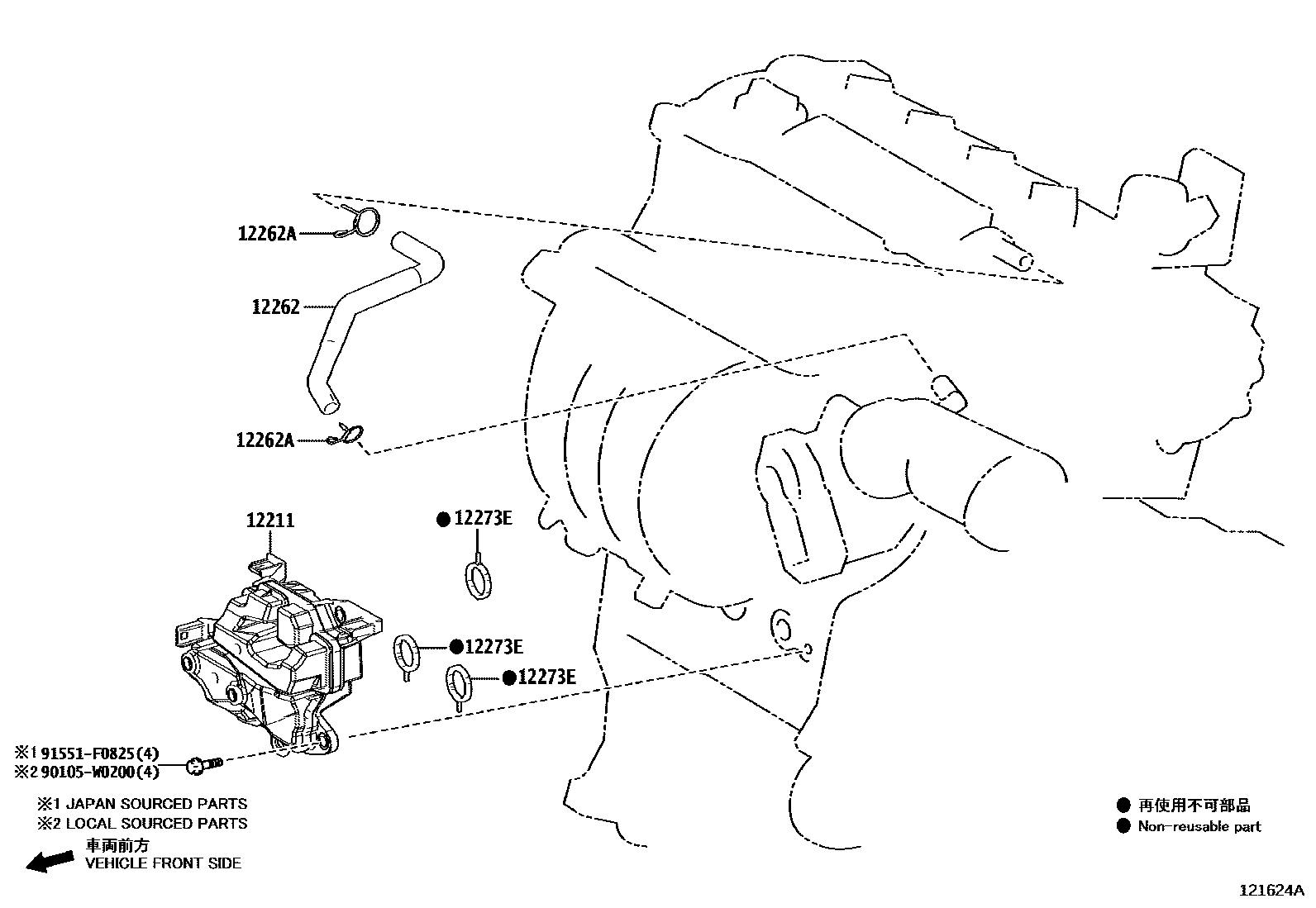

Toyota COROLLA Ventilation Hose EPC diagram — 121624A
Ventilation Hose — 121624A (202301 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-37050 · 12204-37060 · 12204-47080
12211Ventilation box No. 112211-0T010 · 12211-24010 · 12211-24020 · 12211-37010 · 12211-F2020
12215Ventilation box isolation device12215-47010
12217ventilation ejector12217-47010
12261Ventilation Hose12261-37070 · 12261-47110
12261AClip or clip (for vent hose)90467-15120 · 90467-22010
12261BClip or clip (for vent hose)90466-22005
12262Ventilation hose No. 212262-0T080 · 12262-24030 · 12262-24040 · 12262-37110
12262AClamp (for vent hose No. 2)90467-21004
12262DClamp (for vent hose No. 2)90467-21004
12264No. 4 ventilation hose12264-47010
12264AClip (for ventilation hose)96137-41901
12273Boil separator gasket12273-47010 · 12273-47020
12273EPads (for ventilation boxes)12273-24010
