Toyota COROLLA Engine Mounting — Figure 1107

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 6 images and 12 PNC and OE references.

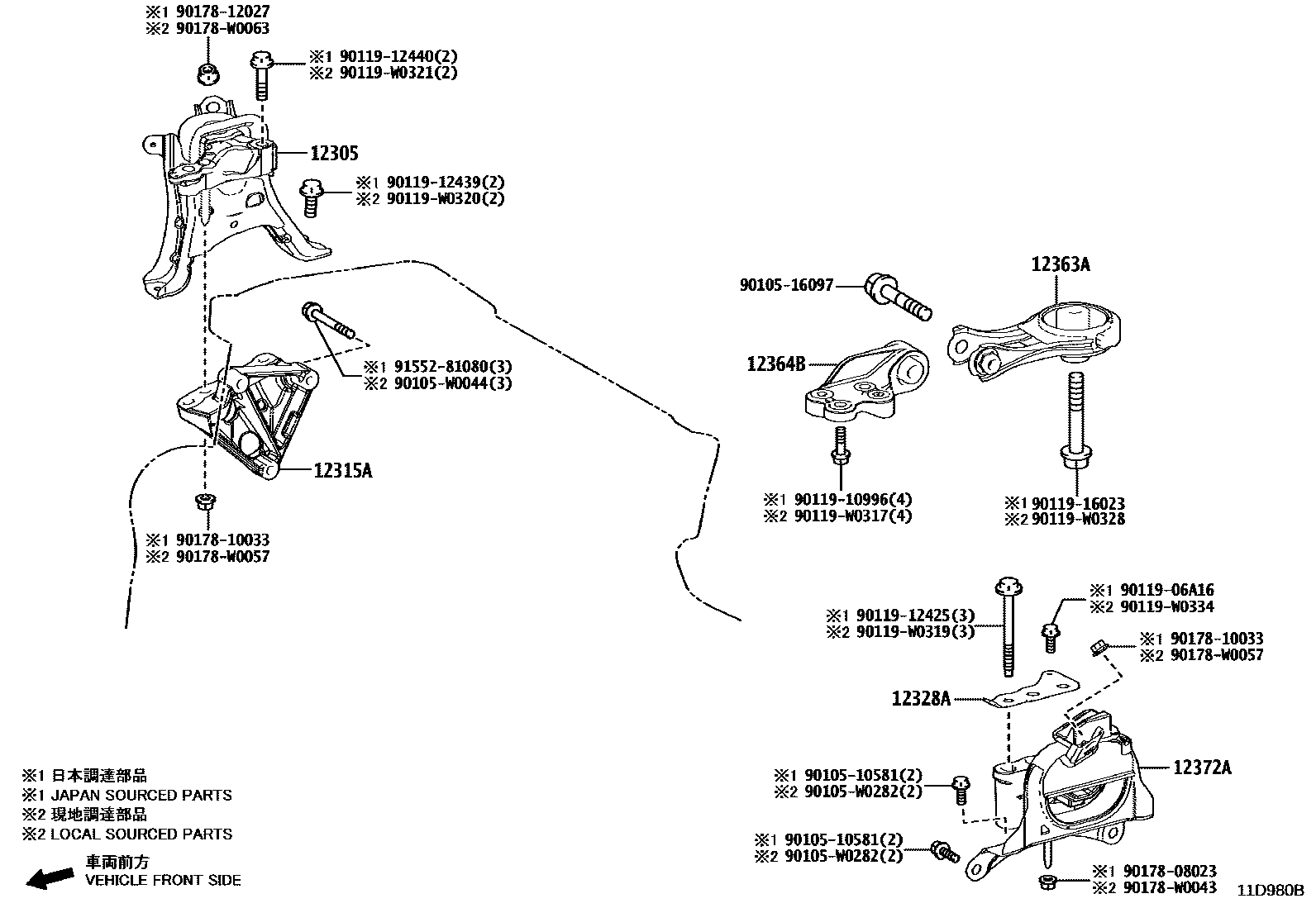

Toyota COROLLA Engine Mounting EPC diagram — 11D980B
Engine Mounting — 11D980B (201901 – 999999)

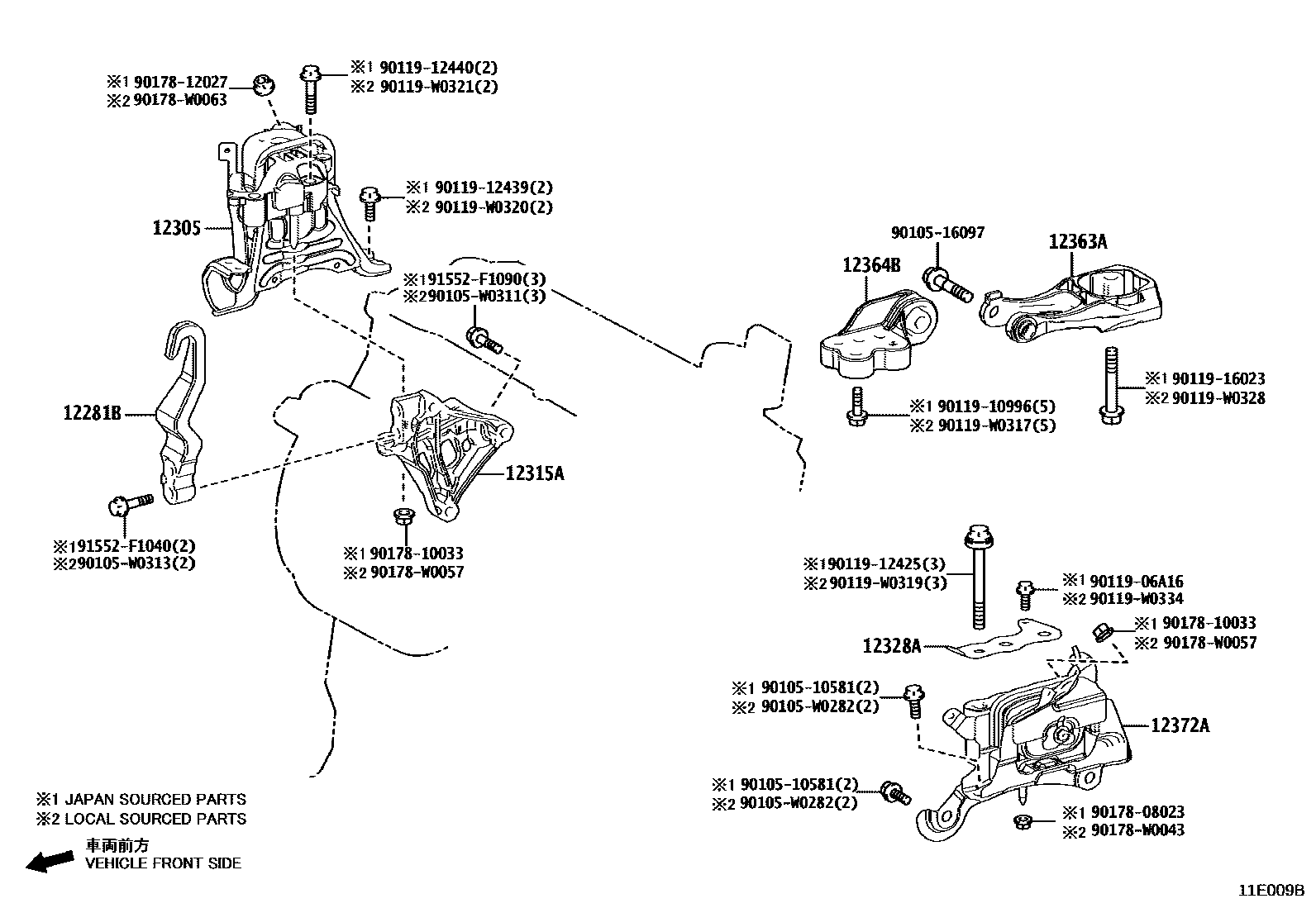

Toyota COROLLA Engine Mounting EPC diagram — 11E009B
Engine Mounting — 11E009B (201902 – 999999)

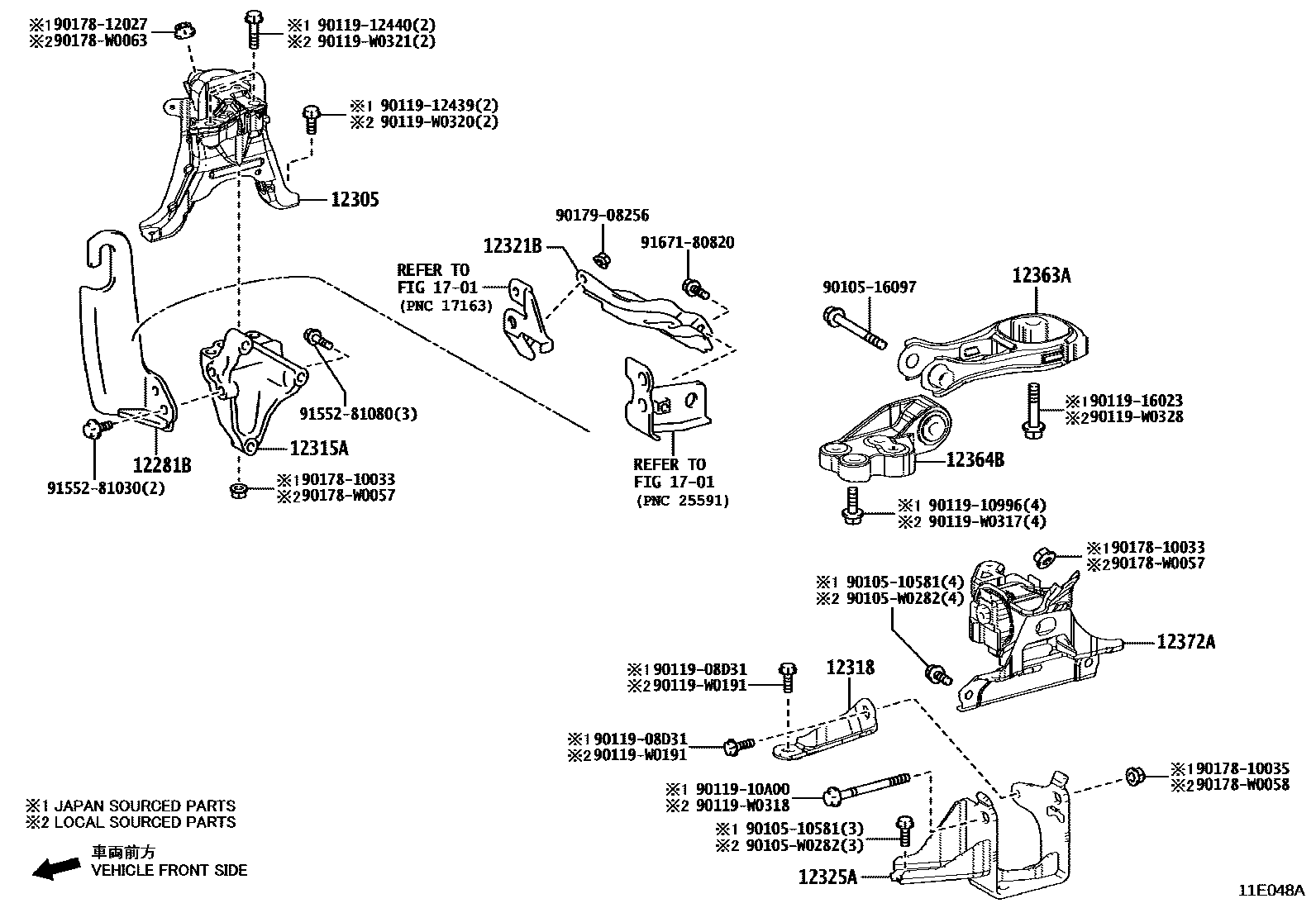

Toyota COROLLA Engine Mounting EPC diagram — 11E048A
Engine Mounting — 11E048A (201901 – 999999)

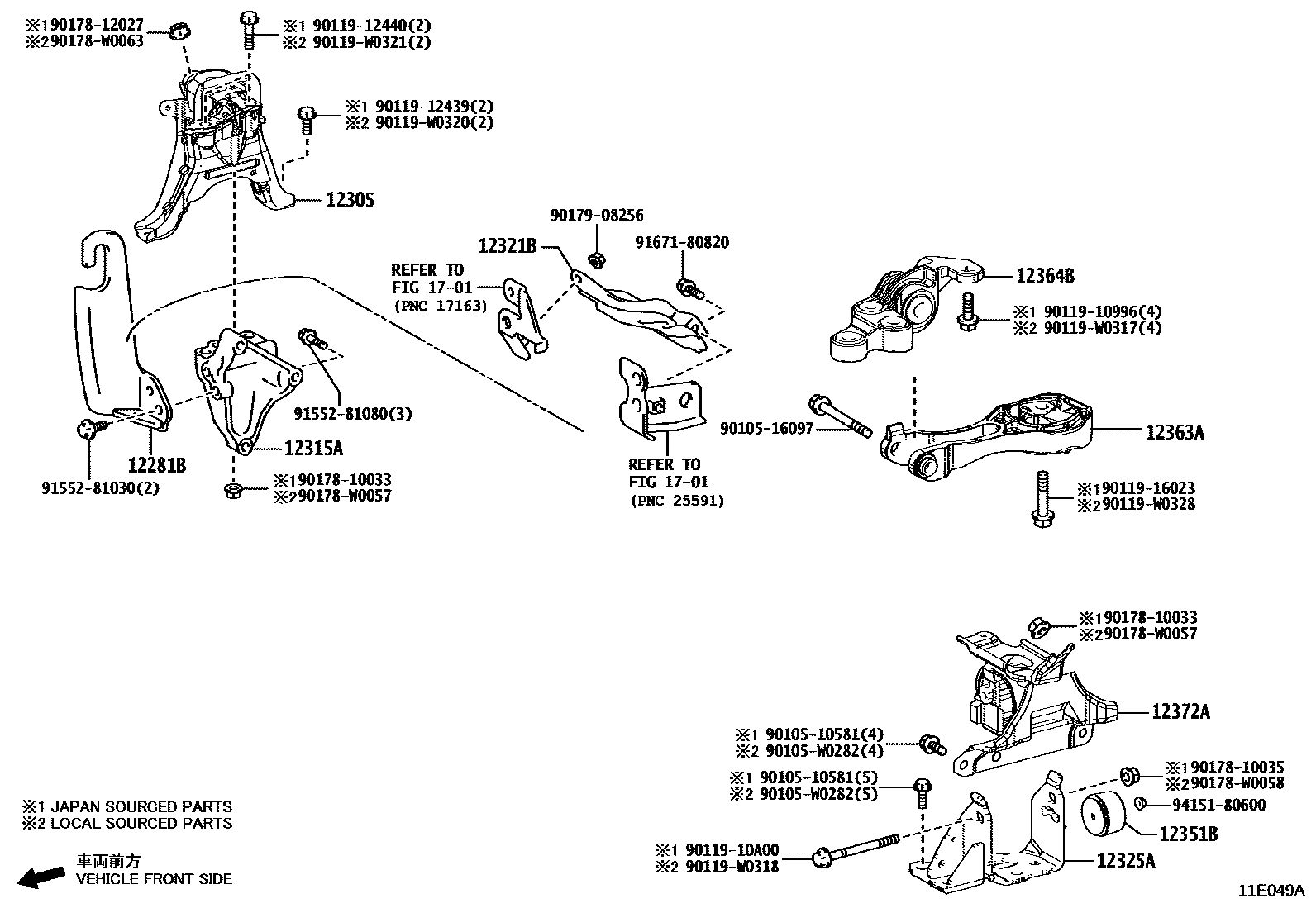

Toyota COROLLA Engine Mounting EPC diagram — 11E049A
Engine Mounting — 11E049A (201901 – 999999)

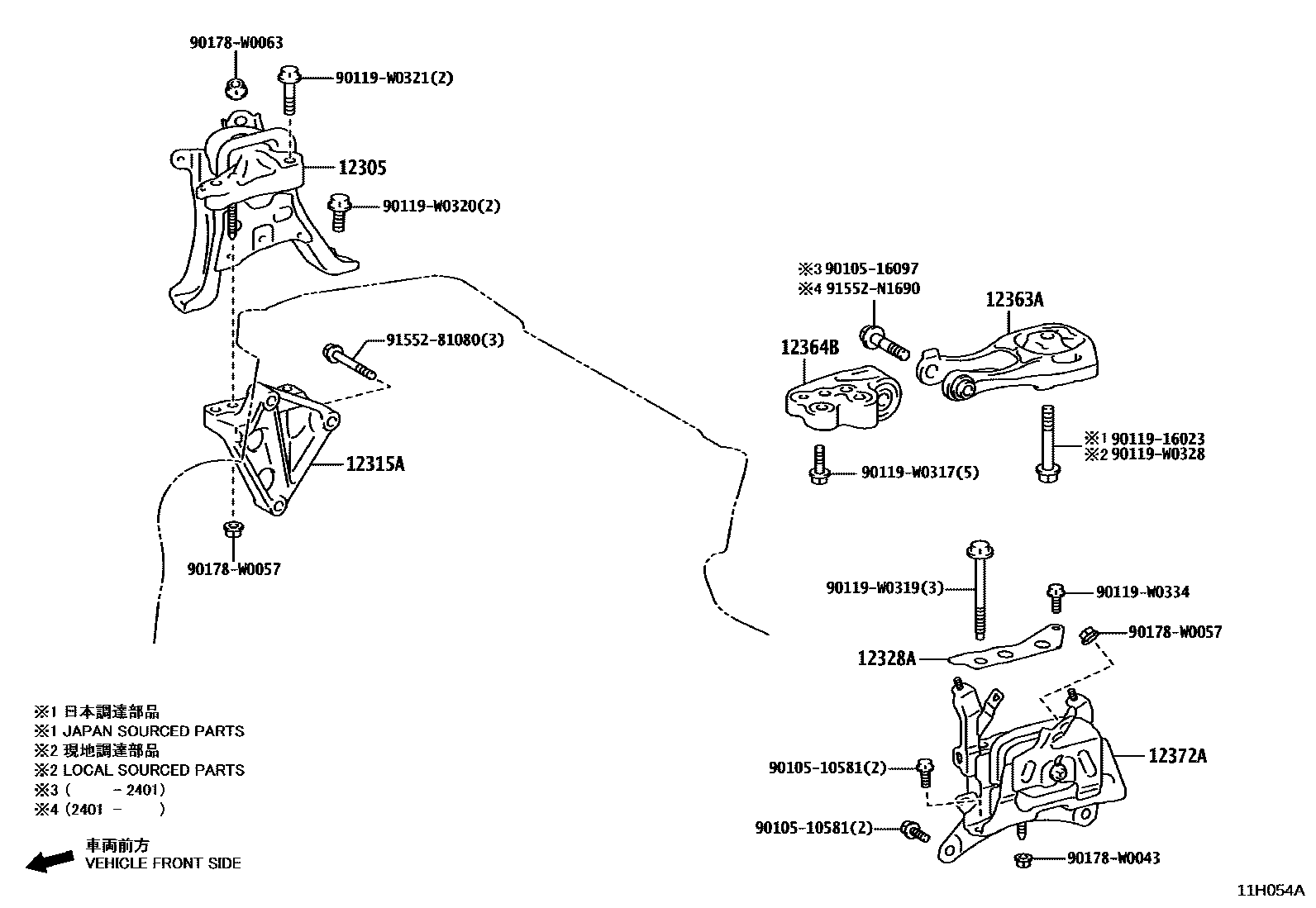

Toyota COROLLA Engine Mounting EPC diagram — 11H054A
Engine Mounting — 11H054A (202301 – 999999)

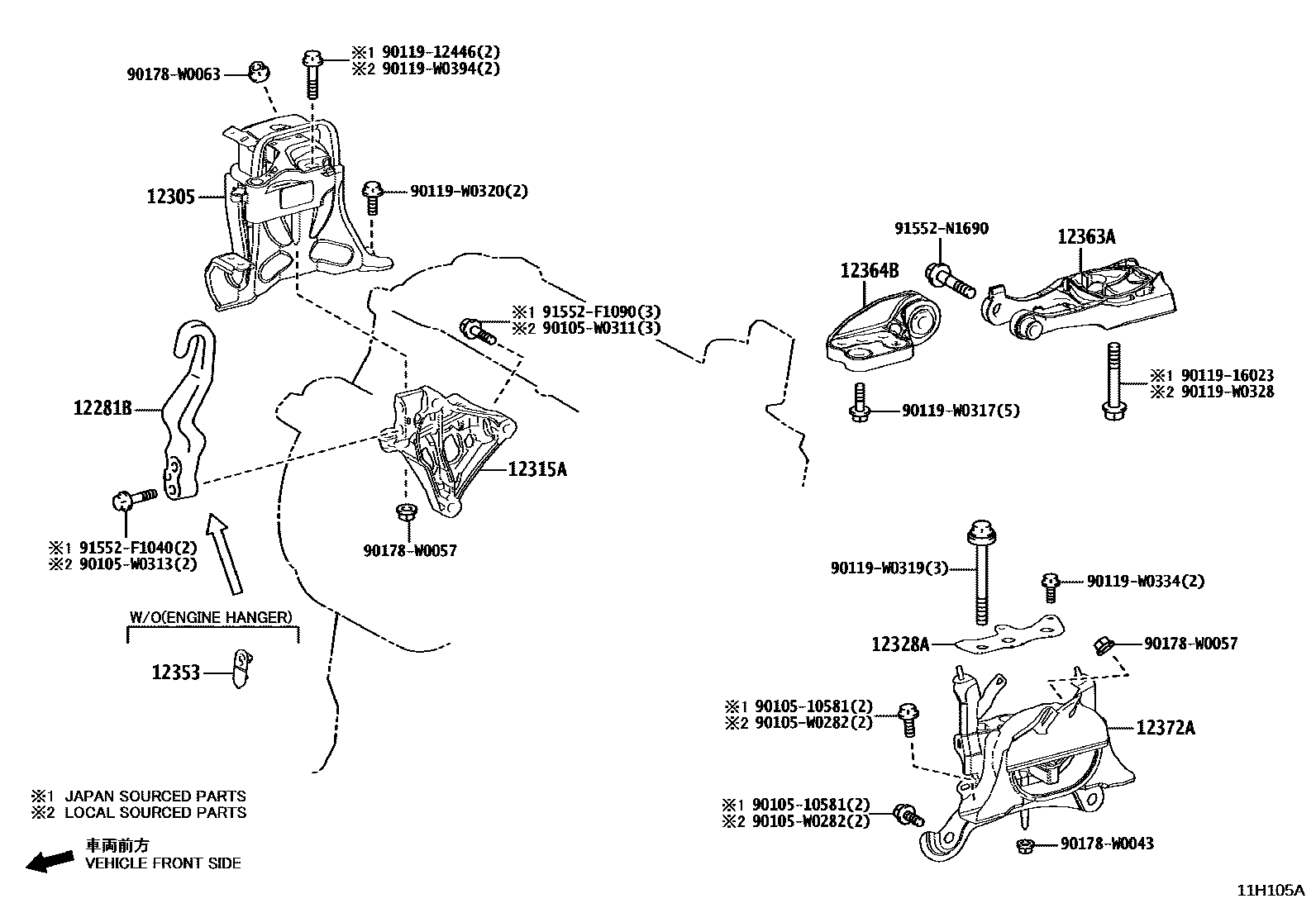

Toyota COROLLA Engine Mounting EPC diagram — 11H105A
Engine Mounting — 11H105A (202301 – 999999)

PNC and OE references

PNCPart nameOE numbers
12281BEngine No. 1 hanger12281-25030 · 12281-47060
12305Engine right side mounting vibration isolation pad sub-assembly12305-0T331 · 12305-0T332 · 12305-0T420 · 12305-0Y151 · 12305-24020 · 12305-F2090 · 12305-F2130
12315AEngine right side mounting bracket (for transversely mounted engine)12315-24010 · 12315-24011 · 12315-37060 · 12315-37070 · 12315-47081 · 12315-F2040 · 12315-F2041
12318Engine left mounting bracket12318-0Y010
12321BDrive shaft heat insulation pad sub-assembly43409-02080 · 43409-02081
12325AEngine left side mounting bracket (for transversely mounted engine)12325-0Y210 · 12325-0Y220
12328AEngine No. 2 left side mounting bracket12328-0T050 · 12328-0T070 · 12328-F2010 · 12328-F2070
12351Bengine mount shock absorber12351-0T070
12353Engine mounting bracket cover12353-15010
12363AEngine movement control lever12363-0T060 · 12363-0T140 · 12363-0Y150 · 12363-24030 · 12363-47101 · 12363-F2080
12364BEngine No. 2 motion control lever12364-0T070 · 12364-0T090 · 12364-0Y170 · 12364-0Y180 · 12364-24020
12372AEngine left-side mounting vibration isolation pad (for transversely mounted engines)12372-0T571 · 12372-0T680 · 12372-0Y182 · 12372-0Y192 · 12372-24030 · 12372-F2040
