Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 4 images and 10 PNC and OE references.

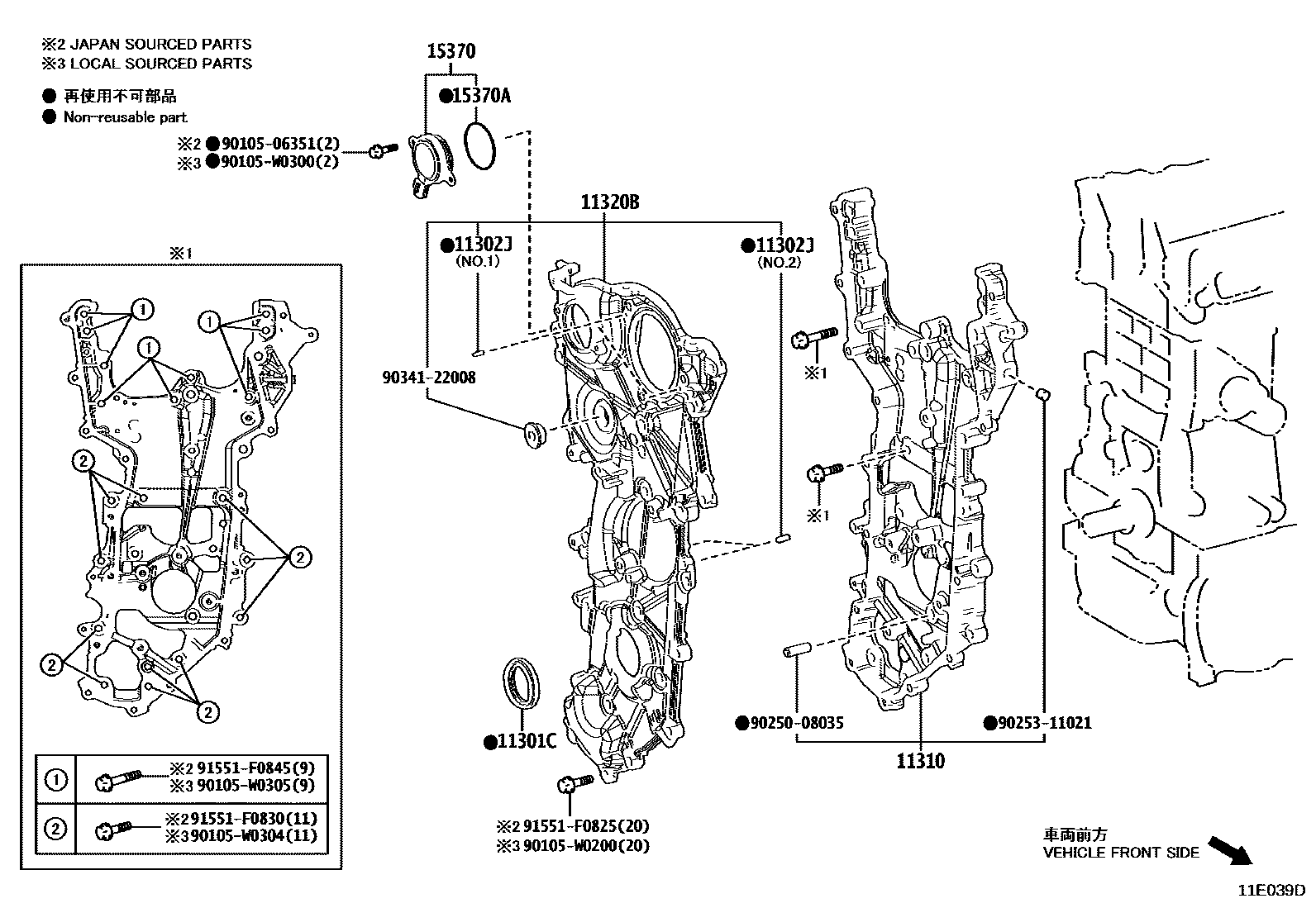

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11E039D
Timing Gear Cover & Rear End Plate — 11E039D (201902 – 999999)

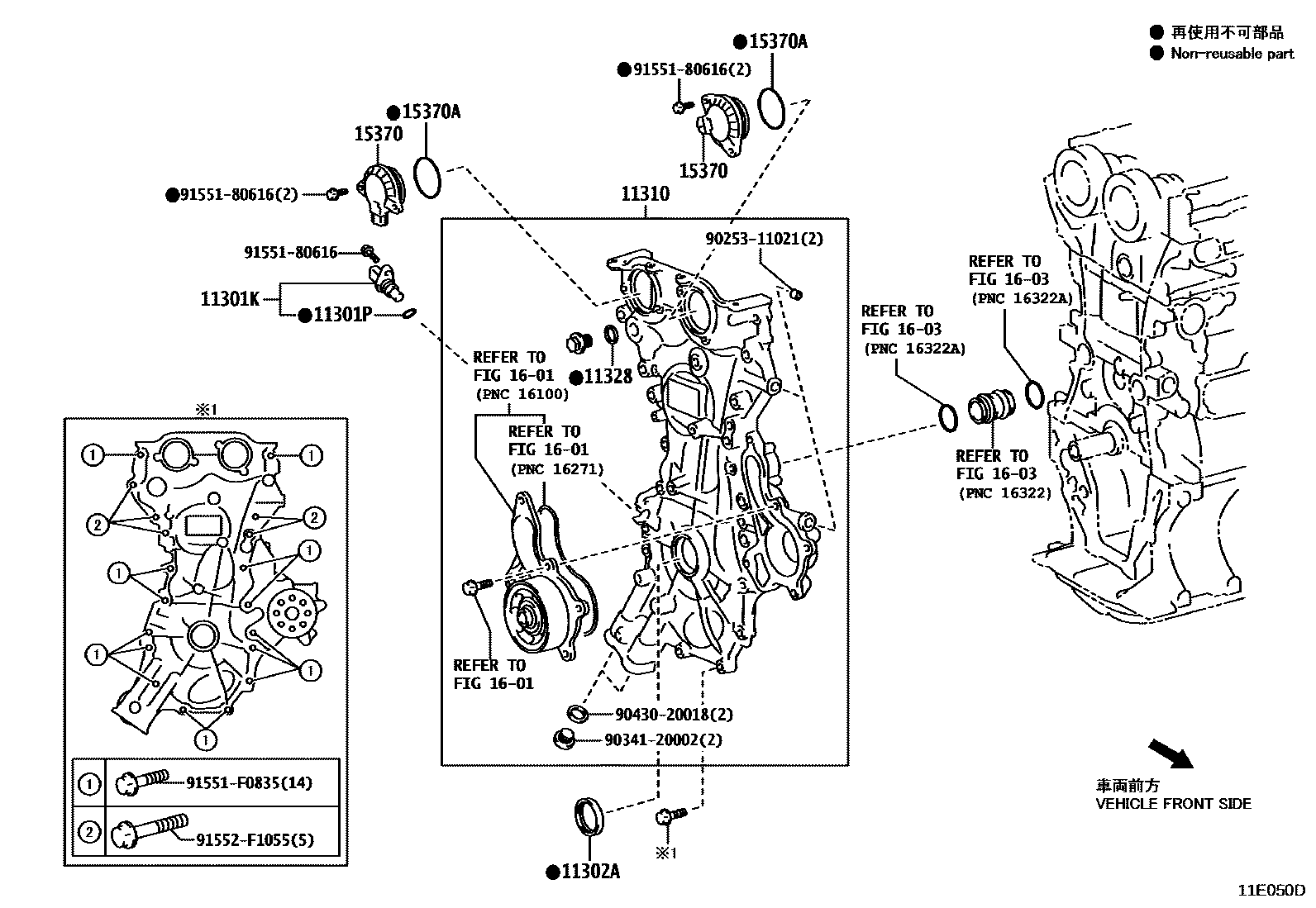

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11E050D
Timing Gear Cover & Rear End Plate — 11E050D (201901 – 999999)

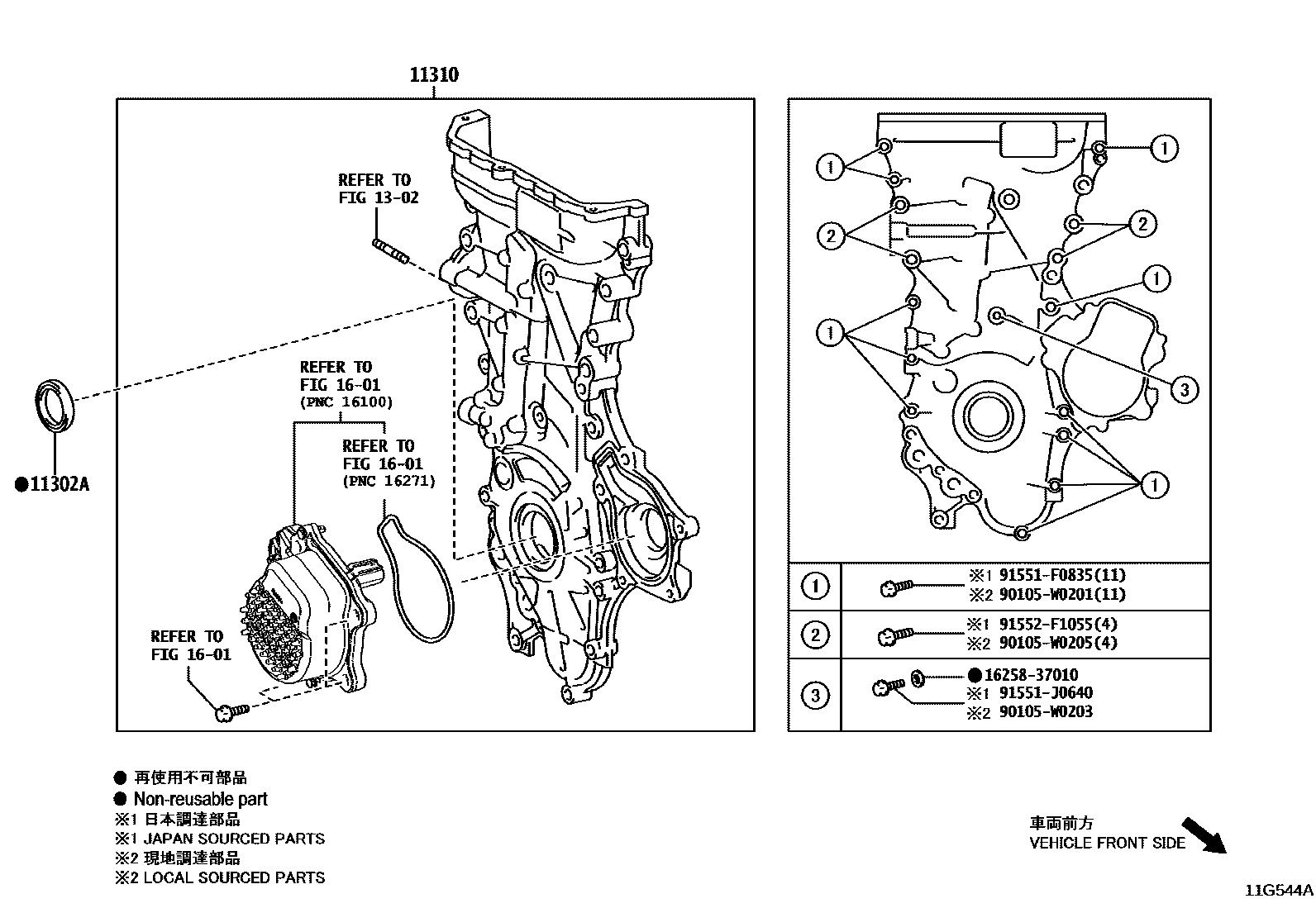

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11G544A
Timing Gear Cover & Rear End Plate — 11G544A (201901 – 999999)

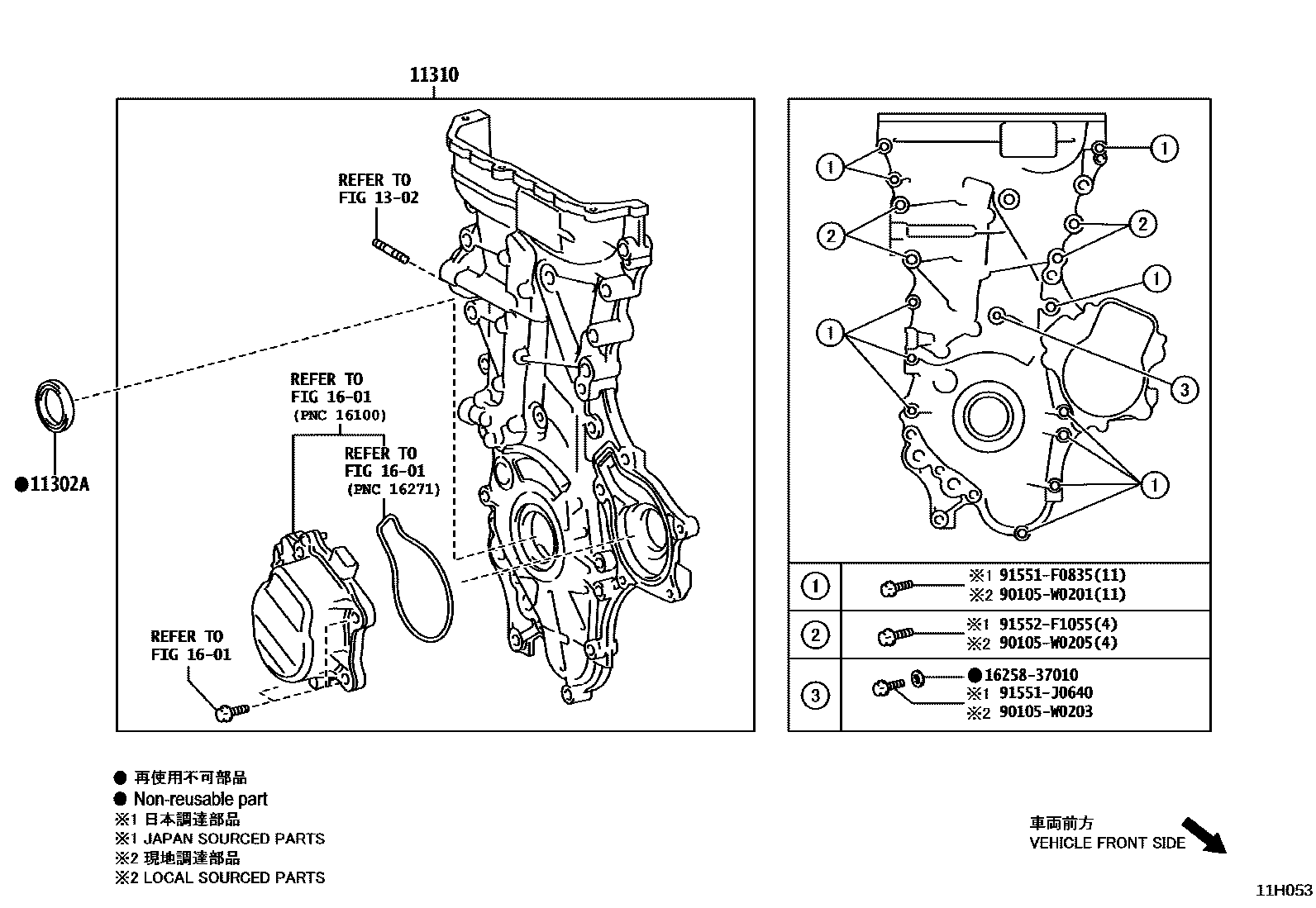

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11H053
Timing Gear Cover & Rear End Plate — 11H053 (202301 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-40044 · 90311-W0021
11301Kcrankshaft position sensor90919-05079
11301PCrankshaft position sensor O-ring90301-14016
11302AOil seal (for timing chain or timing belt cover)90311-36007 · 90311-38096
11302JDirect sales (for timing chain cover)90250-04097 · 90250-06003
11310Timing chain cover assembly11310-0T160 · 11310-0T170 · 11310-24010 · 11310-37080 · 11310-37090 · 11310-37110 · 11310-47081 · 11310-F2030
11320BNo. 2 timing chain cover assembly11320-24010 · 11320-F2030
11328GASKET, TIMING GEAR OR CHAIN COVER11328-47010
15370Camshaft timing oil control solenoid valve assembly15370-25020 · 15370-47010
15370AO-ring (for camshaft timing oil control solenoid valve)90301-44006 · 90301-50003
