Toyota COROLLA Cylinder Head — Figure 1104

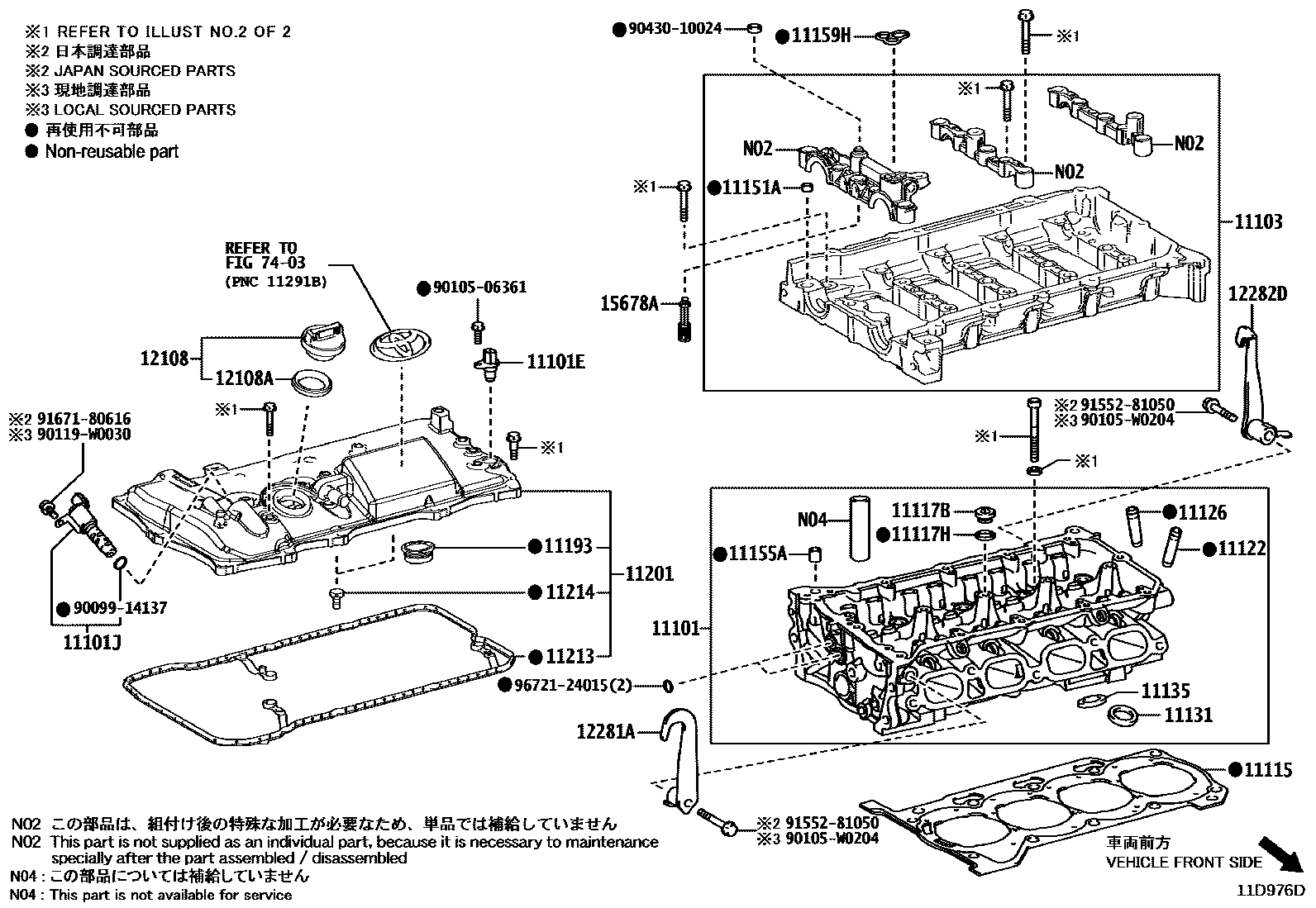

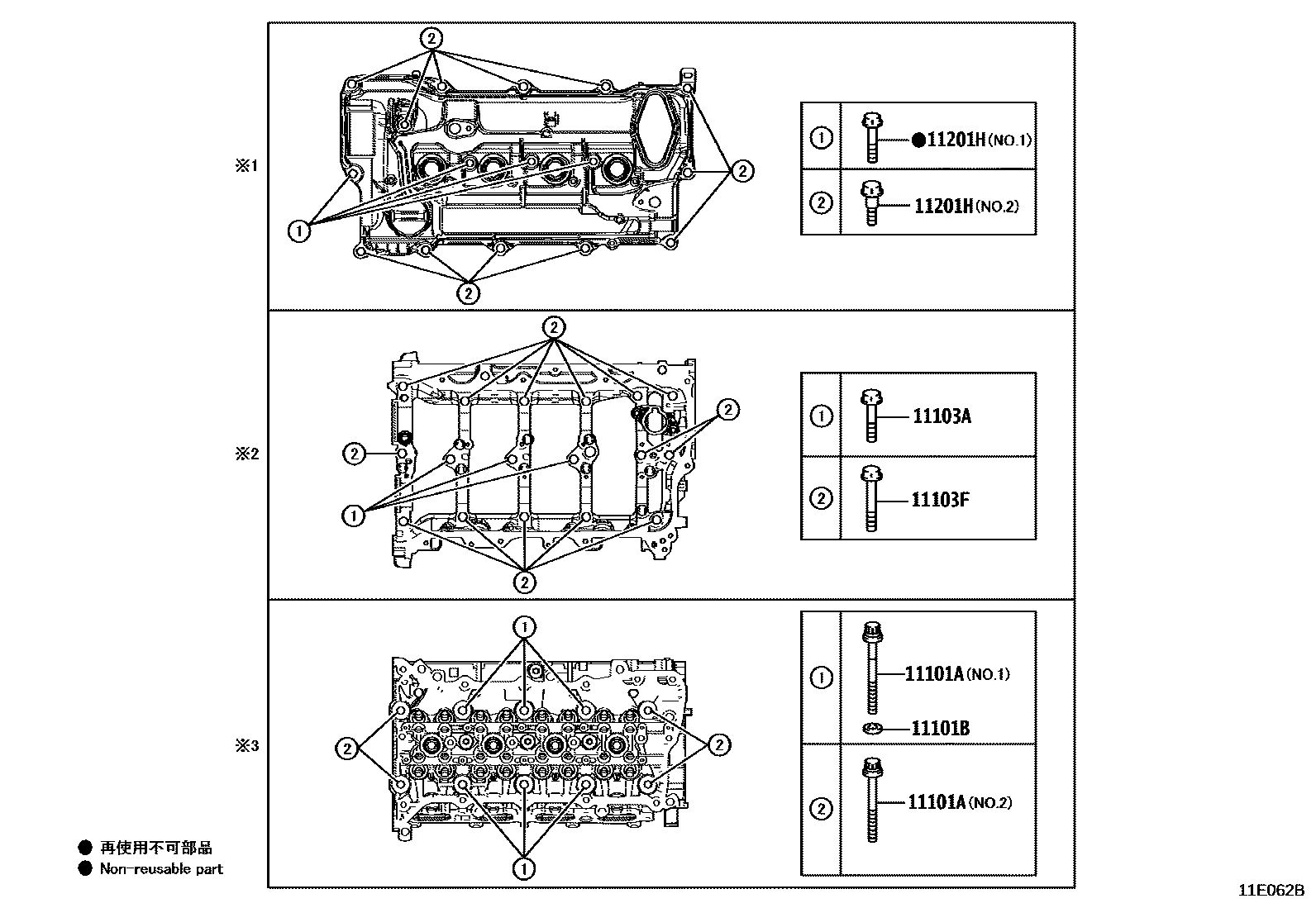

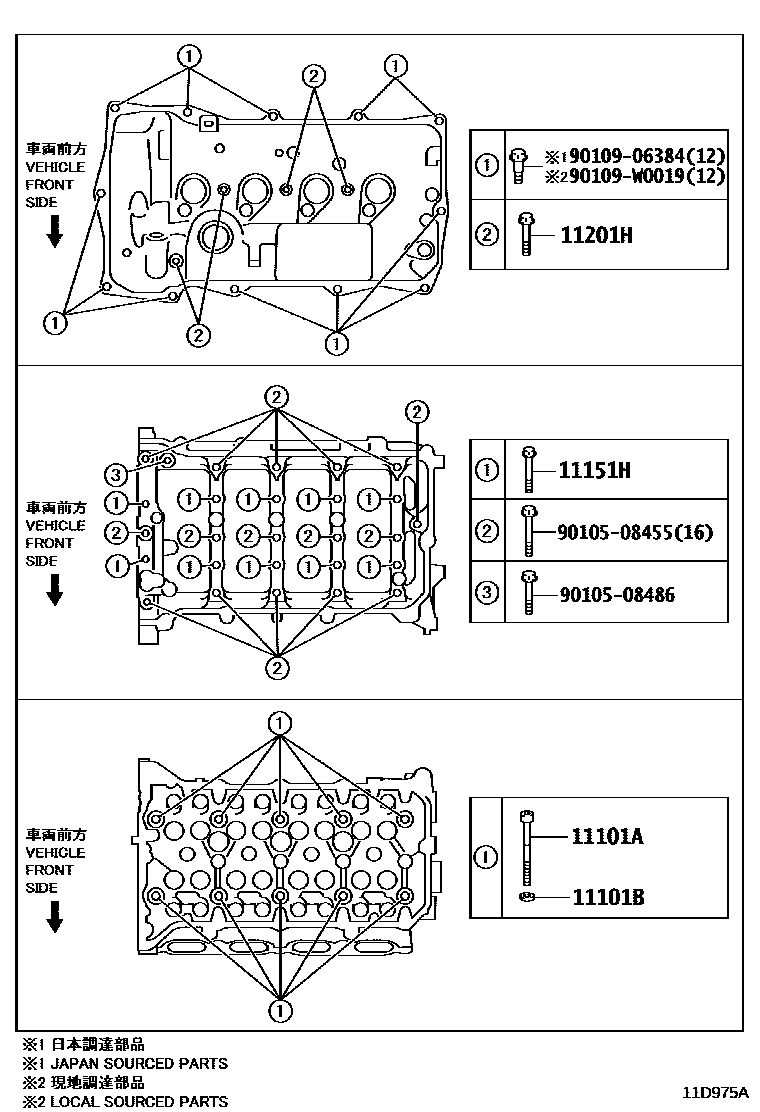

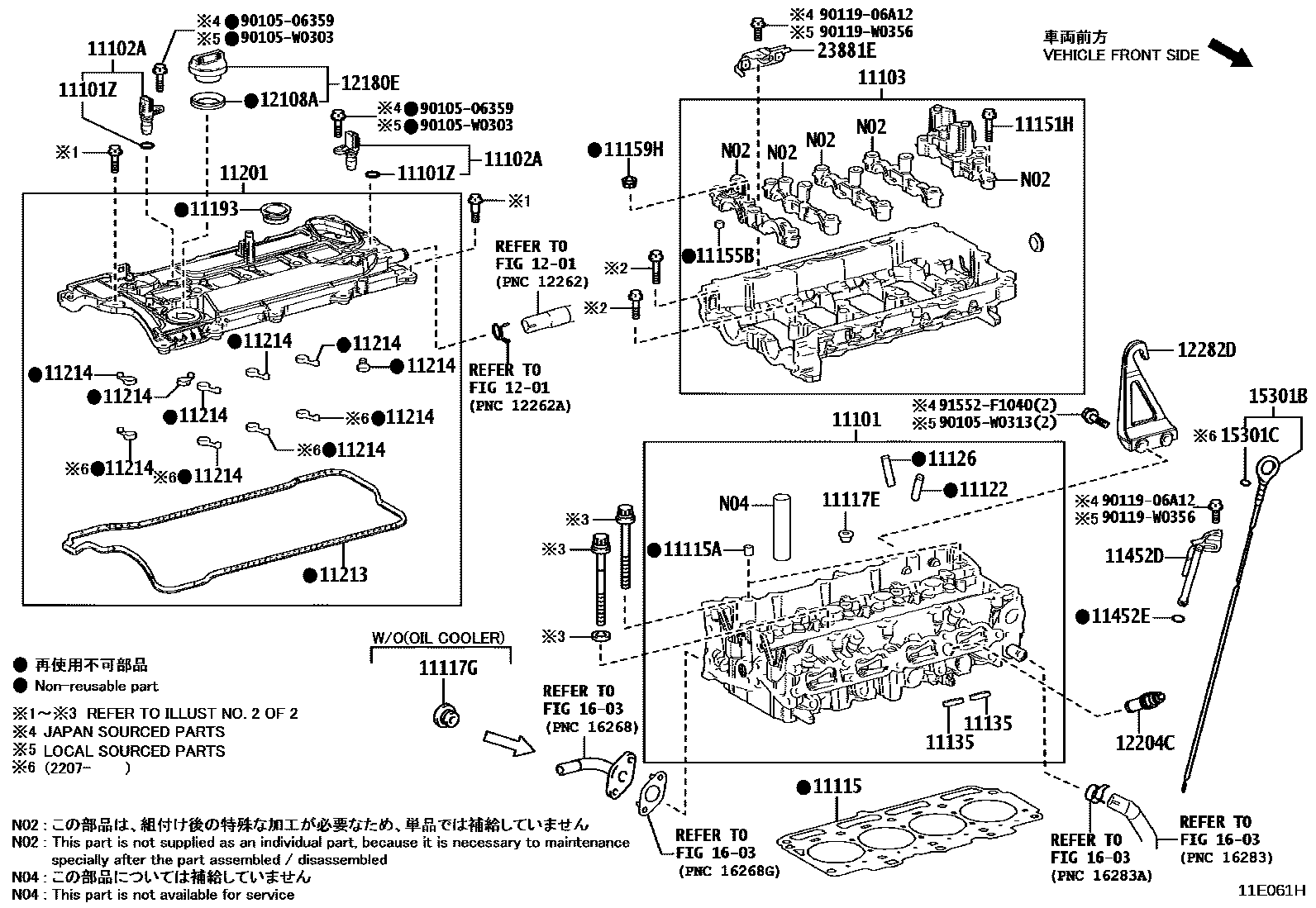

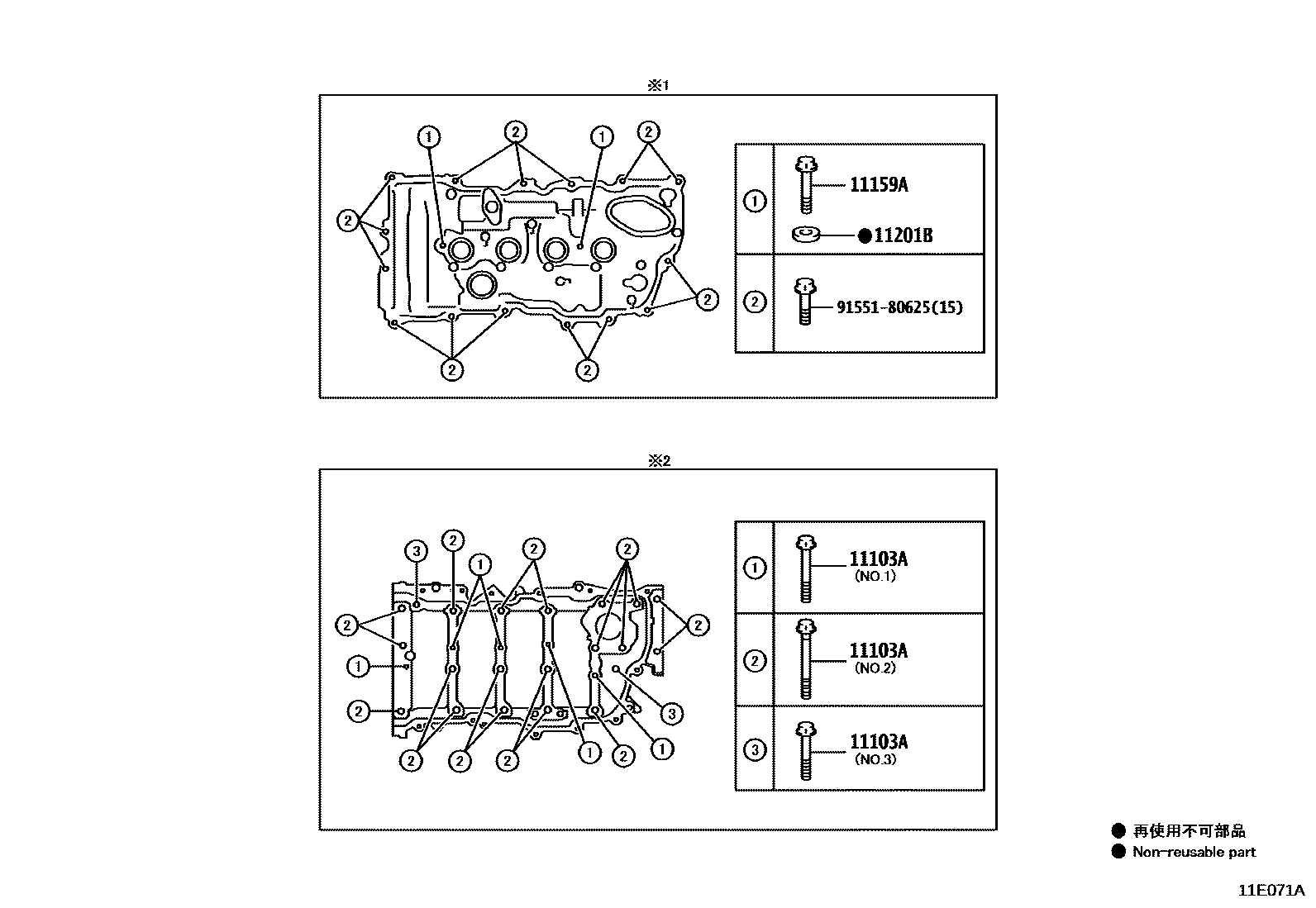

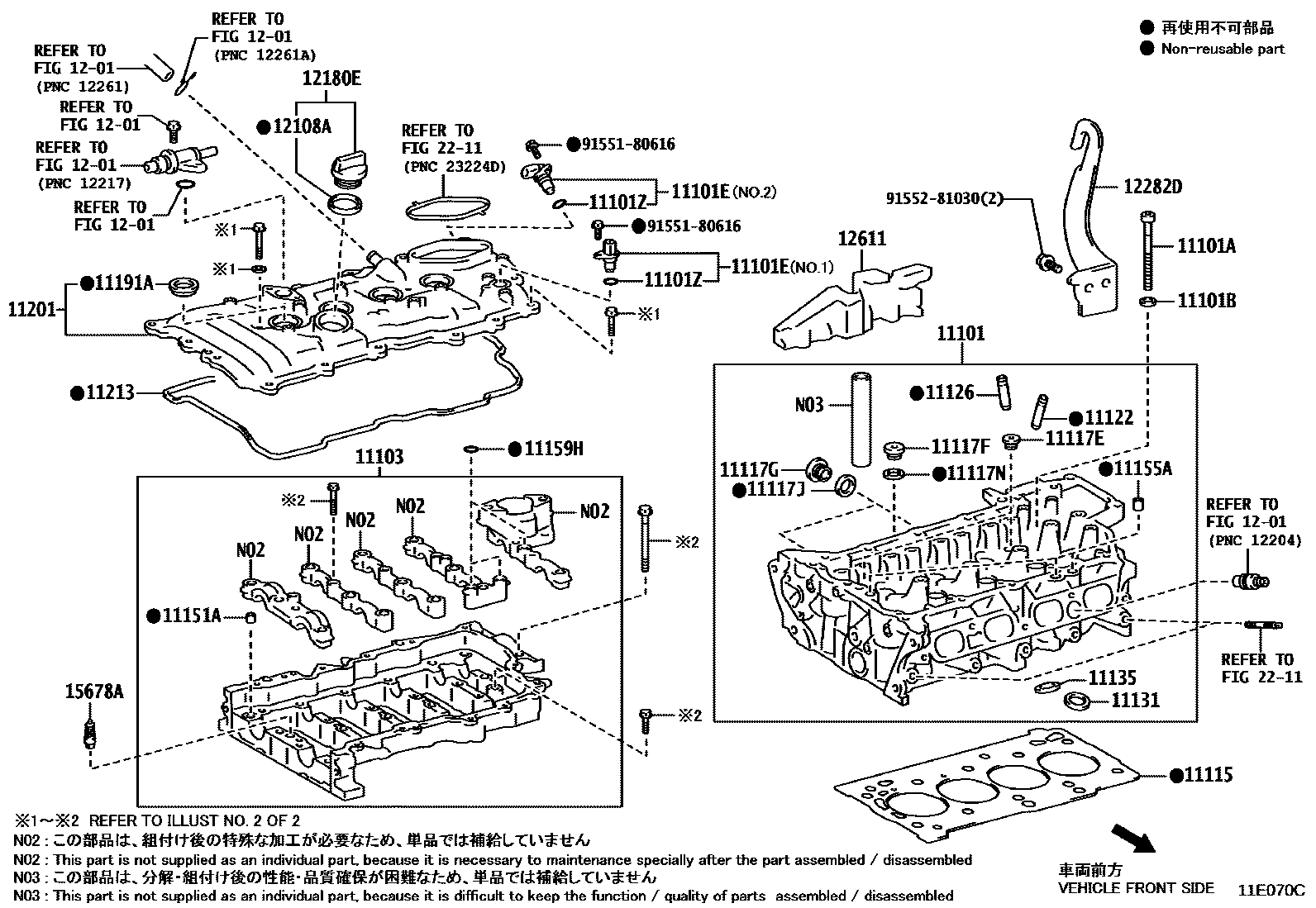

Toyota COROLLA EPC diagram 1104, Cylinder Head, with 6 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09640 · 11101-29645 · 11101-29646 · 11101-29647 · 11101-49516 · 11101-80000 · 11101-F9010 · 11101-F9011 · 11101-F9012 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02166 · 90910-02190 · 90910-02202 · 90910-02205 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10344 · 90201-11034 · 90201-12079 |
| 11101E | Cam position sensor | 90919-05060 · 90919-05061 |
| 11101J | Camshaft timing oil control valve assembly | 15330-0T050 · 15330-37010 |
| 11101Z | Cam position sensor O-ring | 90301-11038 · 90301-14016 |
| 11102A | Camshaft position sensor | 90919-05096 |
| 11103 | Camshaft housing sub-assembly | 11103-0T090 · 11103-24021 · 11103-24022 · 11103-37040 · 11103-47050 · 11103-47070 · 11103-F2041 · 11103-F2042 |
| 11103A | Bolts (for camshaft housing assembly) | 90105-08455 · 90105-W0307 · 90119-07009 · 91551-G0840 · 91551-G0845 |
| 11103F | Bolts (for camshaft housing assembly) | 90105-W0309 · 91551-G0865 |
| 11115 | GASKET, CYLINDER HEAD | 11115-24040 · 11115-37070 · 11115-37071 · 11115-47090 |
| 11115A | PIN, RING | 90253-12002 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-14015 |
| 11117F | No. 2 headed straight thread plug | 90341-20002 |
| 11117G | No. 3 headed straight thread plug | 90341-20012 · 90341-27006 |
| 11117H | Gasket (for coolant hole) | 90430-20004 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-27005 |
| 11117N | Gasket (for No. 2 cylinder head threaded plug) | 90430-20004 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-31050 · 11122-31070 · 11122-31090 · 11122-47010 · 11123-31050 · 11123-31070 · 11123-31090 · 11123-47010 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-31041 · 11122-47010 · 11123-31041 · 11123-47010 · 11126-31030 · 11127-31030 |
| 11131 | intake valve seat | 11131-0T090 · 11131-37050 · 11131-37110 · 11131-47040 · 11132-37050 · 11132-47040 |
| 11135 | Exhaust valve seat | 11135-24020 · 11135-37020 · 11135-47050 · 11135-F2020 · 11136-37020 · 11136-47010 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-13005 |
| 11151H | Bolts (for mounting camshaft bearing cap to camshaft housing) | 90119-07009 |
| 11155A | PIN, RING W/HEAD | 90253-12002 |
| 11155B | PIN, RING | 90253-13005 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 91551-80635 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-31040 · 11159-37010 · 90430-10024 |
| 11191A | Gasket (for spark plug bushing) | 11193-47020 |
| 11193 | spark plug bushing gasket | 11193-37030 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0T120 · 11201-24031 · 11201-24032 · 11201-24040 · 11201-47161 |
| 11201B | Gasket (for cylinder head cover) | 90210-05008 |
| 11201H | Bolts (for cylinder head cover) | 90105-06359 · 90105-06361 · 90105-W0303 · 90109-06384 · 90109-W0019 · 91551-80630 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-24020 · 11213-37050 · 11213-47050 |
| 11214 | No. 2 cylinder head cover gasket | 11213-31080 |
| 11452D | Engine oil level gauge guide | 11452-24020 |
| 11452E | O-ring (for oil level gauge guide) | 96741-19010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-38010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-35001 |
| 12180E | Oil filler cap assembly | 12180-38010 |
| 12204C | Ventilation valve sub-assembly | 12204-25010 · 12204-F2020 |
| 12281A | Engine No. 1 hanger | 12281-0T040 · 12281-37021 |
| 12282D | ENGINE HANGER, NO.2 | 12282-0T040 · 12282-25010 · 12282-37011 · 12282-47030 |
| 12611 | Engine hood No. 1 | 12611-47110 |
| 15301B | Engine oil level scoring assembly | 15301-24020 · 15301-24030 · 15301-F2040 · 15301-F2080 |
| 15301C | O-ring (for engine oil level gauge) | 96741-19005 |
| 15678A | Oil control valve filter | 15678-37010 · 15678-46020 |
| 23881E | fuel hose bracket | 23881-24020 |
