Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

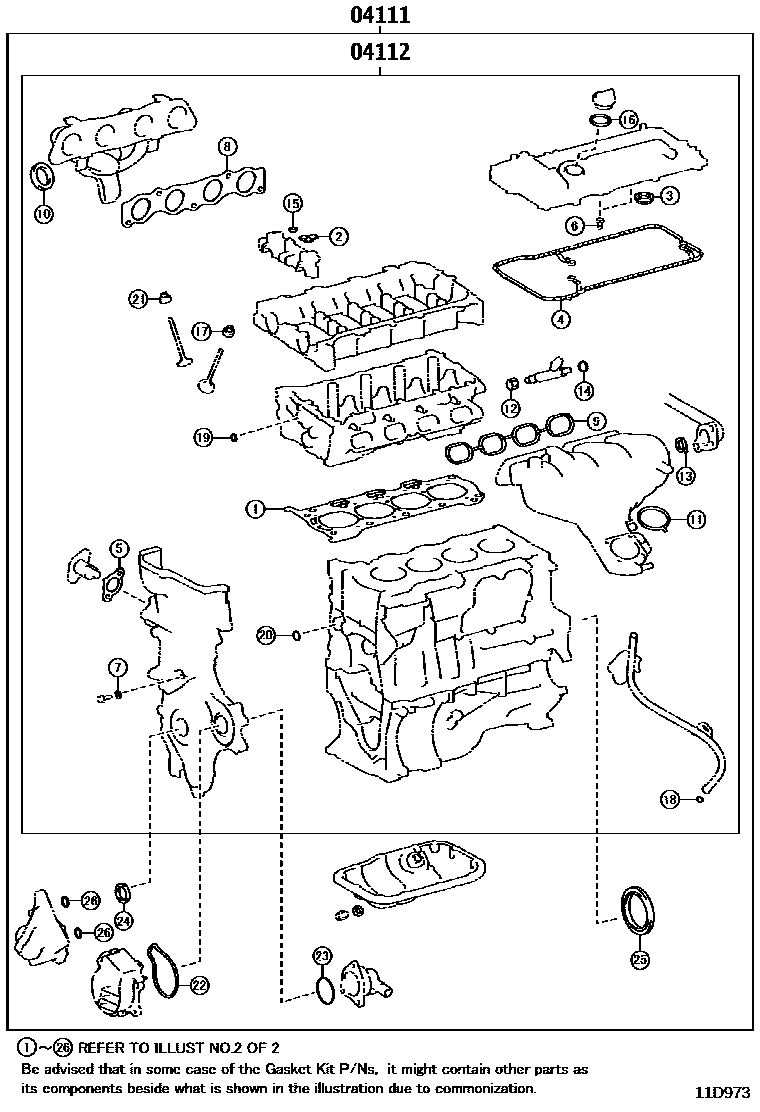

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D973
Engine Overhaul Gasket Kit — 11D973 (201901 – 999999)

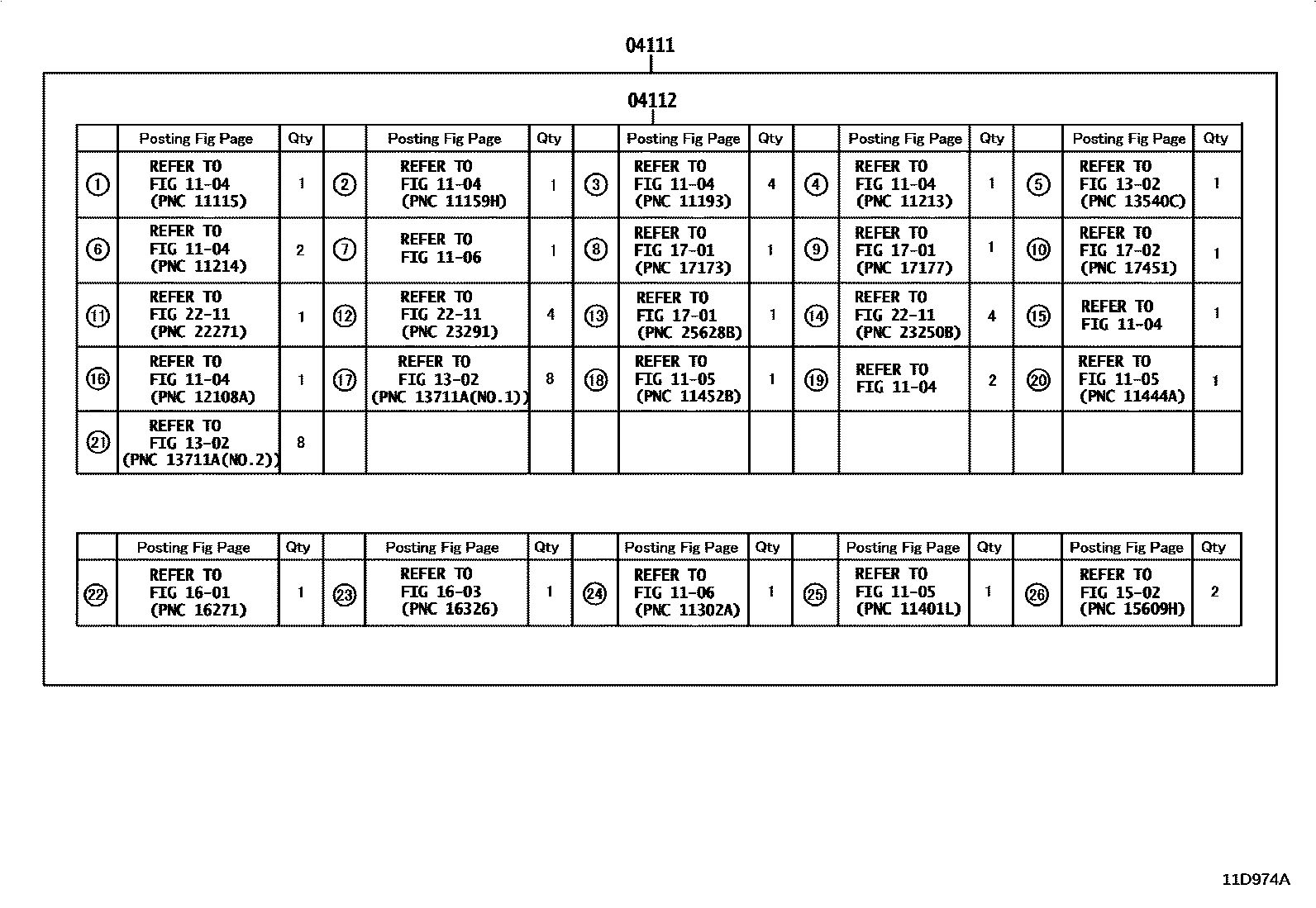

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D974A
Engine Overhaul Gasket Kit — 11D974A (201901 – 999999)

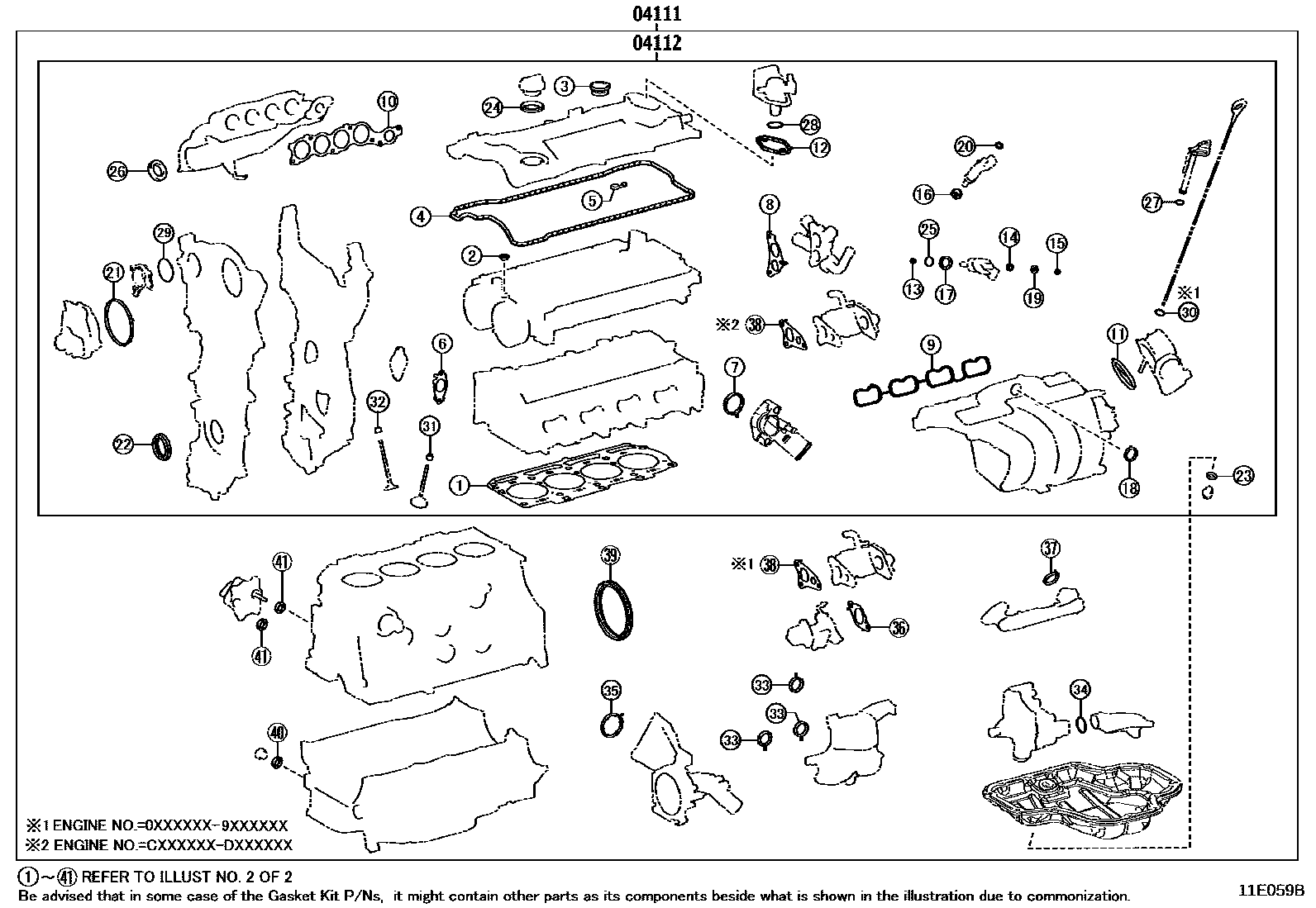

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E059B
Engine Overhaul Gasket Kit — 11E059B (201902 – 999999)

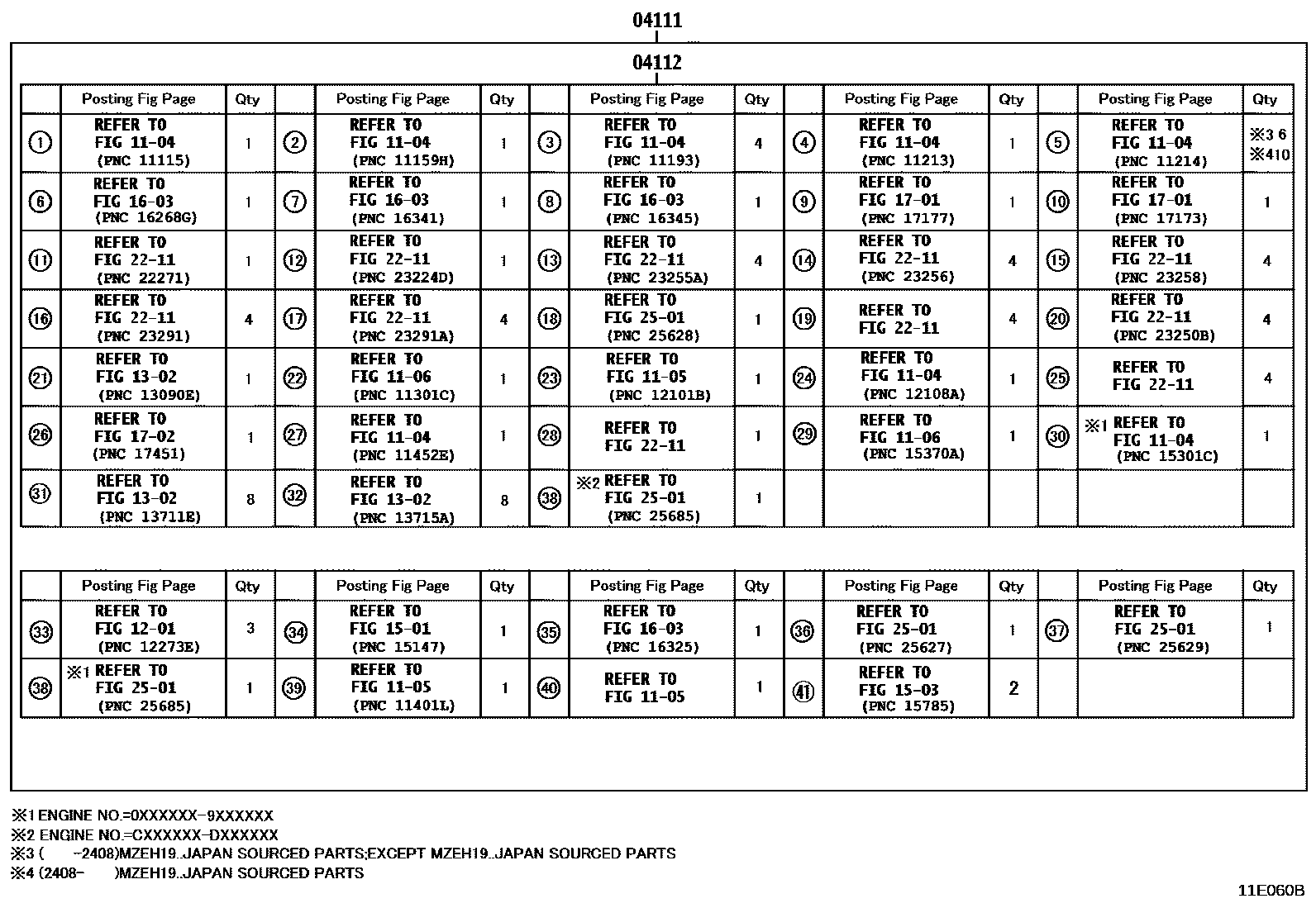

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E060B
Engine Overhaul Gasket Kit — 11E060B (201902 – 999999)

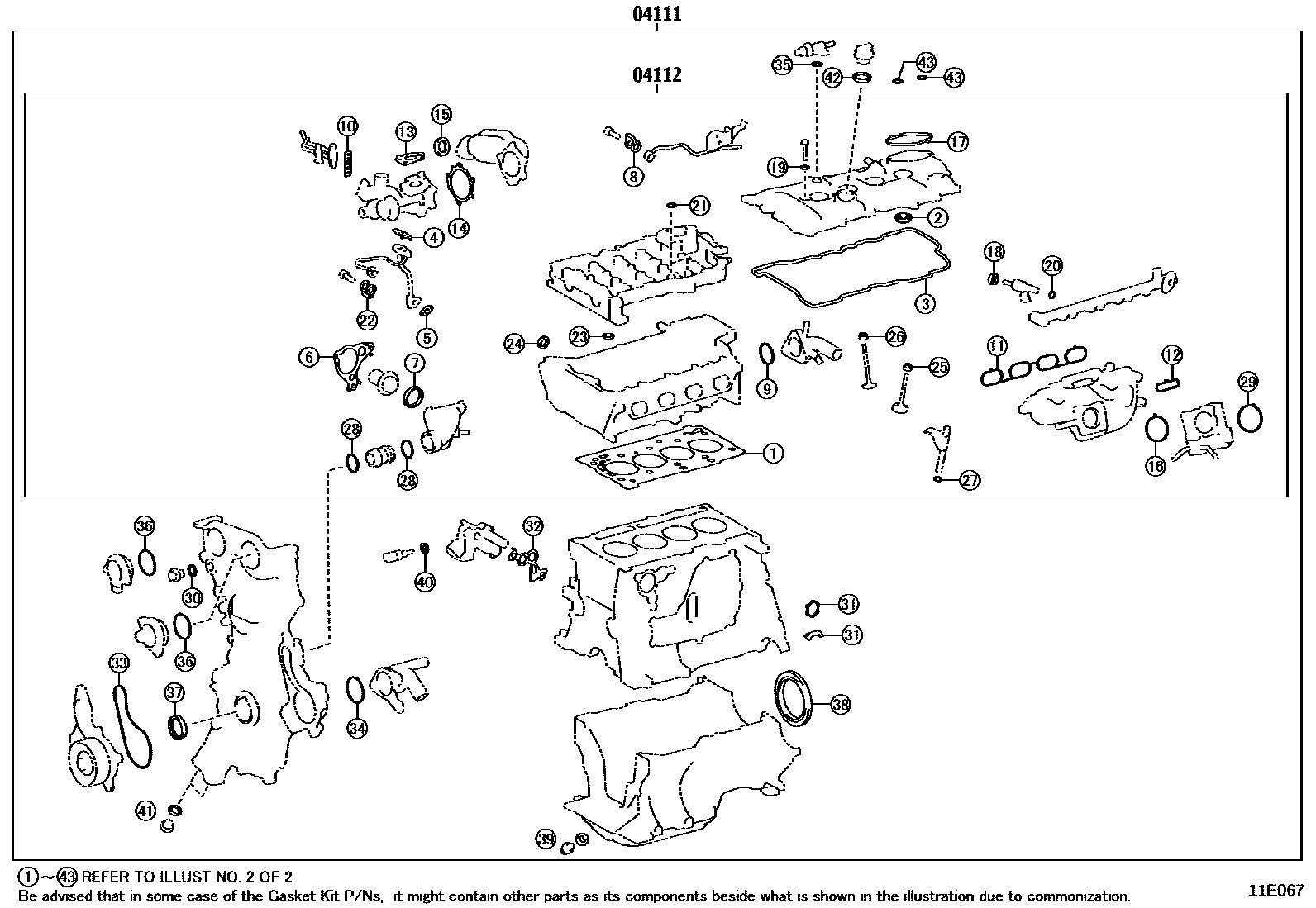

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E067
Engine Overhaul Gasket Kit — 11E067 (201901 – 999999)

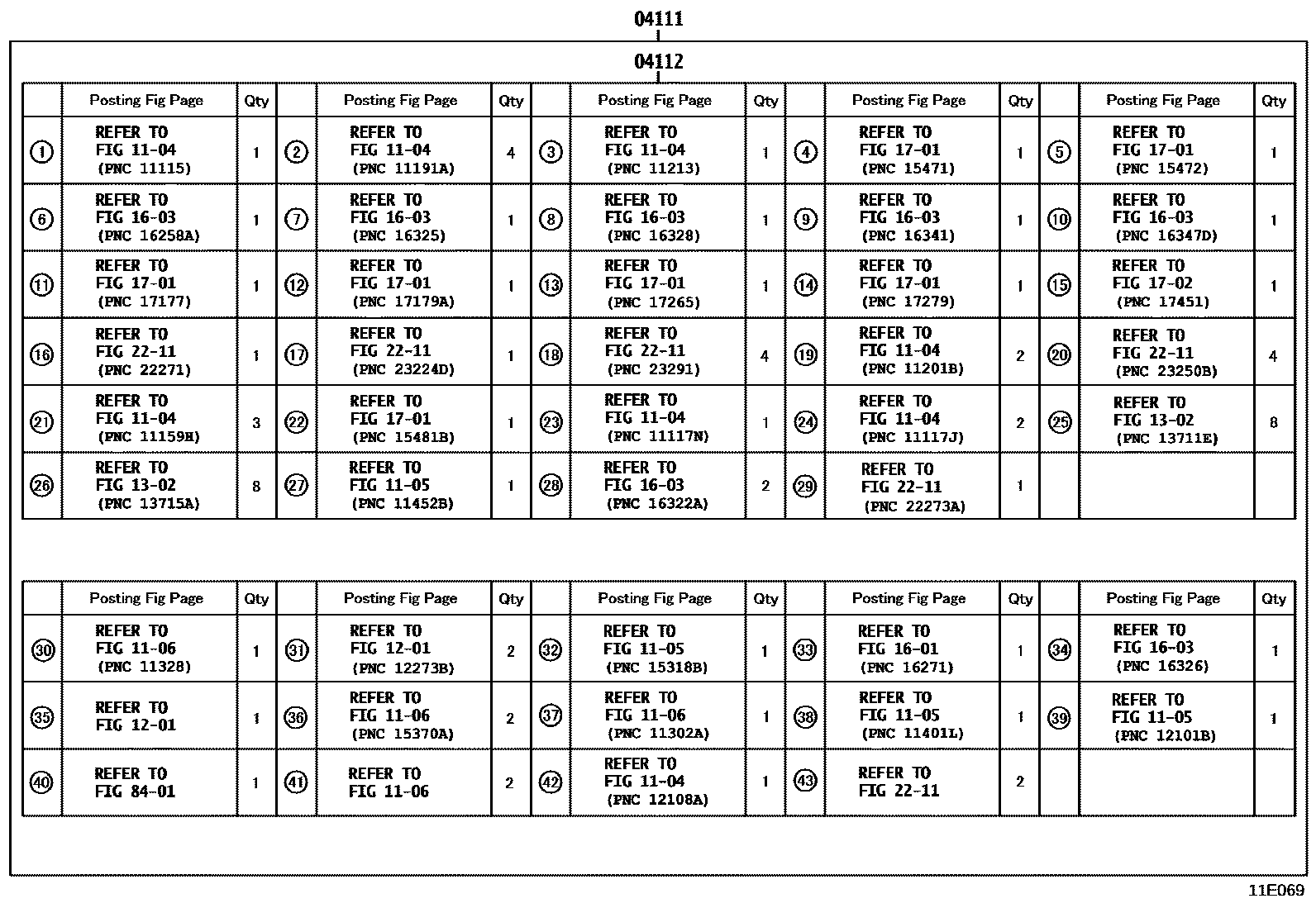

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E069
Engine Overhaul Gasket Kit — 11E069 (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0T281 · 04111-0T282 · 04111-0T283 · 04111-24130 · 04111-24131 · 04111-24132 · 04111-47272 · 04111-F2010 · 04111-F2011
04112Engine valve grinding pad assembly04112-0T231 · 04112-0T232 · 04112-0T233 · 04112-24070 · 04112-24071 · 04112-24072 · 04112-47182 · 04112-F2010 · 04112-F2011
