Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

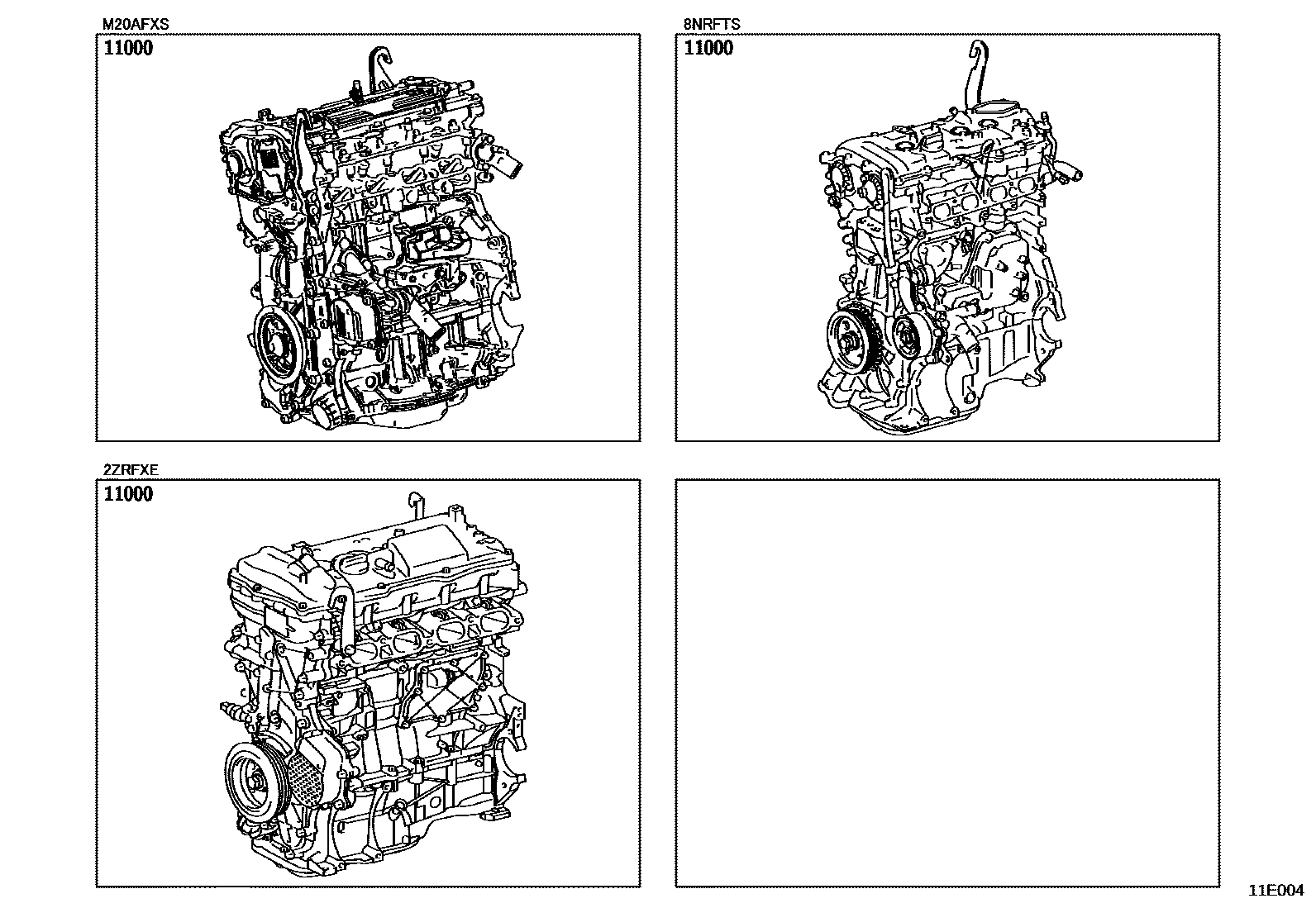

Toyota COROLLA Partial Engine Assembly EPC diagram — 11E004
Partial Engine Assembly — 11E004 (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0T580 · 19000-0T670 · 19000-0T810 · 19000-0T820 · 19000-0T830 · 19000-0T840 · 19000-0T850 · 19000-0T860 · 19000-24320 · 19000-24390 · 19000-2U030 · 19000-47470 · 19000-F2010 · 19000-F2220
