Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 2 PNC and OE references.

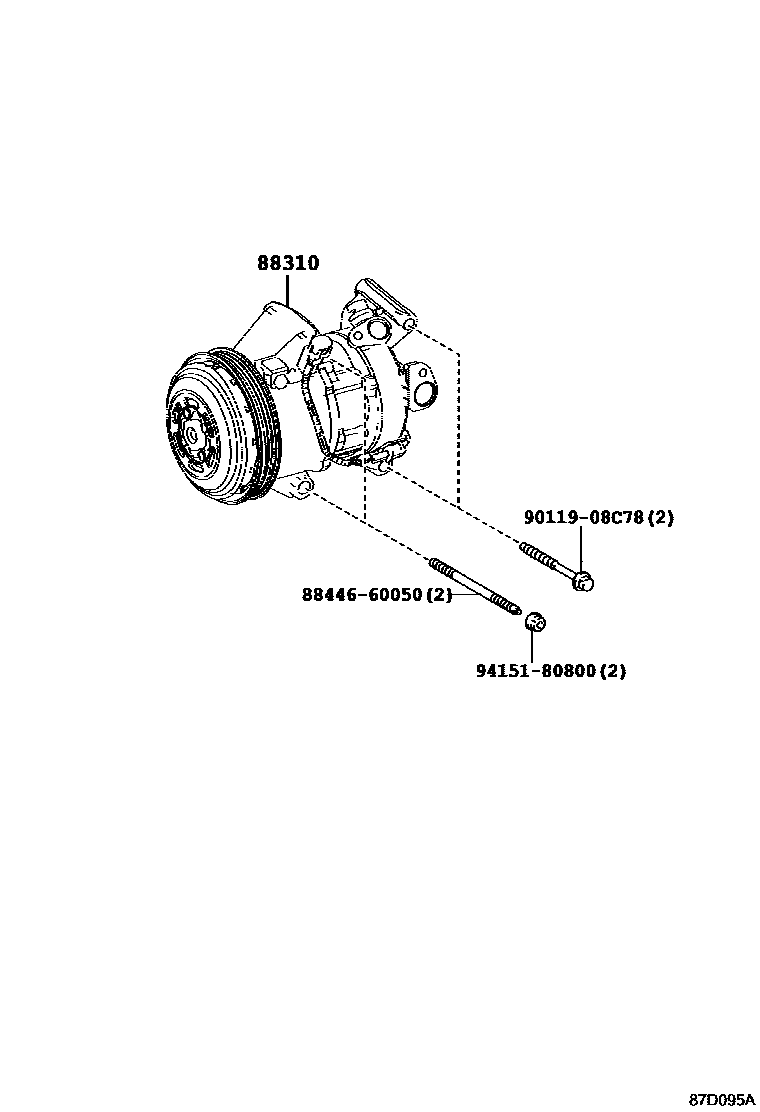

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87D095A — Heating & Air Conditioning - Compressor — 87D095A (201208 – 999999)

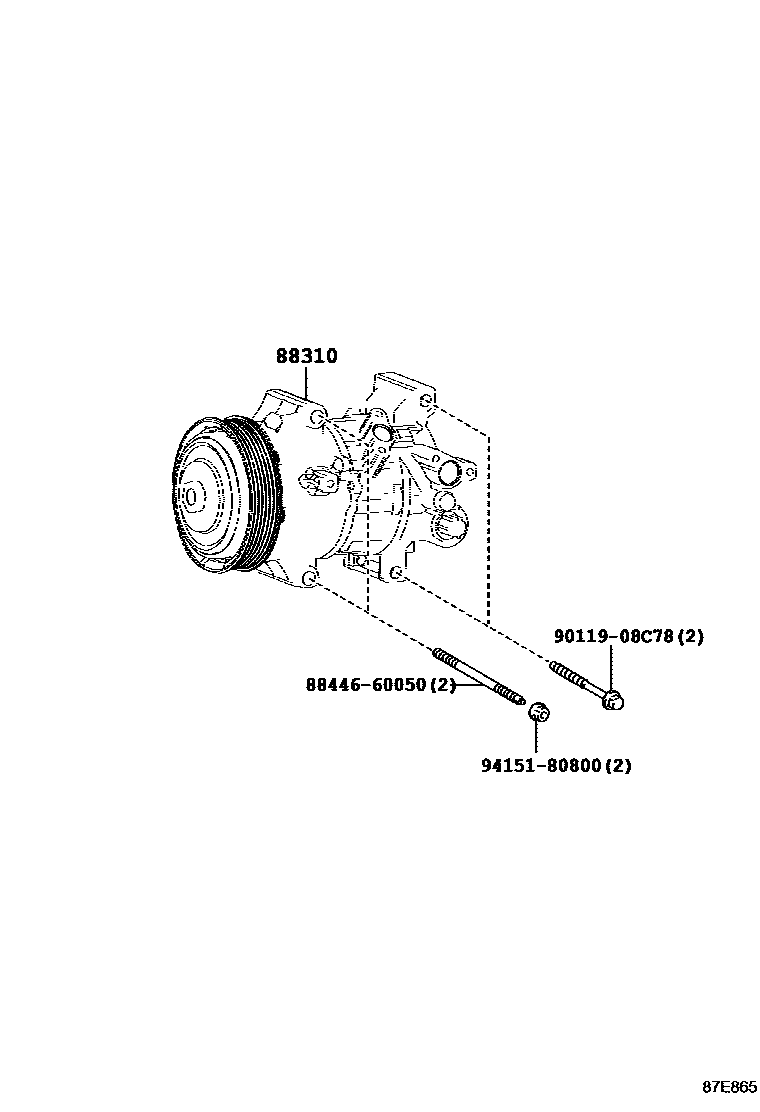

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87E865 — Heating & Air Conditioning - Compressor — 87E865 (201208 – 999999)

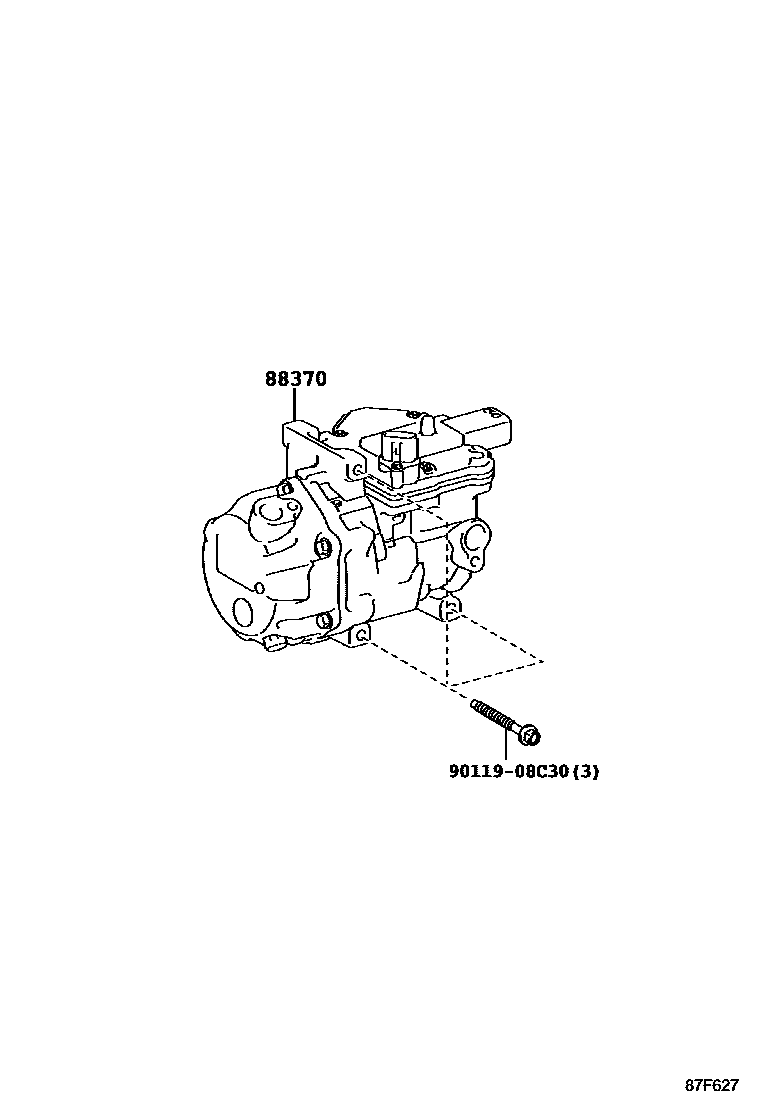

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87F627 — Heating & Air Conditioning - Compressor — 87F627 (201604 – 999999)

PNC and OE references

PNC	Part name	OE numbers
88310	Compressor assembly with pulley	88310-1A840 · 88310-1A841 · 88310-1A880
88370	Compressor assembly with motor	88370-47033
