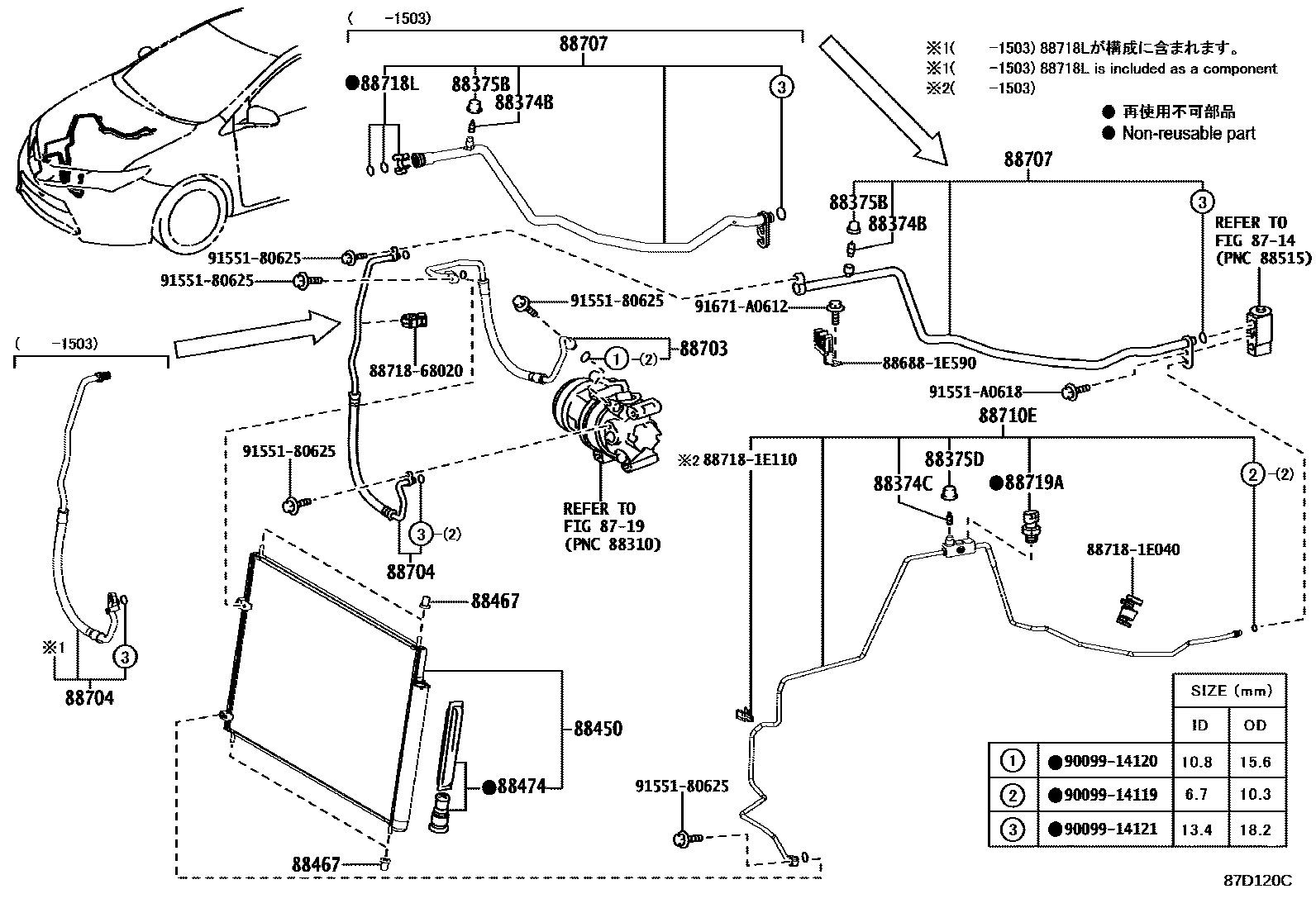

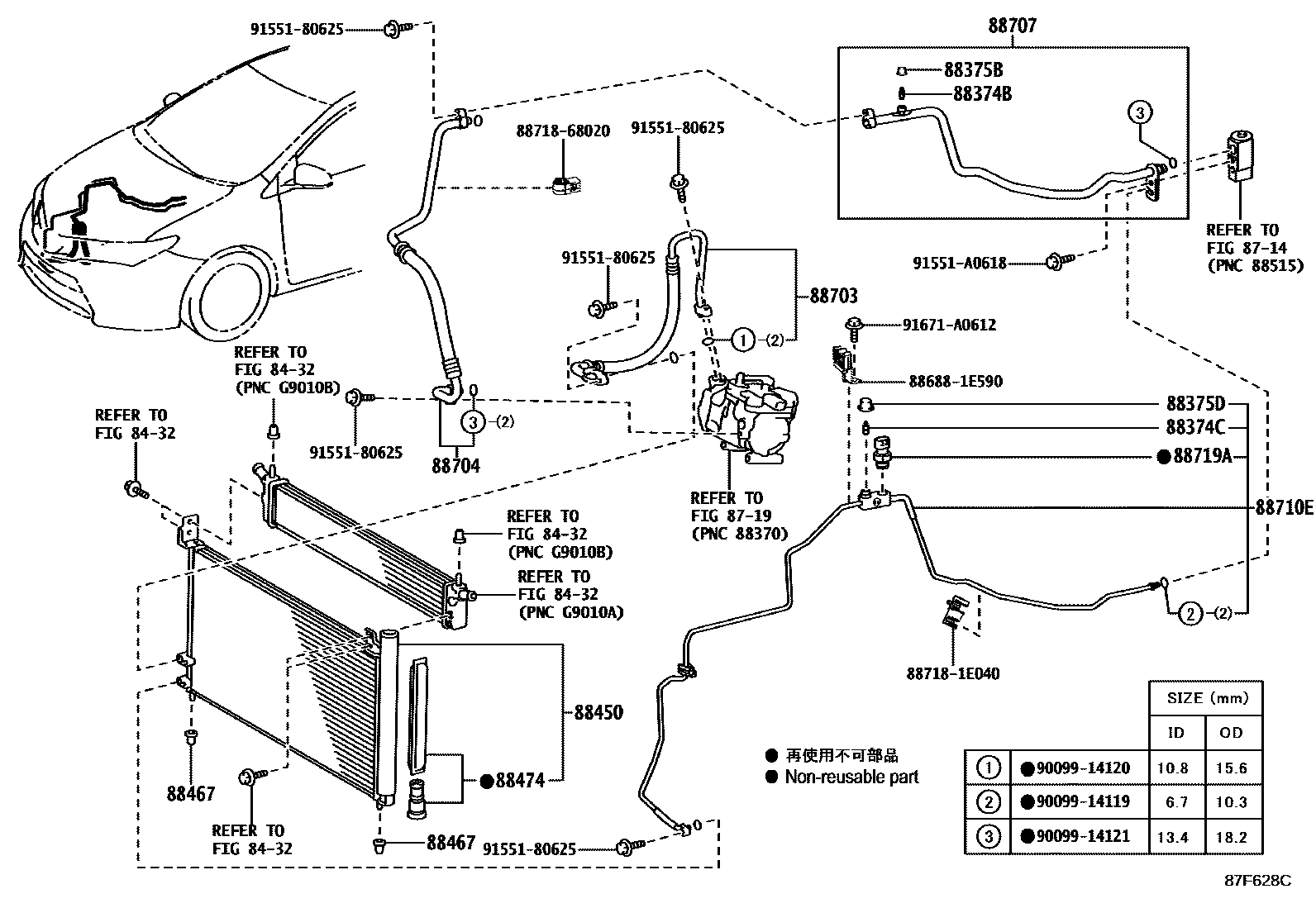

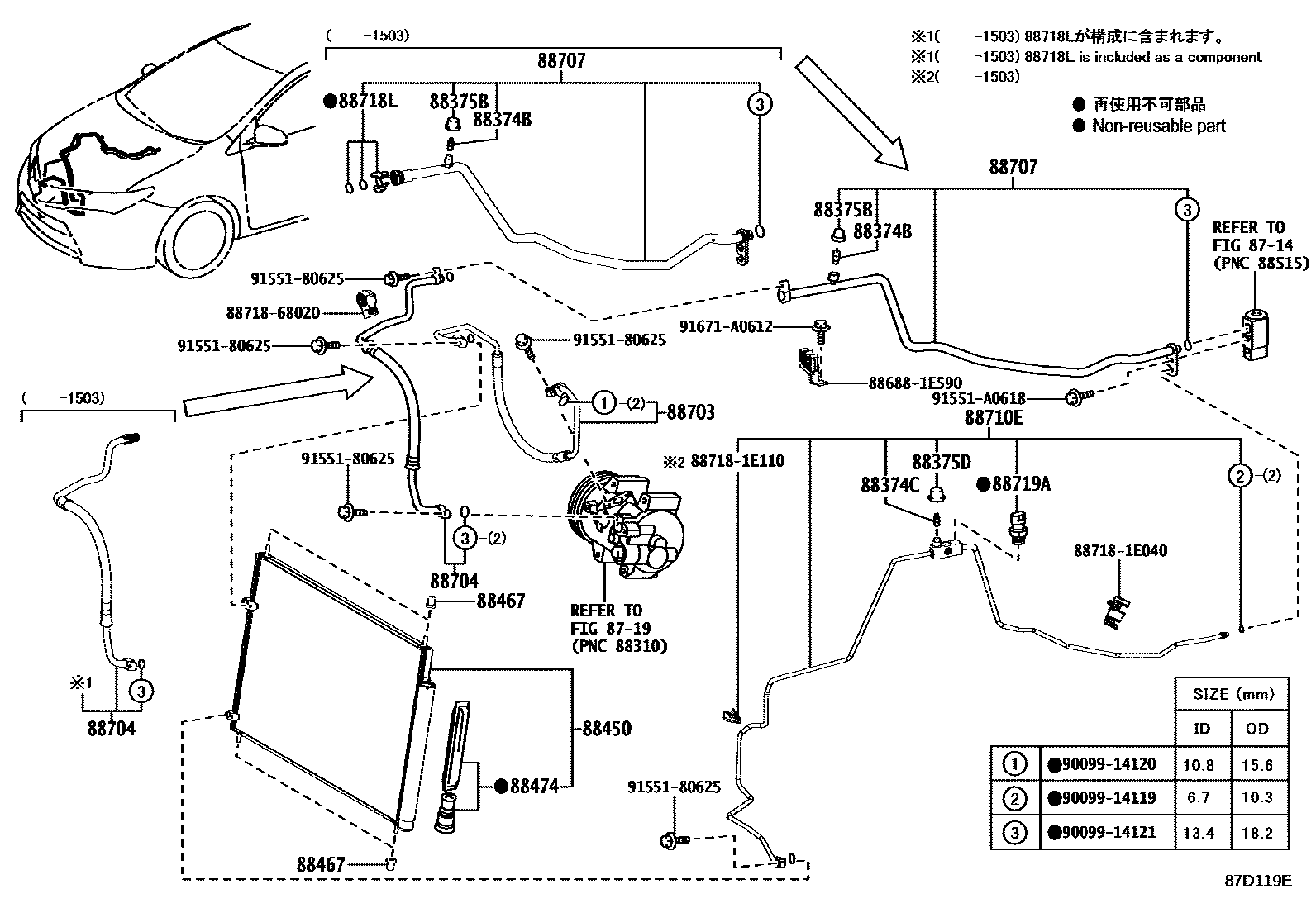

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88450 | Condenser assembly with liquid reservoir | 88450-12280 · 88450-12340 · 88450-12360 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-12010 · 88474-12020 · 88474-12030 |
| 88703 | Discharge hose sub-assembly | 88703-12A50 · 88703-12A60 · 88703-12A70 · 88703-1A170 · 88703-1A190 |
| 88704 | Oil suction hose sub-assembly | 88704-12A50 · 88704-12A60 · 88704-12A80 · 88704-1A380 · 88704-1A390 |
| 88707 | Suction pipe sub-assembly | 88707-12320 · 88707-12390 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-12A50 · 88710-12A60 · 88710-12A90 · 88710-1A080 · 88710-1A090 |
| 88718L | Pipe clamp | 88718-52260 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
