Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

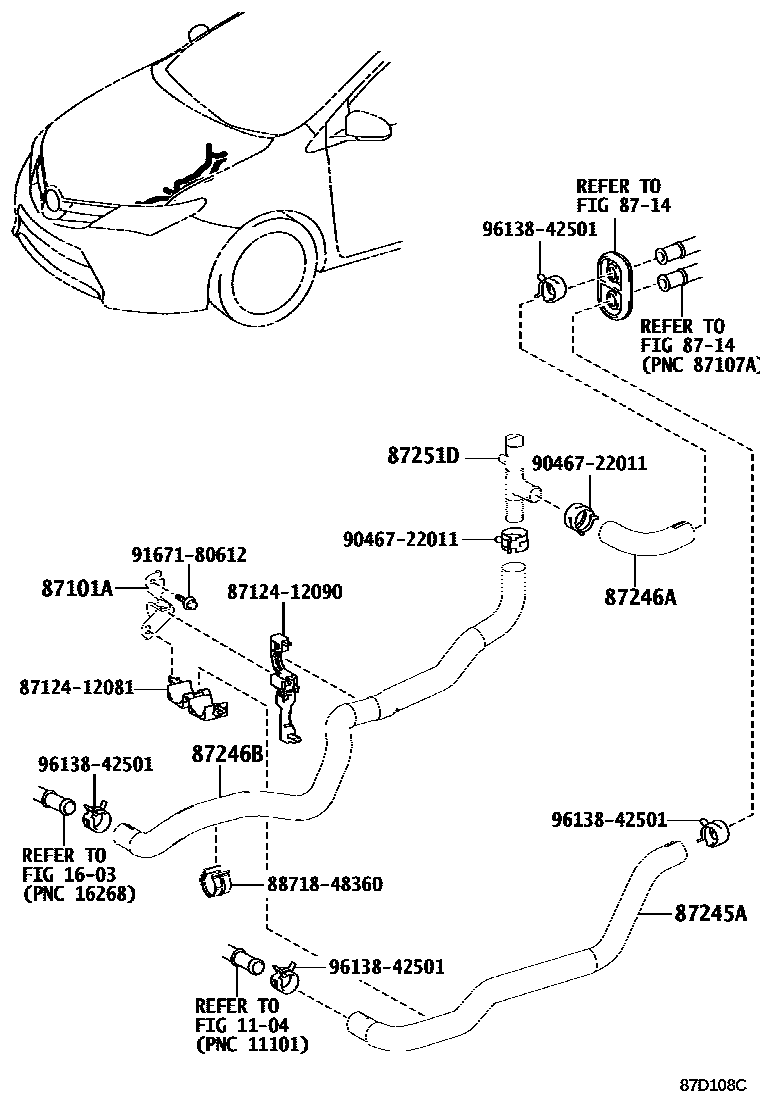

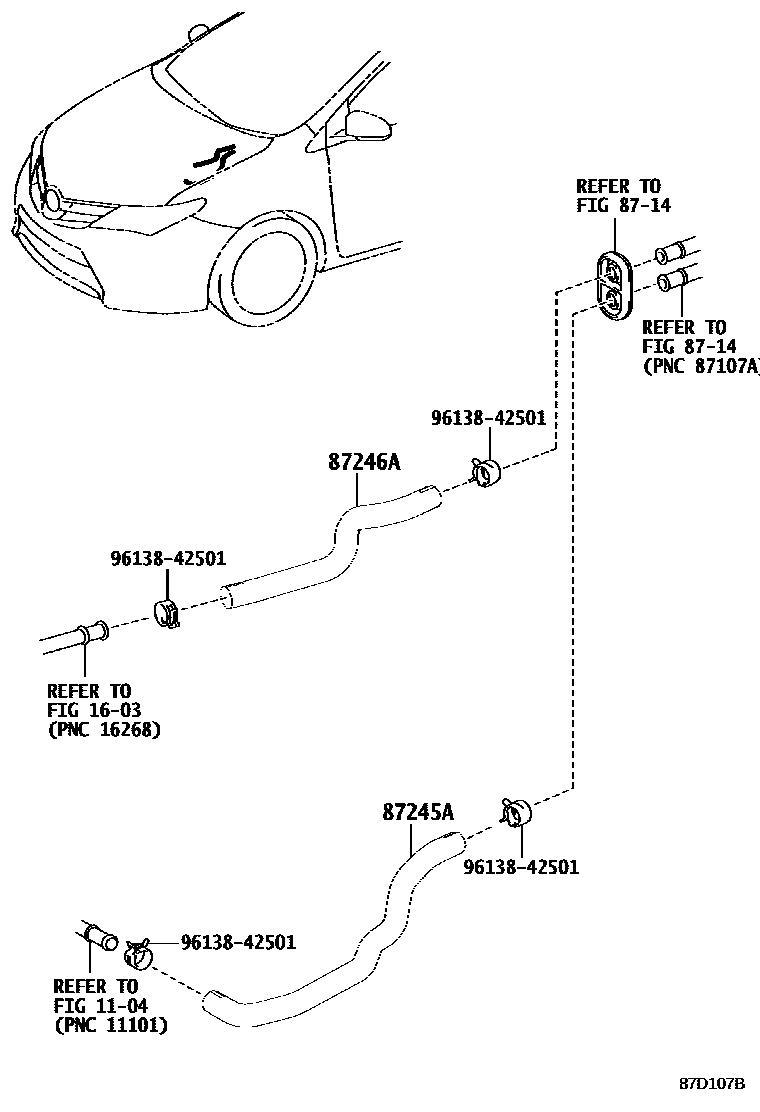

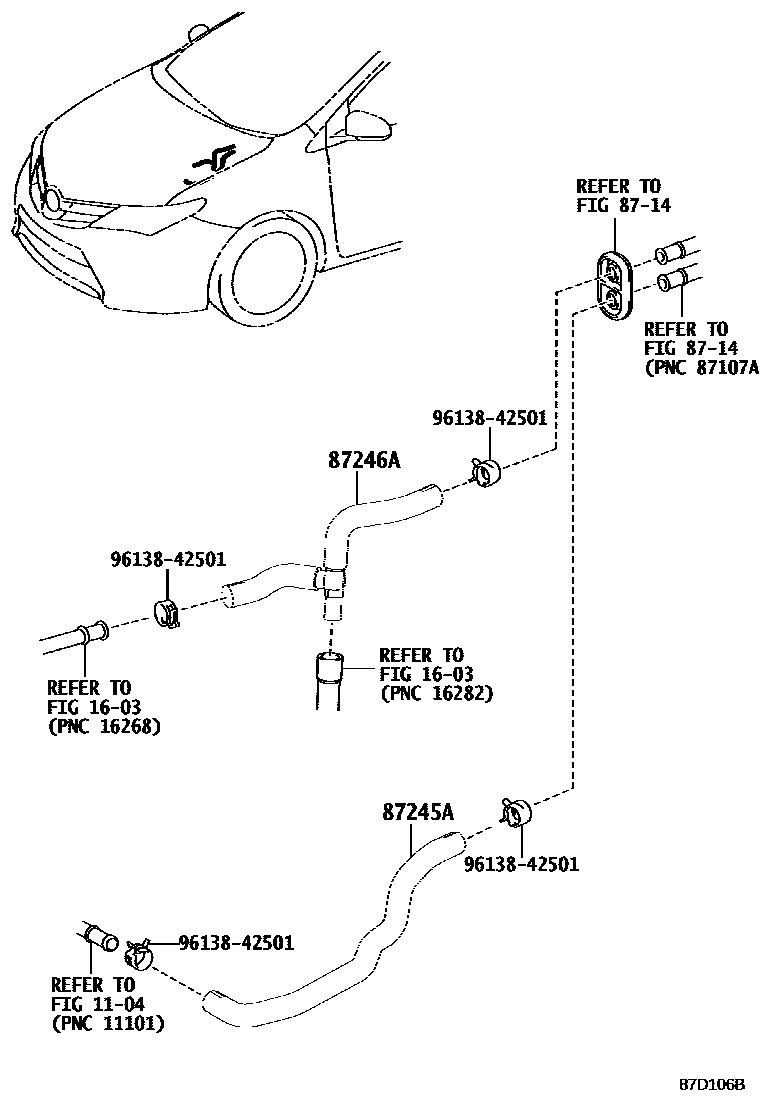

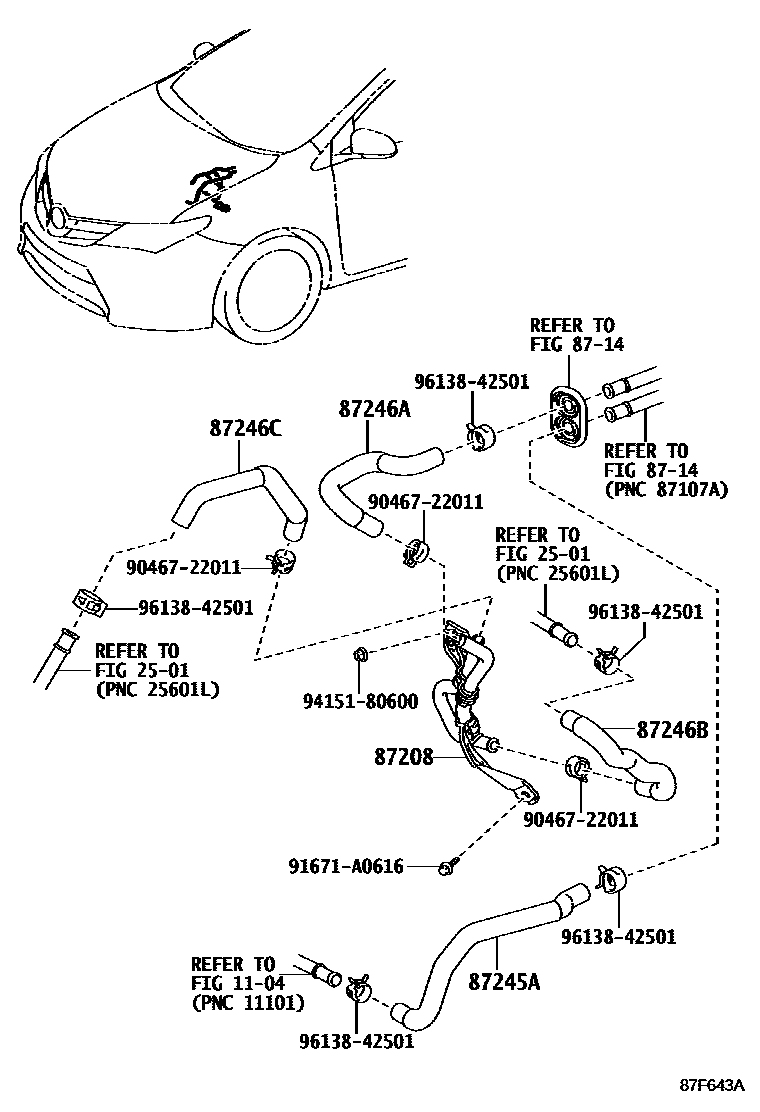

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87101A | No. 1 heater bracket sub-assembly | 87101-12130 |
| 87208 | Heater water pipe sub-assembly | 87208-47040 |
| 87245A | Heater water inlet hose A | 87245-12F20 · 87245-12G10 · 87245-47260 |
| 87246A | Heater outlet hose A | 87209-12503 · 87245-12A10 · 87245-12F80 · 87245-47320 |
| 87246B | Heater outlet hose B | 87245-12F00 · 87245-47350 |
| 87246C | Heater outlet hose C | 87245-47380 |
| 87251D | No. 1 water hose connector | 87251-12040 |
