Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 8 PNC and OE references.

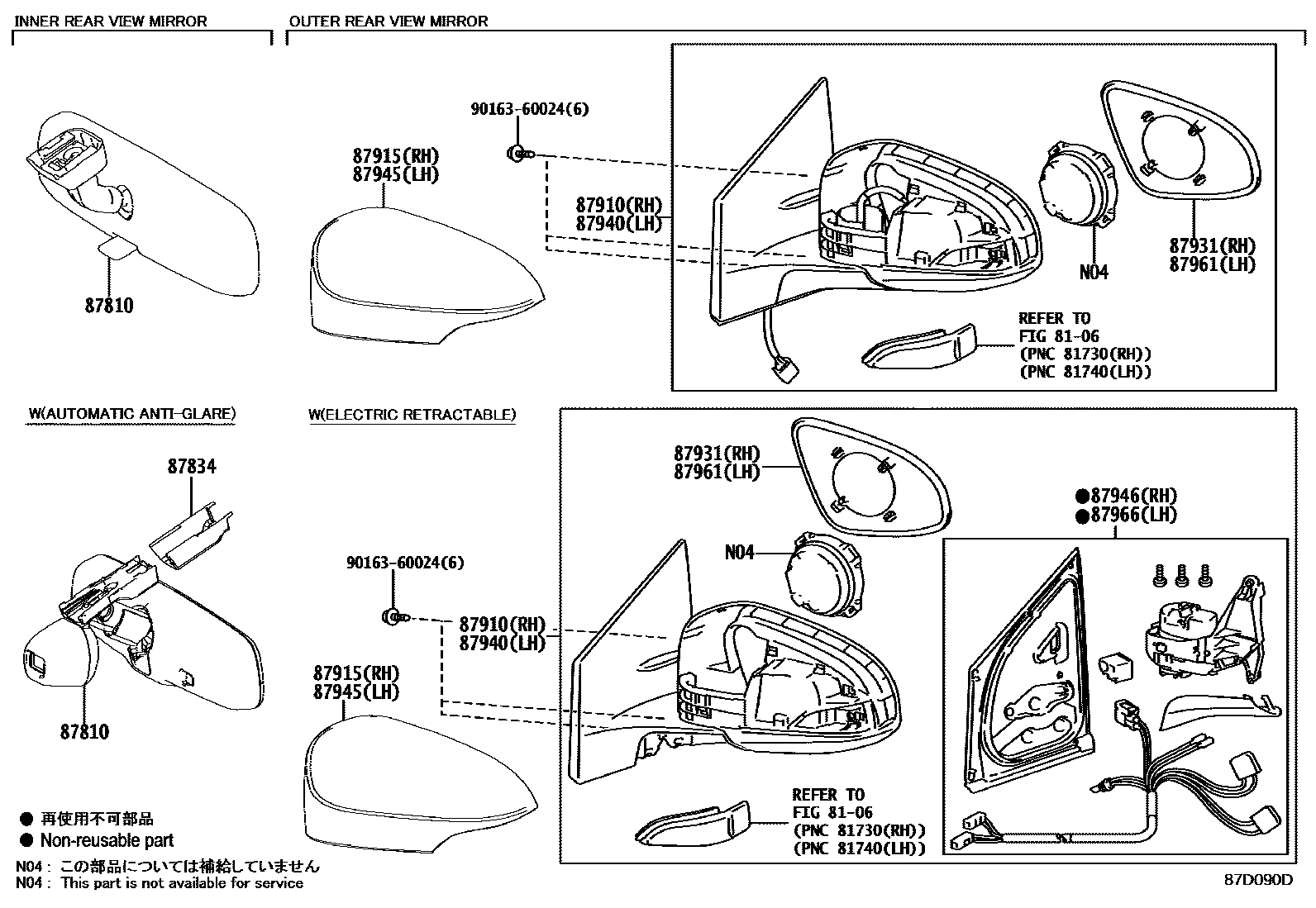

Toyota COROLLA 后视镜 EPC diagram — 87D090D
后视镜 — 87D090D (201208 – 201503)

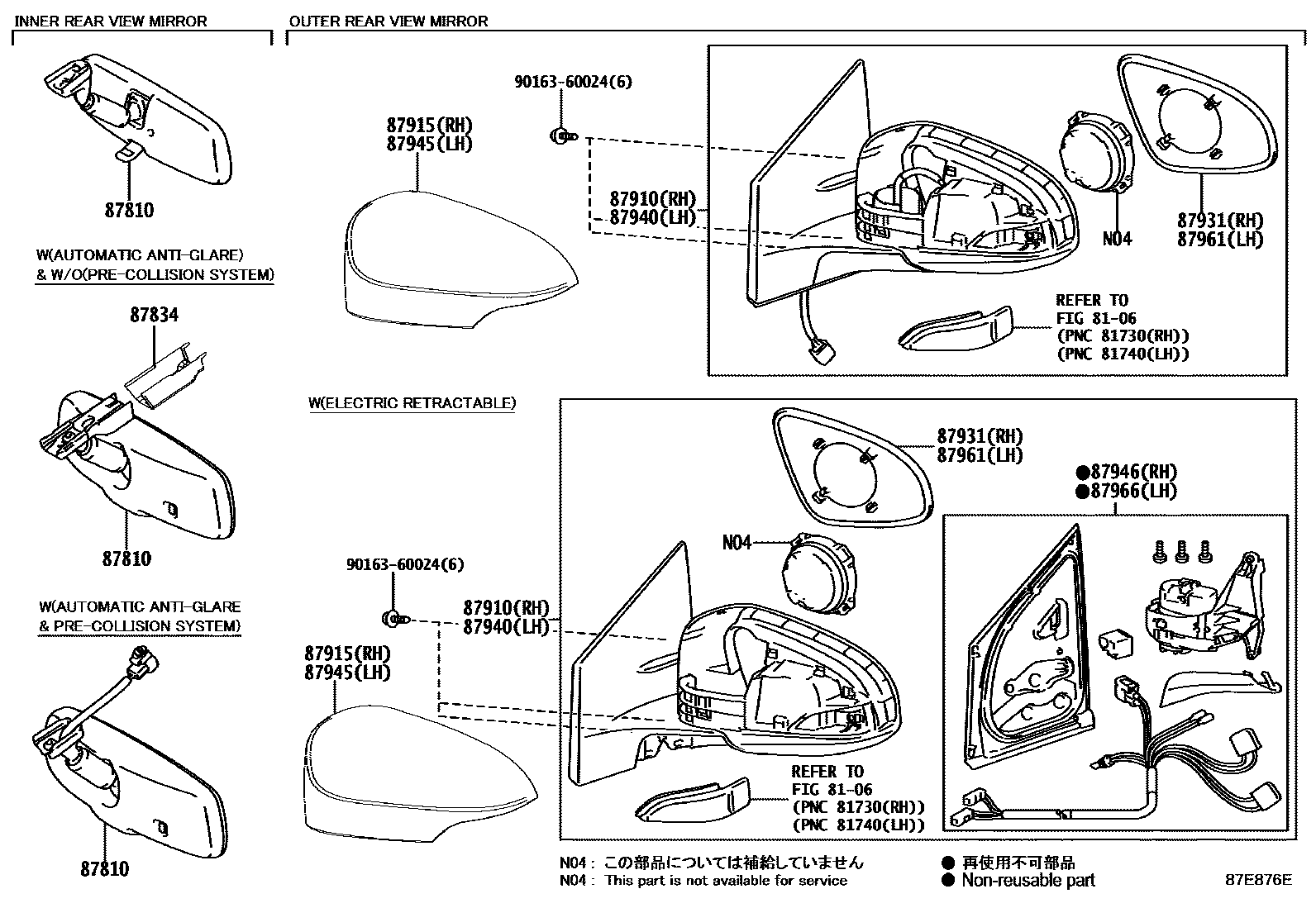

Toyota COROLLA 后视镜 EPC diagram — 87E876E
后视镜 — 87E876E (201503 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-0W810 · 87810-0W820 · 87810-0WQ40 · 87810-0WQ50 · 87810-52041
87834Interior rearview mirror stay fixing cover87818-0W070
87910Right exterior rearview mirror assembly87910-12J70 · 87910-12K10
87931Right exterior rearview mirror87931-12J70 · 87931-12K10
87940Left exterior rearview mirror assembly87940-12J70 · 87940-12K10
87946Right exterior rearview mirror retractor87946-12J70
87961Left exterior rearview mirror87961-12J70 · 87961-12K10
87966Left exterior rearview mirror retractor87966-12J70
