Toyota COROLLA antenna — Figure 8604

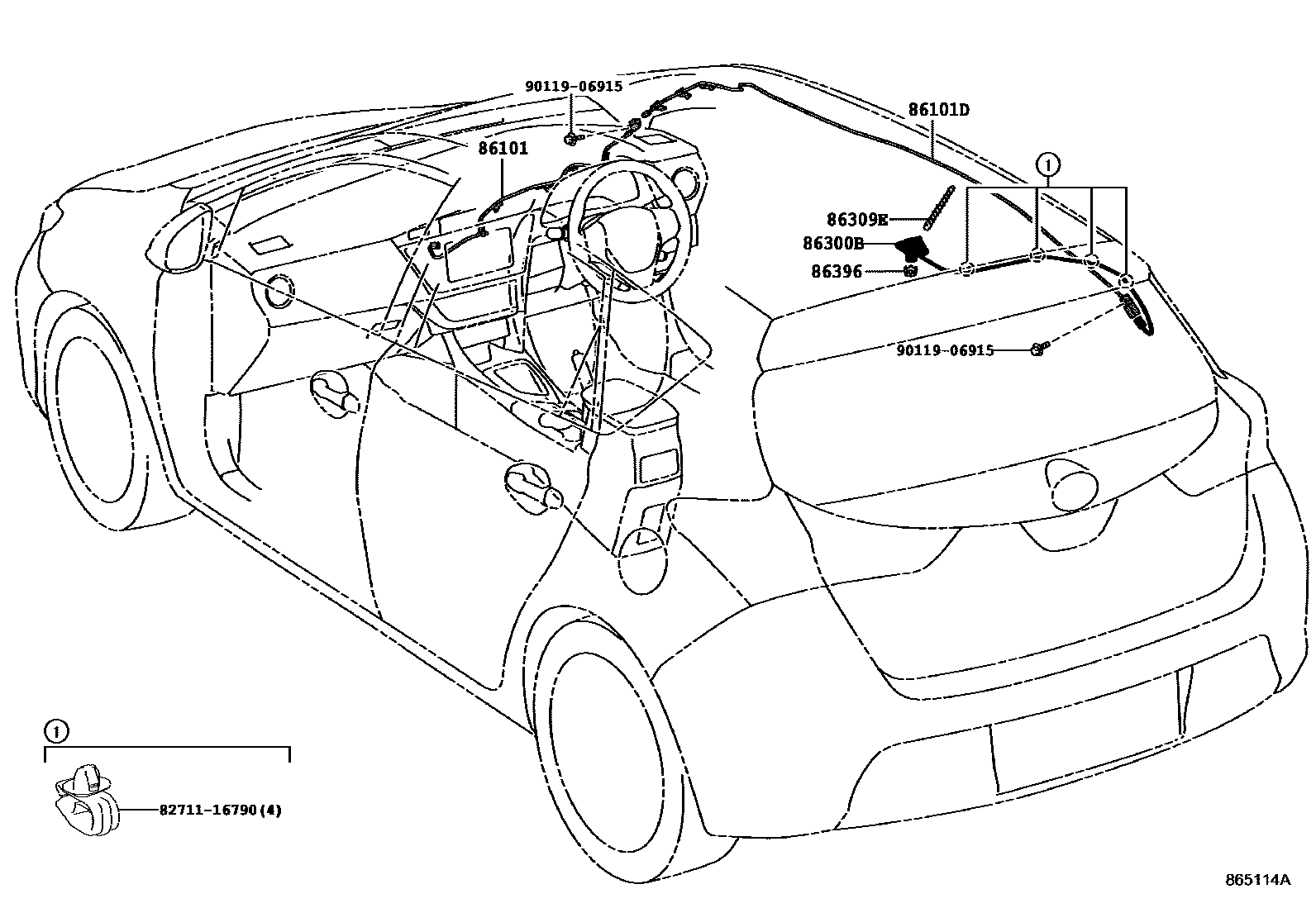

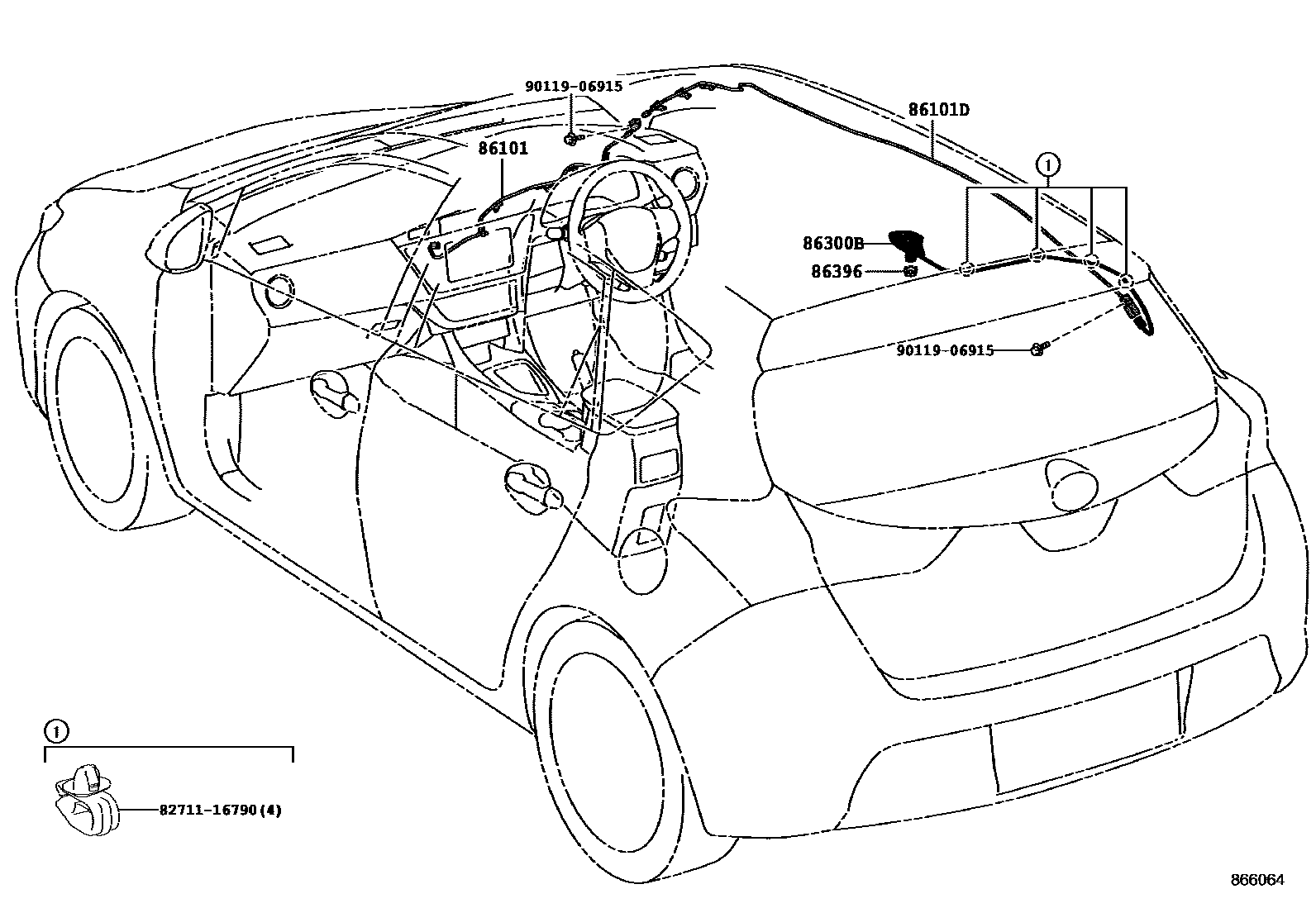

Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-12870 · 86101-12A70 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-12800 |
| 86300B | No. 1 amplifier antenna assembly | 86300-12A90 |
| 86309E | Roof antenna sub-assembly | 86309-47020 |
| 86396 | Antenna nut | 86396-47010 |
