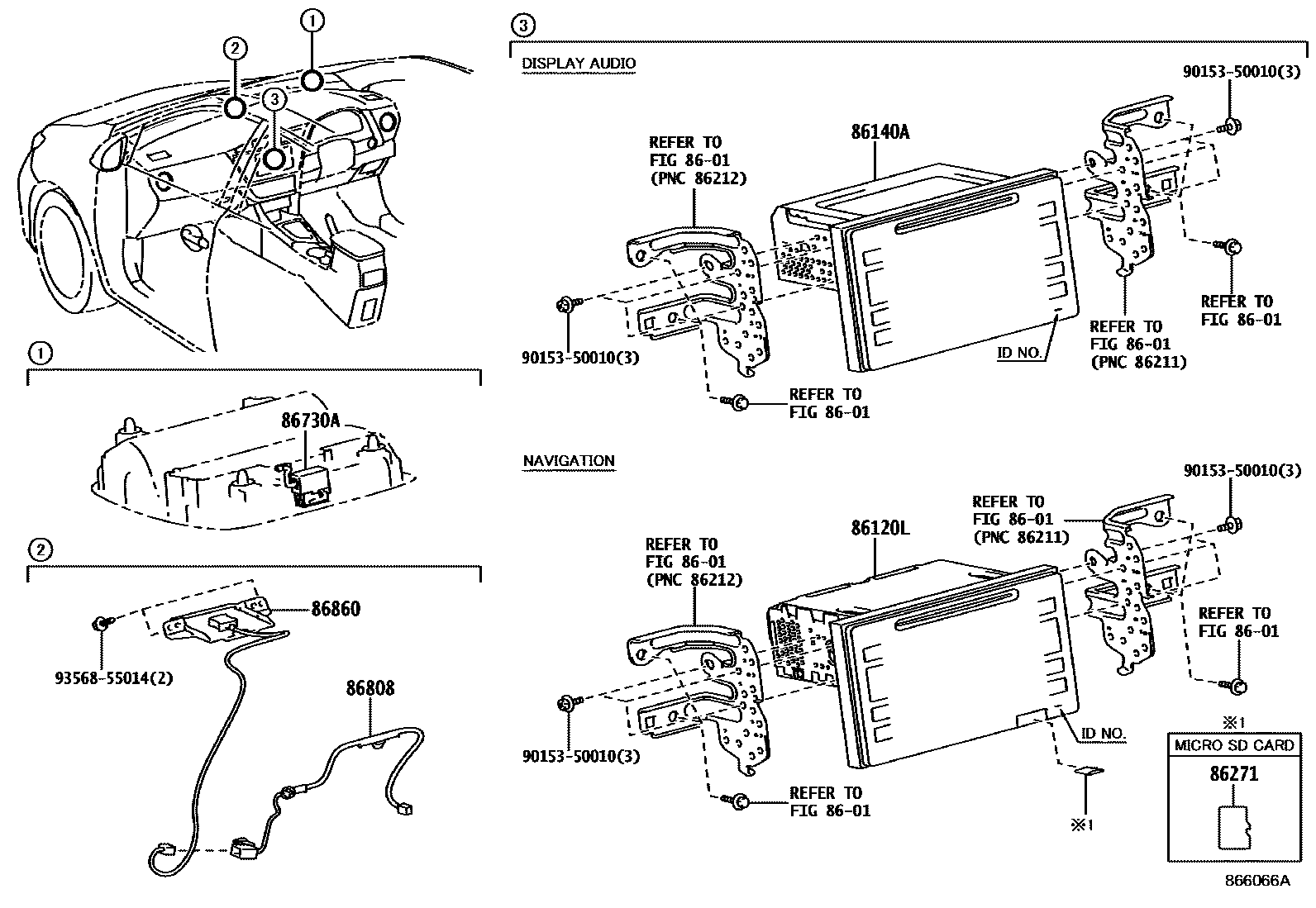

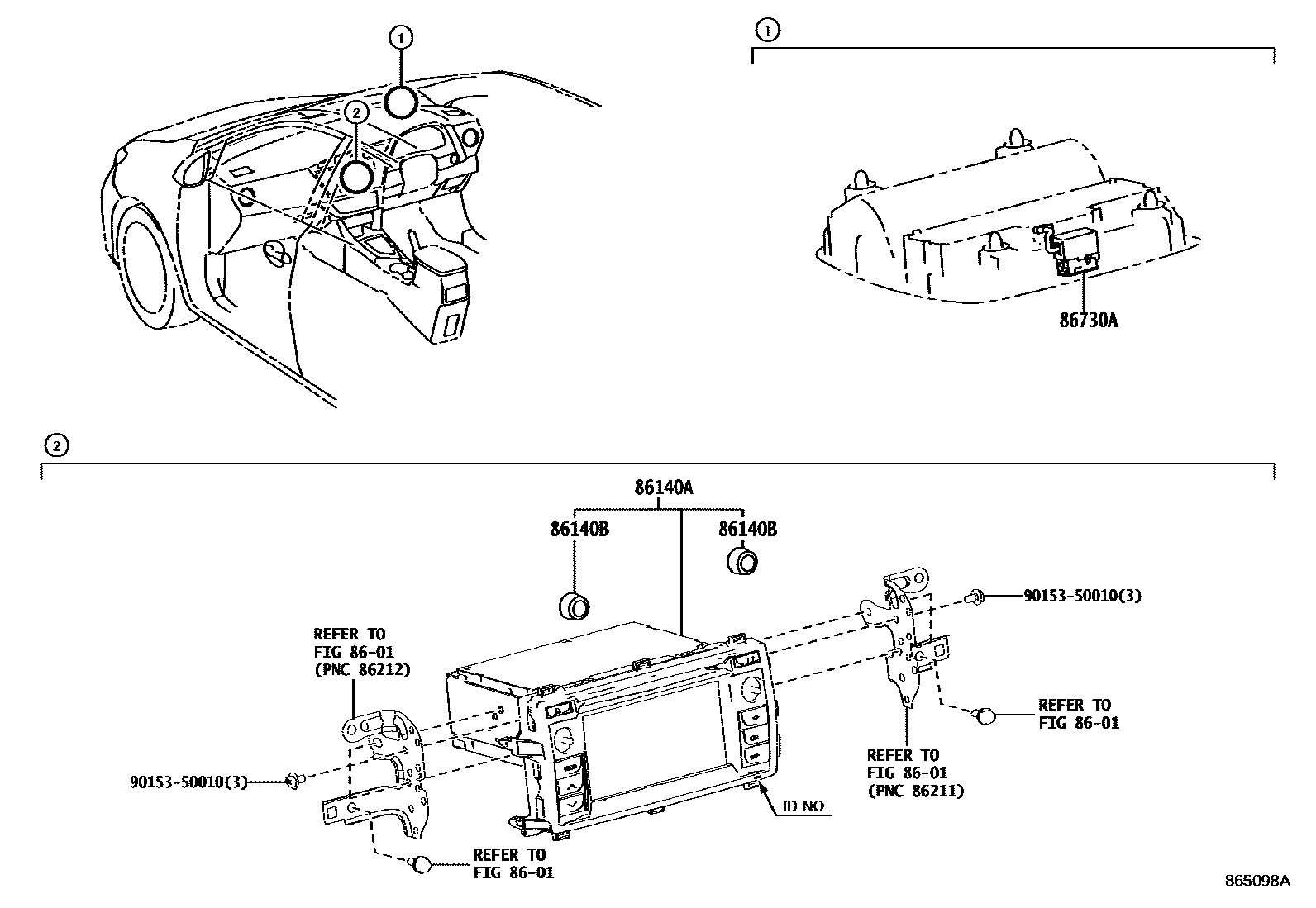

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86804-12010 · 86804-12011 |
| 86140A | Radio and display receiver assembly | 86140-12040 · 86140-12070 · 86140-12071 · 86140-12080 · 86140-12081 · 86140-12090 |
| 86140B | Radio and display receiver switch button | 90010-24163 |
| 86271 | CD | 86271-0E171 · 86271-0E172 · 86271-0E173 · 86271-0E174 |
| 86730A | Telephone amplifier assembly | 86730-20060 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-12110 |
| 86860 | Navigation antenna assembly | 86860-12150 |
