Toyota COROLLA 后清洗器 — Figure 8504

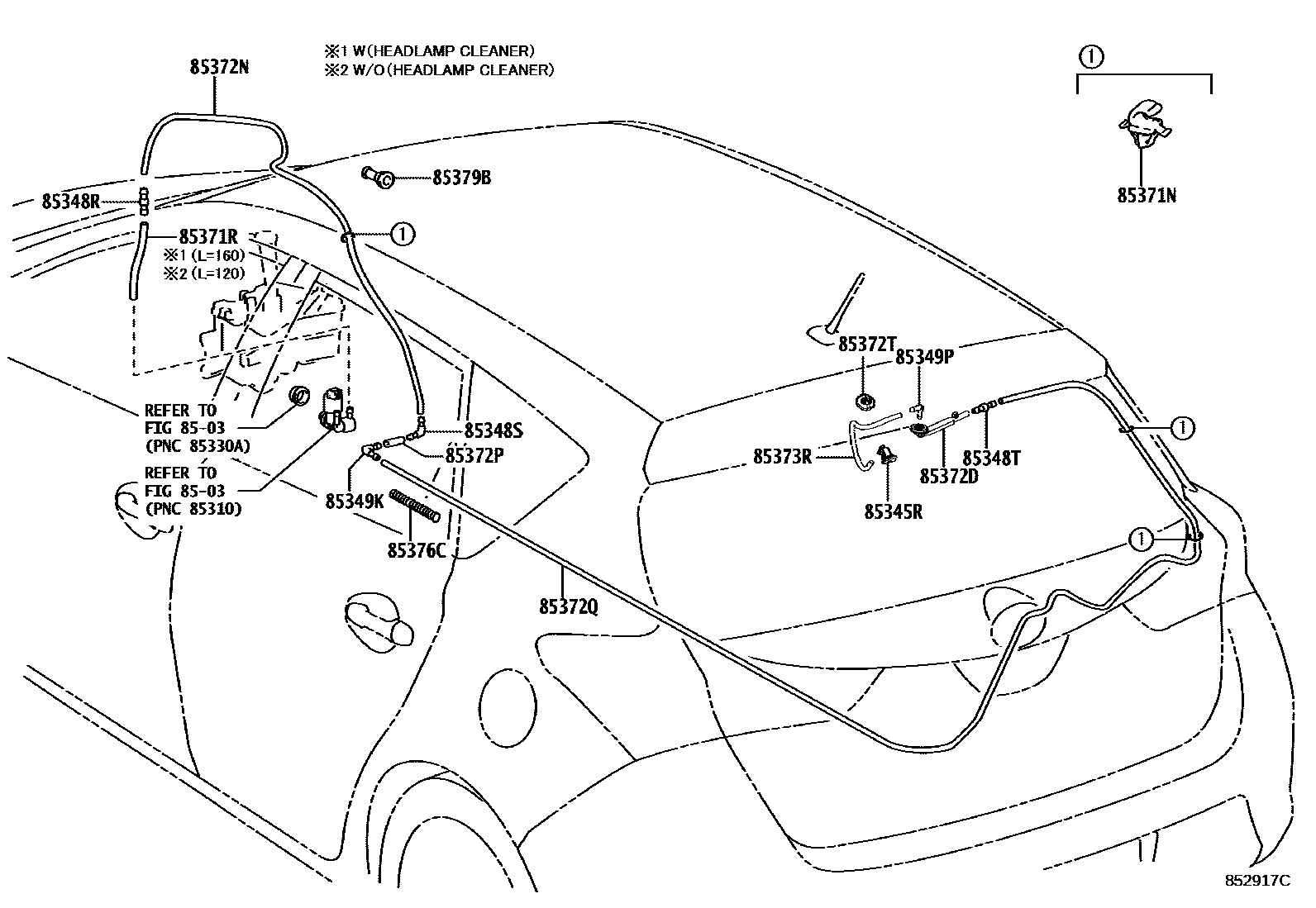

Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85345R | Rear washer nozzle | 85391-12030 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-20200 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 |
| 85349K | No. 2 rear cleaner elbow joint | 85355-20200 |
| 85349P | No. 3 rear cleaner elbow joint | 85355-20200 |
| 85371N | Rear washer hose clamp | 85371-12040 |
| 85371R | Rear washer hose (from motor to connector) | 90069-16009 |
| 85372D | Rear washer hose seal | 85373-12090 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90099-62083 · 90099-62100 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90099-62075 |
| 85372Q | No. 3 rear washer hose (from connector to connector) | 90099-59377 · 90099-62098 |
| 85372T | Cleaner seal | 85372-20020 |
| 85376C | washer hose spring | 85389-12A90 |
| 85379B | Cleaner seal A | 85379-12850 |
