Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

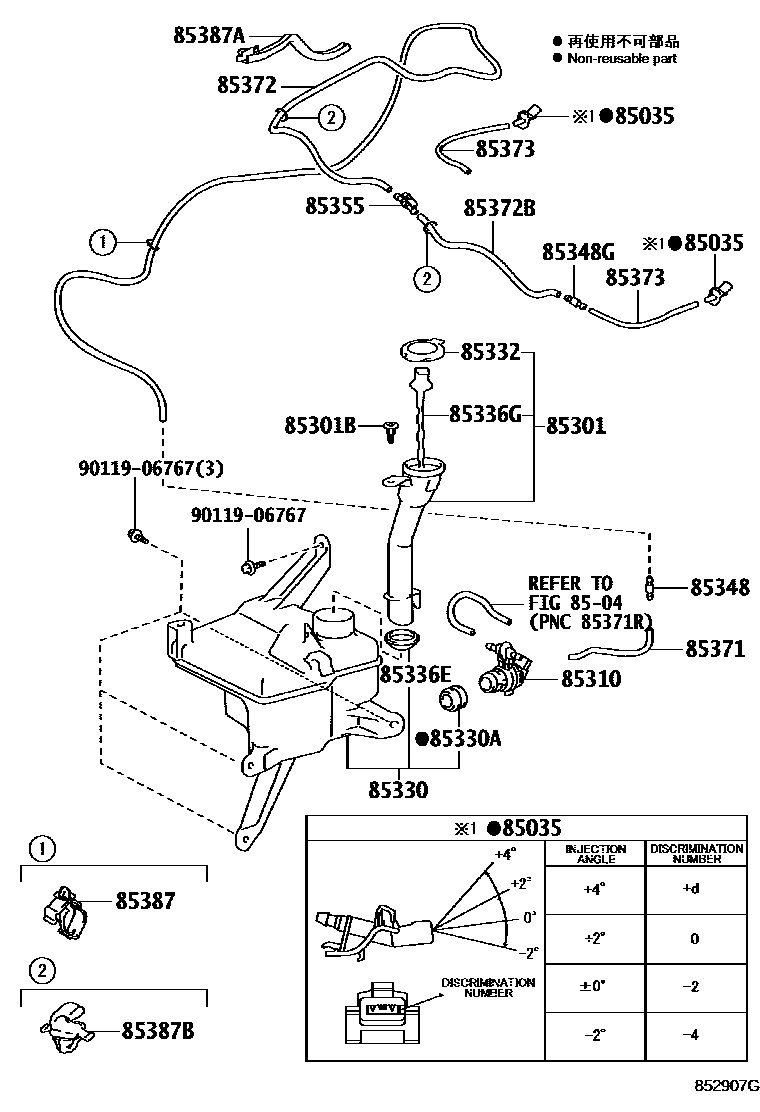

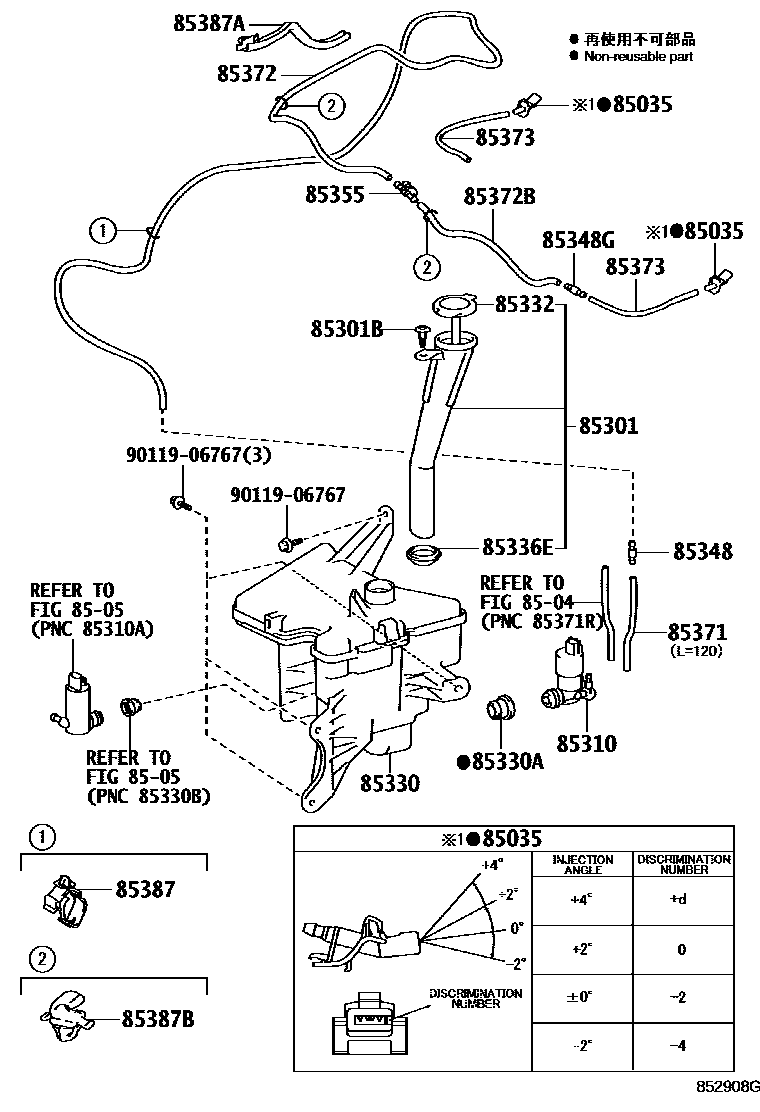

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12400 · 85381-12410 · 85381-12420 · 85381-12430 |
| 85301 | Cleaner water inlet sub-assembly | 85301-02010 · 85301-12020 |
| 85310 | Windshield washer motor and pump assembly | 85330-02050 · 85330-12350 |
| 85330 | Windshield washer fluid tank assembly | 85315-12670 · 85355-02200 |
| 85330A | Windshield washer fluid tank bushing | 85336-60300 · 90069-20005 |
| 85332 | Windshield washer fluid tank cap | 85316-33120 · 85356-02200 |
| 85336E | Windshield washer water inlet hose seal | 85336-30160 · 90069-38005 |
| 85336G | water level gauge | 85313-12040 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 · 85375-05050 |
| 85348G | Windshield washer hose connector No. 2 | 85375-10260 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85371 | Windshield washer hose (from motor to connector) | 90069-16009 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-62101 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90099-62076 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90099-62080 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-1E350 |
| 85387A | Cleaner clip No. 2 | 85388-12A70 |
| 85387B | No. 3 cleaner clip | 85371-12040 |
