Toyota COROLLA 逆变器冷却系统 — Figure 8432

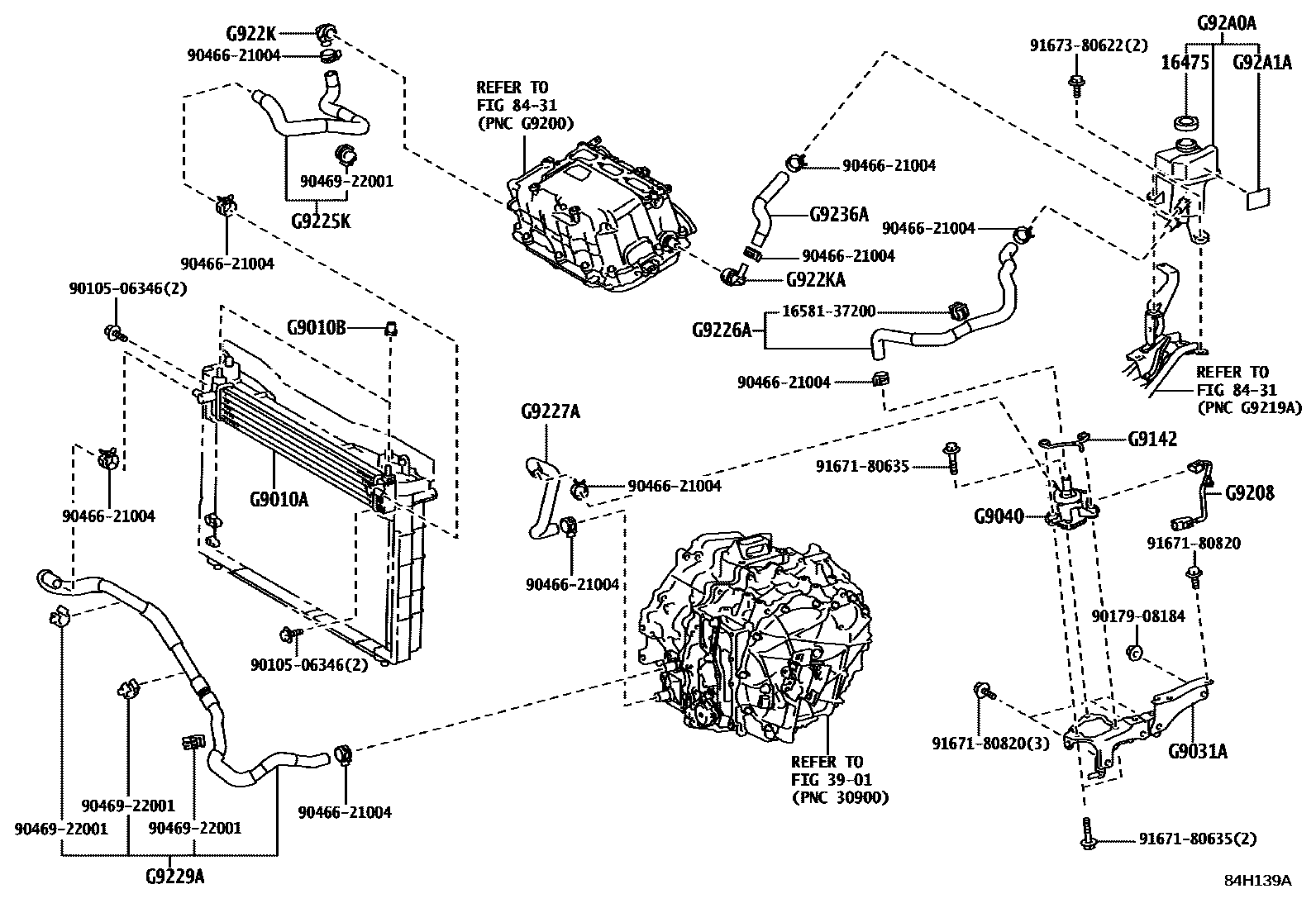

Toyota COROLLA EPC diagram 8432, 逆变器冷却系统, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16475 | Reservoir tank cover | 16475-28140 · 16475-37011 |
| G9010A | Radiator assembly | G9010-12020 |
| G9010B | Inverter radiator cushion pad | 16716-37010 |
| G9031A | Hybrid water pump bracket sub-assembly | G9031-47010 |
| G9040 | Inverter water pump assembly (with motor) | G9040-52010 |
| G9142 | Hybrid vehicle water pump bracket No. 2 | G9142-47010 |
| G9208 | Inverter wiring harness sub-assembly | G9208-47080 |
| G9225K | No. 1 inverter cooling hose | G9225-12010 |
| G9226A | No. 2 inverter cooling hose | G9226-12020 |
| G9227A | No. 3 inverter cooling hose | G9227-47020 |
| G9229A | No. 5 inverter cooling hose | G9229-12010 |
| G922K | HV water hose connector | G922K-47011 |
| G922KA | No. 1 HV water pipe connector | G922K-47011 |
| G9236A | No. 6 inverter cooling hose | G9236-47031 |
| G92A0A | Inverter liquid tank assembly | G92A0-76011 · G92A0-76012 |
| G92A1A | HV coolant system information label | G92A1-76010 |
