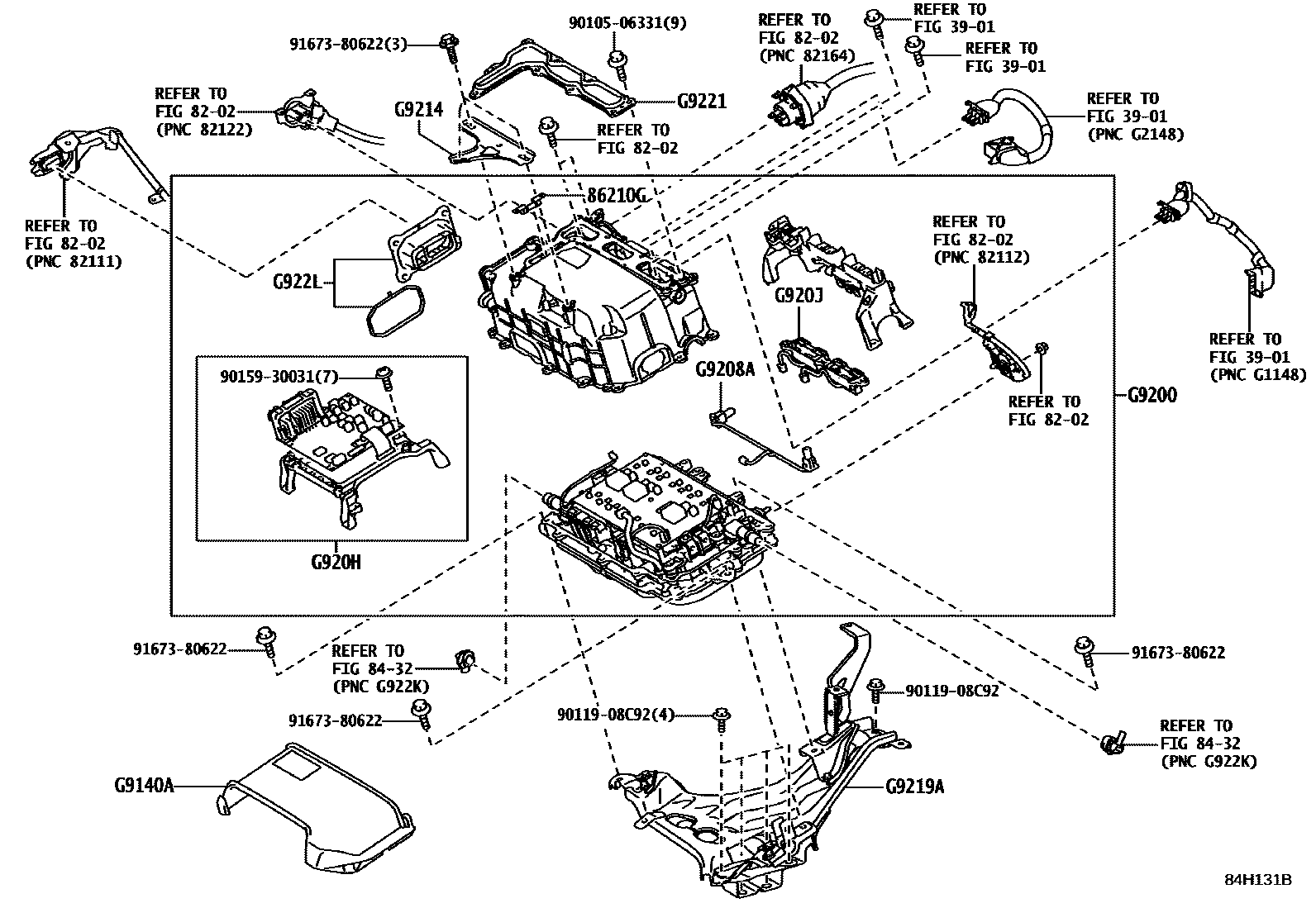

Toyota COROLLA HEV 逆变器 — Figure 8431
Toyota COROLLA EPC diagram 8431, HEV 逆变器, with 3 images and 13 PNC and OE references.

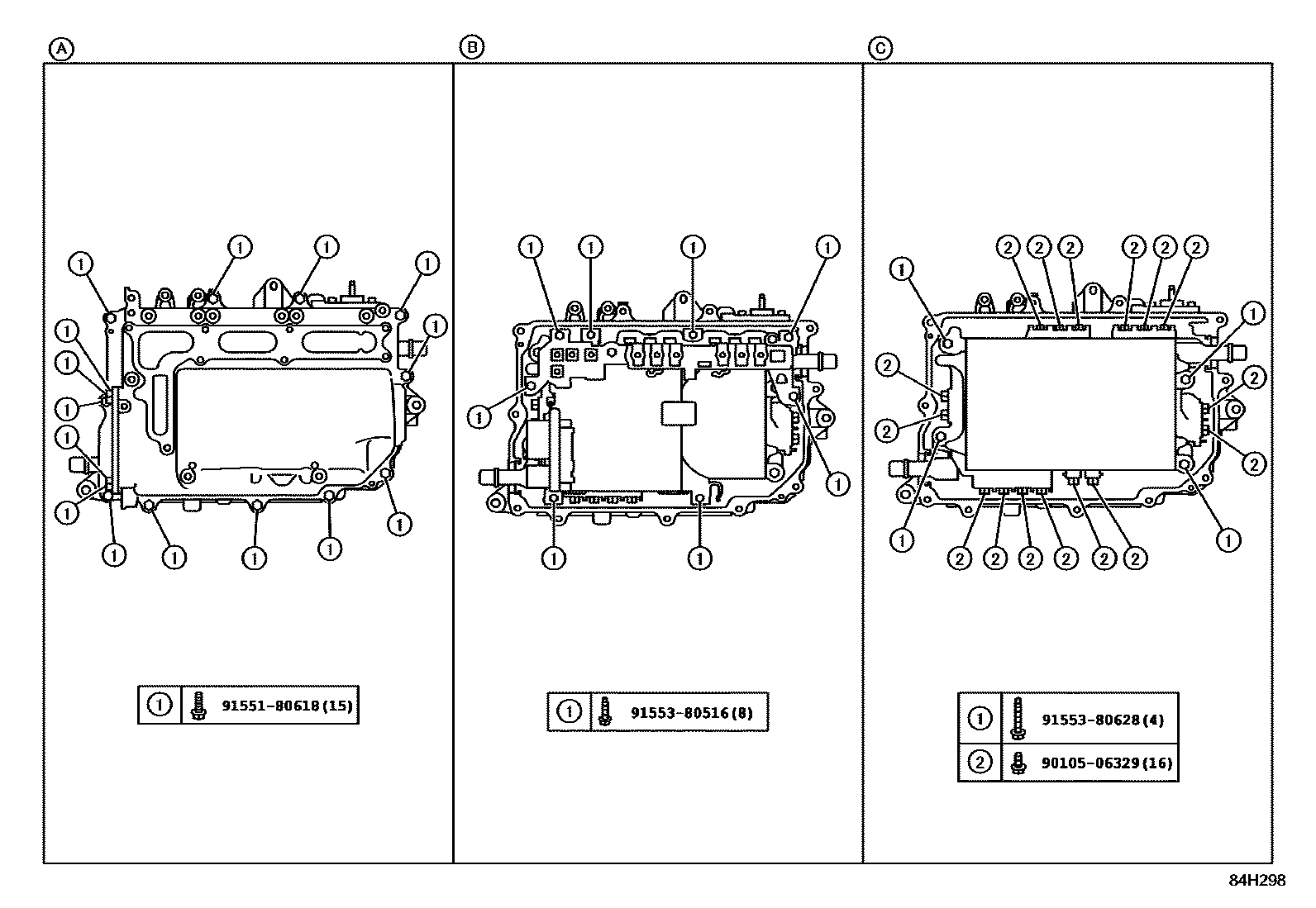

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

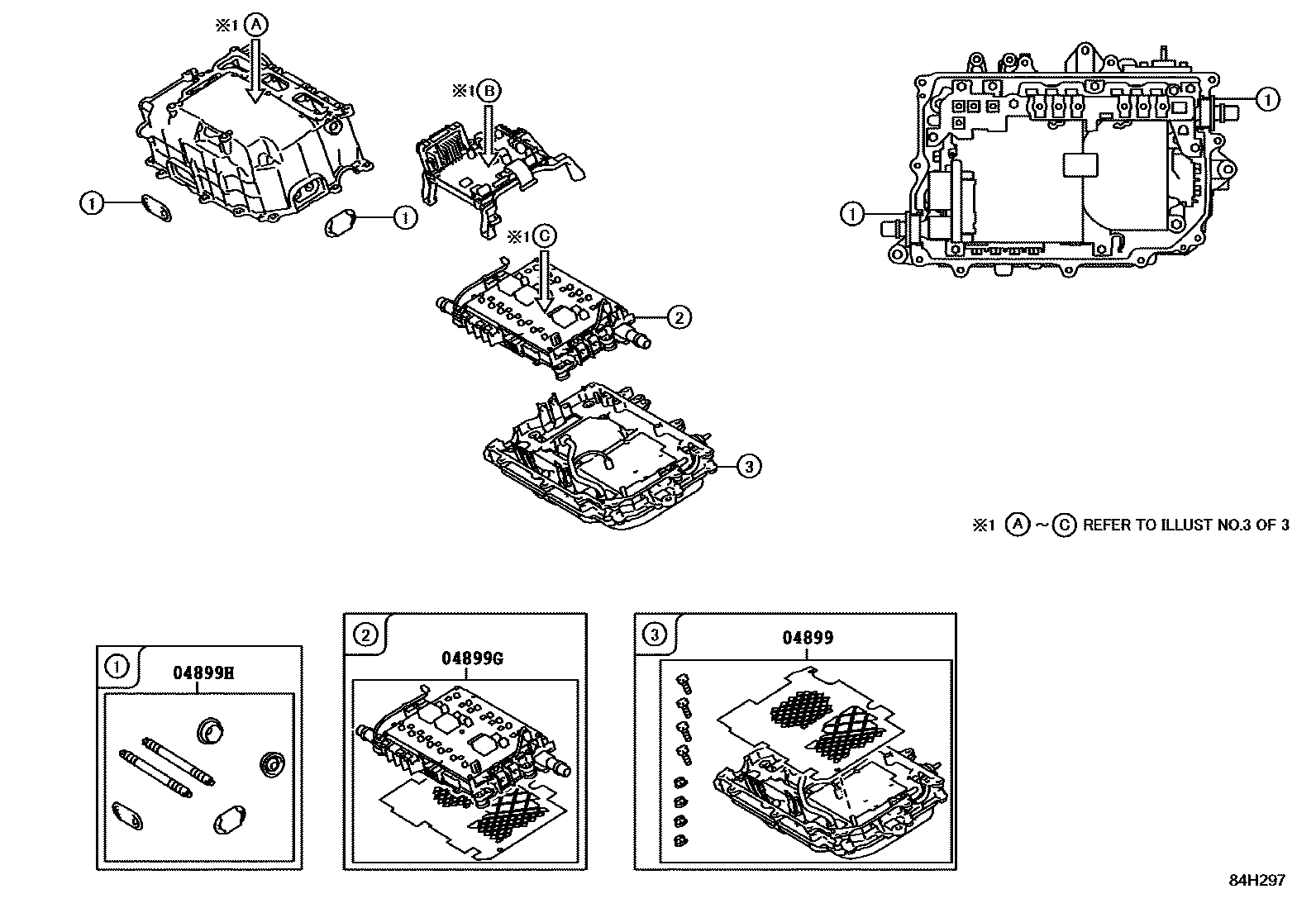

| 04899 | HV converter components | 04899-47030 |
| 04899G | Intelligent power module transistor components | 04899-47021 |
| 04899H | Inverter drain plug assembly | 04899-47060 |
| 86210G | High voltage fuse | 90982-11050 |
| G9140A | Inverter left side cover assembly | G9140-47010 |
| G9200 | Inverter assembly with converter | G9200-49025 |
| G9208A | Inverter wiring harness sub-assembly | G9208-47090 |
| G920H | Motor generator control ECU sub-assembly | G920H-47030 |
| G920J | Inverter current sensor sub-assembly | G920J-52010 |
| G9214 | No. 1 inverter bracket | G9214-12010 |
| G9219A | Inverter tray bracket | G9110-47030 |
| G9221 | Inverter cover | G9022-47041 |
| G922L | Inverter signal connector cover | G922L-47010 |
