Toyota COROLLA 仪表 — Figure 8301

Toyota COROLLA EPC diagram 8301, 仪表, with 1 images and 2 PNC and OE references.

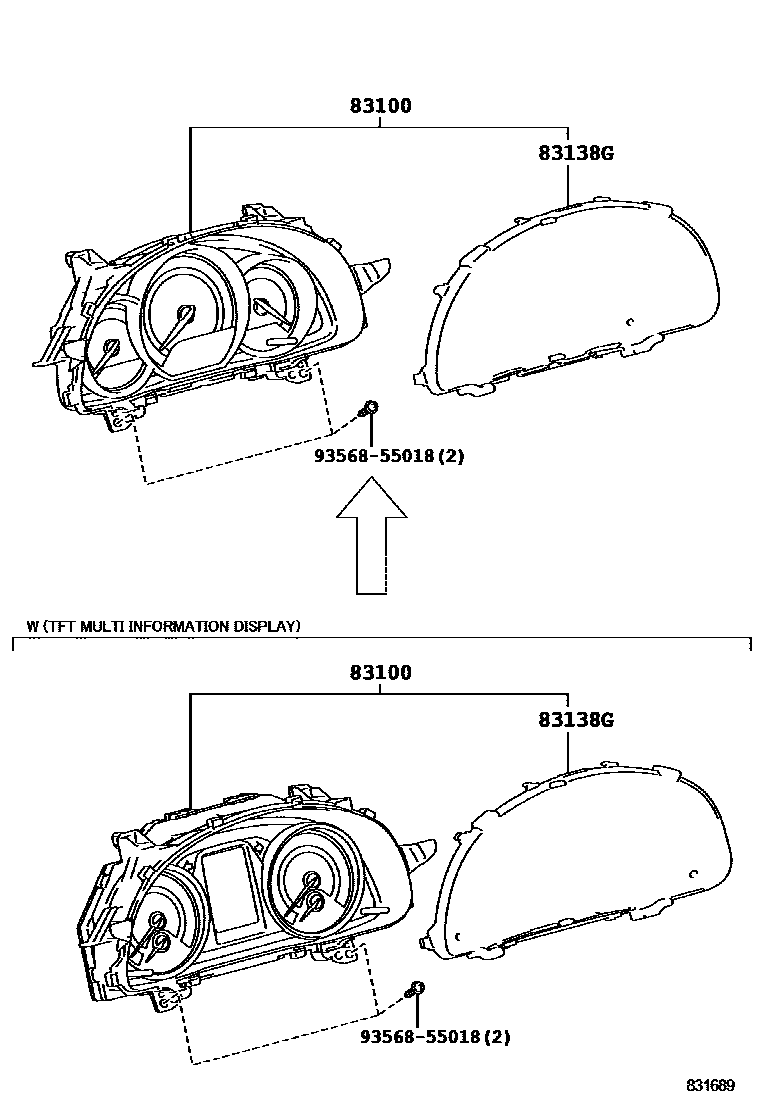

Toyota COROLLA 仪表 EPC diagram — 831689
仪表 — 831689 (201208 – 999999)

PNC and OE references

PNCPart nameOE numbers
83100Combined instrument assembly83800-12V80 · 83800-12V81 · 83800-12V90 · 83800-12V91 · 83800-12V92 · 83800-12W20 · 83800-12W21 · 83800-12W30 · 83800-12W31 · 83800-12W40 · 83800-12W41 · 83800-12W42 · 83800-1AA00 · 83800-1AA01 · 83800-1AA10 · 83800-1AA20 · 83800-1AA30 · 83800-1AA40 · 83800-1AA50 · 83800-1AA80
83138GInstrument cluster glass83852-12V30 · 83852-12V50 · 83852-12Z70
