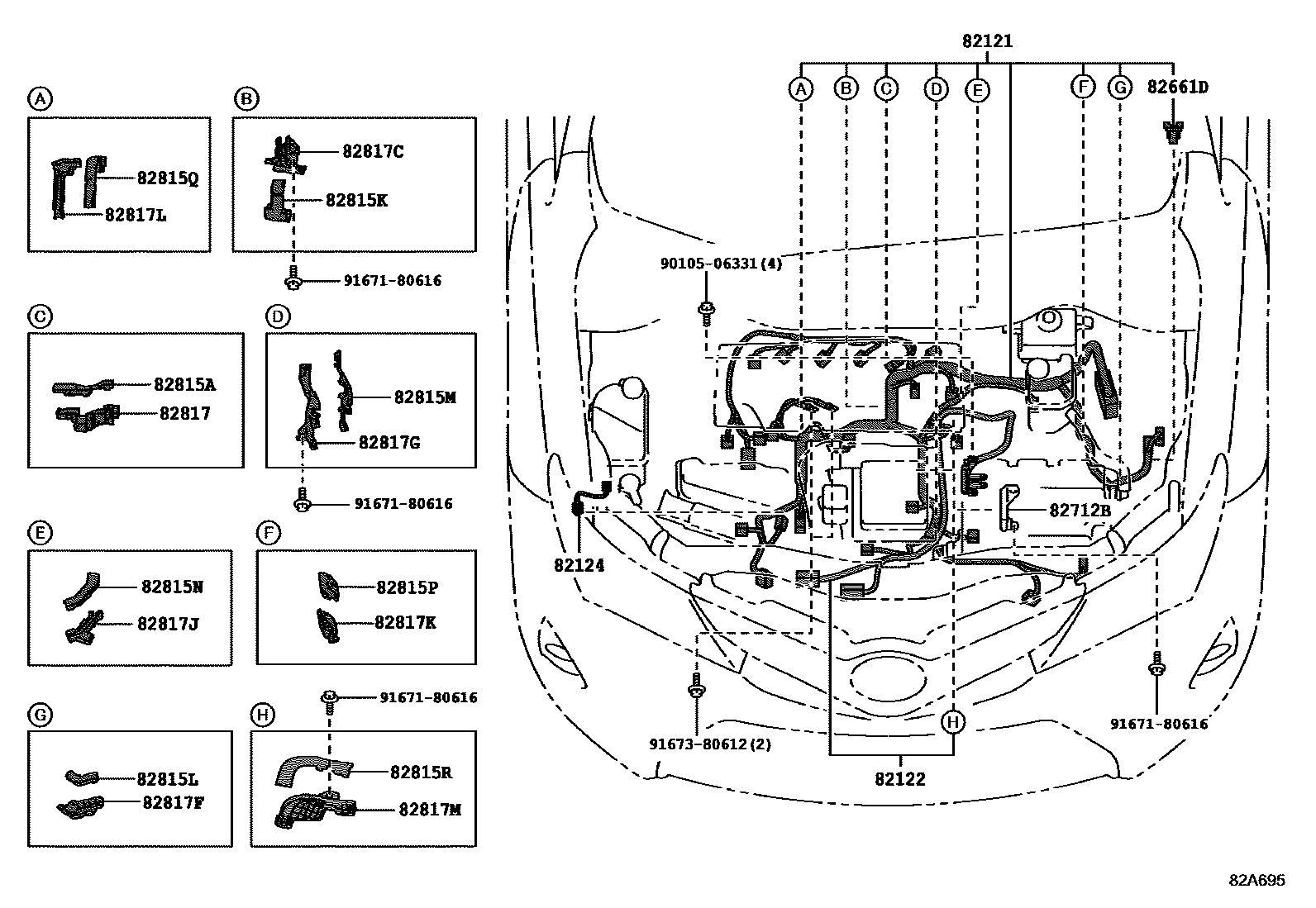

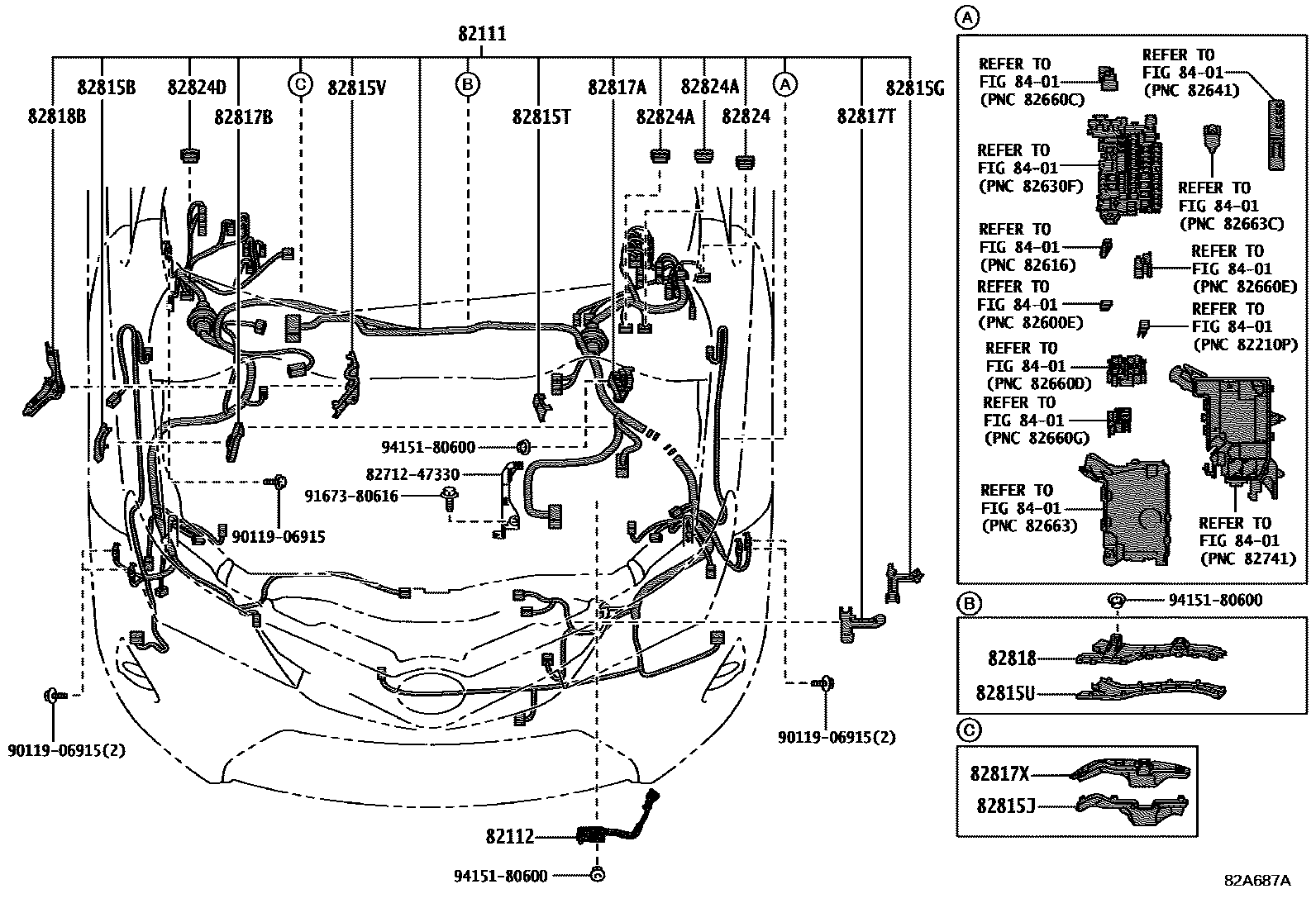

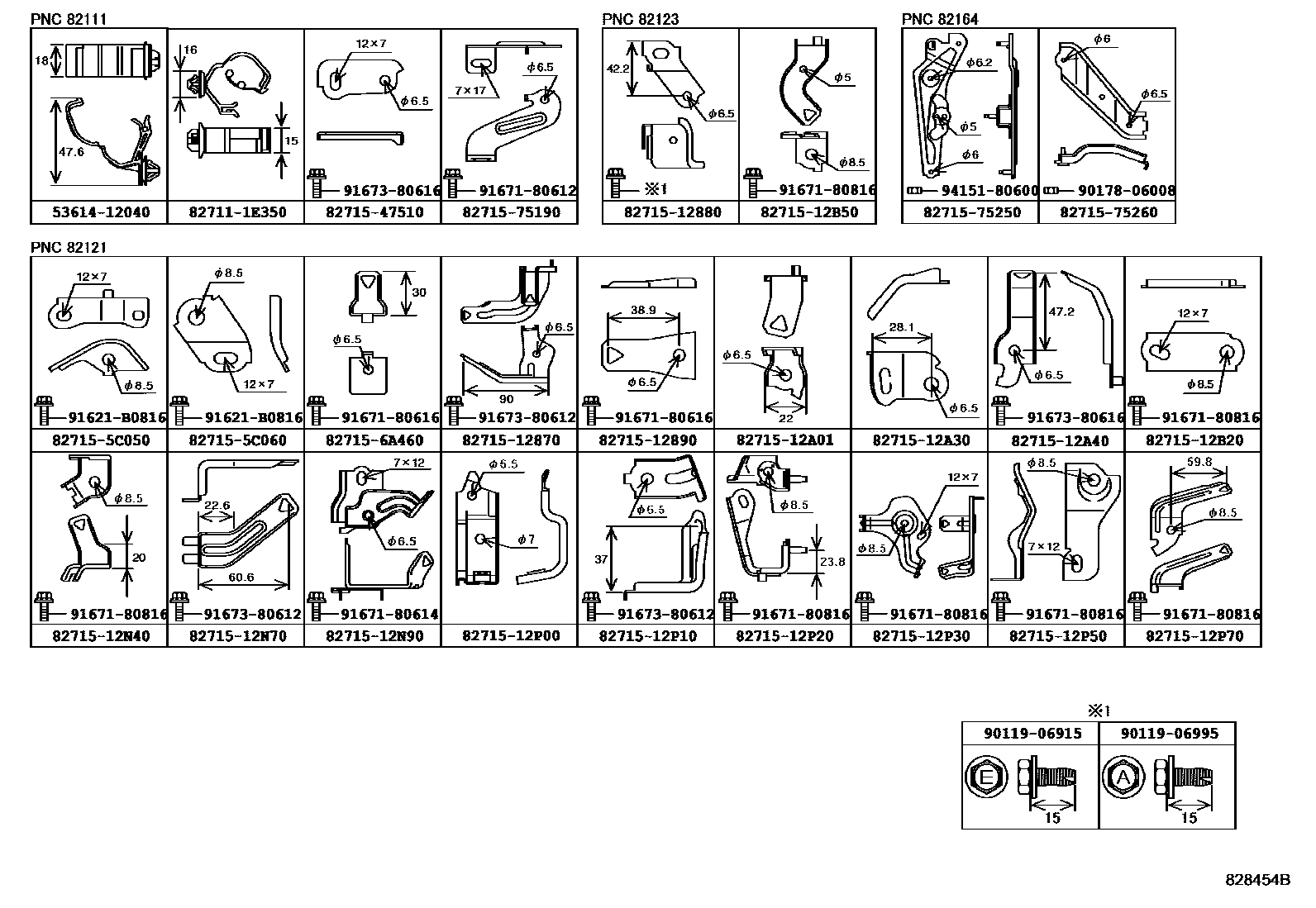

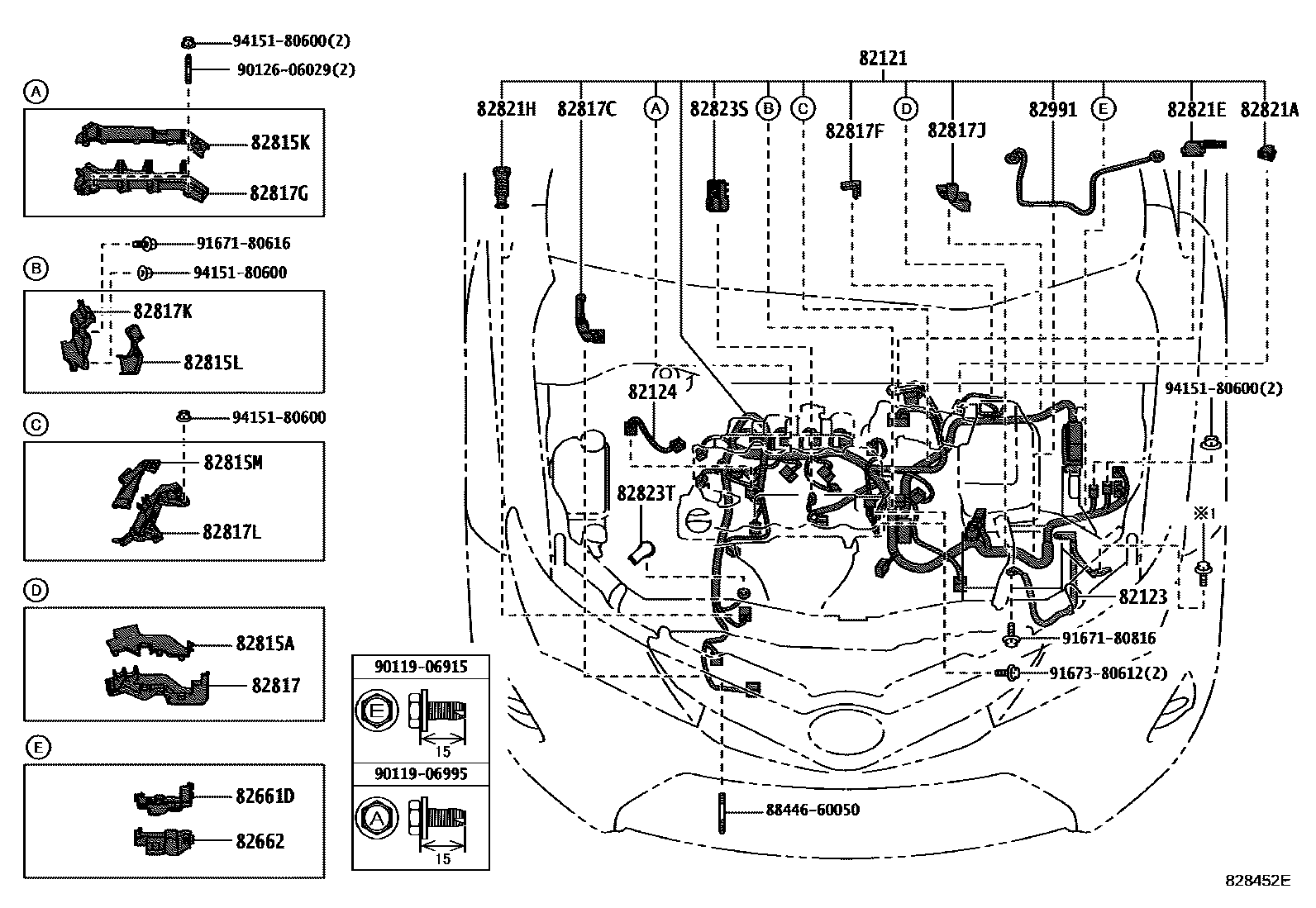

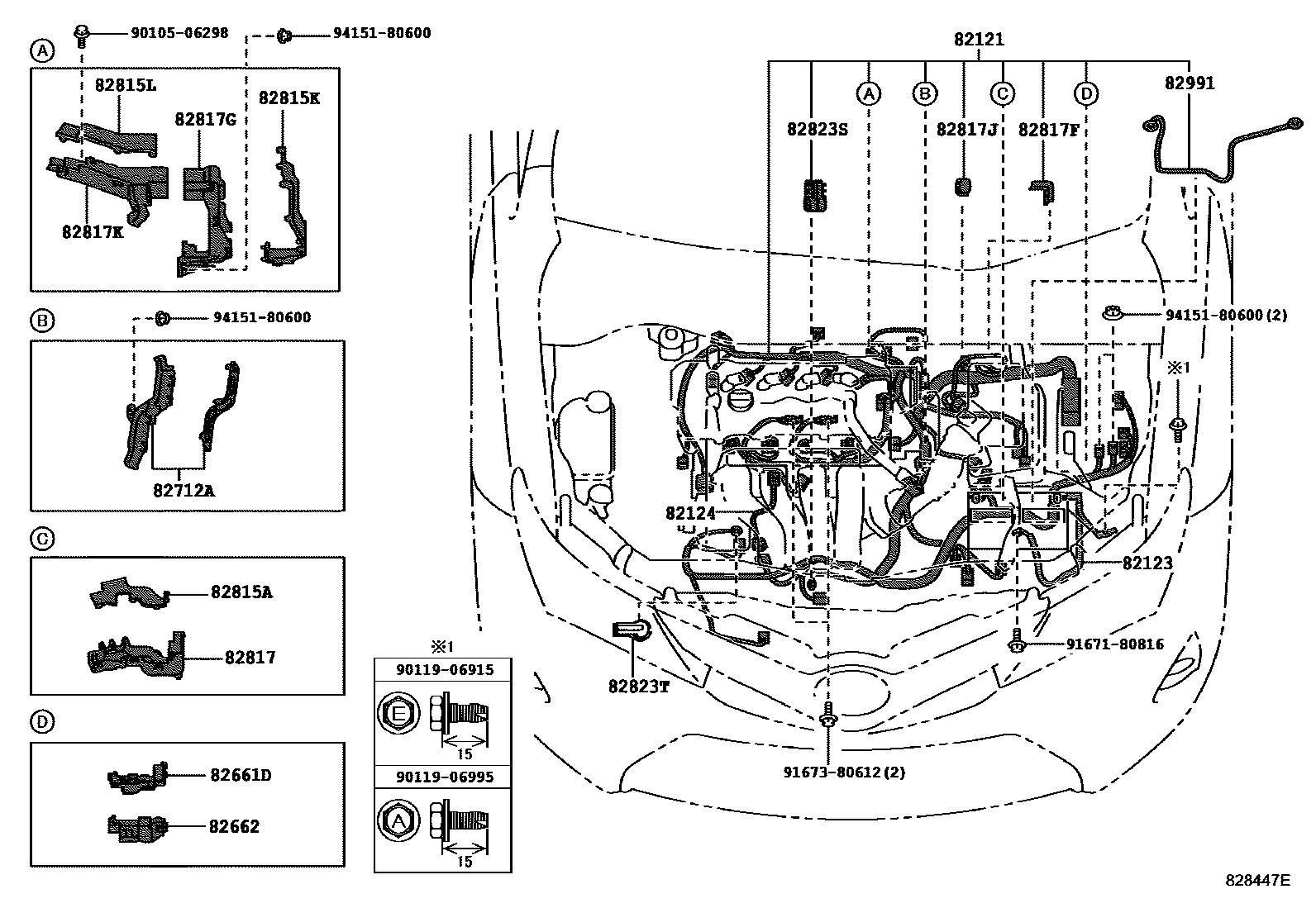

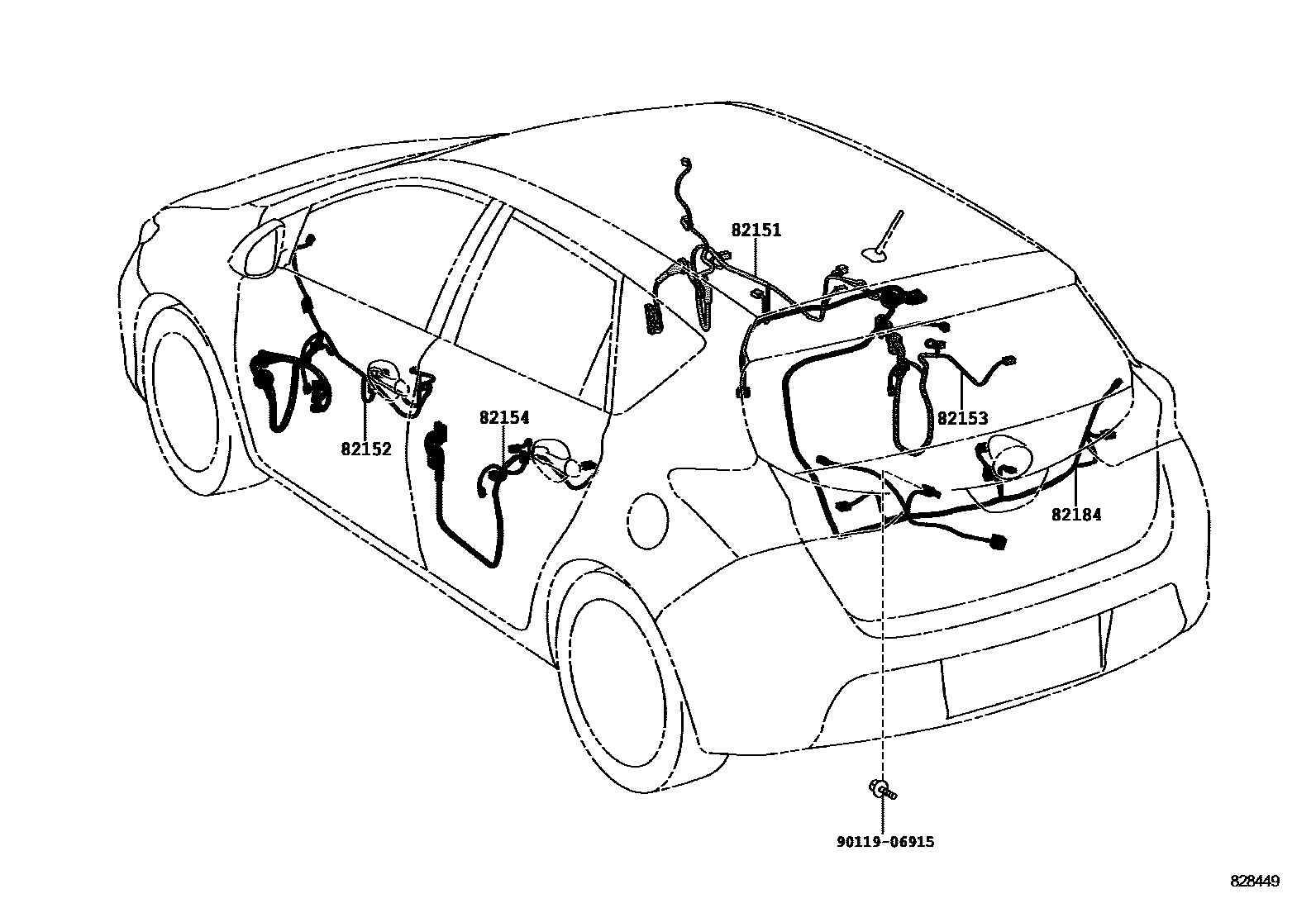

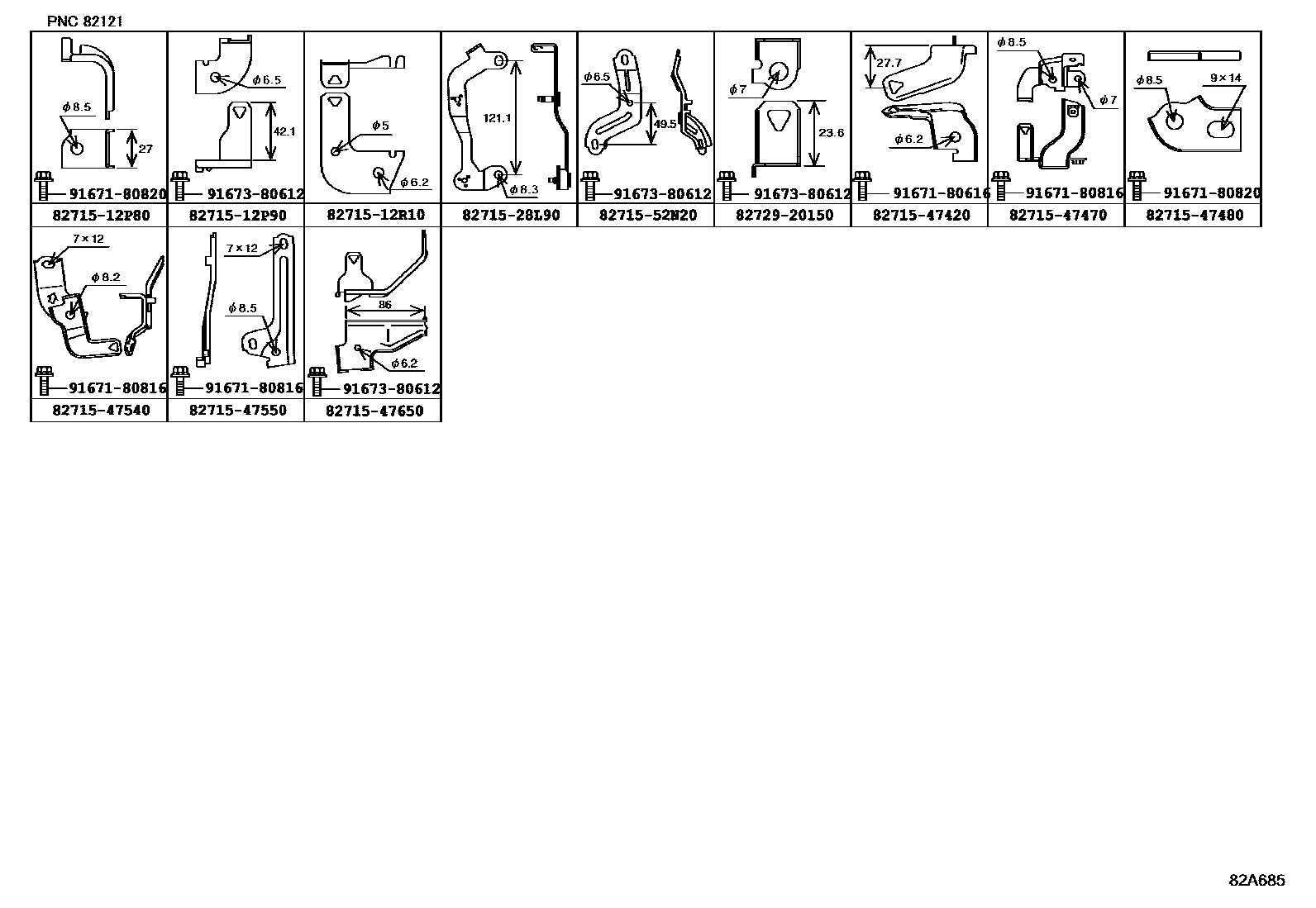

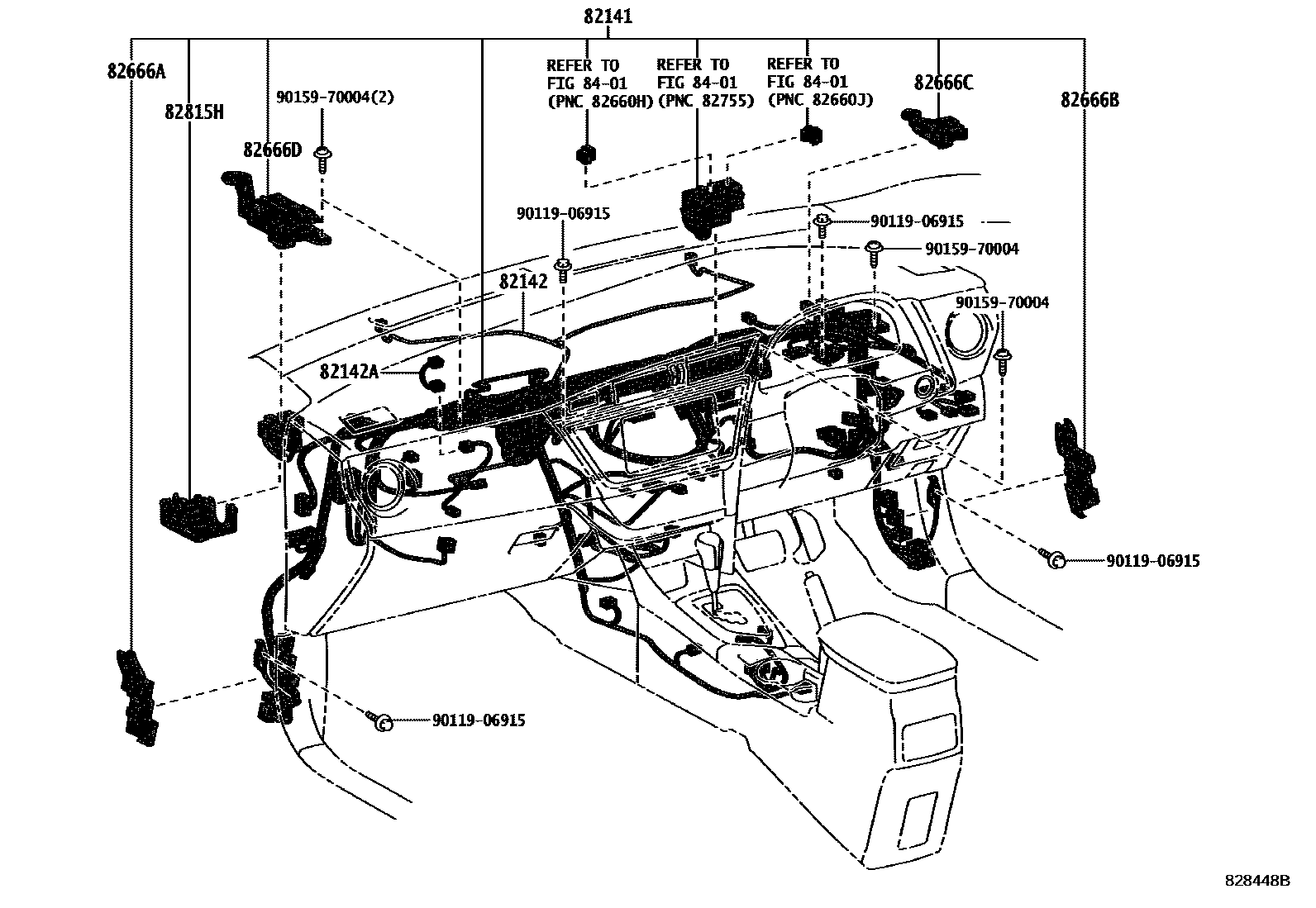

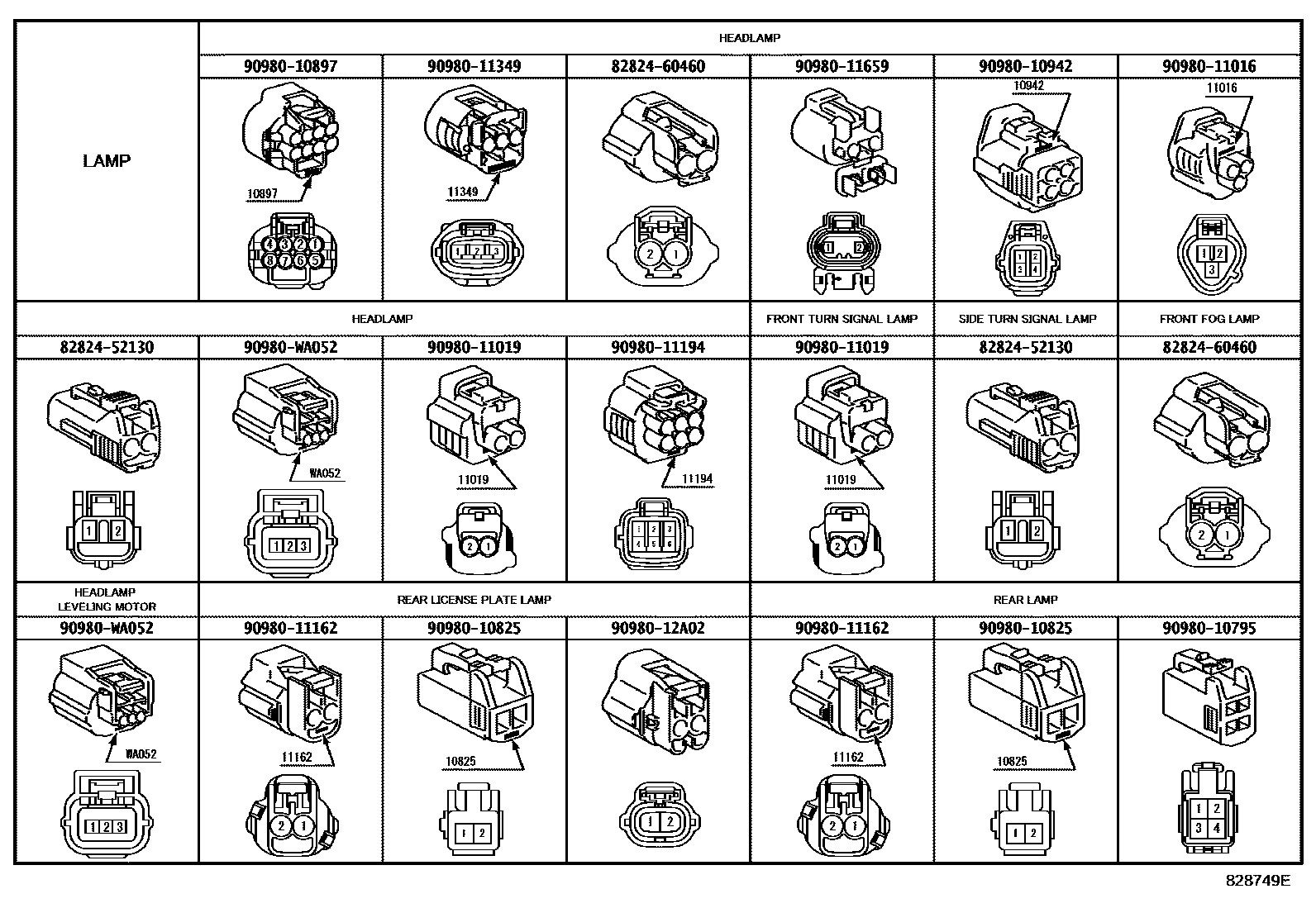

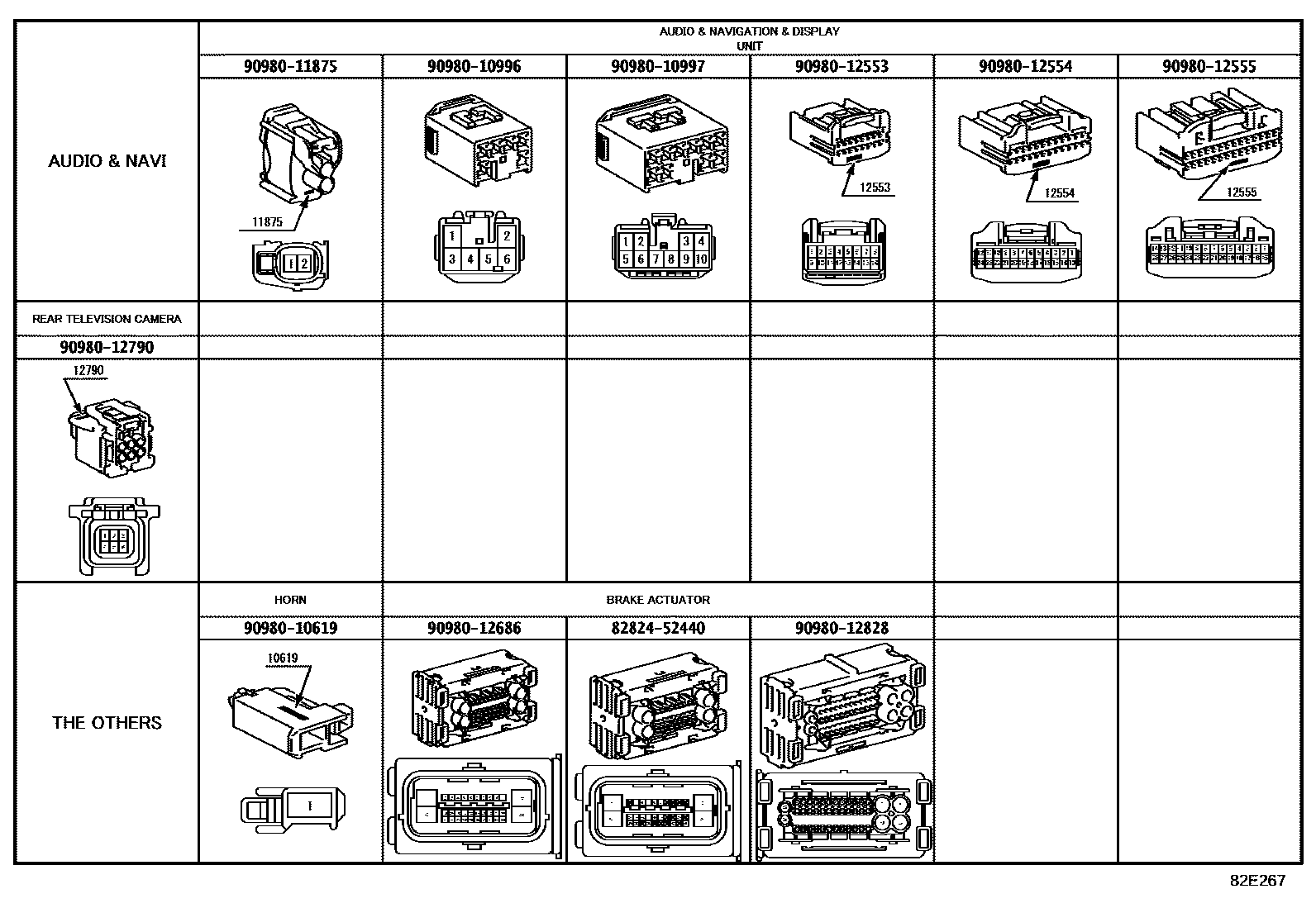

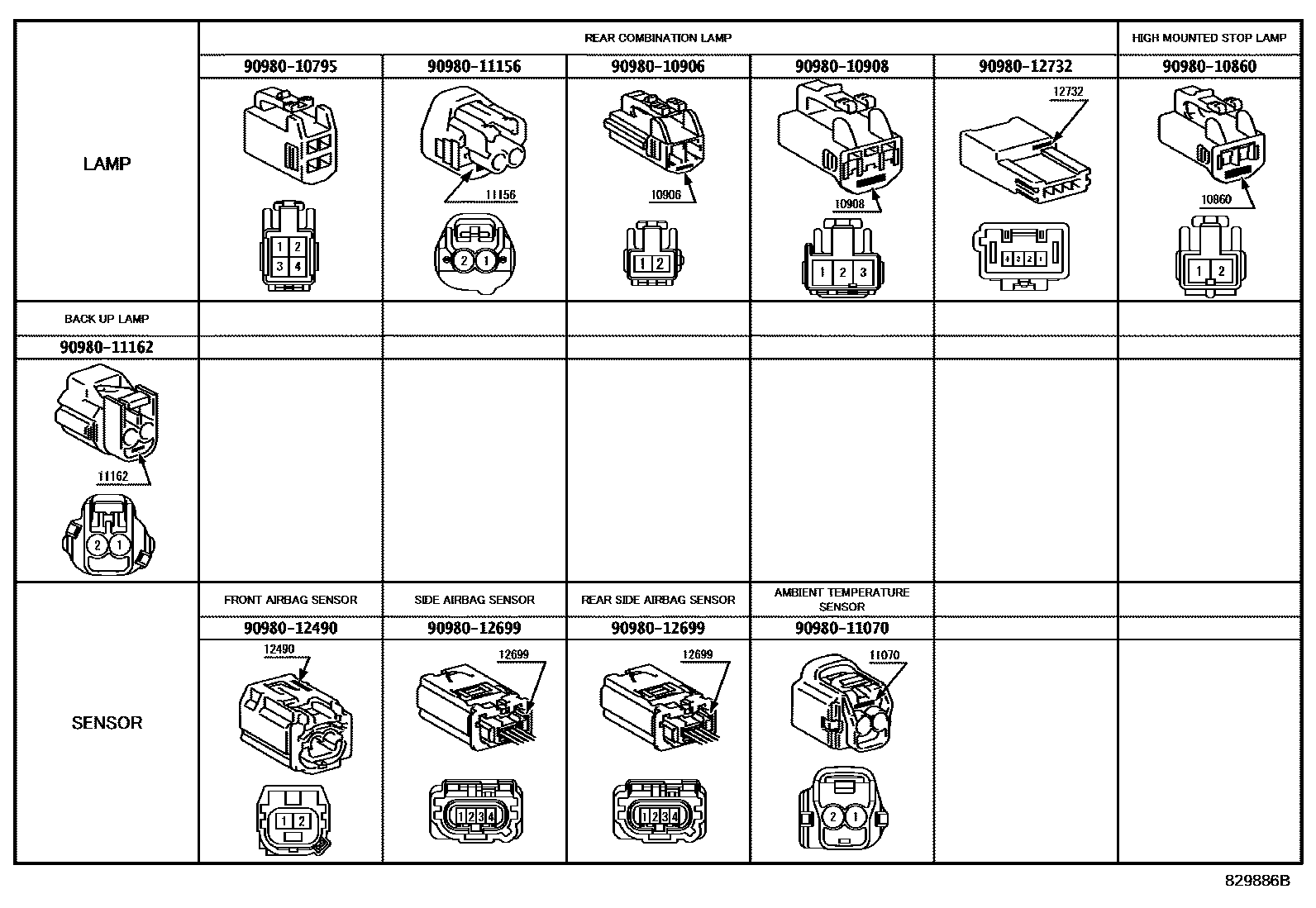

Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 16 images and 75 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

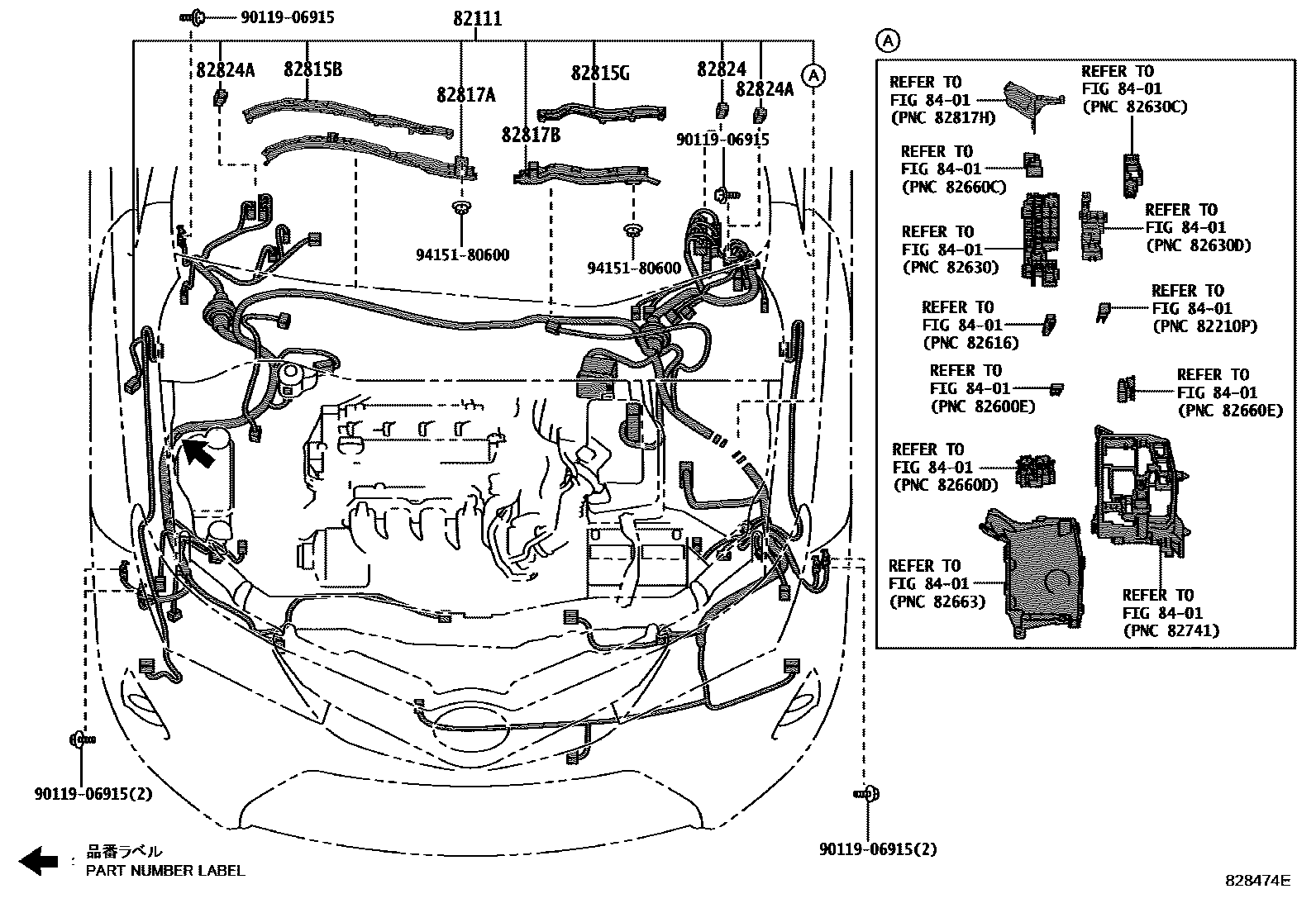

| 82111 | Engine room main wiring harness | 82111-1HC20 · 82111-1HC21 · 82111-1HC40 · 82111-1HC41 · 82111-1HC50 · 82111-1HC51 · 82111-1HC70 · 82111-1HC71 · 82111-1HC80 · 82111-1HC81 · 82111-1HC90 · 82111-1HC91 · 82111-1HD10 · 82111-1HD11 · 82111-1HN40 · 82111-1HW10 · 82111-1HW40 · 82111-1HW50 · 82111-1HW60 · 82111-1HW70 · 82111-1HW80 · 82111-1KJ30 |
| 82112 | Engine room wiring harness No. 2 | 82112-47030 |

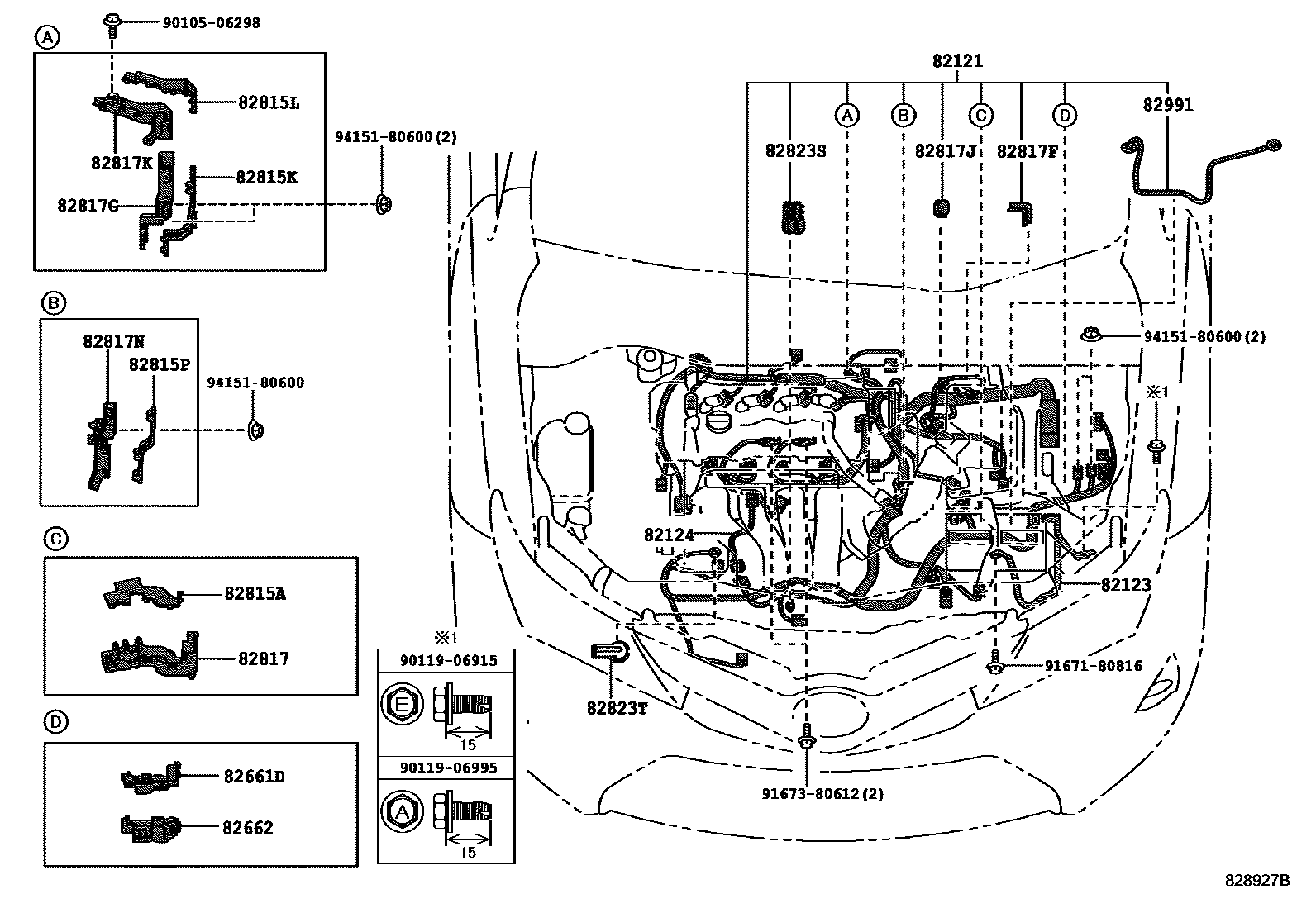

| 82121 | Engine wiring harness | 82121-12M90 · 82121-12P20 · 82121-12P21 · 82121-12P60 · 82121-12P80 · 82121-12Q00 · 82121-12Q10 · 82121-12R00 · 82121-12T70 · 82121-12U00 · 82121-12U10 |
| 82122 | Engine No. 2 wiring harness | 82122-47010 |
| 82123 | Engine No. 3 wiring harness | 82123-12540 · 82123-12550 |
| 82124 | Engine No. 4 wiring harness | 82124-12150 · 82124-12160 |
| 82141 | Dashboard wiring harness | 82141-1KV60 · 82141-1NW50 · 82141-1NW60 · 82141-1NW70 · 82141-1NX00 · 82141-1NX10 · 82141-1NX20 · 82141-1NX50 · 82141-1NY10 · 82141-1NY50 · 82141-1NZ10 · 82141-1NZ20 · 82141-1TY60 · 82141-1TY80 · 82141-1TZ00 · 82141-1TZ10 · 82141-1TZ20 · 82141-1TZ30 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-12500 · 82142-12540 · 82142-12550 · 82142-12610 · 82142-12620 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-74010 |
| 82151 | Right front door wiring harness | 82151-12N40 · 82151-12X80 · 82151-12Y00 · 82151-12Y30 · 82151-12Y40 |
| 82152 | Left front door wiring harness | 82152-12U90 · 82152-12V90 · 82152-12W10 · 82152-12W50 · 82152-12W60 |
| 82153 | Rear door wiring harness No. 1 | 82153-12A30 · 82153-12A40 · 82153-12A50 · 82153-12A70 · 82153-12A80 |
| 82154 | Rear door wiring harness No. 2 | 82154-12880 · 82154-12890 · 82154-12A00 · 82154-12A20 · 82154-12A30 |
| 82161 | floor wiring harness | 82161-12R30 · 82161-12R40 · 82161-12R80 · 82161-12Z10 · 82161-12Z50 · 82161-12Z60 · 82161-12Z70 · 82161-1AJ90 · 82161-1AK00 · 82161-1AK10 · 82161-1AK20 |
| 82163 | Floor wiring harness No. 3 | 82163-12330 · 82163-12340 · 82163-12370 |

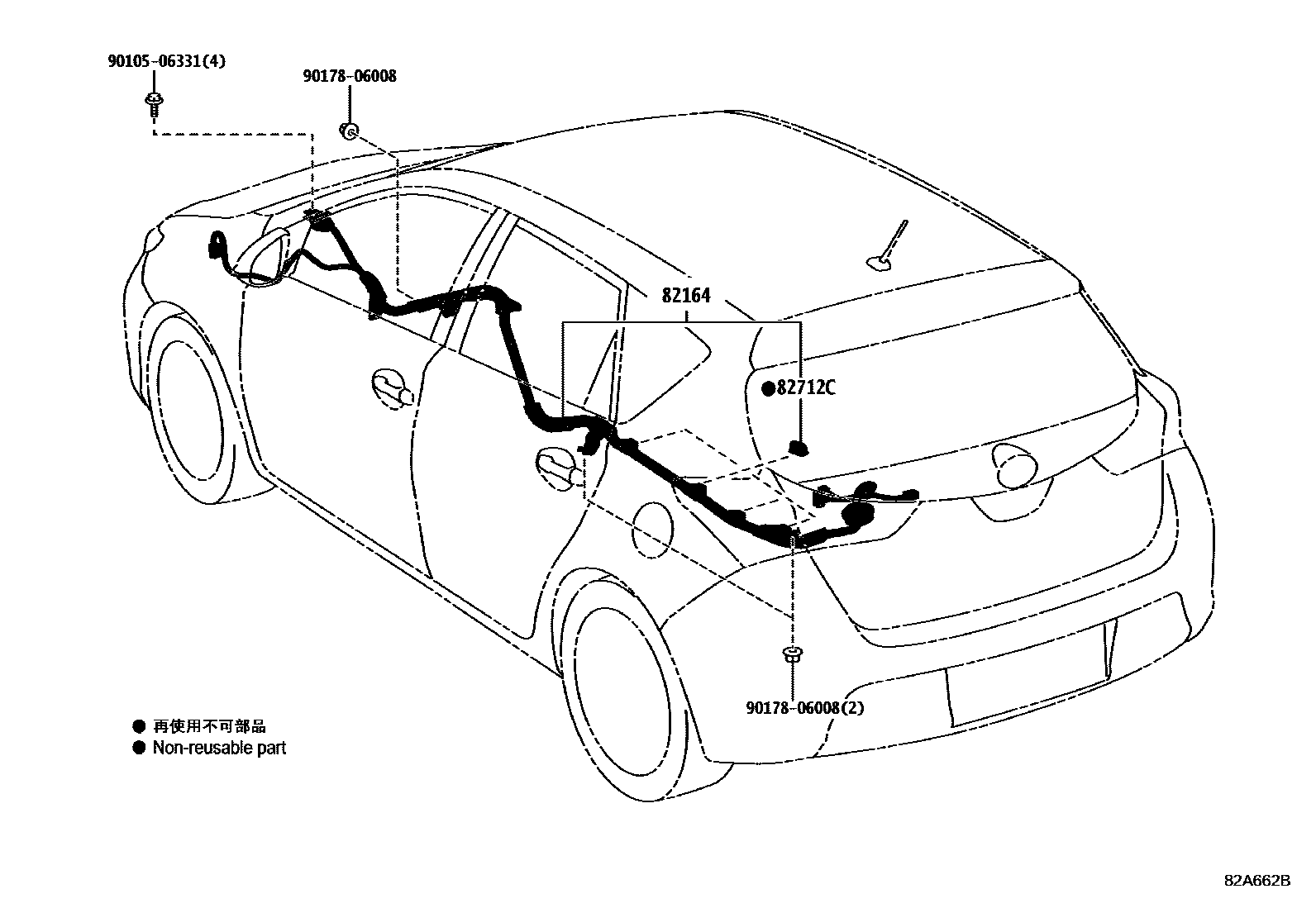

| 82164 | Frame wiring harness set | 82164-12180 |
| 82165 | No. 2 frame wiring harness | 82165-12050 |

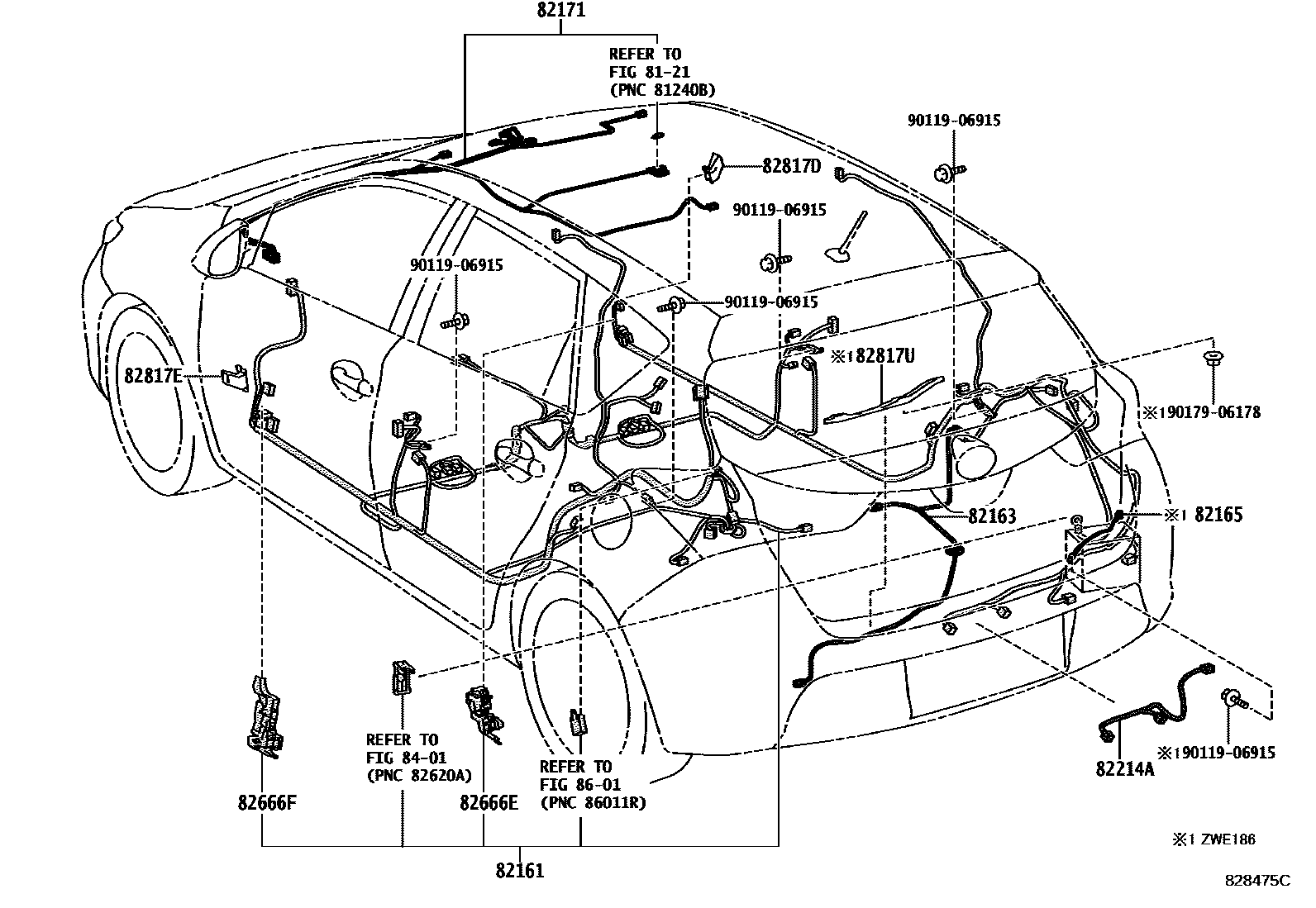

| 82171 | Roof No. 1 wiring harness | 82171-12P60 · 82171-12P80 · 82171-12Q40 · 82171-12R90 · 82171-12S00 · 82171-12T00 · 82171-12T10 · 82171-12T20 · 82171-12T30 |
| 82184 | Rear door No. 1 wiring harness | 82184-12770 · 82184-12780 · 82184-12890 · 82184-12A20 |

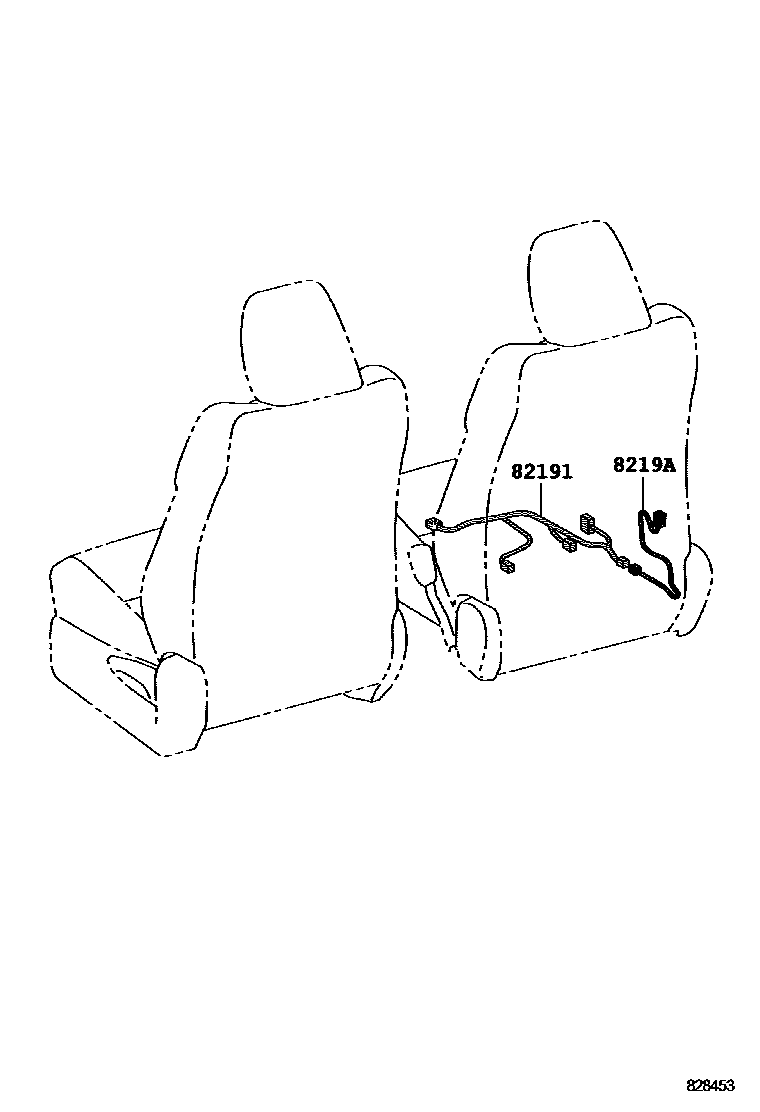

| 82191 | Front right seat wiring harness | 82191-12090 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-12010 |
| 82214A | Car light wiring harness | 82214-12190 |
| 82661D | No. 1 relay box side cover | 82661-02060 · 82661-12300 |
| 82662 | Relay box upper cover | 82662-12260 |
| 82666A | Connector holder No. 2 | 82666-02420 |
| 82666B | No. 3 connector holder | 82666-02430 |
| 82666C | No. 4 connector holder | 82666-12510 |
| 82666D | No. 5 connector holder | 82666-12520 |
| 82666E | No. 6 connector holder | 82666-02460 |
| 82666F | No. 7 connector holder | 82666-02470 |
| 82712A | Wire harness bracket | 82712-28440 |
| 82712B | Wire harness bracket | 82712-47340 |
| 82712C | No. 1 wiring harness bracket | 82712-47270 |
| 82815A | Wiring harness protector cover | 82815-02390 · 82815-47480 |
| 82815B | Wiring harness protector cover | 82815-12150 · 82815-47390 |
| 82815G | No. 5 wire harness protector cover | 82815-12160 · 82815-47560 |
| 82815H | No. 6 wire harness protector cover | 82815-12580 |
| 82815J | No. 7 wire harness protector cover | 82815-47570 |
| 82815K | No. 8 wire harness protector cover | 82815-02250 · 82815-0D070 · 82815-12520 · 82815-47490 |
| 82815L | No. 9 wire harness protector cover | 82815-02260 · 82815-12420 · 82815-12510 · 82815-47500 |
| 82815M | No. 10 wire harness protector cover | 82815-12430 · 82815-47510 |
| 82815N | No. 11 wire harness protector cover | 82815-47520 |
| 82815P | No. 12 wire harness protector cover | 82815-12530 · 82815-47530 |
| 82815Q | No. 13 wire harness protector cover | 82815-47541 |
| 82815R | No. 14 wire harness protector cover | 82815-47470 |
| 82815T | No. 16 wire harness protector cover | 82815-47670 |
| 82815U | No. 17 wire harness protector cover | 82815-75010 |
| 82815V | No. 1 wire harness protector cover | 82815-76160 |
| 82817 | No. 1 wire harness protection device | 82817-02B30 · 82817-47720 |
| 82817A | No. 2 wire harness protection device | 82817-12B10 · 82817-47610 |
| 82817B | No. 3 wire harness protection device | 82817-12B20 · 82817-47620 |
| 82817C | No. 4 wire harness protection device | 82817-02B20 · 82817-47730 |
| 82817D | No. 5 wire harness protection device | 82817-02C00 |
| 82817E | No. 6 wire harness protection device | 82817-02C10 |
| 82817F | No. 7 wire harness protection device | 82817-12860 · 82817-47740 |
| 82817G | No. 8 wire harness protection device | 82817-02760 · 82817-0D140 · 82817-12K90 · 82817-47750 |
| 82817J | No. 9 wire harness protection device | 82817-12J10 · 82817-47760 |
| 82817K | No. 10 wire harness protection device | 82817-02770 · 82817-12J60 · 82817-12K80 · 82817-47770 |
| 82817L | No. 11 wire harness protection device | 82817-12J70 · 82817-47781 |
| 82817M | No. 12 wire harness protection device | 82817-47700 |
| 82817N | No. 13 wire harness protection device | 82817-12L00 |
| 82817T | No. 15 wire harness protection device | 82817-47800 |
| 82817U | No. 16 wire harness protection device | 82817-02890 |
| 82817X | No. 17 wire harness protection device | 82817-47810 |
| 82818 | No. 2 wire harness protection device | 82817-75070 |
| 82818B | No. 3 wire harness protection device | 82817-76370 |
| 82821A | Connector cover | 82821-12650 |
| 82821E | Connector cover | 82821-12660 |
| 82821H | Connector cover | 82821-20370 |
| 82823S | starter terminal cover | 82823-12120 |
| 82823T | Generator terminal cover | 82823-22050 |
| 82824 | Harness connector | 82824-50350 |
| 82824A | Harness connector | 82824-50360 |
| 82824D | Harness connector | 82824-73030 |
| 82991 | Fuse repair line | 82991-12140 |
