Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 5 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

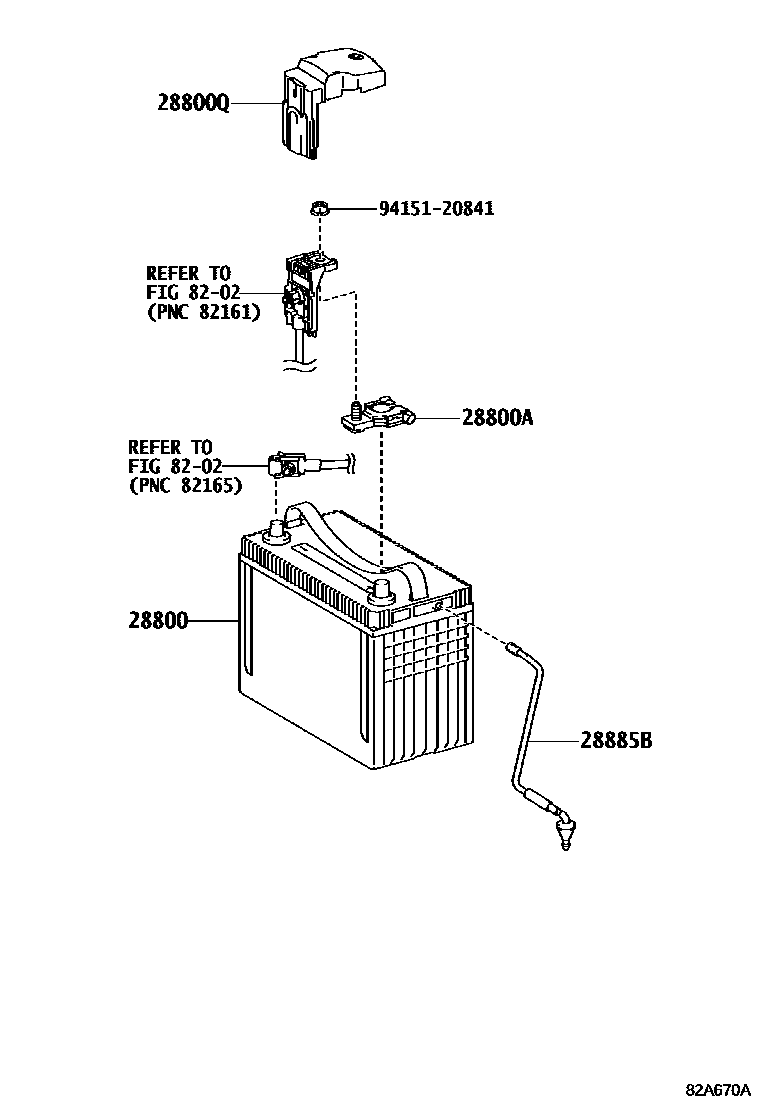

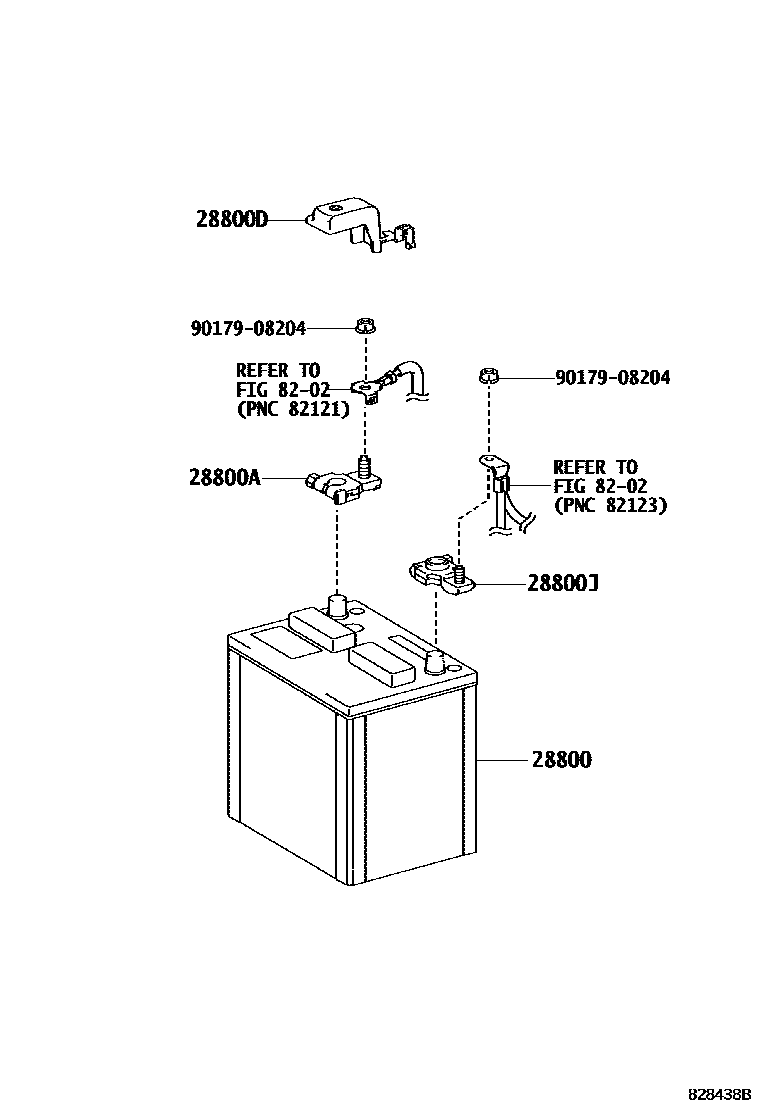

| 28800 | battery | 28800-37080 · 28800-42062 |
| 28800A | battery positive terminal | 90982-05054 · 90982-05063 |
| 28800D | Connector cover (for battery terminals) | 82821-12490 |
| 28800J | battery negative terminal | 90982-06070 |
| 28800Q | Connector cover (for battery) | 82821-47110 |
| 28885B | battery hose | 28885-37030 |
| 82685E | Maintenance plug warning nameplate | 82685-50050 · 82685-76020 |
| 82815C | No. 1 wire harness protector cover | 82815-33320 |
| 82815F | No. 4 wire harness protector cover | 82815-47140 |
| 89892A | battery voltage sensor | 89892-12010 |
| G3834 | Service plug handle | G3834-48010 |

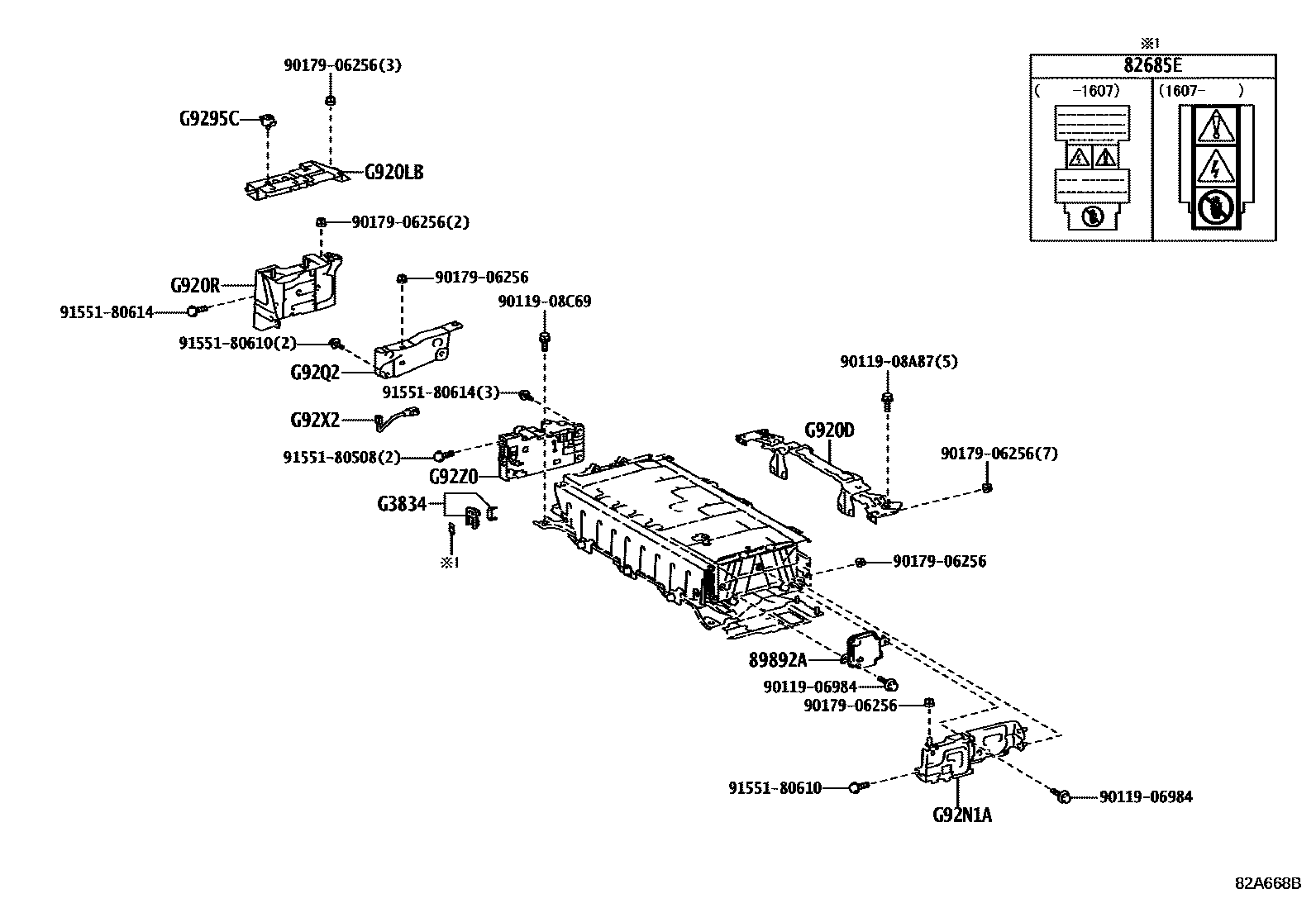

| G920D | No. 3 HV battery bracket bracket sub-assembly | G920D-12020 |
| G920LB | HV battery right cover sub-assembly | G920L-12010 |
| G920R | No. 2 HV battery shielding sub-assembly | G920R-12010 |

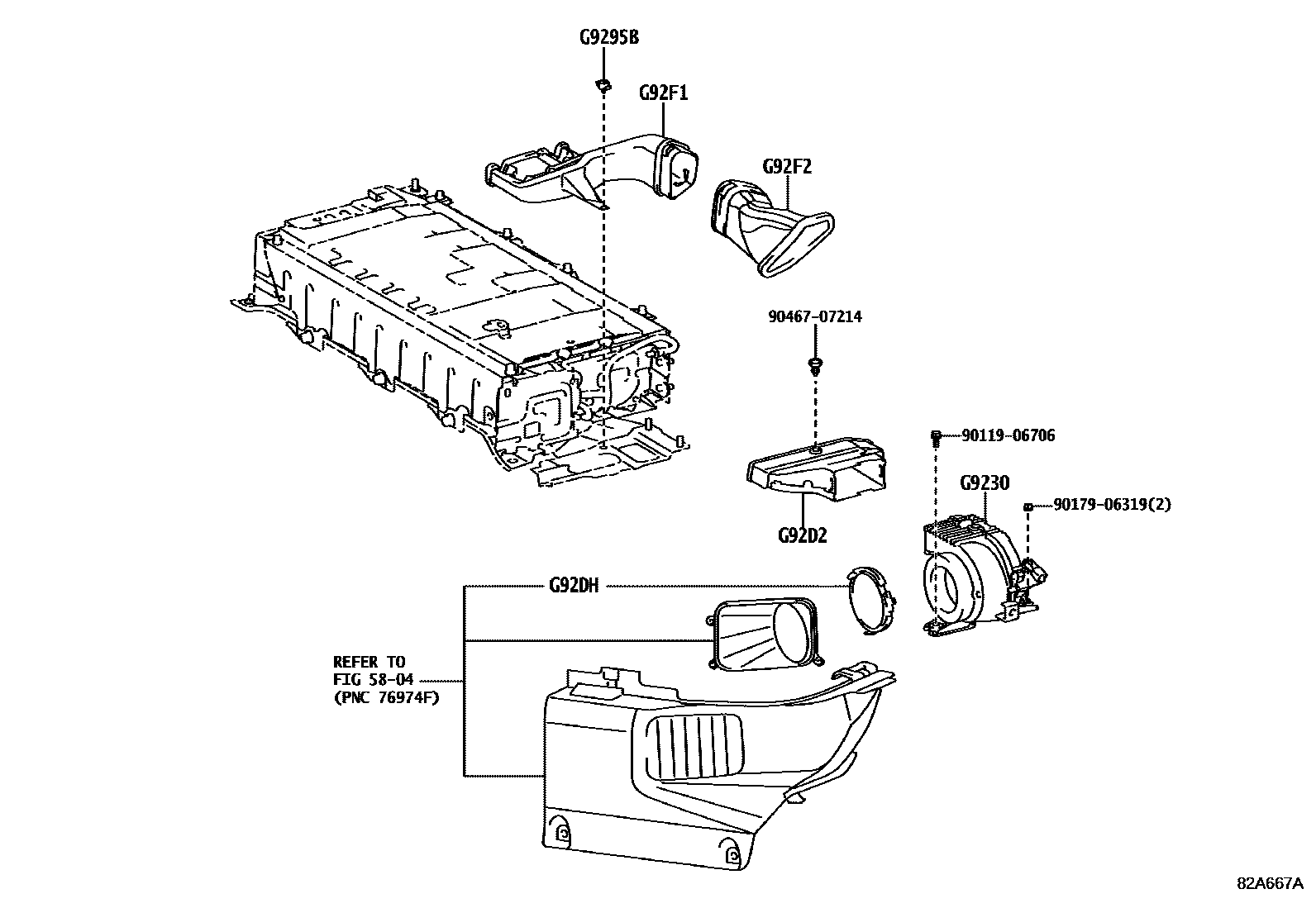

| G9230 | Battery cooling blower assembly | G9230-12010 |
| G9295B | Battery cover lock | G9295-30020 |
| G9295C | Battery cover No. 2 lock | G9295-30020 |
| G92D2 | No. 2 HV battery air inlet | G92D2-12010 |
| G92DH | No. 1 HV battery air intake filter | G92DH-12030 · G92DH-12031 |
| G92F1 | No. 1 HV battery exhaust duct | G92F1-12010 |
| G92F2 | No. 2 HV battery exhaust duct | G92F2-02010 |
| G92N1A | No. 1 cover on the left side of the HV battery | G92N1-12020 |
| G92Q1 | HV battery No. 1 shielding plate | G92Q1-12010 |
| G92Q2 | HV battery No. 2 shielding plate | G92Q2-12010 |
| G92X2 | HV battery pack wiring harness No. 2 | G92X2-12010 |
| G92Z0 | HV battery junction box assembly | G92Z0-33030 |

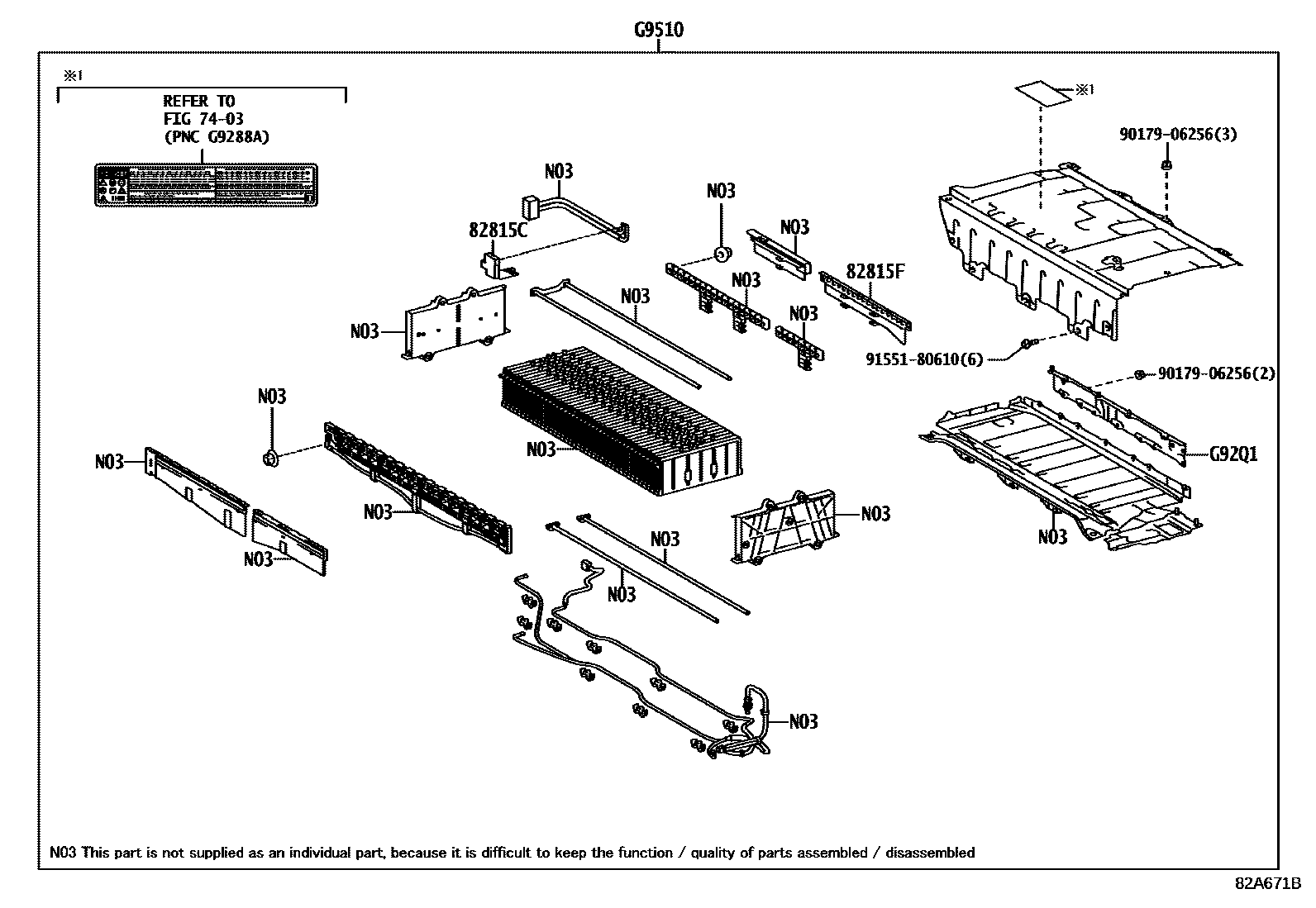

| G9510 | HV power supply battery assembly | G9510-12020 |
