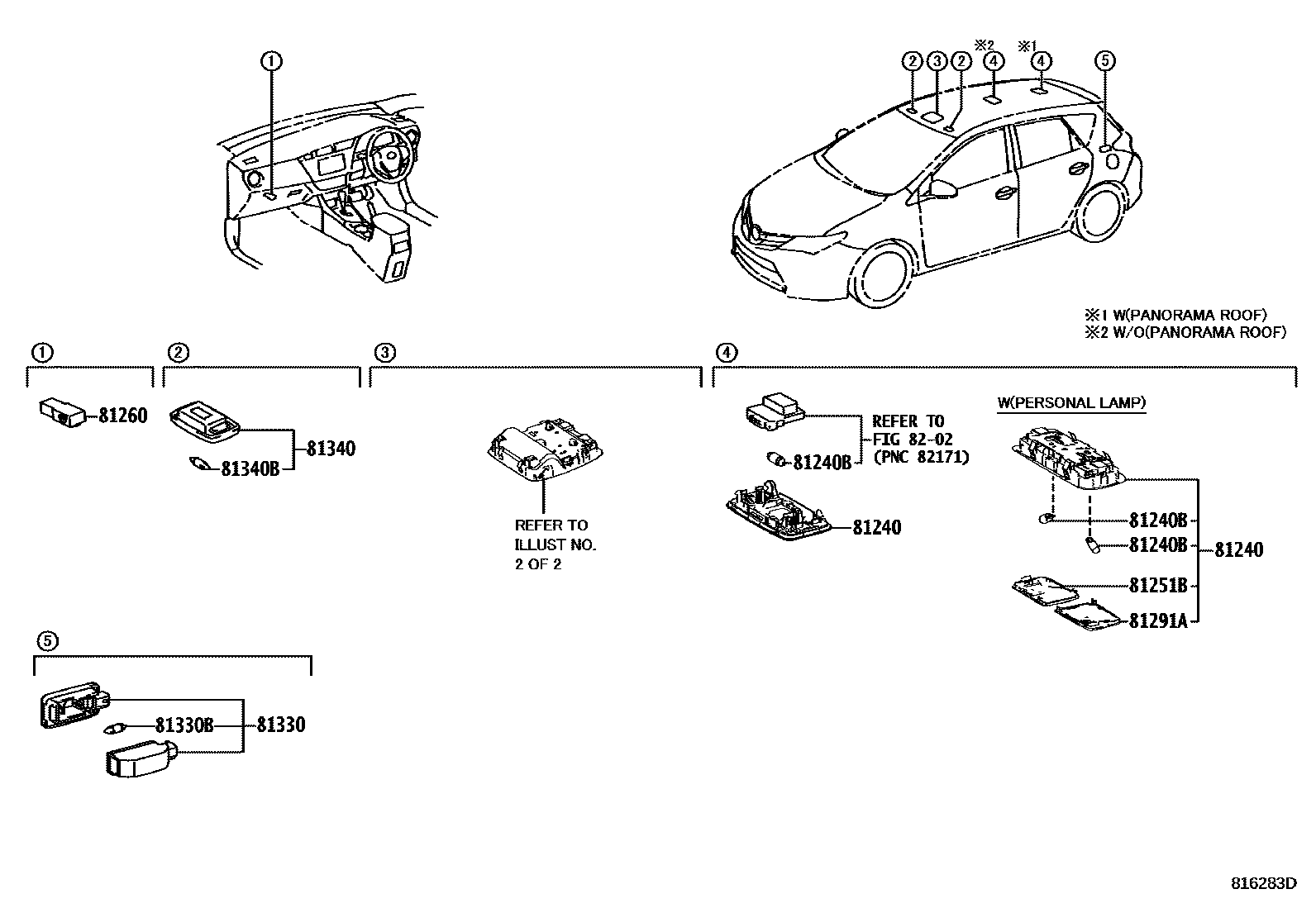

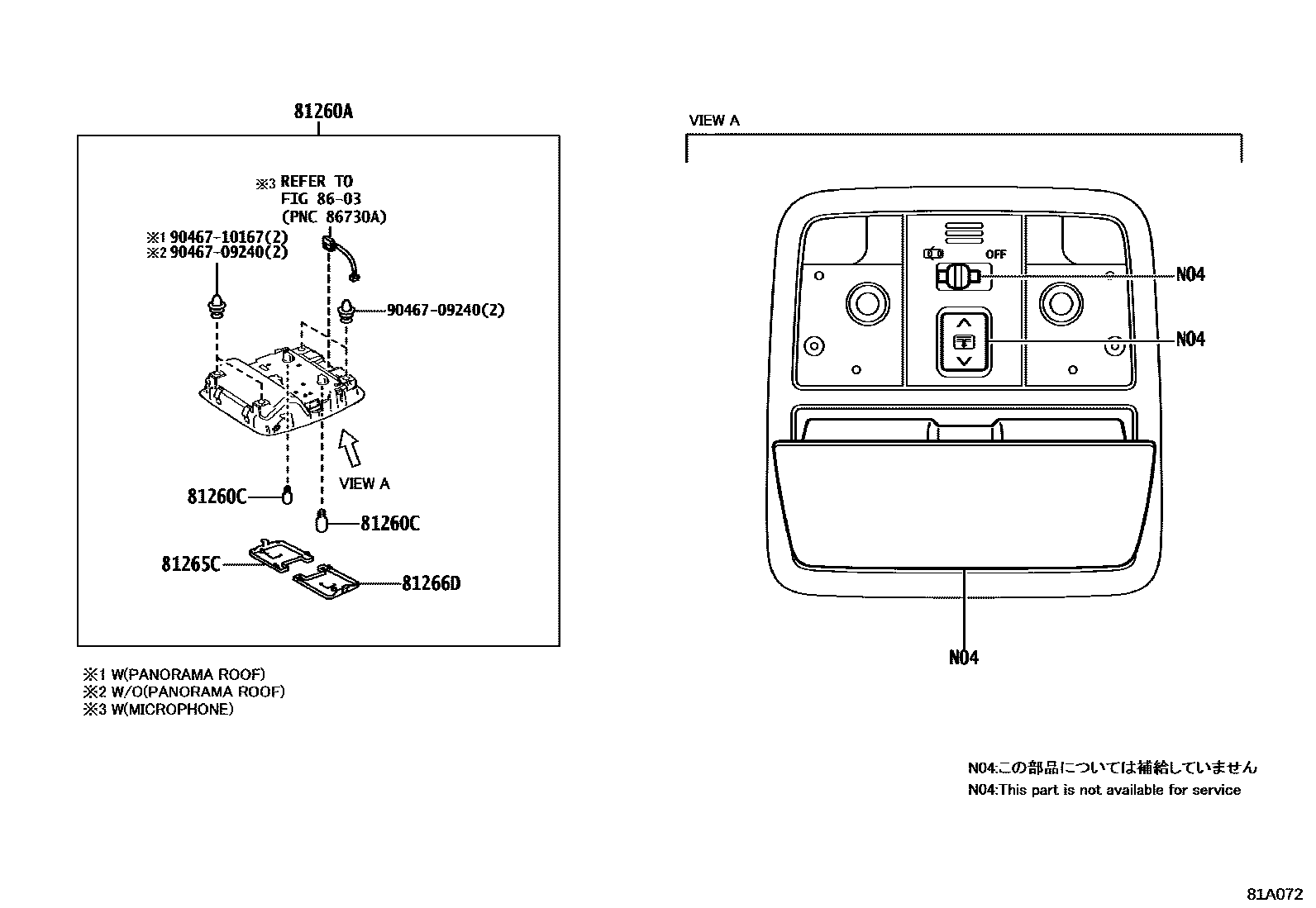

Toyota COROLLA 车内灯 — Figure 8121
Toyota COROLLA EPC diagram 8121, 车内灯, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81240B | Interior light bulb No. 1 | 90981-11062 · 90981-14011 |
| 81251B | Right rear interior light cover | 81251-05030 |
| 81260 | Glove box light assembly | 81080-48010 · 81080-52050 |
| 81260C | Light bulb (for reading lamp) | 90981-11062 |
| 81265C | No. 1 reading lamp shade | 81265-42010 · 81265-42020 |
| 81266D | Reading lamp shade No. 2 | 81266-42010 · 81266-42020 |
| 81291A | Left rear interior light cover | 81291-05030 |
| 81330 | No. 1 trunk light assembly | 81250-12060 |
| 81330B | trunk light bulb | 99132-13050 |
| 81340B | Bulb (for vanity lights) | 99132-13050 |
