Toyota COROLLA reflector — Figure 8115

Toyota COROLLA EPC diagram 8115, reflector, with 2 images and 2 PNC and OE references.

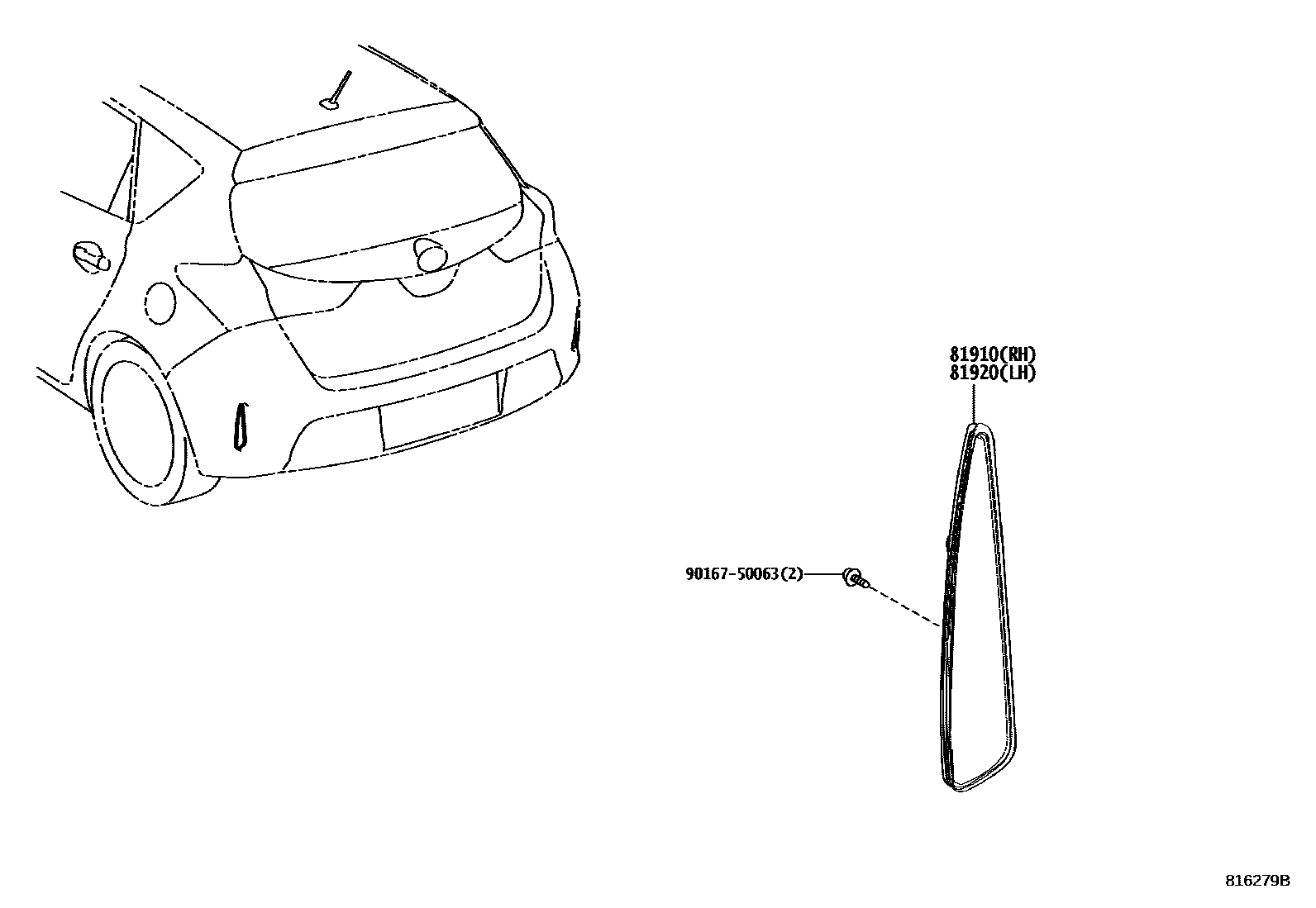

Toyota COROLLA reflector EPC diagram — 816279B
reflector — 816279B (201208 – 201503)

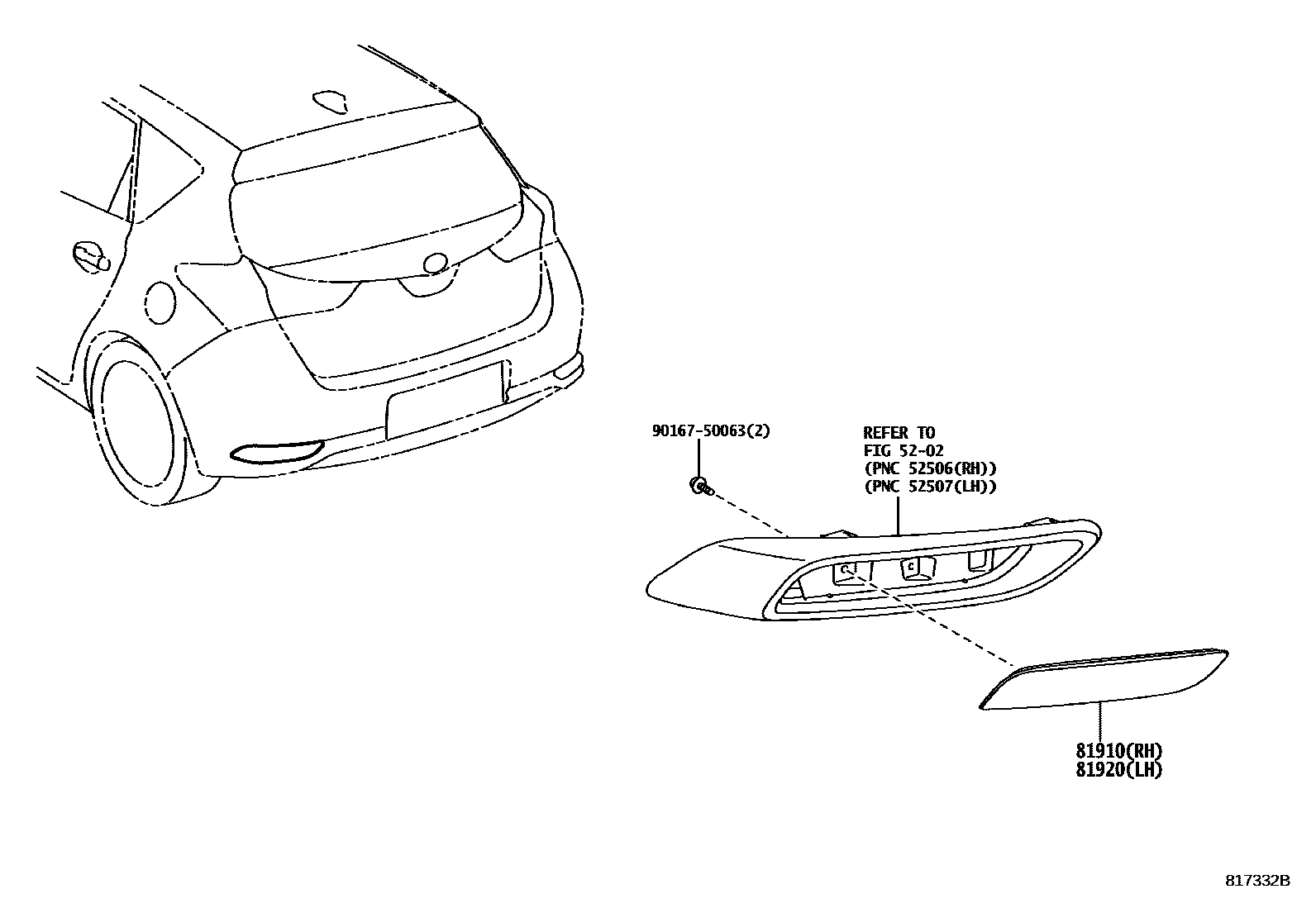

Toyota COROLLA reflector EPC diagram — 817332B
reflector — 817332B (201503 – 999999)

PNC and OE references

PNCPart nameOE numbers
81910Right reflector assembly81910-12110 · 81910-12160
81920Left reflector assembly81920-12110 · 81920-12140
