Toyota COROLLA 后组合灯 — Figure 8111

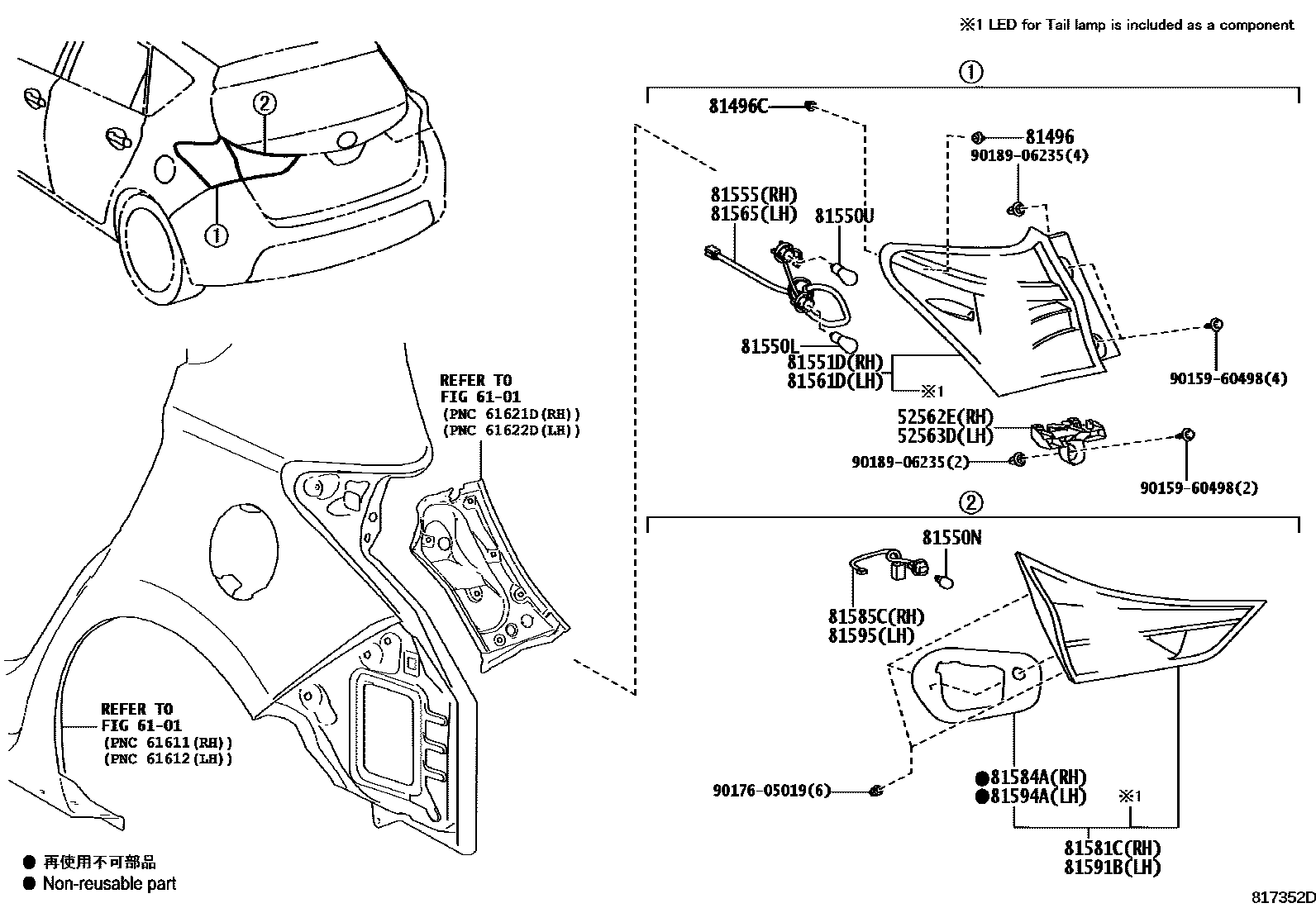

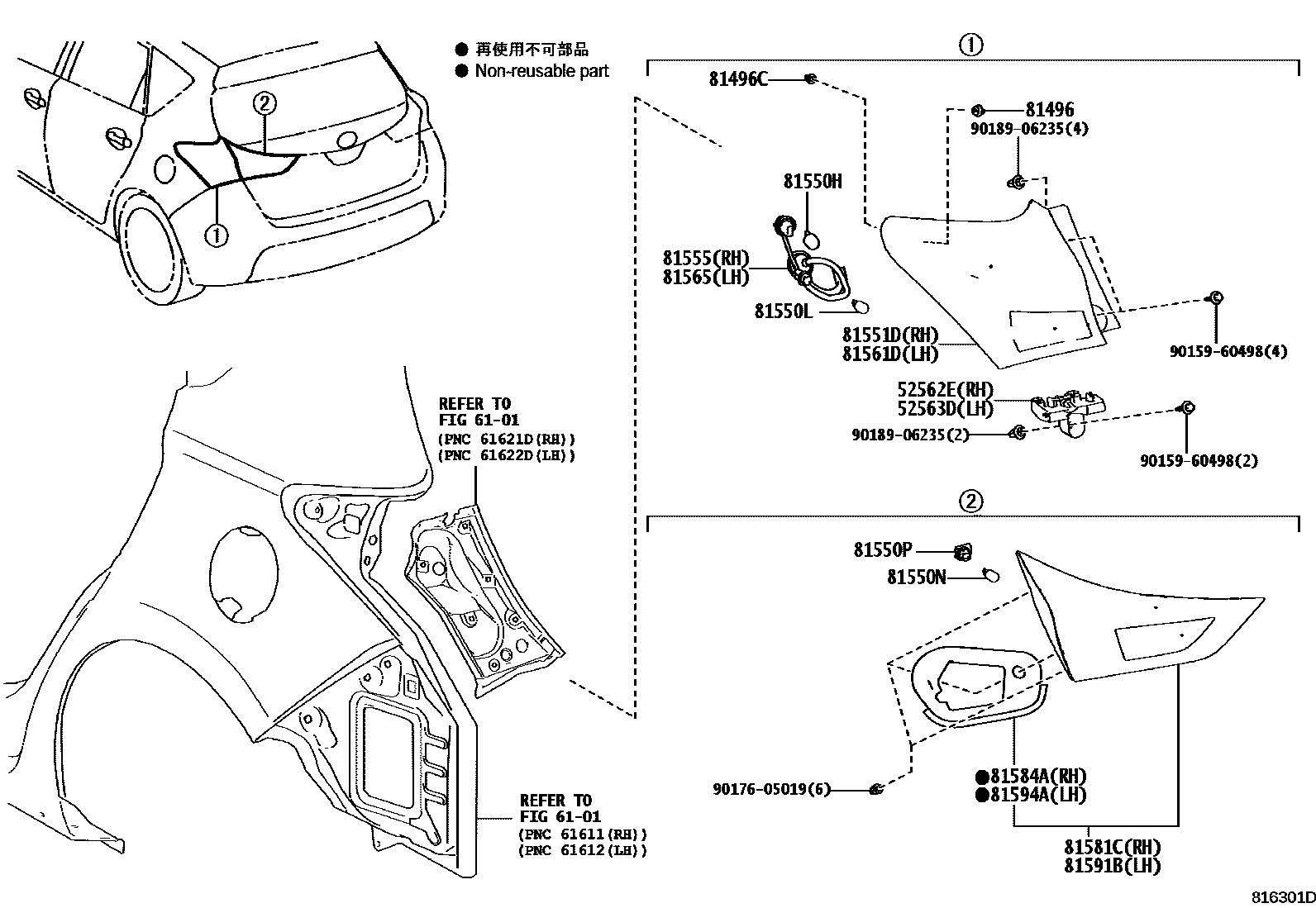

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562E | Rear bumper upper right fixing bracket | 52562-12140 · 52562-12200 |
| 52563D | Rear bumper upper left fixing bracket | 52563-12100 · 52563-12120 |
| 81496 | Rear combination light guide block | 81496-28010 |
| 81496C | No. 2 rear combination light guide block | 81496-52020 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90981-11059 · 90981-15028 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550P | Reversing light lamp holder | 90075-60065 |
| 81550U | brake light bulb | 90981-13093 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-12C30 · 81551-12C31 · 81551-12C40 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-12C30 · 81555-12C40 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-12C30 · 81561-12C31 · 81561-12C40 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-12C30 · 81565-12C40 |
| 81581C | Right rear light lampshade and lamp body | 81581-12190 · 81581-12210 |
| 81584A | Right rear light gasket | 81584-12190 · 81584-12210 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-12190 |
| 81591B | Left rear light shade and body | 81591-12160 · 81591-12210 |
| 81594A | Left rear light gasket | 81594-12160 · 81594-12210 |
| 81595 | Left rear light lamp holder and wiring harness | 81595-12160 |
