Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 5 PNC and OE references.

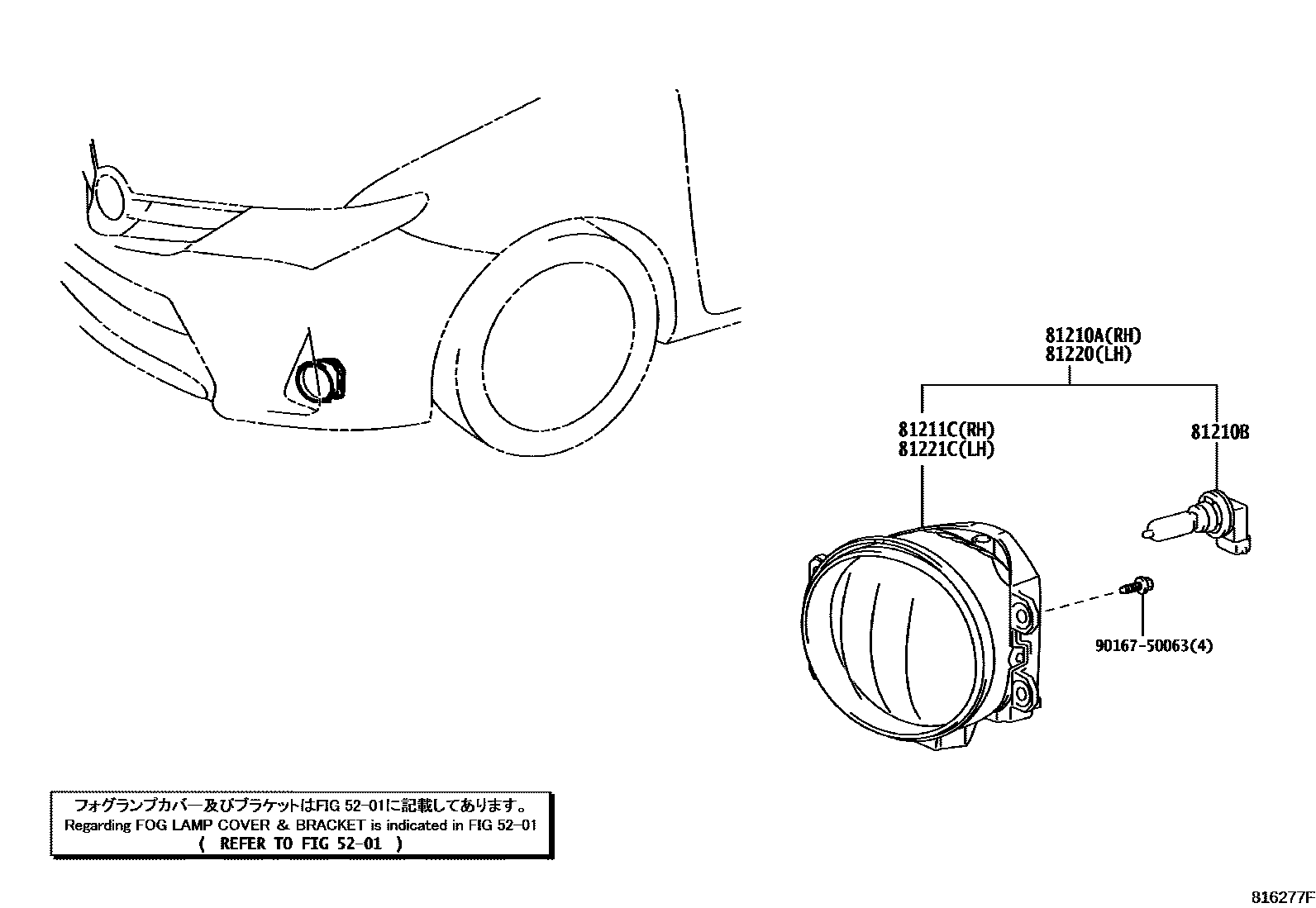

Toyota COROLLA Fog Lamp EPC diagram — 816277F
Fog Lamp — 816277F (201208 – 201503)

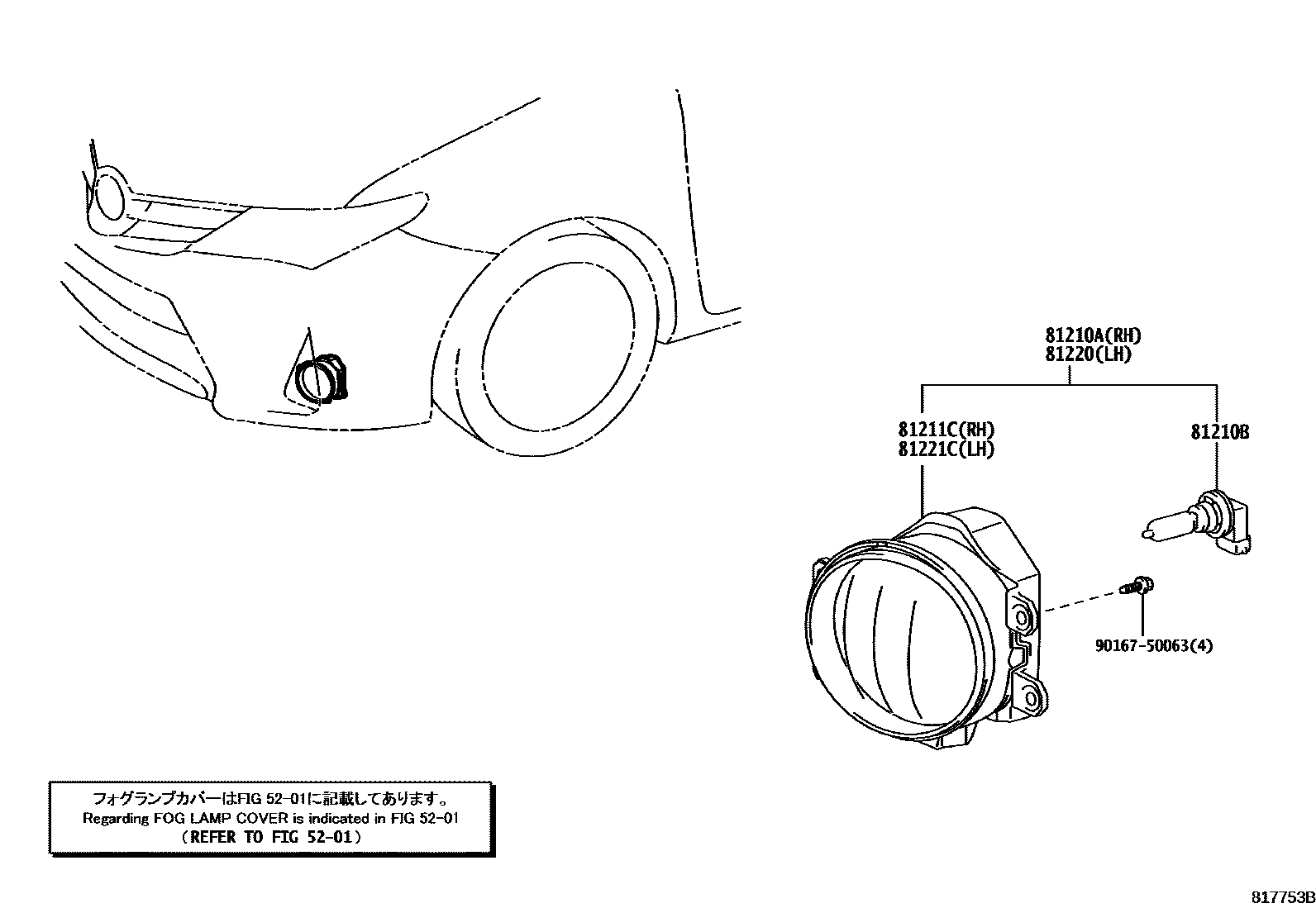

Toyota COROLLA Fog Lamp EPC diagram — 817753B
Fog Lamp — 817753B (201503 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-12230 · 81210-47010
81210Bfog light bulb90981-13090
81211CRight fog light assembly81211-12230 · 81211-47010
81220Left fog light assembly81220-12230 · 81220-47010
81221CLeft fog light assembly81221-12230 · 81221-47010
