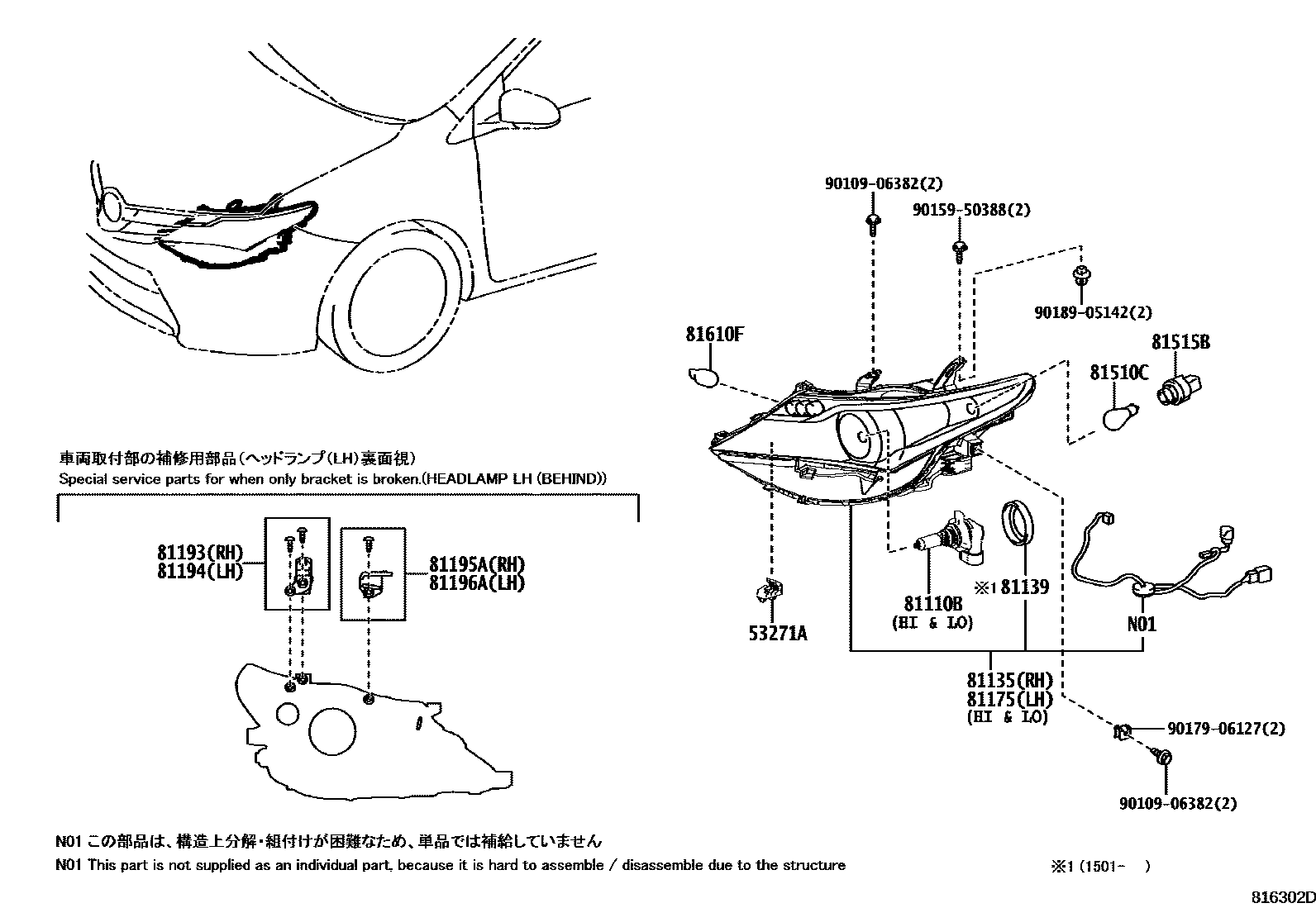

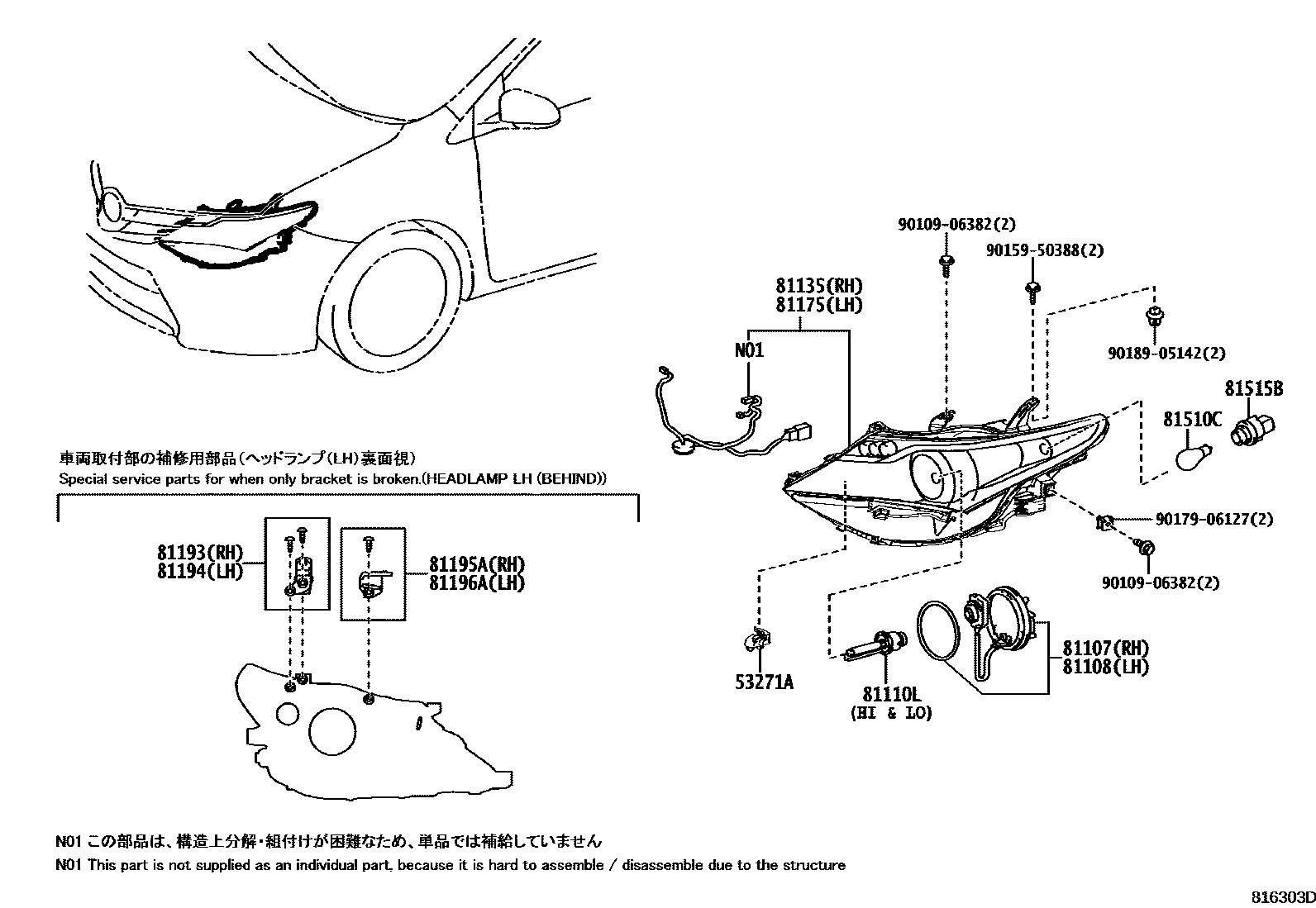

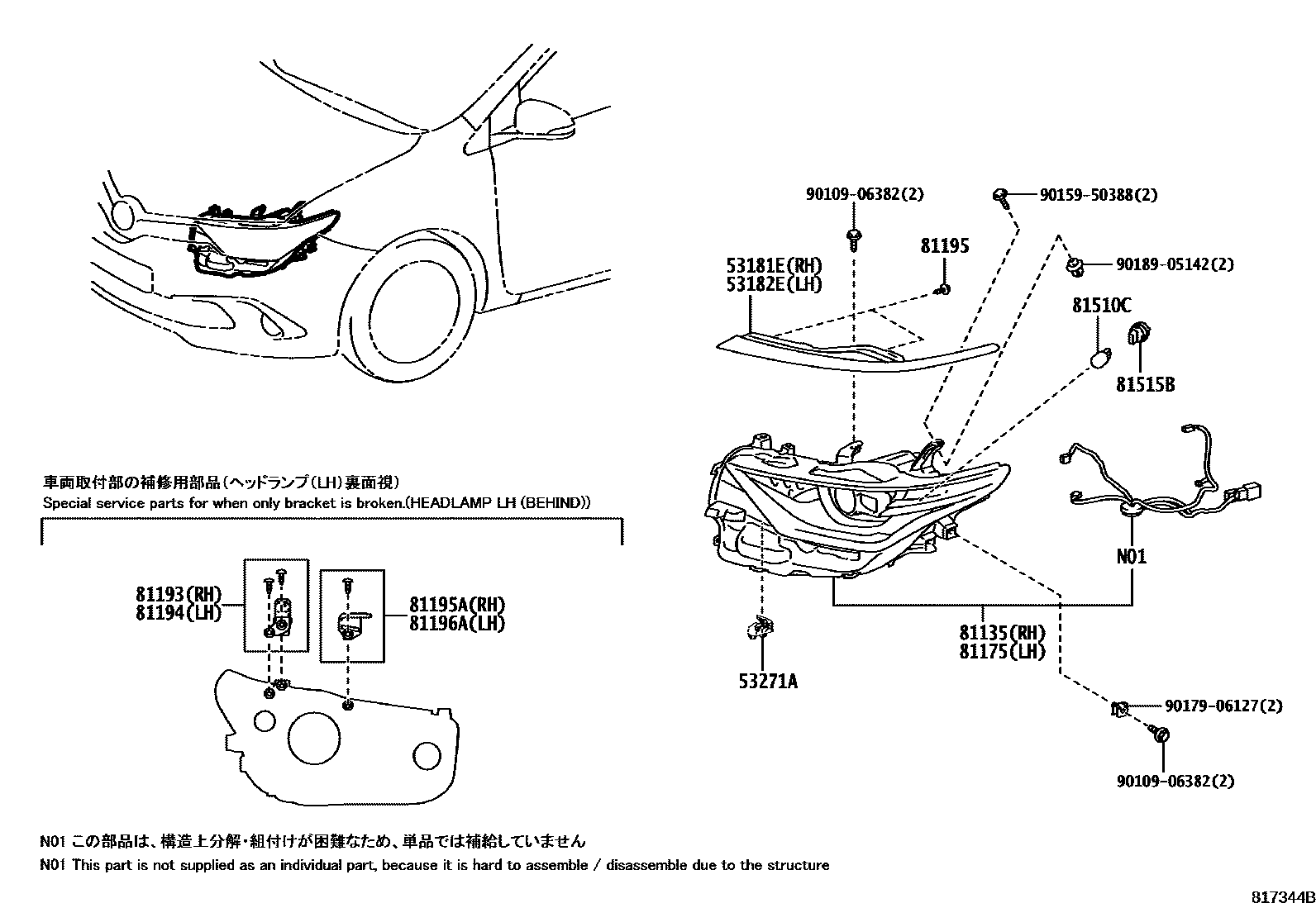

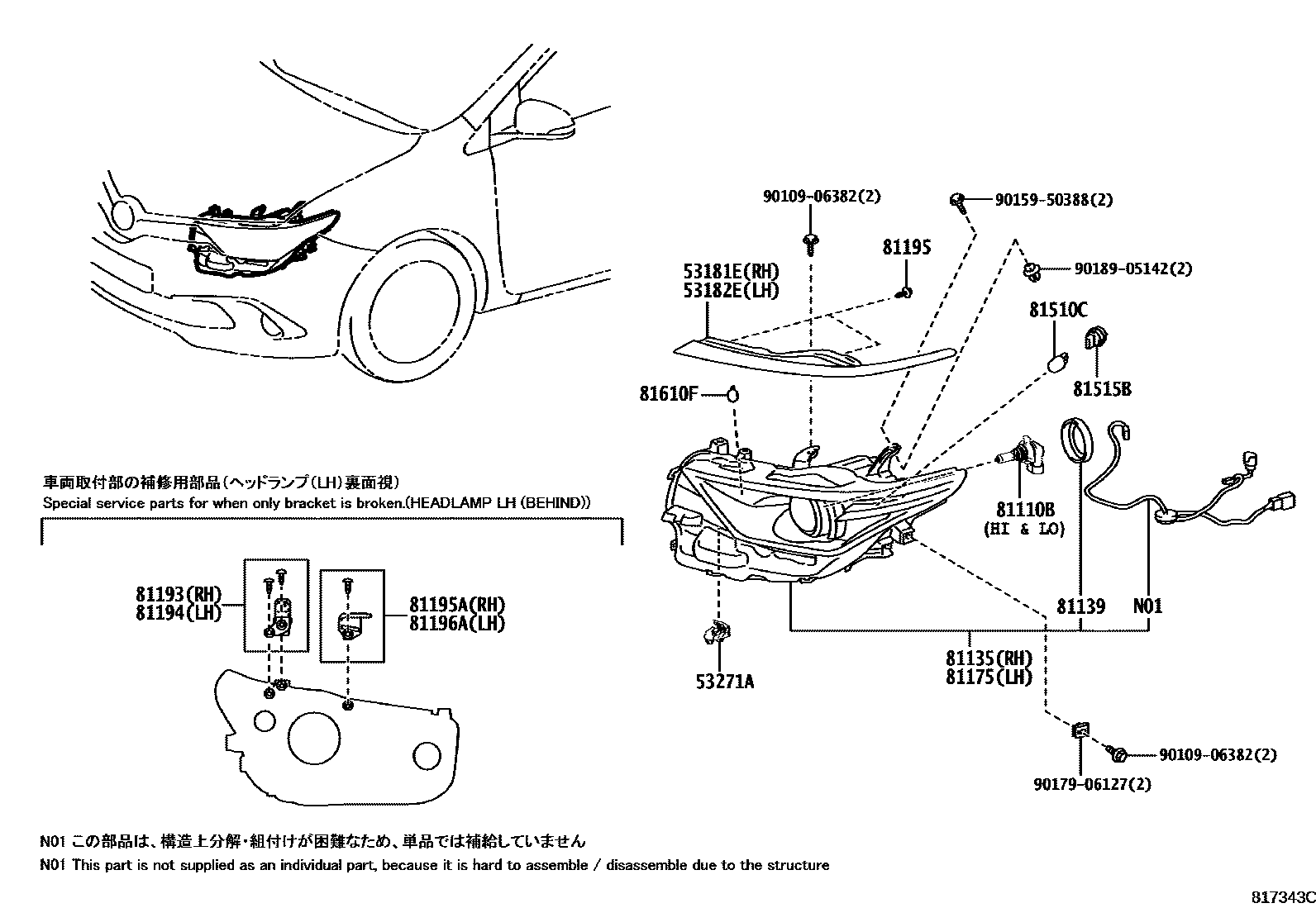

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53181E | Right headlight cover | 53181-12050 · 53181-12060 |
| 53182E | Left headlight cover | 53182-12050 · 53182-12060 |
| 53271A | Headlight mounting bracket | 53271-44010 |
| 81107 | Right headlight control ECU sub-assembly | 81107-12G20 |
| 81108 | Left headlight control ECU sub-assembly | 81107-12G20 |
| 81110B | Bulb (for headlight No. 1) | 90981-13089 |
| 81110L | Discharge headlight bulb | 90981-20028 |
| 81135 | Right headlight assembly assembly | 81130-12G00 · 81130-12G01 · 81130-12G30 · 81130-12G60 · 81130-12K10 · 81130-12K80 · 81145-12G20 |
| 81139 | Headlight lamp holder cover | 81135-12G00 |
| 81175 | Left headlight assembly assembly | 81170-12D60 · 81170-12F90 · 81170-12G00 · 81170-12G01 · 81170-12G60 · 81170-12K80 · 81185-12G20 |
| 81193 | Right headlight upper protective ring | 81193-12180 |
| 81194 | Left headlight upper protective ring | 81194-12180 |
| 81195 | headlight screw | 90168-40059 |
| 81195A | Right headlight lower protection ring | 81195-12240 |
| 81196A | Left headlight lower protection ring | 81196-12240 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 · 90981-15020 |
| 81515B | Front turn signal lamp holder | 81515-42050 · 81515-52570 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
