Toyota COROLLA 燃油箱和燃油管 — Figure 7701

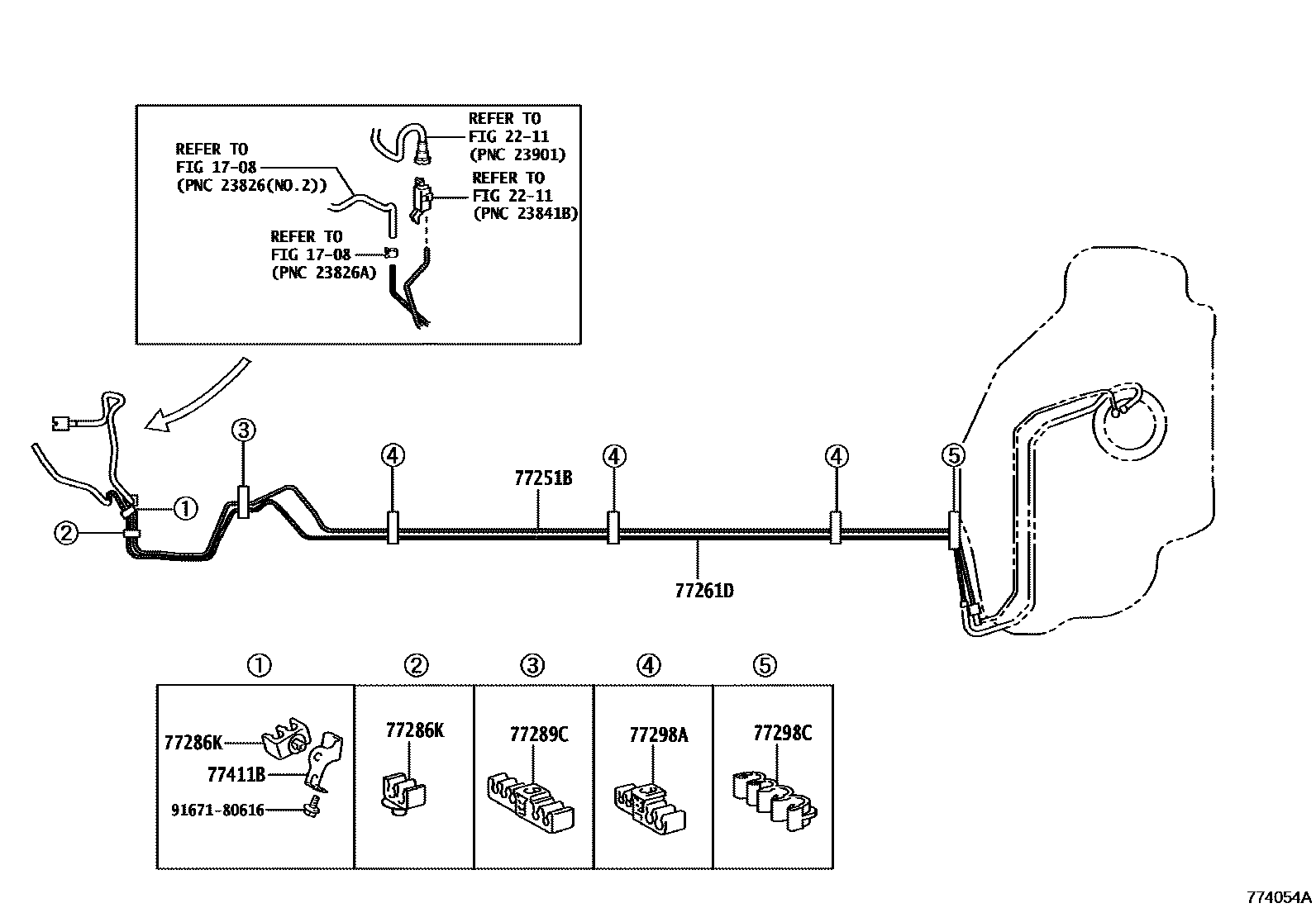

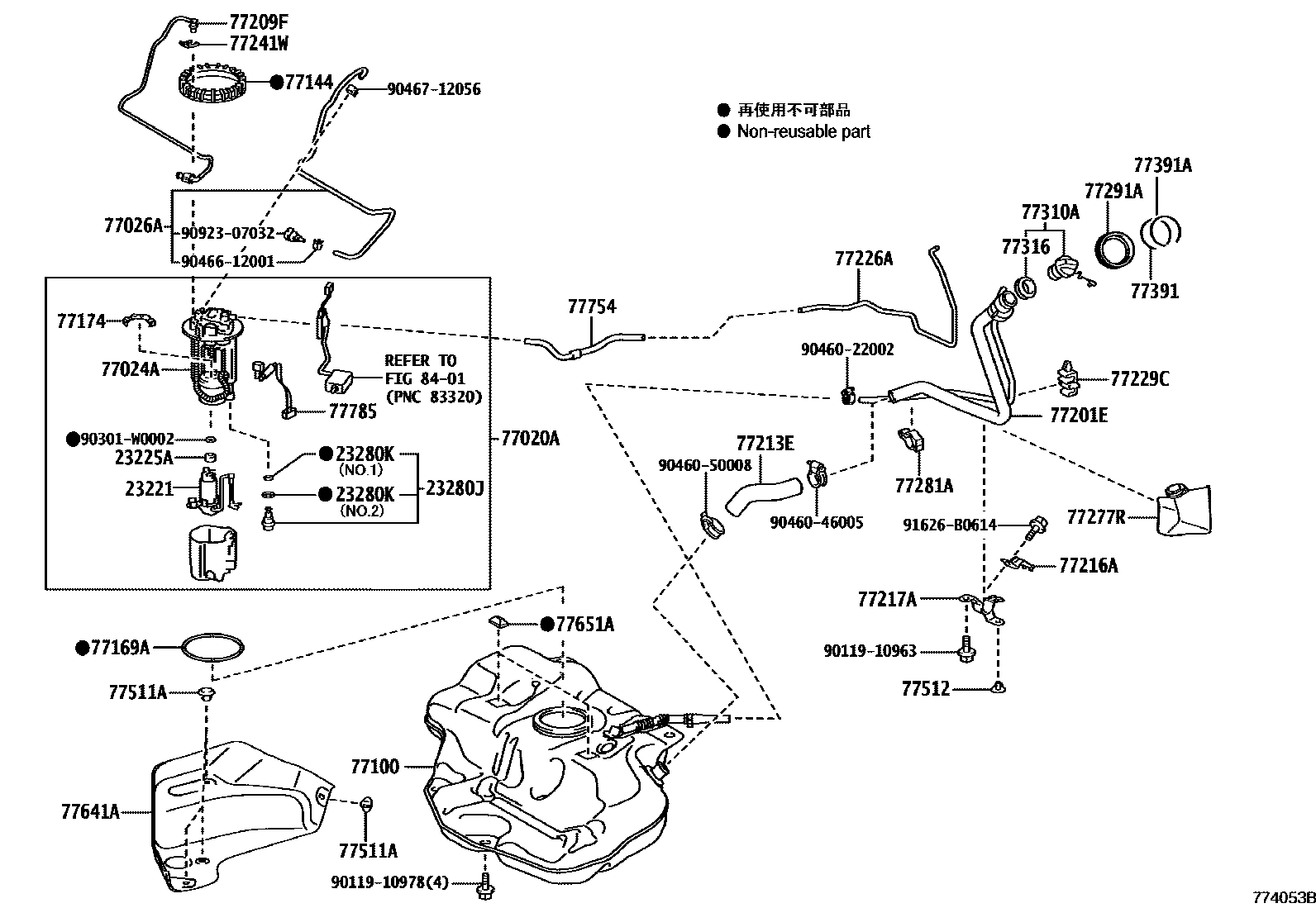

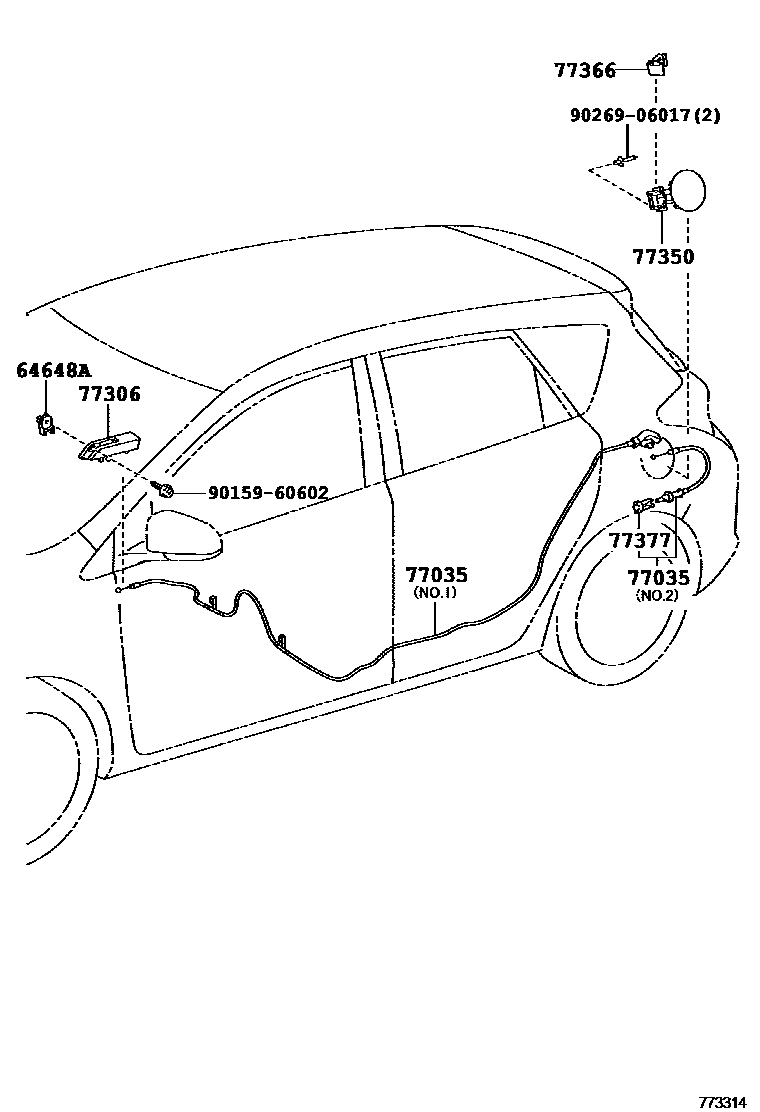

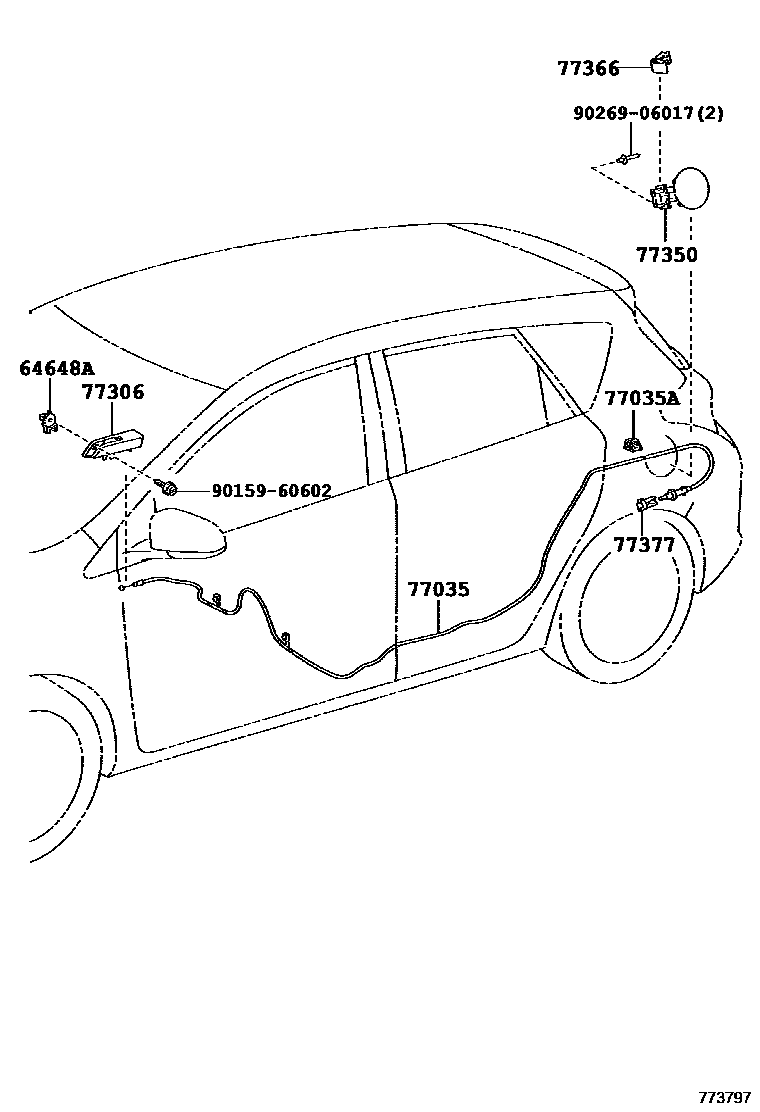

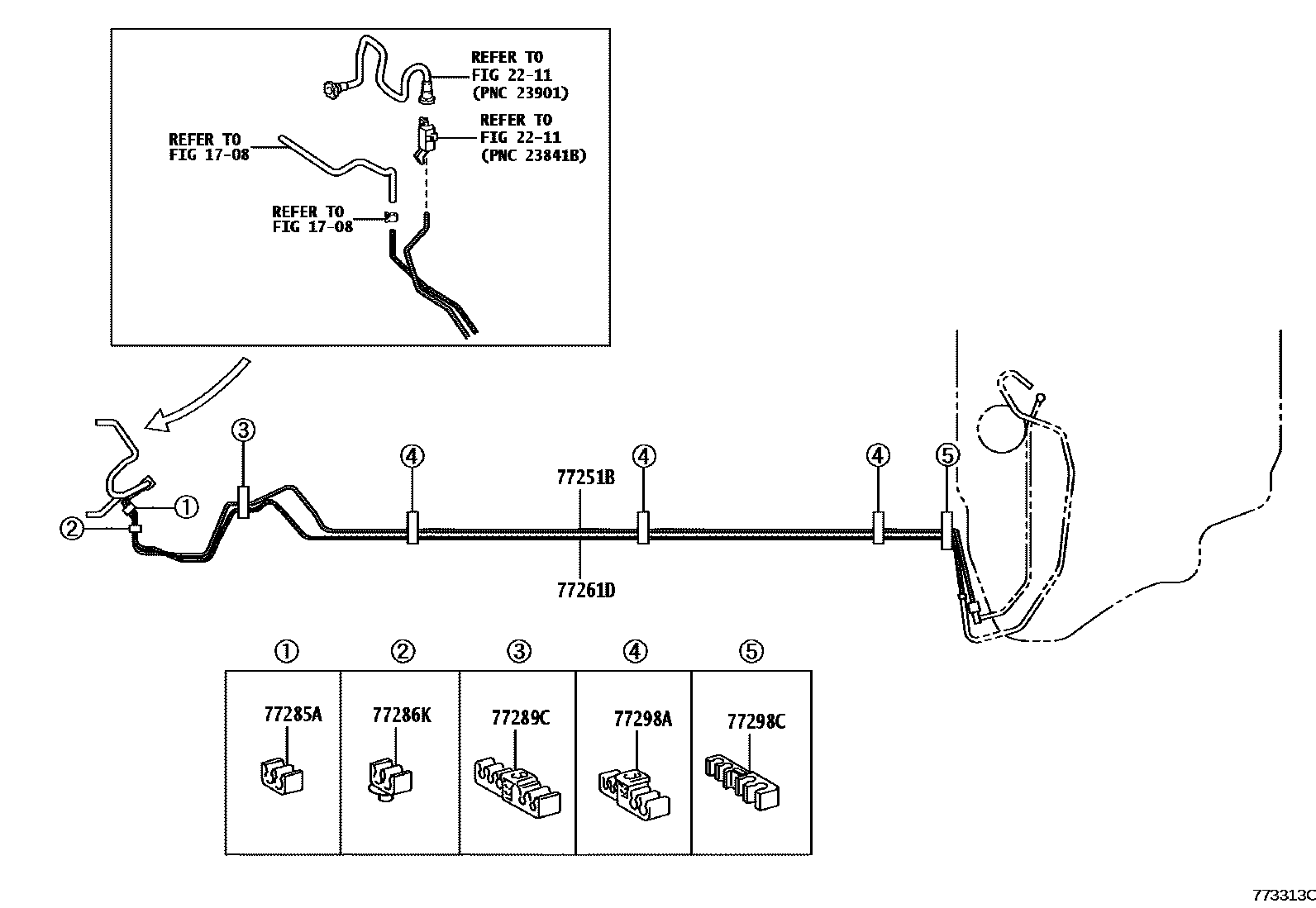

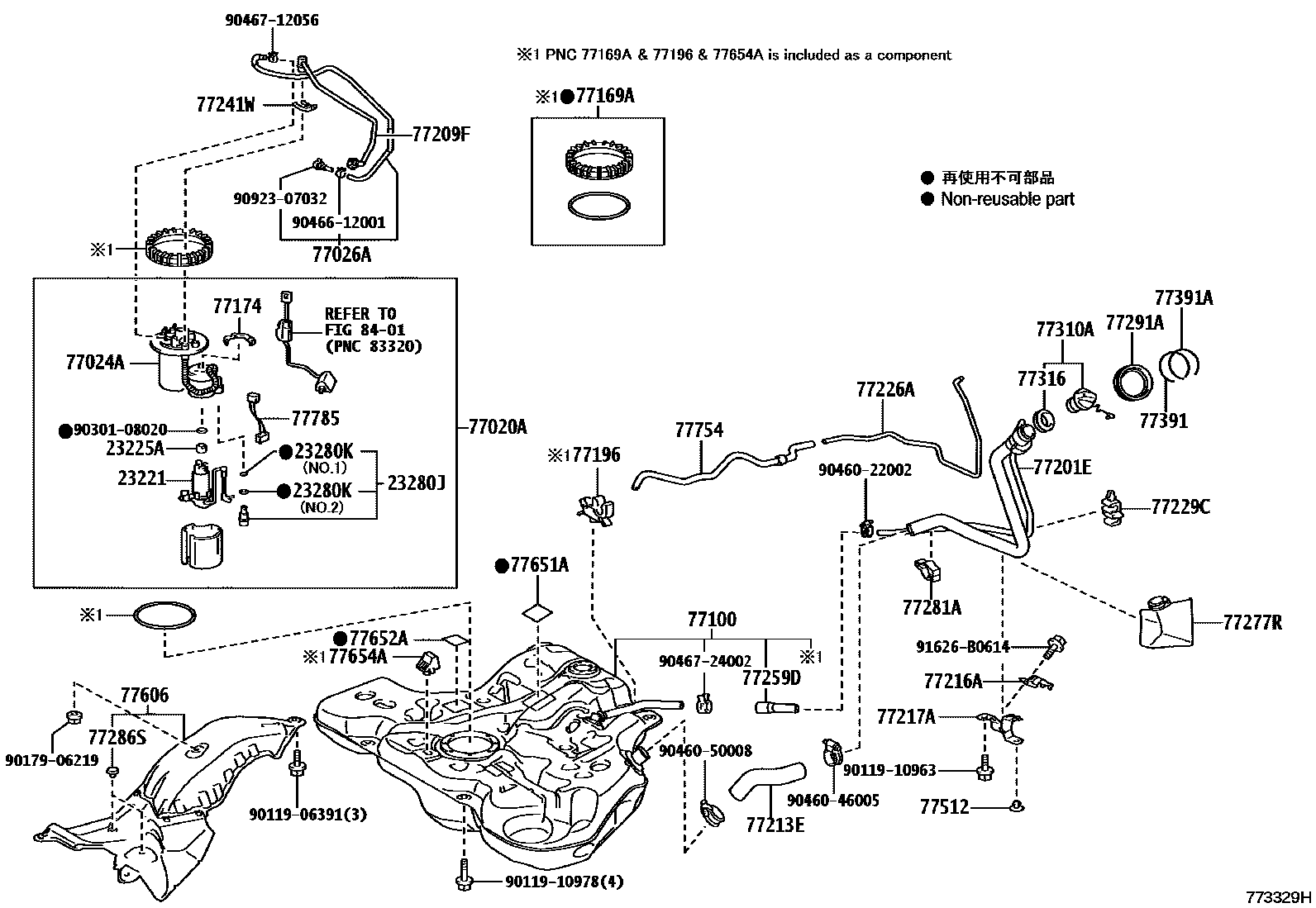

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 6 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-0Q041 · 23220-21211 · 23220-21281 · 23220-37101 |
| 23225A | fuel pump septum | 23225-0T010 · 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02502 · 77020-12710 · 77020-12711 · 77020-12800 · 77020-12801 · 77020-12810 · 77020-12811 |
| 77024A | Fuel absorber sub-assembly | 77024-02330 · 77024-12040 · 77024-12170 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-02070 · 77026-12030 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12550 · 77035-12590 · 77035-12690 |
| 77035A | Clip (for fuel filler cap lock control cable) | 90469-06005 |
| 77100 | fuel tank assembly | 77001-02560 · 77001-12B70 |
| 77144 | Fuel pump instrument fixture | 77144-02110 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0D030 · 77169-52040 |
| 77174 | No. 1 oil suction pipe bracket | 77174-05010 · 77174-75010 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-12080 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-12840 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-02190 · 77209-12210 |
| 77213E | Fuel tank to filler pipe hose | 77213-20190 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-12190 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-47080 |
| 77226A | No. 6 fuel tank breather pipe | 77226-12120 |
| 77229C | Snorkel clamp | 77229-12070 |
| 77241W | Pipe joint clip | 77241-32060 · 77241-33011 |
| 77251B | main fuel pipe | 77251-12810 · 77251-12880 |
| 77259D | No. 1 fuel hose | 77259-76010 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12580 · 77261-12650 |
| 77277R | Fuel tank filler pipe protection device | 77277-12180 |
| 77281A | Fuel filler pipe clamp | 77281-12200 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-42110 |
| 77286K | No. 2 fuel pipe clamp | 77286-12120 · 77286-20190 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77289C | No. 4 fuel pipe clamp | 77298-68010 |
| 77291A | Fuel tank filler pipe cover | 77291-12190 · 77291-12230 |
| 77298A | No. 4 fuel pipe clamp | 77298-52070 |
| 77298C | No. 4 fuel pipe clamp | 77298-12120 · 77299-52070 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-52050 |
| 77310A | Fuel tank cap assembly | 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-12530 |
| 77366 | Fuel filler cap hinge spring | 77366-52010 |
| 77377 | Fuel filler cap lock retainer | 77377-12070 · 77377-75010 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-12020 · 77391-75010 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-47010 |
| 77511A | fuel tank bracket | 77512-35140 |
| 77512 | fuel tank rear bracket | 77512-35140 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-12131 |
| 77641A | No. 1 fuel tank protective shell | 77641-02180 |
| 77651A | No. 1 fuel tank liner | 77651-02110 · 77651-12070 |
| 77652A | No. 2 fuel tank liner | 77652-45020 |
| 77654A | No. 4 fuel tank liner | 77654-12090 |
| 77754 | No. 1 carbon canister outlet hose | 77754-02090 · 77754-12160 · 77754-12161 |
| 77785 | fuel pump wiring harness | 77785-02081 · 77785-12010 |
