Toyota COROLLA 挡泥板和扰流板 — Figure 7601

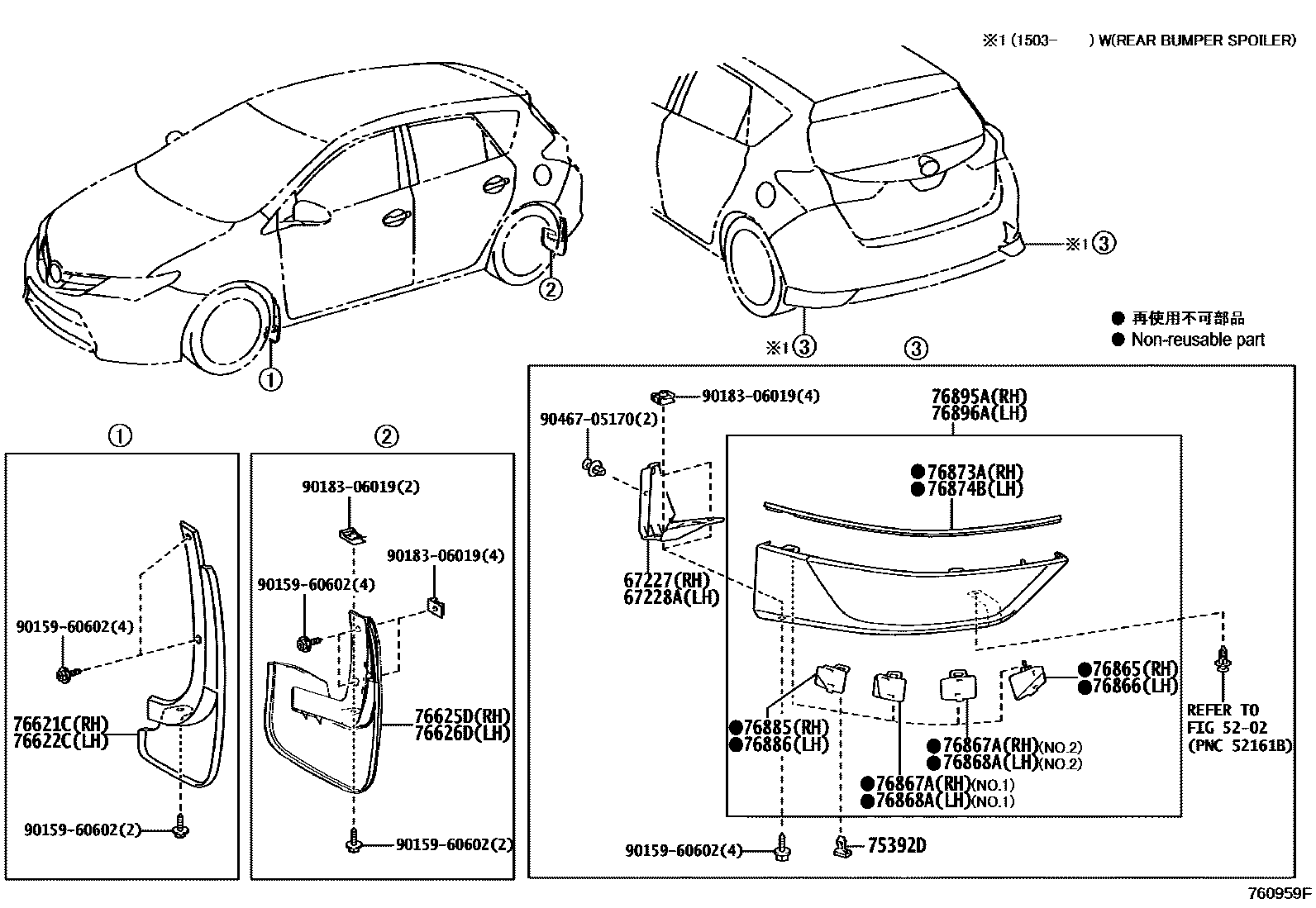

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67227 | Right rear spoiler fixing | 67227-12010 |
| 67228A | Left rear spoiler fixing | 67228-12010 |
| 75392D | External protective strip fixings | 75392-35220 |
| 76621C | Right front fender fender | 76621-12340 |
| 76622C | Left front fender fender | 76622-12330 |
| 76625D | Right rear side fender | 76625-12570 |
| 76626D | Left rear side fender | 76626-12570 |
| 76865 | No. 1 rear spoiler fixing piece | 76865-12180 |
| 76866 | No. 2 rear spoiler fixing piece | 76866-12120 |
| 76867A | No. 3 rear spoiler fixing piece | 76867-12150 · 76867-12180 |
| 76868A | No. 4 rear spoiler fixing piece | 76868-12120 · 76868-12160 |
| 76885 | No. 5 rear spoiler fixing piece | 76885-12070 |
| 76886 | No. 6 rear spoiler fixing piece | 76886-12060 |
