Toyota COROLLA 后防护条 — Figure 7504

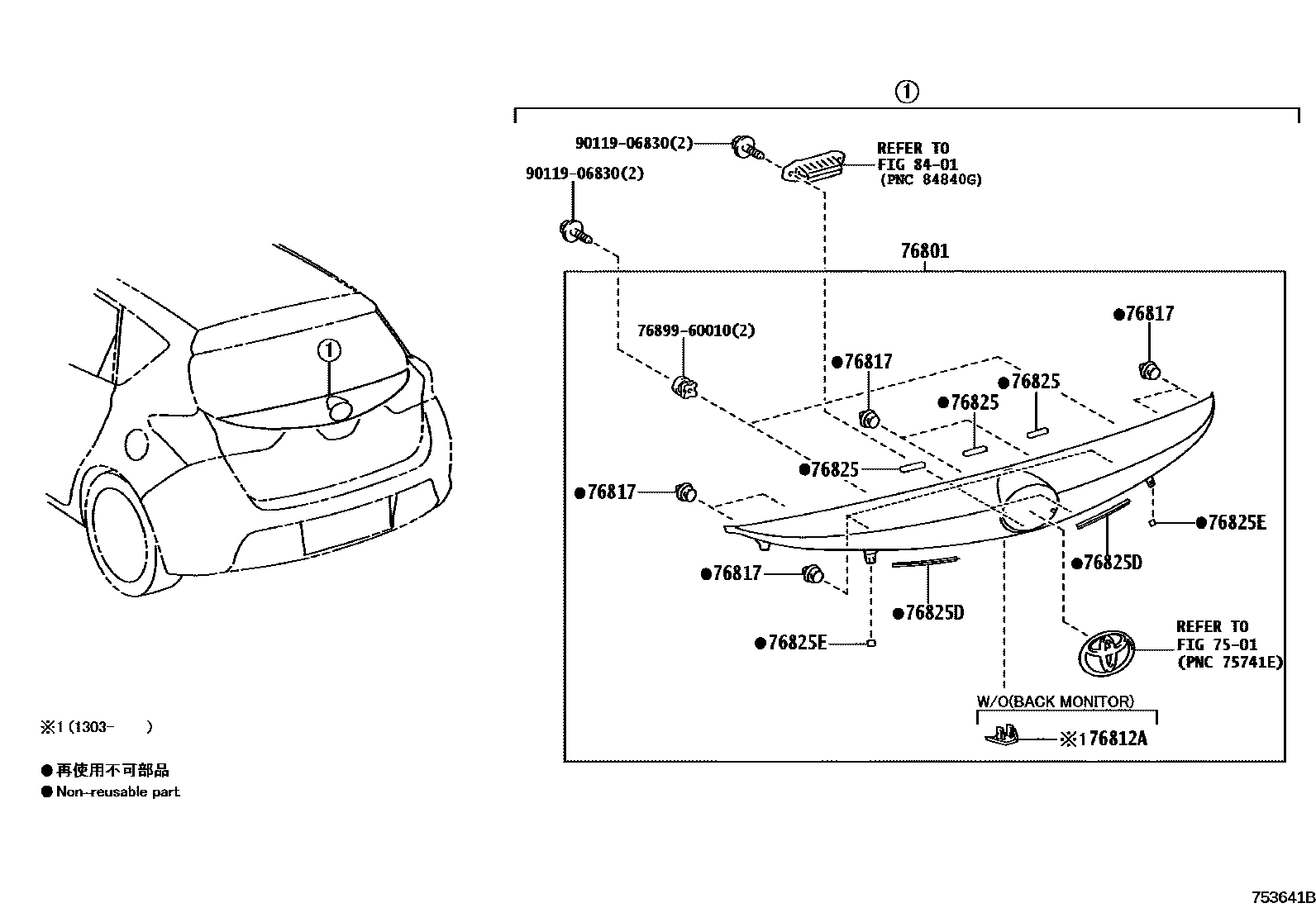

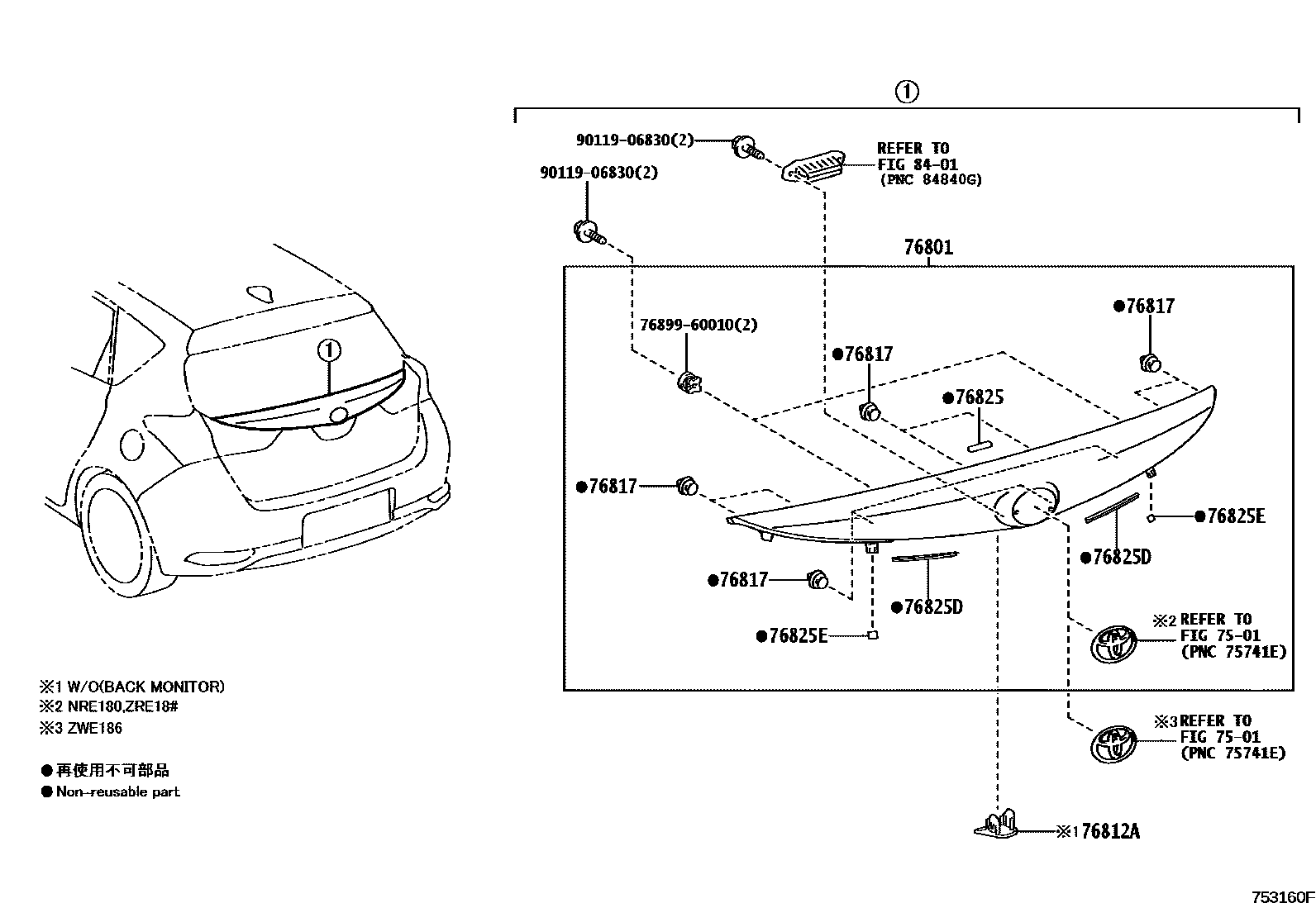

Toyota COROLLA EPC diagram 7504, 后防护条, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76812A | No. 2 rear door exterior trim strip | 76812-12140 · 76812-12150 |
| 76817 | Rear door exterior decorative strip clip | 90467-09206 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-12140 |
| 76825D | No. 1 protective cover for rear door exterior trim strip | 76821-12310 |
| 76825E | No. 2 protective cover for rear door exterior trim strip | 76822-12150 |
