Toyota COROLLA 侧防护条 — Figure 7503

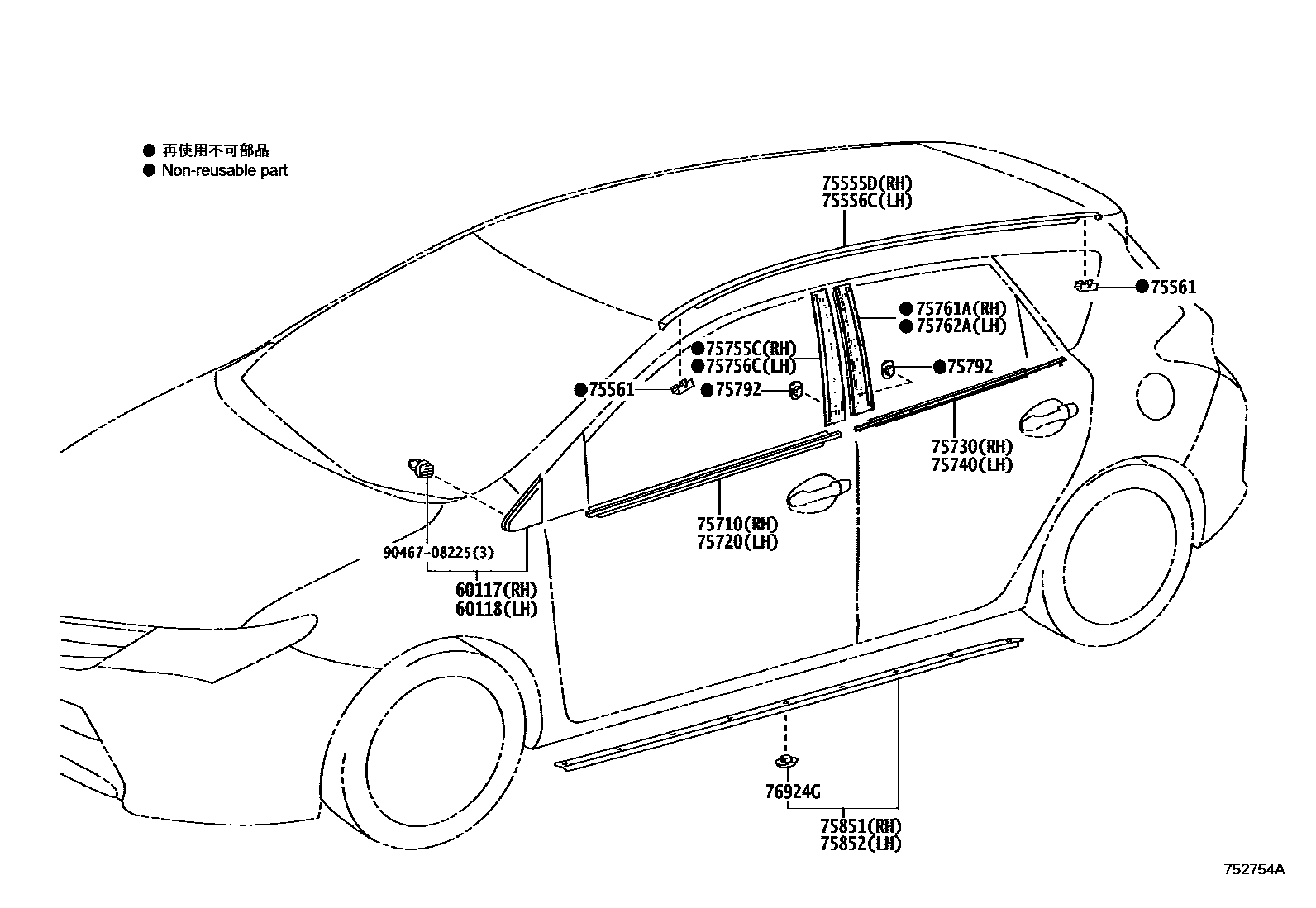

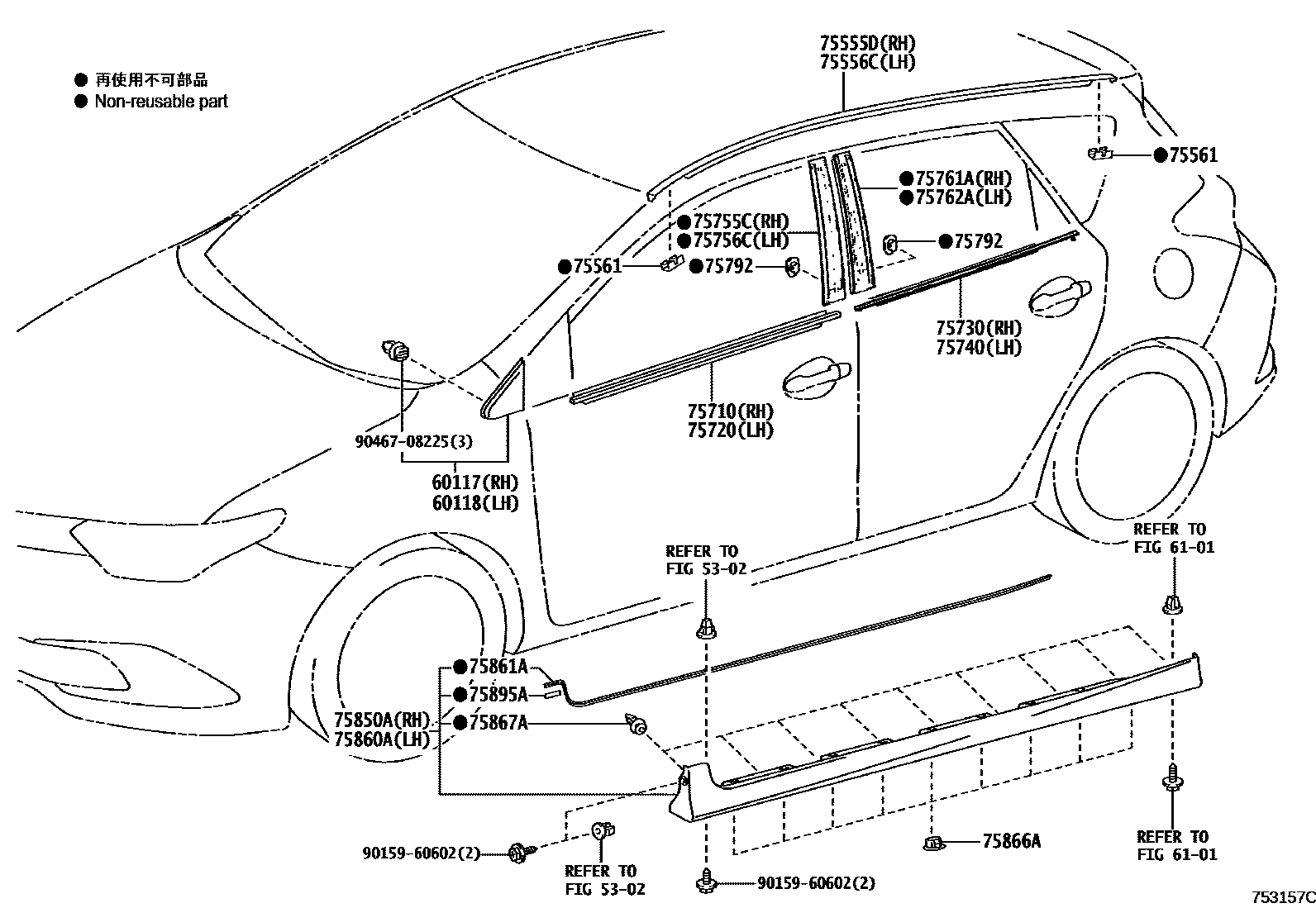

Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-12060 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-12060 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-12170 · 75555-12180 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75555-12170 · 75555-12180 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-33030 |
| 75710 | Right front door waistline protection strip assembly | 75710-12A00 · 75710-12A10 |
| 75720 | Left front door waistline protection strip assembly | 75720-12880 · 75720-12890 |
| 75730 | Right rear door waistline protection strip assembly | 75730-12350 · 75730-12400 |
| 75740 | Left rear door waistline protection strip assembly | 75740-12480 · 75740-12490 |
| 75755C | Right front door window frame rear protective strip | 75755-12110 · 75755-12120 |
| 75756C | Left front door window frame rear protective strip | 75756-12130 · 75756-12140 |
| 75761A | Right rear door window frame front protective strip | 75761-12060 · 75761-12070 |
| 75762A | Left rear door window frame front protective strip | 75762-12060 · 75762-12070 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |
| 75851 | Right side door sill panel protective strip | 75851-12111 |
| 75852 | Left side door sill panel protective strip | 75852-12081 |
| 75866A | Door sill panel protective strip fixings | 76924-47020 |
| 75867A | Door sill panel protective strip clip | 75867-33030 |
| 75895A | No. 1 protective strip tape | 75895-12100 |
| 76924G | Door sill panel protective strip fixings | 76924-12030 |
