Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.

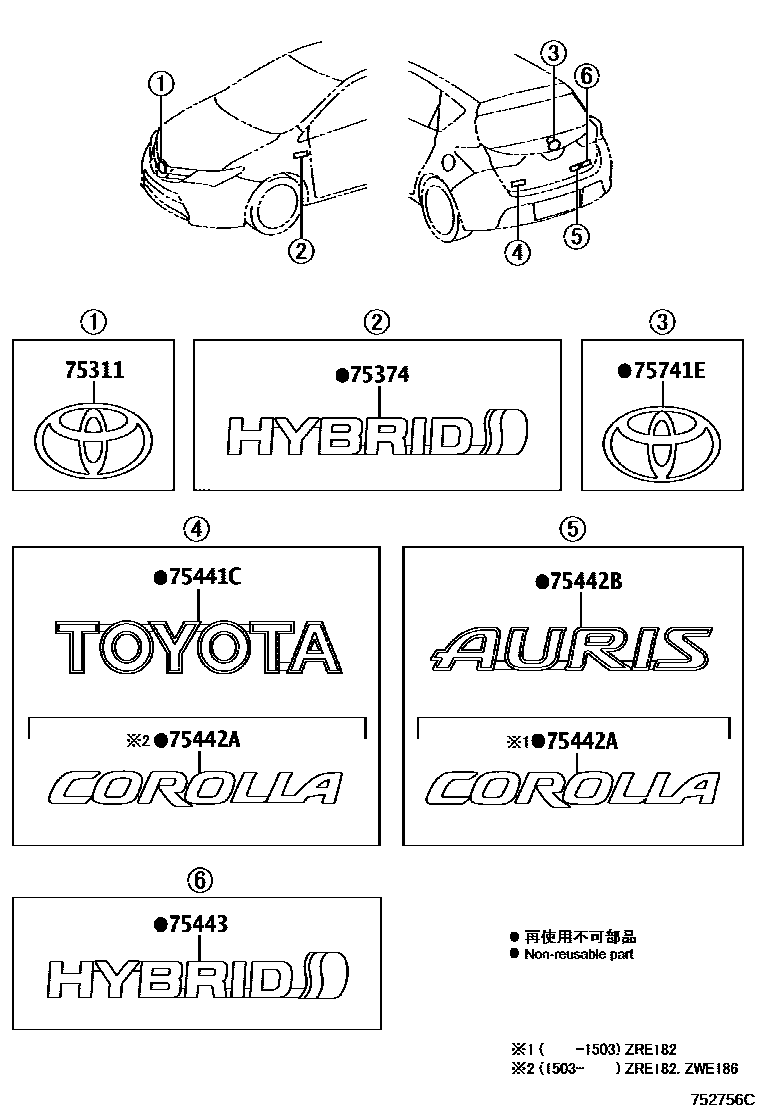

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 752756C
丰田徽标和铭牌(车外和车内) — 752756C (201208 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75301-12460 · 75301-12500 · 75301-12530
75374side panel sign75374-12030 · 75374-12040
75441CBack door nameplate75441-12880
75442ANo. 2 nameplate on back door75442-12A01
75442BNo. 2 nameplate on back door75442-1A500
75443No. 3 nameplate on back door75444-02C00
75741Elogo75403-12060 · 90975-02064 · 90975-02069 · 90975-02072
