Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

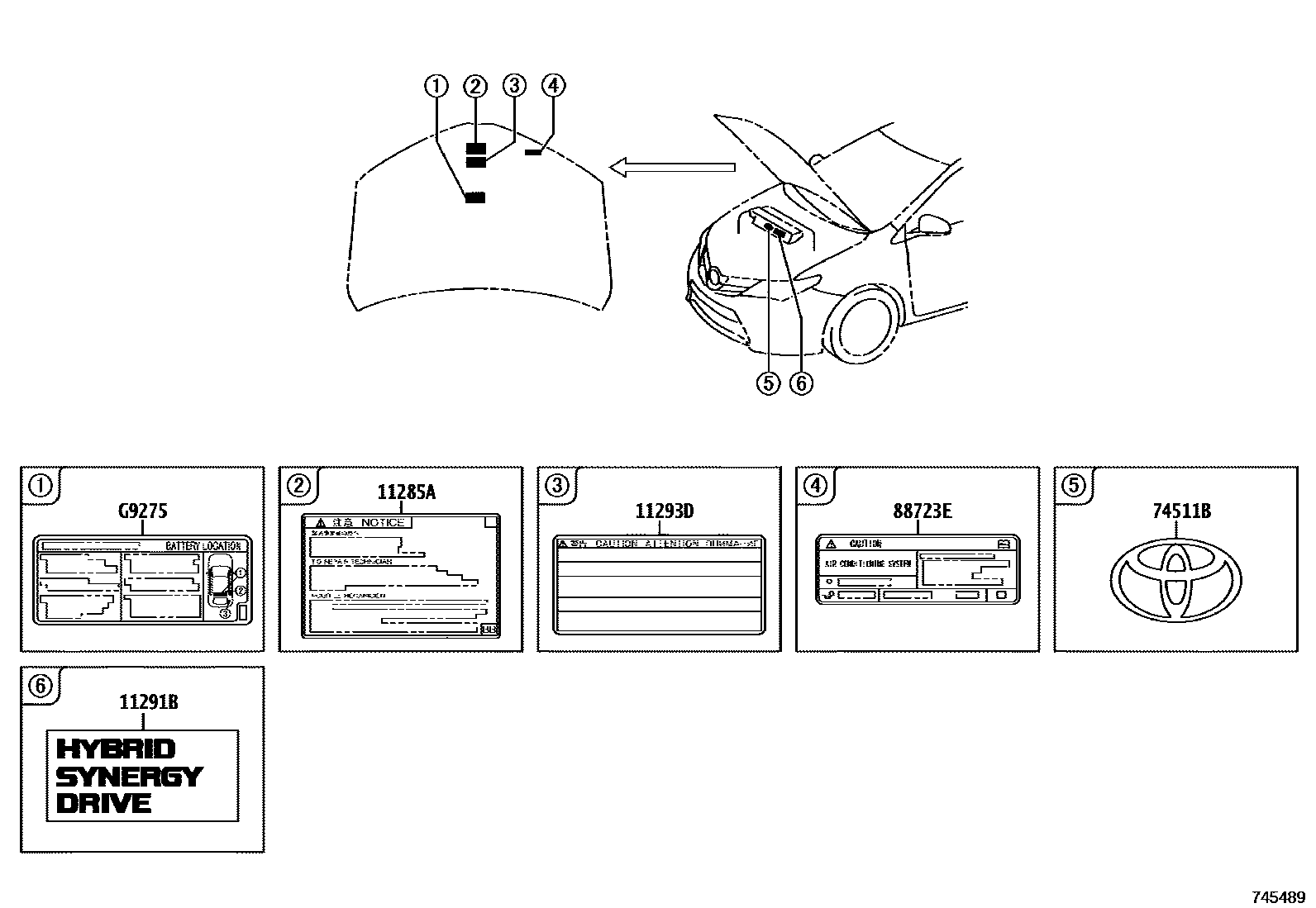

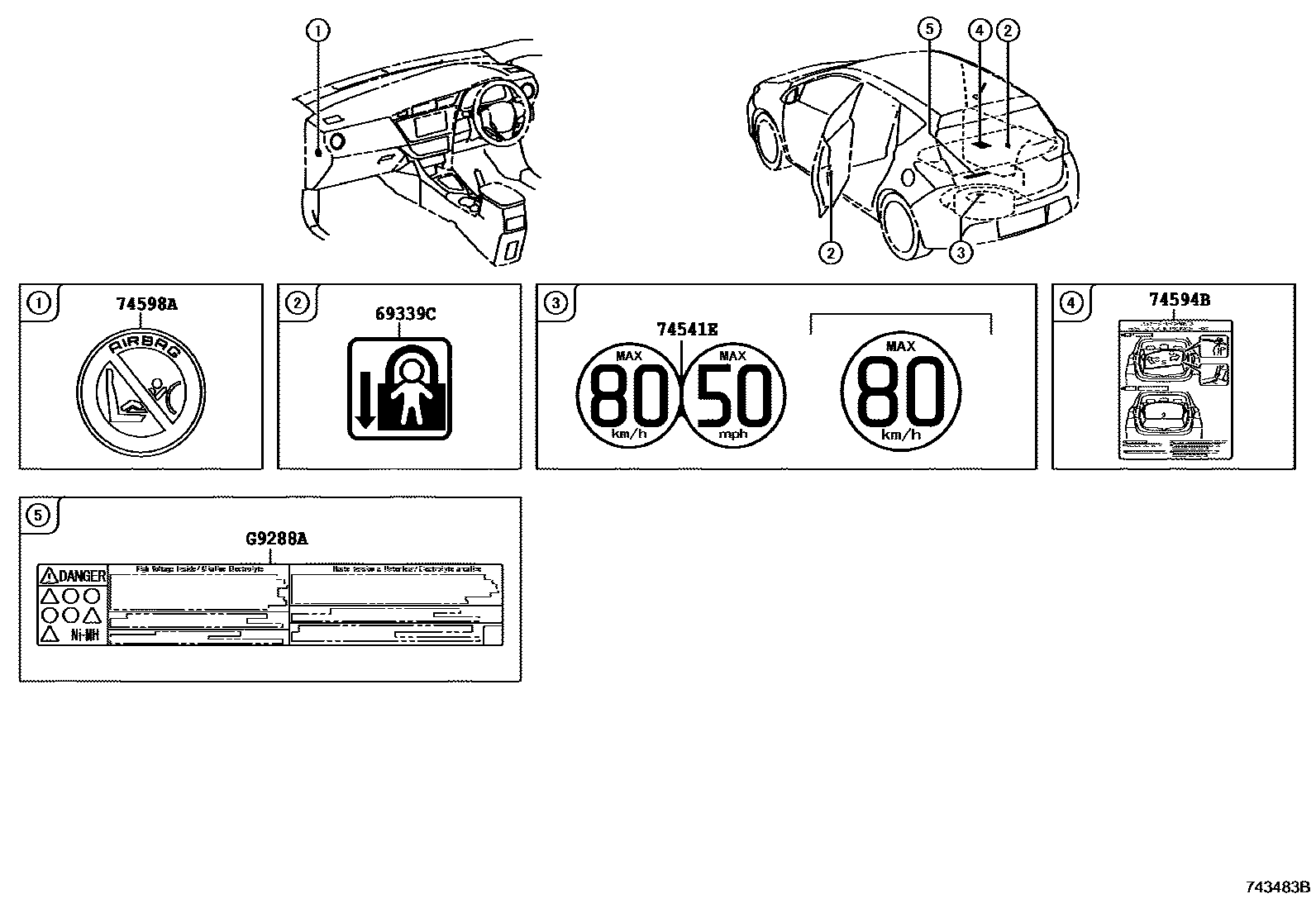

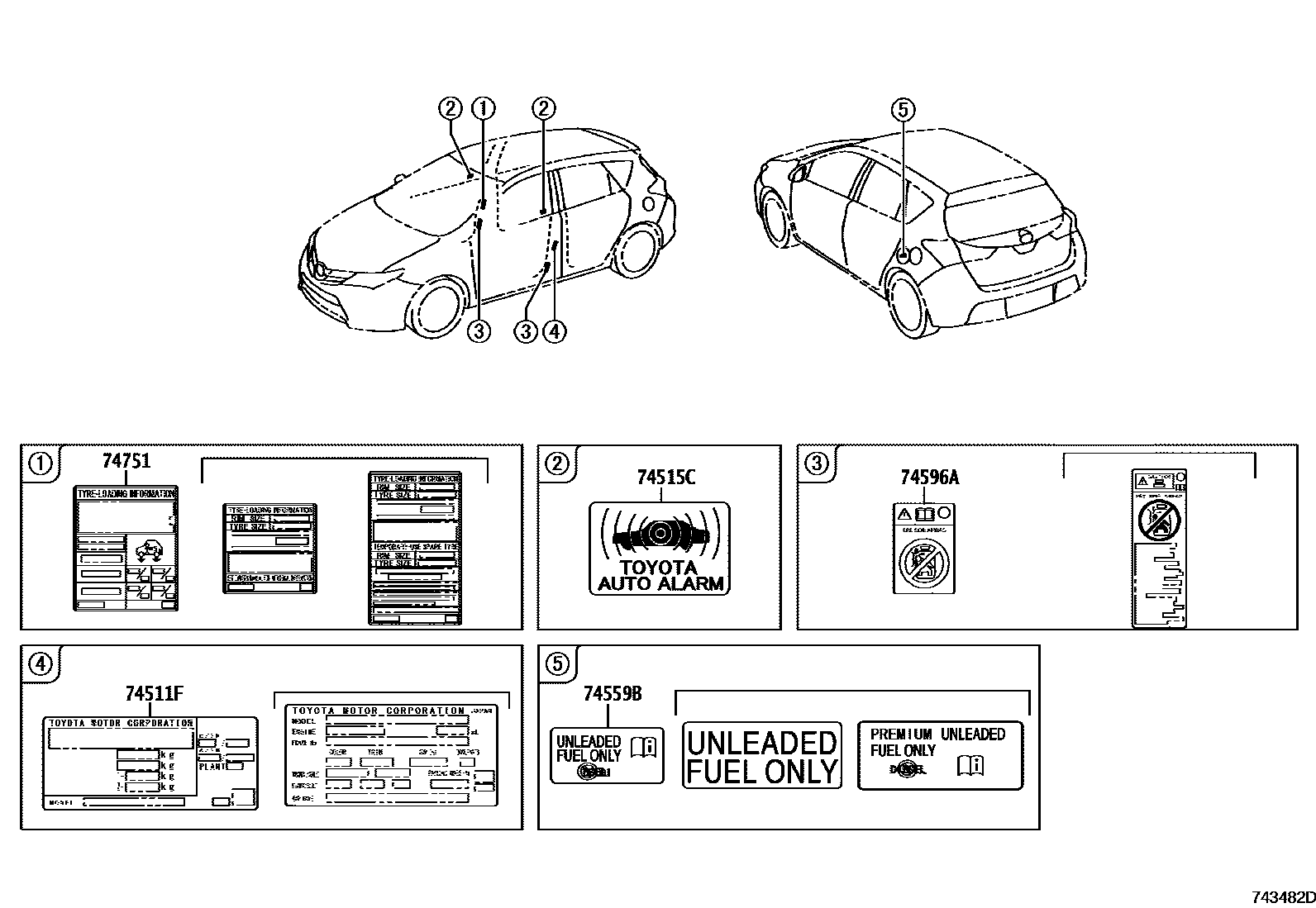

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-33030 |
| 11291B | Engine name plate | 11291-37060 |
| 11293D | engine warning label | 11293-36070 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74511B | Nameplate | 11291-50051 |
| 74511F | Nameplate (laser identification label) | 74511-48020 · 74511-48030 |
| 74515C | Anti-theft warning information label | 74515-33020 · 74515-42010 |
| 74541E | Small spare tire warning plate | 42668-20020 · 42668-42010 |
| 74559B | fuel information label | 74559-14050 · 74559-20140 · 74559-60030 |
| 74594B | Glove box decorative panel information label | 74594-12010 |
| 74596A | Side air bag warning label | 74596-53011 · 74596-53012 · 74596-74020 |
| 74598A | Passenger air bag warning label | 74598-20010 |
| 74751 | tire pressure information label | 42661-12G50 · 42661-12J30 · 42661-12J40 · 42661-12K70 |
| 88723E | Cooler maintenance warning label | 88723-12190 · 88723-12210 |
| G9275 | No. 1 battery warning label | G9275-12030 |
| G9288A | Battery charging precautions label | G9288-48040 |
