Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 2 images and 5 PNC and OE references.

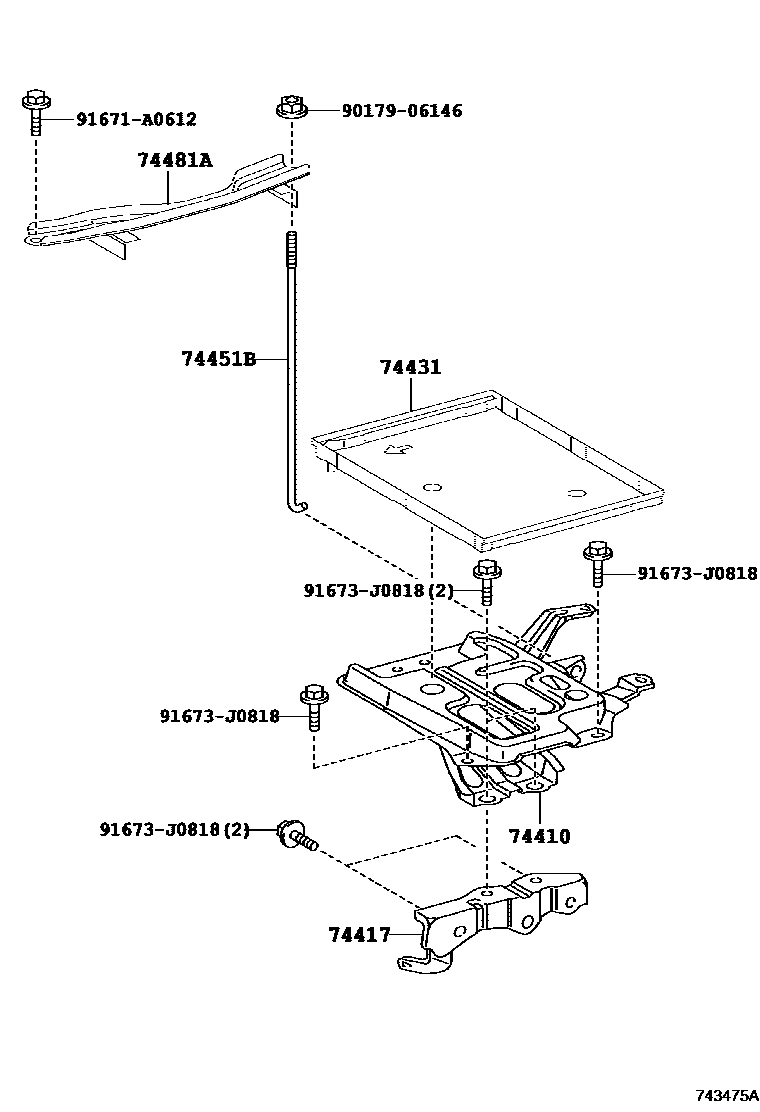

Toyota COROLLA battery holder EPC diagram — 743475A
battery holder — 743475A (201208 – 999999)

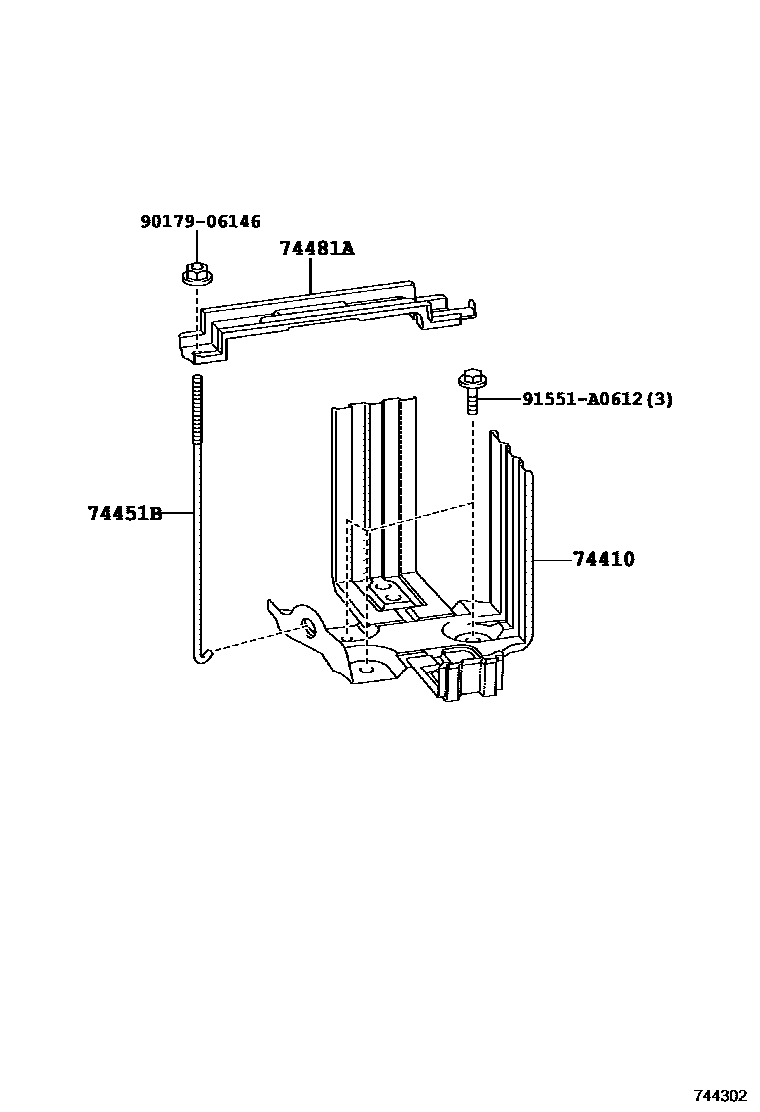

Toyota COROLLA battery holder EPC diagram — 744302
battery holder — 744302 (201604 – 999999)

PNC and OE references

PNCPart nameOE numbers
74410Battery bracket assembly74410-02130 · 74410-12020
74417battery holder bracket74401-12010
74431battery tray74431-12110
74451BBattery clamp bolt74451-10061 · 74451-52010 · 74451-58011
74481ABattery clip74404-12520 · 74481-02250
