Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

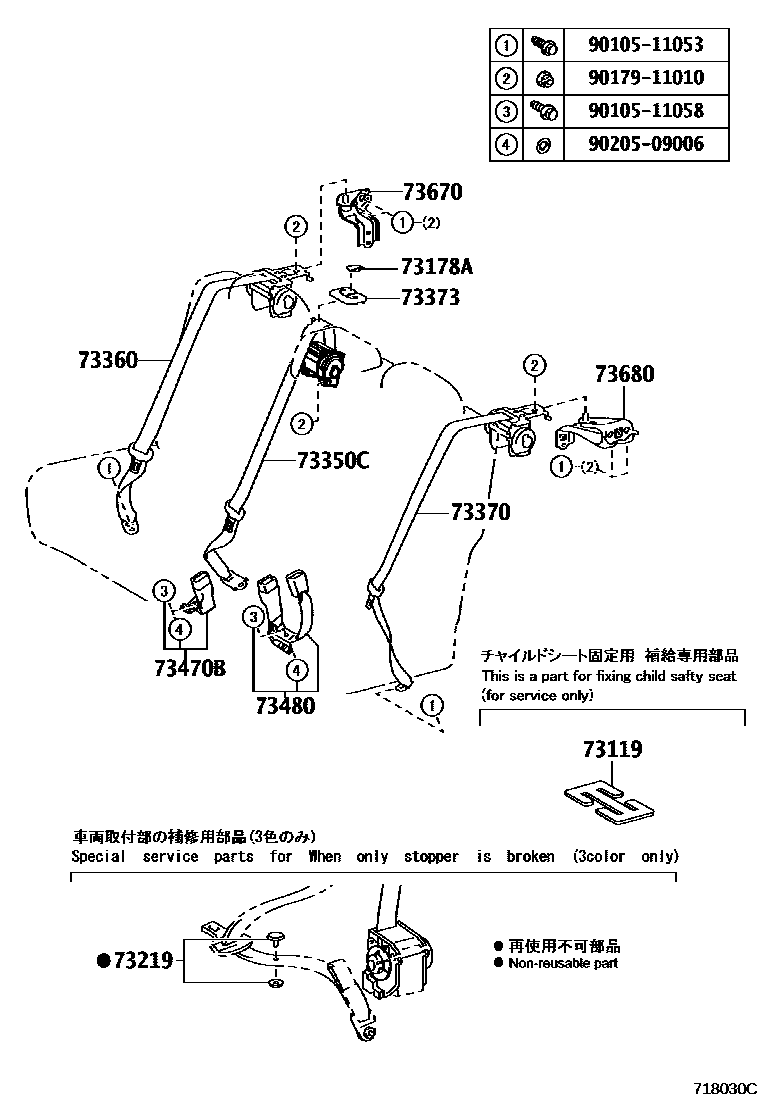

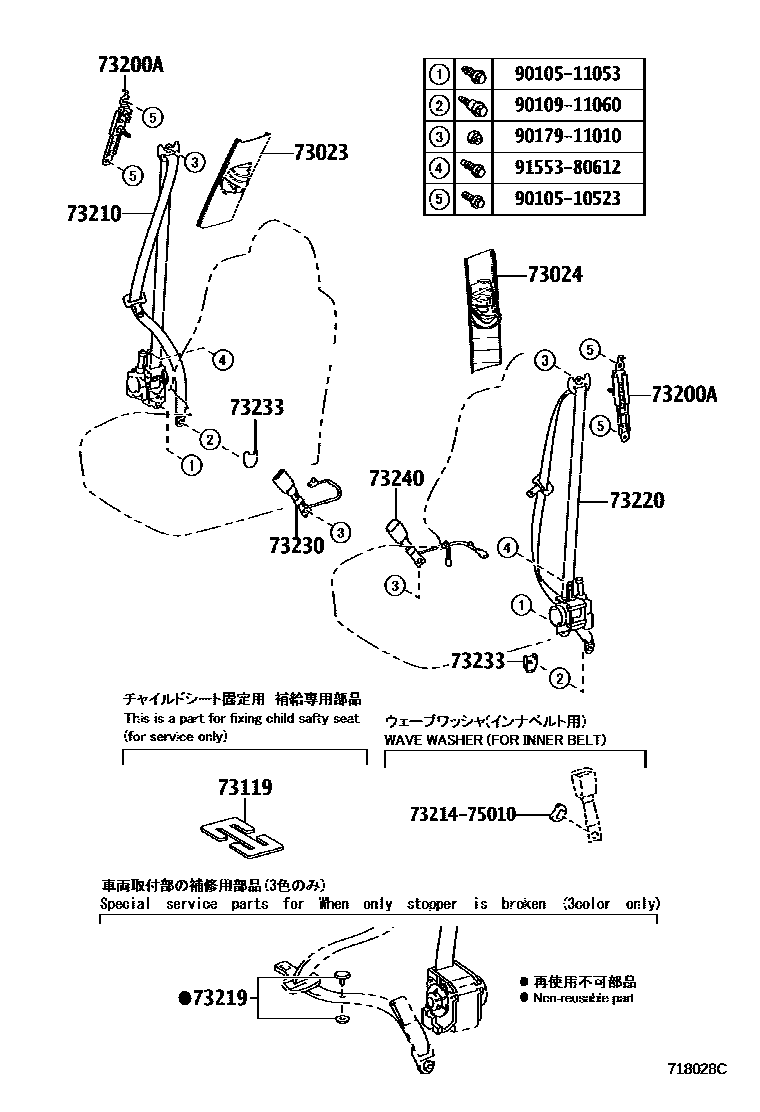

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73119 | seat belt clip | 73119-22010 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-12070 · 73200-53010 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
| 73670 | Rear right seat outer seat belt anchor bracket assembly | 73670-12020 · 73670-12021 |
| 73680 | Rear left seat outer seat belt anchor bracket assembly | 73680-12020 · 73680-12021 |
