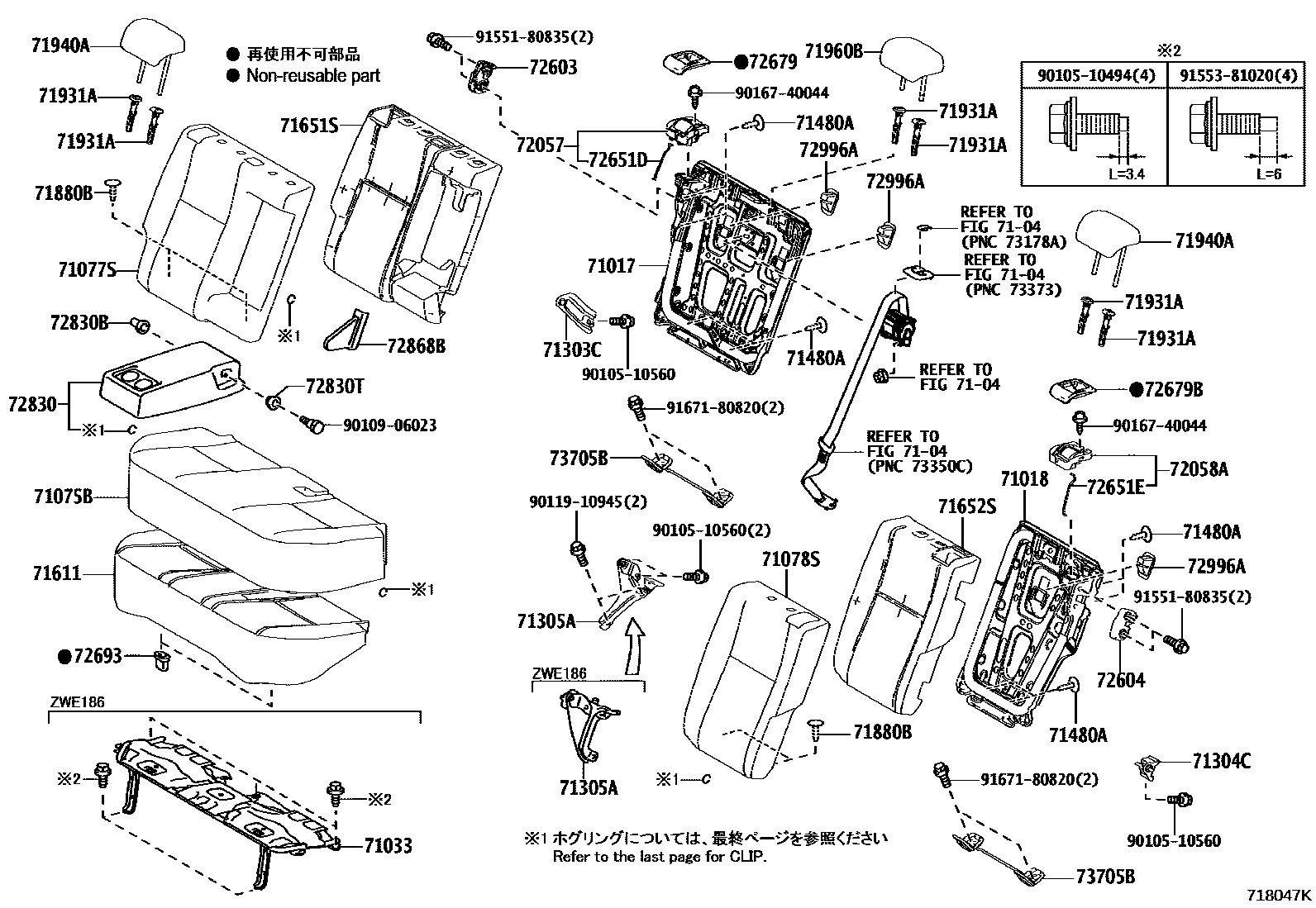

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-12A20 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12460 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-02011 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-12210 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-12080 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12230 · 71305-12240 |
| 71611 | Rear seat cushion cushion | 71503-12220 · 71503-12300 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12A90 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12830 |
| 72603 | Rear right seat back lock sub-assembly | 72603-12050 |
| 72604 | Rear left seat back lock sub-assembly | 72604-12070 |
| 72651D | Right rear seat back lock lever | 72651-12190 |
| 72651E | Rear left seat back lock lever | 72652-12140 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72830B | Bushing (for rear seat center armrest) | 72622-47010 |
| 72830T | Bushing (for rear seat center armrest) | 72622-47020 |
| 73705B | Cross anchor bracket sub-assembly | 73705-12150 · 73705-12160 |
