Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

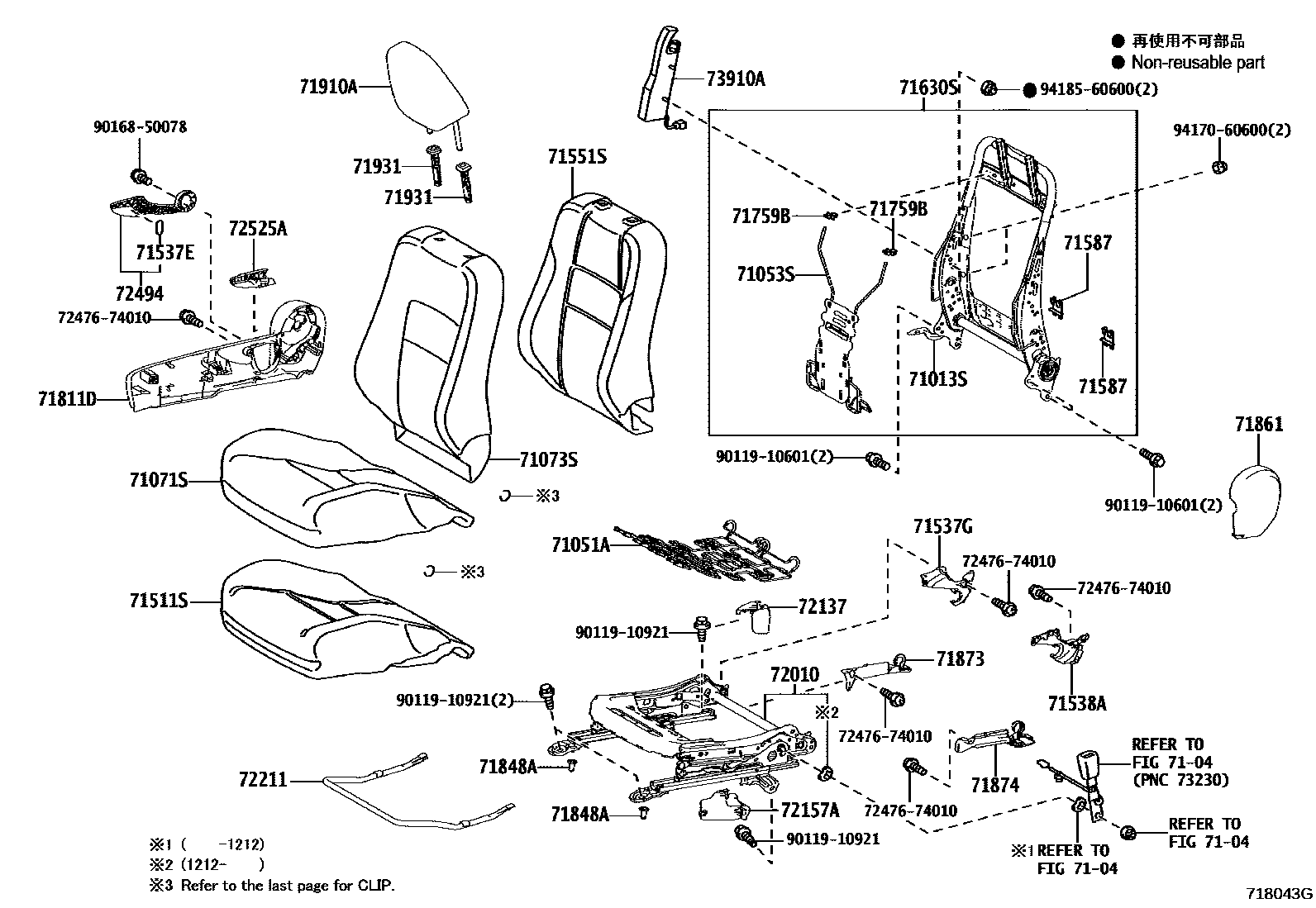

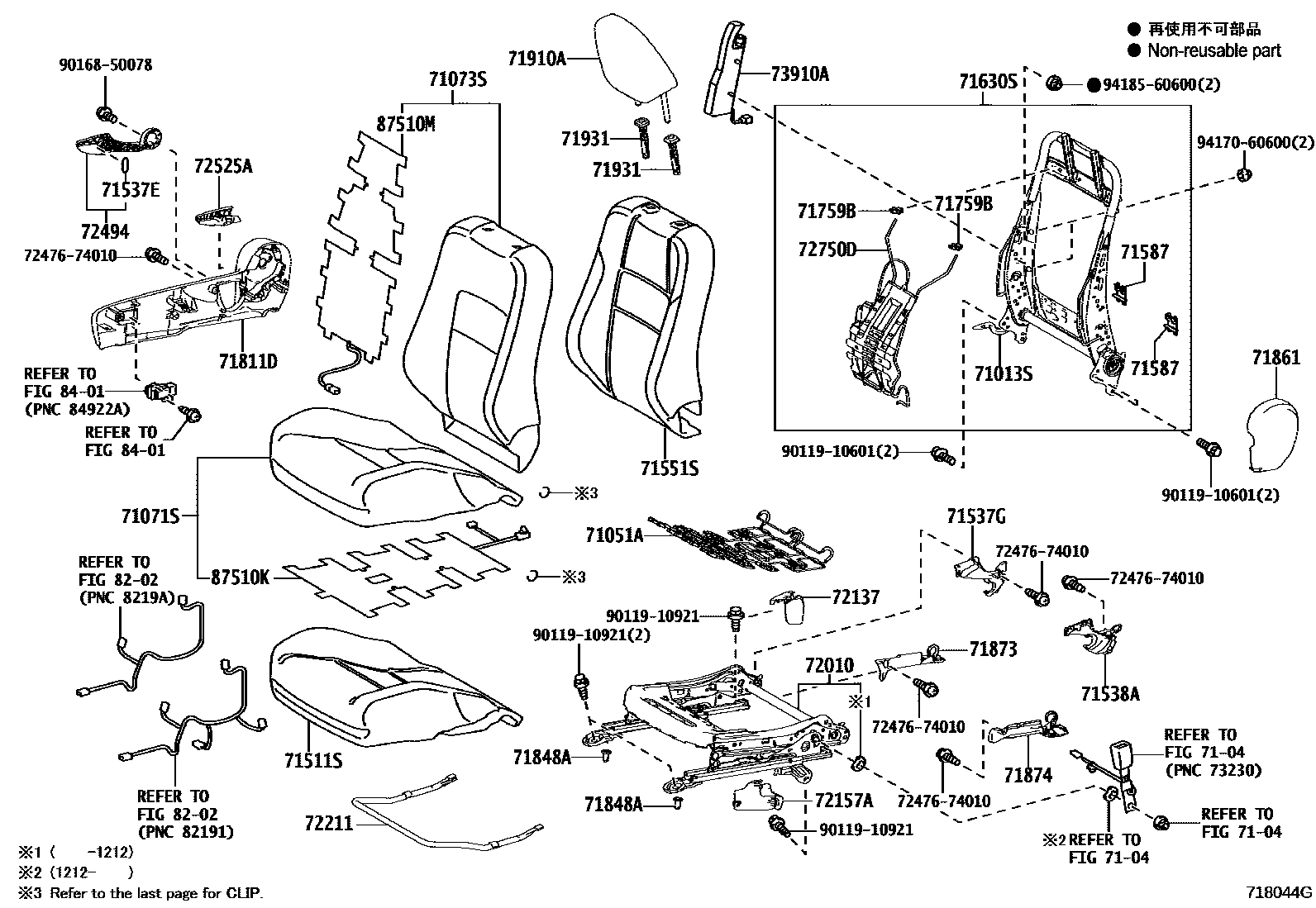

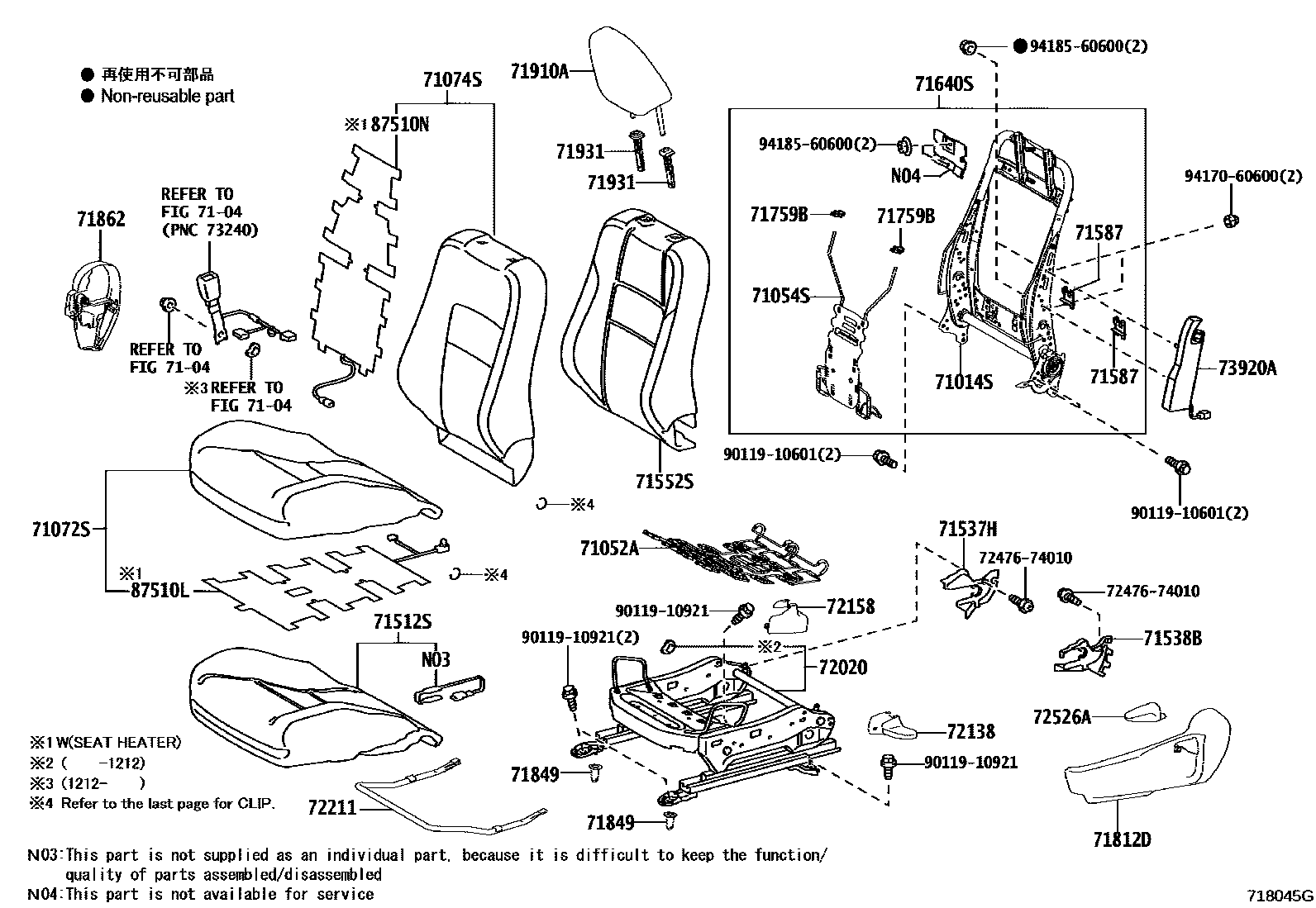

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-12700 · 71013-12720 |
| 71014S | Front left seat back frame sub-assembly | 71014-12560 · 71014-12580 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-12090 · 71051-47060 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-12090 · 71051-47060 |
| 71053S | Front right seat back spring sub-assembly | 71053-52050 |
| 71054S | Front left seat back spring sub-assembly | 71053-52050 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12C10 · 71511-12C20 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-12110 · 71502-12150 |
| 71537E | Front seat No. 1 seat cushion protective cover | 71537-47040 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12C40 · 71551-12D90 |
| 71552S | Front left seat back cushion (for split seats) | 71552-12660 · 71552-12690 |
| 71587 | Front seat back edge protective cover | 71587-52030 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-12770 · 71630-12800 · 71630-12810 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-12630 · 71640-12660 |
| 71759B | Front seat back hook | 71759-47010 · 71759-47011 |
| 71848A | Right seat adjuster cover | 71848-12020 |
| 71849 | left seat adjuster cover | 71848-12020 |
| 71873 | Front right seat cushion lower guard panel | 71873-47040 |
| 71874 | Front left seat cushion lower guard | 71874-47040 |
| 72010 | Front right seat adjuster assembly | 72010-12790 · 72010-12791 · 72010-12810 · 72010-12811 |
| 72020 | Front left seat adjuster assembly | 72020-12740 · 72020-12741 · 72020-12760 · 72020-12761 |
| 72211 | Seat slide adjustment handle | 72211-12320 |
| 72750D | Right lumbar support adjuster assembly | 72750-33080 |
| 73910A | Front right seat airbag assembly | 73910-12090 · 73910-12091 |
| 73920A | Front left seat airbag assembly | 73920-12080 · 73920-12081 |
| 87510K | Front right seat cushion heater assembly | 87510-12290 |
| 87510L | Front left seat cushion heater assembly | 87510-12300 |
| 87510M | Front right seat back heater assembly | 87530-12050 |
| 87510N | Front left seat back heater assembly | 87530-12050 |
