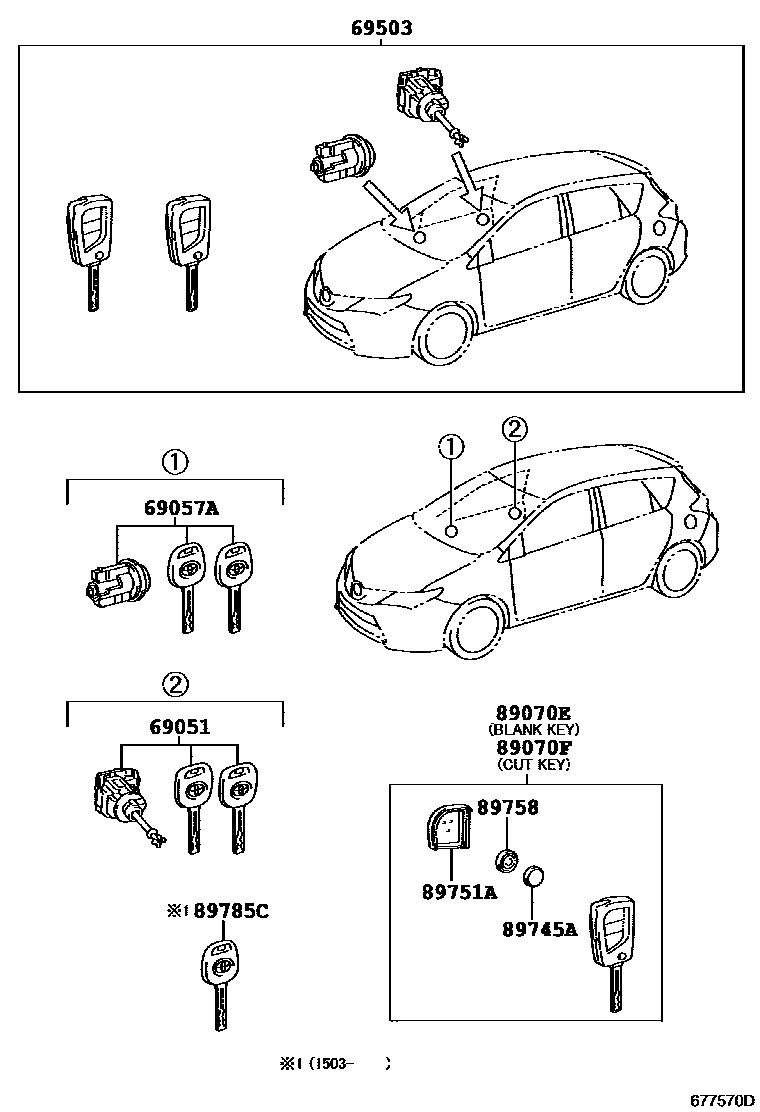

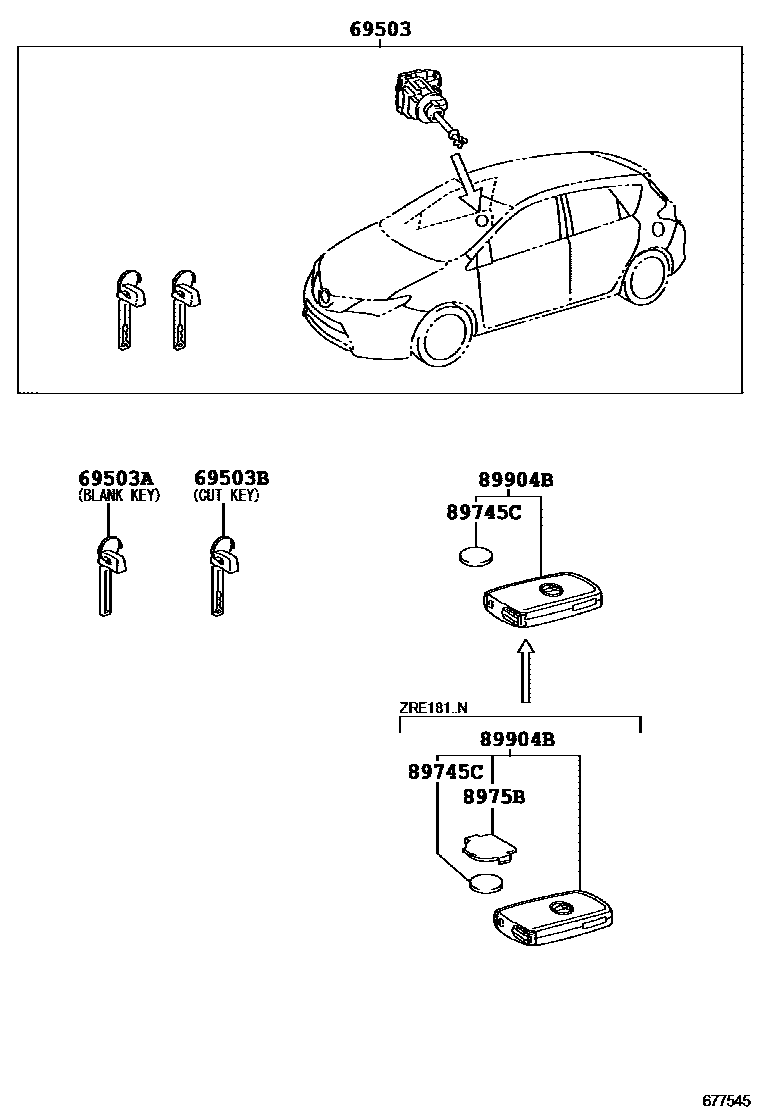

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12760 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12880 |
| 69503 | Door lock cylinder components | 69005-12F60 · 89704-12F00 · 89704-12F10 |
| 69503A | external tooth key | 69515-33100 |
| 69503B | internal tooth key | 69515-33090 |
| 89070E | Remote key assembly | 89070-12A20 · 89070-12A30 |
| 89070F | Remote key assembly (internal tooth key) | 89070-12620 · 89070-12630 |
| 89745A | Transmitter battery | 89745-12010 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-12070 |
| 89758 | Remote key seal | 89758-12010 |
| 8975B | Remote control battery case cover | 8975B-33010 |
| 89785C | transceiver key master transmitter | 89785-12150 |
| 89904B | Electronic key transmitter sub-assembly | 89904-12350 · 89904-12370 |
