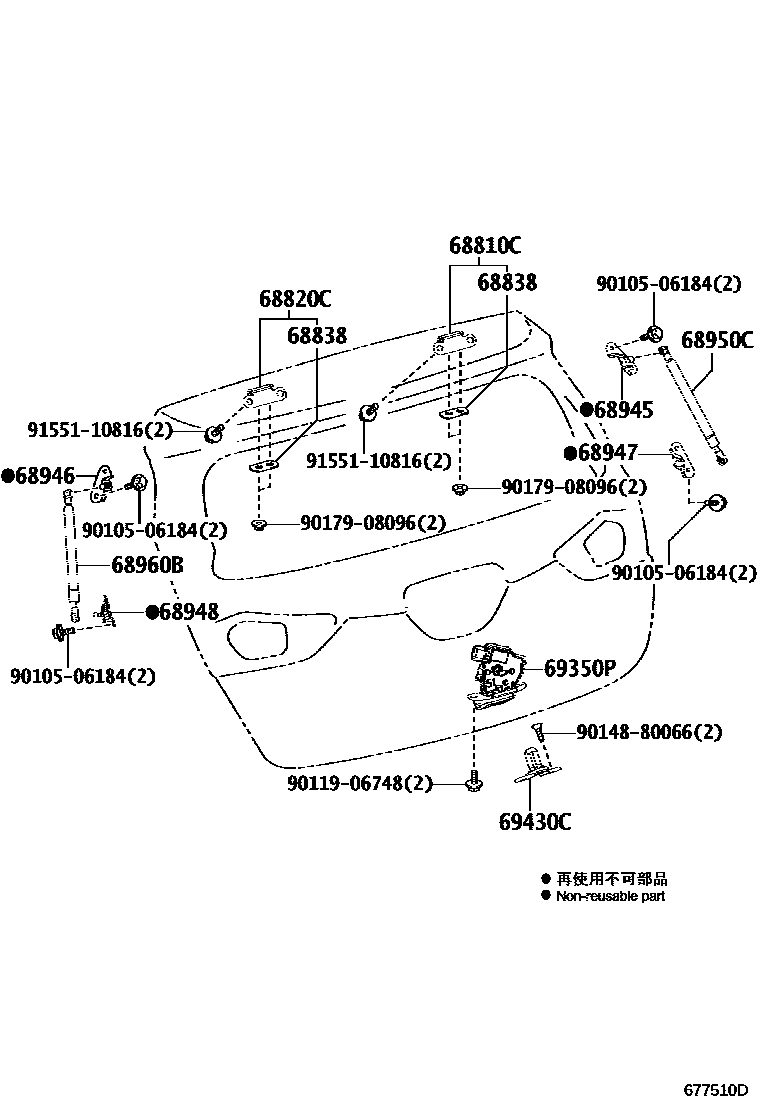

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810C | Back door right hinge assembly | 68810-21050 |
| 68820C | Back door left hinge assembly | 68810-21050 |
| 68838 | Back door hinge No. 1 gasket | 68838-32010 · 68838-44020 · 68838-52020 |
| 68945 | Back door right damping stay upper bracket | 68945-12050 |
| 68946 | Rear door left damping strut upper bracket | 68946-12020 |
| 68947 | Back door right damping strut lower bracket | 68947-12050 |
| 68948 | Rear door left damping strut lower bracket | 68948-12050 |
| 68950C | Back door right support rod assembly | 68950-12530 · 68950-12540 |
| 68960B | Back door left support rod assembly | 68960-12350 · 68960-12370 |
| 69350P | Back door with door control light switch lock assembly | 69350-52391 |
| 69430C | Back door lock assembly | 69430-52050 |
