Toyota COROLLA 背门板和背门玻璃 — Figure 6708

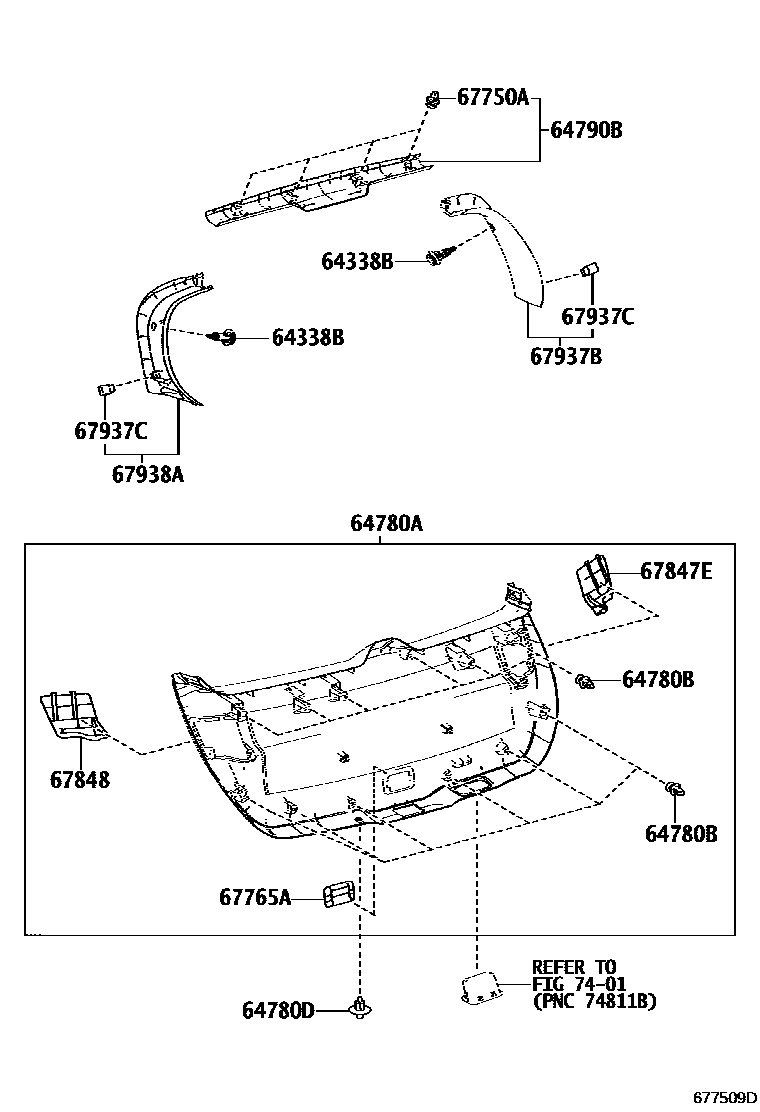

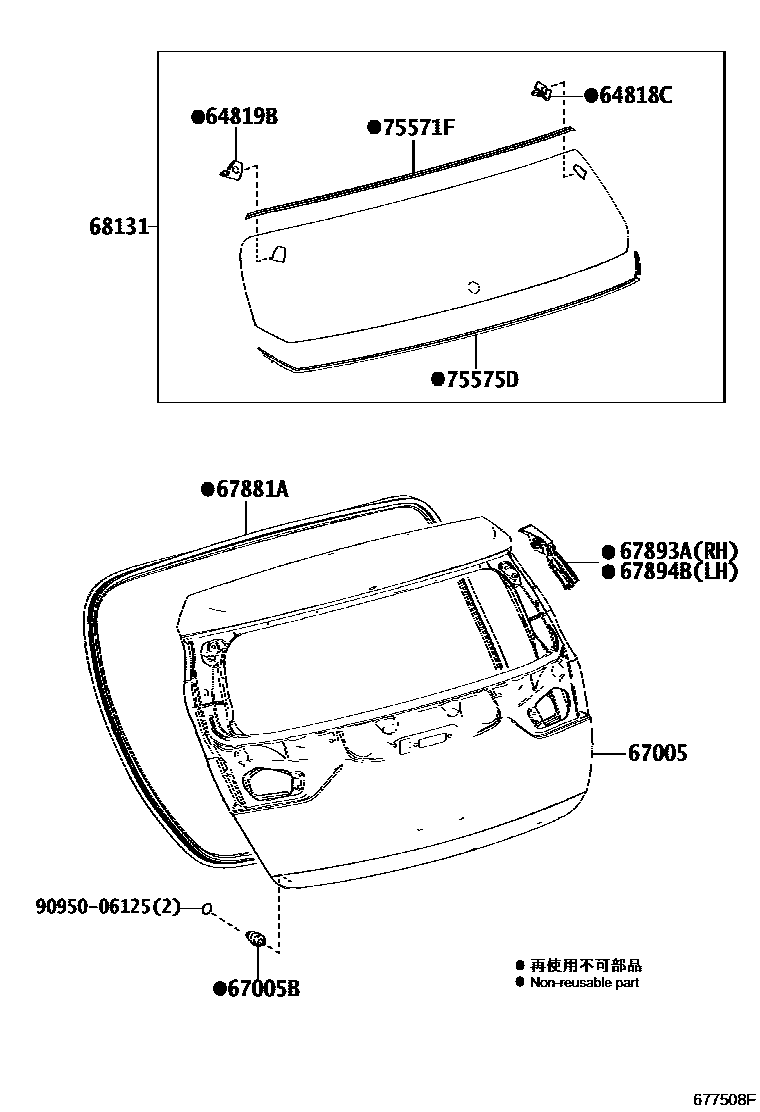

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64780B | Clip (for rear door trim panel) | 90467-10161 |
| 64818C | No. 1 back window glass spacer | 64818-12070 |
| 64819B | No. 2 back window glass spacer | 64819-12050 |
| 67005 | Rear door panel sub-assembly | 67005-12C30 · 67005-12C50 · 67005-12D00 |
| 67005B | Cushion pad (for back door panel) | 90541-09142 |
| 67750A | Clip (for rear door trim panel) | 90467-10161 |
| 67881A | Back door seal | 67881-12310 |
| 67893A | Back door panel No. 1 protective piece | 67893-12030 |
| 67894B | Back door panel No. 2 protective piece | 67894-12030 |
| 67937C | Clip (for rear door side decorative strip) | 67771-58010 |
| 68131 | back door glass | 68105-12390 · 68105-12410 · 68105-12430 · 68105-12440 |
| 75571F | Back door and window protection strip | 75571-12A90 |
| 75575D | Protective strip under rear window | 75575-12470 |
