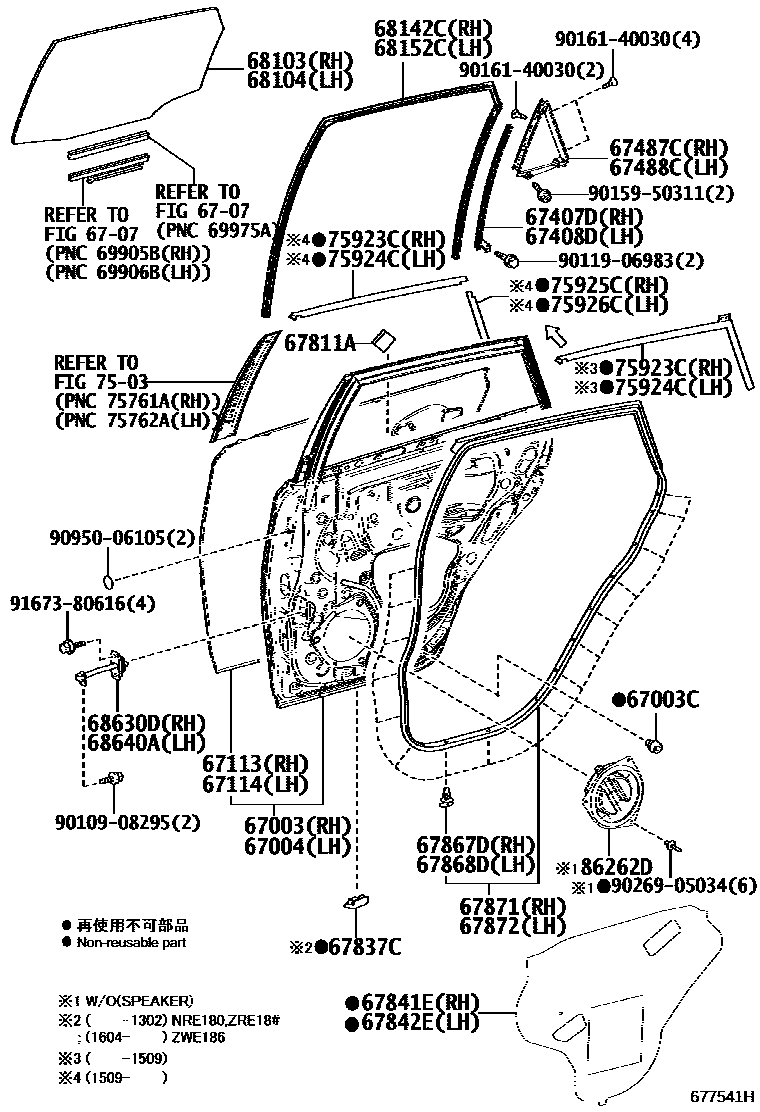

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-12B20 · 67003-12B60 |
| 67003C | Rear door panel cushion | 90541-09143 |
| 67004 | Left rear door panel sub-assembly | 67004-12B20 · 67004-12B60 |
| 67113 | Right rear door outer panel | 67113-12340 |
| 67114 | Left rear door outer panel | 67114-12330 |
| 67407D | Right rear door window glass rear guide channel sub-assembly | 67407-12320 · 67407-12350 |
| 67408D | Left rear door window glass rear guide channel sub-assembly | 67408-12320 · 67408-12350 |
| 67487C | Right rear door rear rail seal | 67487-12260 |
| 67488C | Left rear door rear rail seal | 67488-12260 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67673A | Right rear door frame decorative strip | 67673-48010 |
| 67674A | Left rear door frame decorative strip | 67674-48010 |
| 67811A | Rear door silencer pad | 67811-12180 |
| 67837C | Rear door dust seal retainer | 67837-12080 · 67837-48050 |
| 67841E | Right rear door access hole cover | 67841-12410 |
| 67842E | Left rear door access hole cover | 67842-12220 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-12560 |
| 67872 | Left rear door sealing strip | 67872-12560 |
| 68103 | Right rear door glass sub-assembly | 68113-12820 · 68113-12830 · 68113-12860 |
| 68104 | Left rear door glass sub-assembly | 68114-12820 · 68114-12830 · 68114-12860 |
| 68142C | Right rear door glass lift slot | 68142-12320 |
| 68152C | Left rear door glass lift slot | 68152-12230 |
| 68173B | Right rear door glass inner sealing strip | 68173-12341 |
| 68174A | Left rear door glass inner sealing strip | 68174-12201 |
| 68630D | Right rear door opening limiter assembly | 68630-12160 |
| 68640A | Left rear door opening limiter assembly | 68630-12160 |
| 75923C | No. 2 right side light-shielding film | 75923-12100 · 75923-12120 |
| 75924C | No. 2 left shading film | 75924-12100 · 75924-12120 |
| 75925C | No. 3 right side light-blocking film | 75925-12060 |
| 75926C | No. 3 left shading film | 75926-12060 |
| 86262D | Rear door speaker cover | 86262-53011 |
