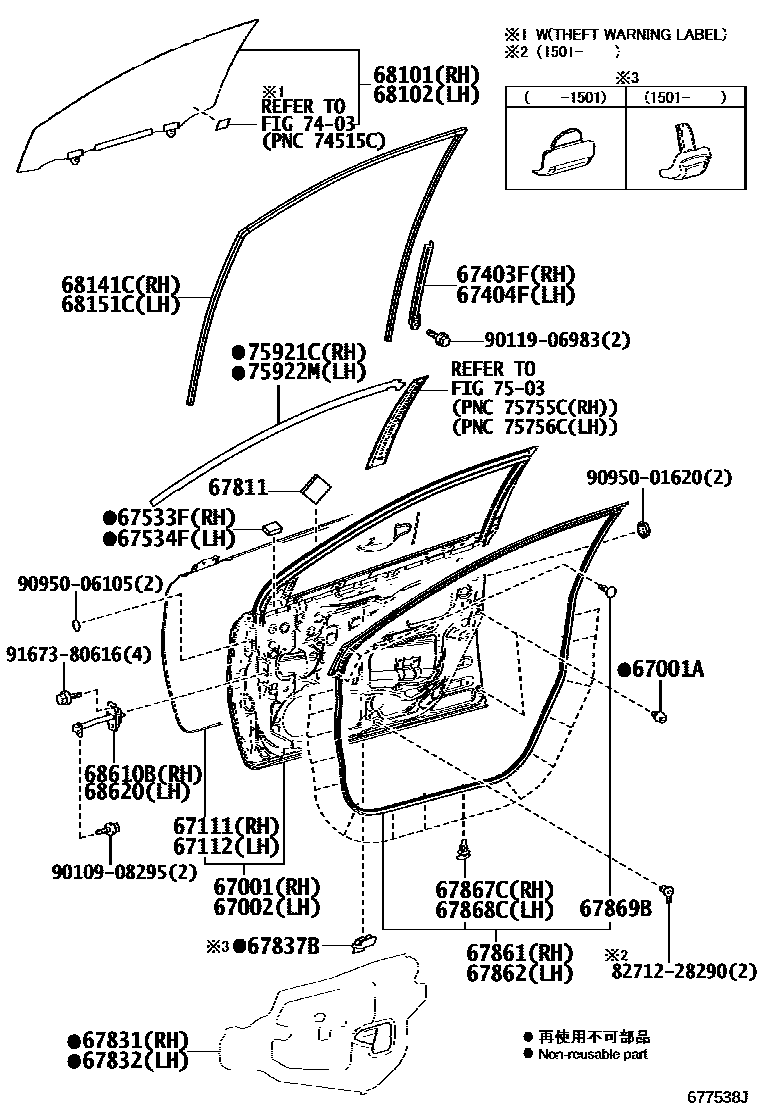

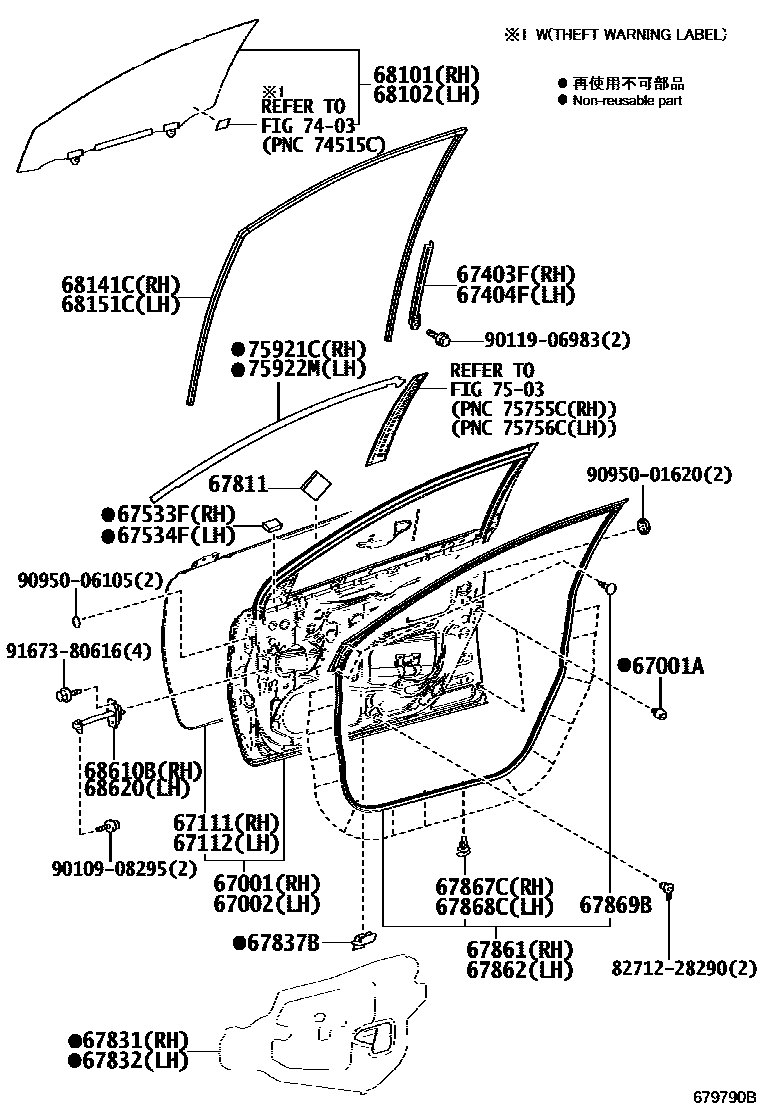

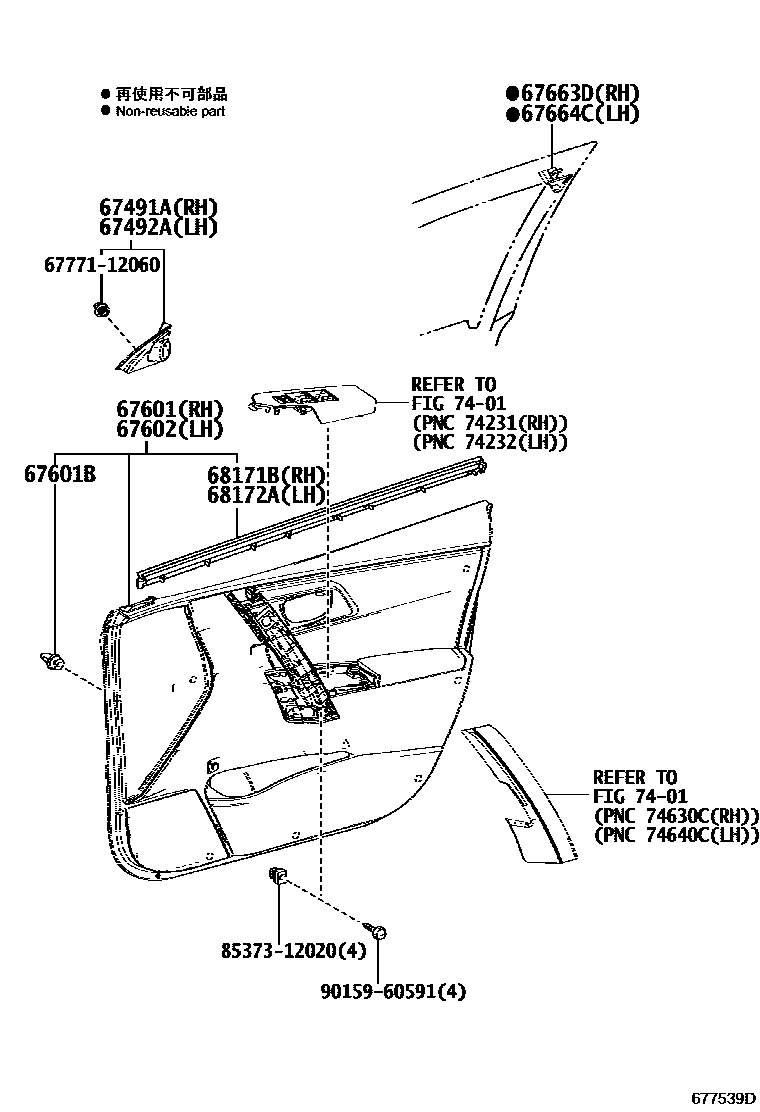

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-12B10 · 67001-12B80 |
| 67001A | Front door panel cushion | 90541-09143 |
| 67002 | Left front door panel sub-assembly | 67002-12B10 · 67002-12B80 |
| 67111 | Outer right front door panel | 67111-12730 |
| 67112 | Outer left front door panel | 67112-12720 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12290 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12280 |
| 67533F | Right front door lower door frame decorative pad | 69759-12110 |
| 67534F | Left front door lower door frame decorative pad | 69759-12110 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67663D | Right door frame decorative strip | 67663-48010 |
| 67664C | Left door frame decorative strip | 67664-48010 |
| 67811 | Front door silencer pad | 67811-12180 · 67811-12190 |
| 67831 | Right front door access hole cover | 67831-12720 · 67831-12770 |
| 67832 | Left front door access hole cover | 67832-12500 · 67832-12550 |
| 67837B | Front door dust seal retainer | 67837-12080 · 67837-12120 · 67837-48050 |
| 67861 | Right front door seal | 67861-12A80 |
| 67862 | Left front door seal | 67862-12A80 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-20030 |
| 68101 | Right front door glass sub-assembly | 68101-12C00 · 68101-12C10 · 68101-12C20 · 68101-12D10 · 68101-12D40 · 68101-12D50 |
| 68102 | Left front door glass sub-assembly | 68102-12C00 · 68102-12C10 · 68102-12C20 · 68102-12D10 · 68102-12D20 · 68102-12D30 |
| 68141C | Right front door glass lift channel | 68141-12590 · 68141-12591 |
| 68151C | Left front door glass lift channel | 68151-12290 · 68151-12291 |
| 68171B | Right front door glass inner sealing strip | 68171-12371 |
| 68172A | Left front door glass inner sealing strip | 68172-12291 |
| 68610B | Right front door opening limiter assembly | 68610-12240 |
| 68620 | Left front door opening limiter assembly | 68610-12240 |
| 75921C | No. 1 right side light-shielding film | 75921-12110 |
| 75922M | No. 1 left shading film | 75922-12110 |
