Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

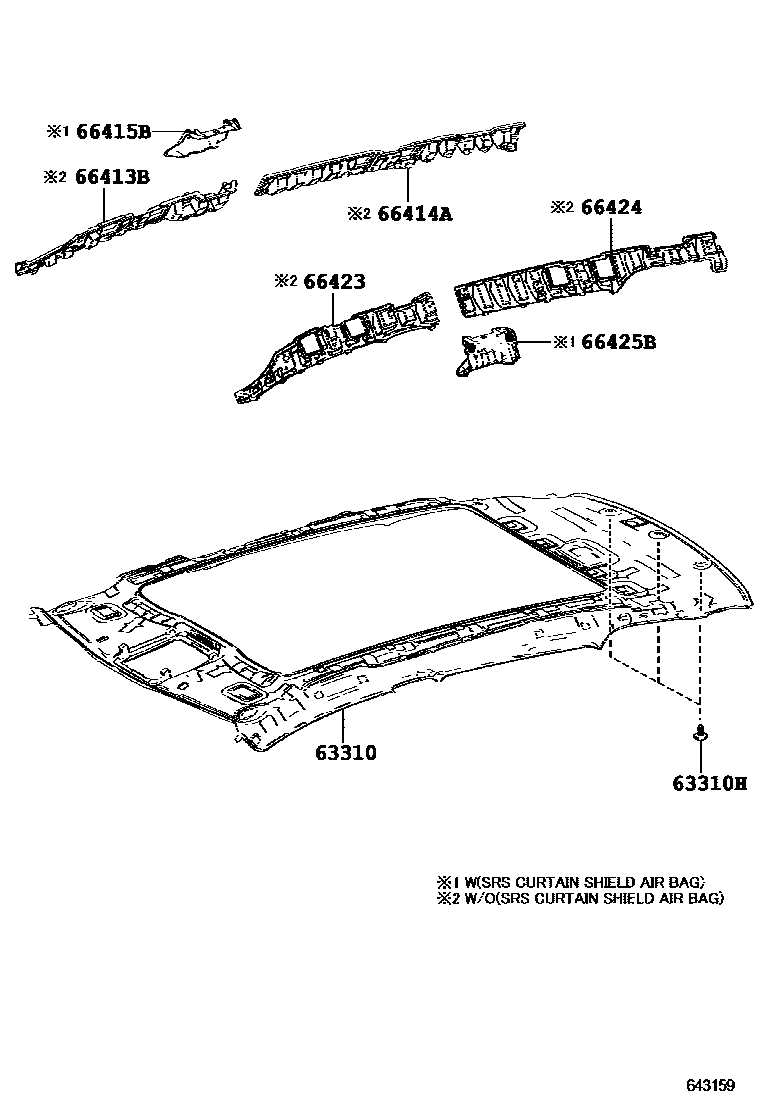

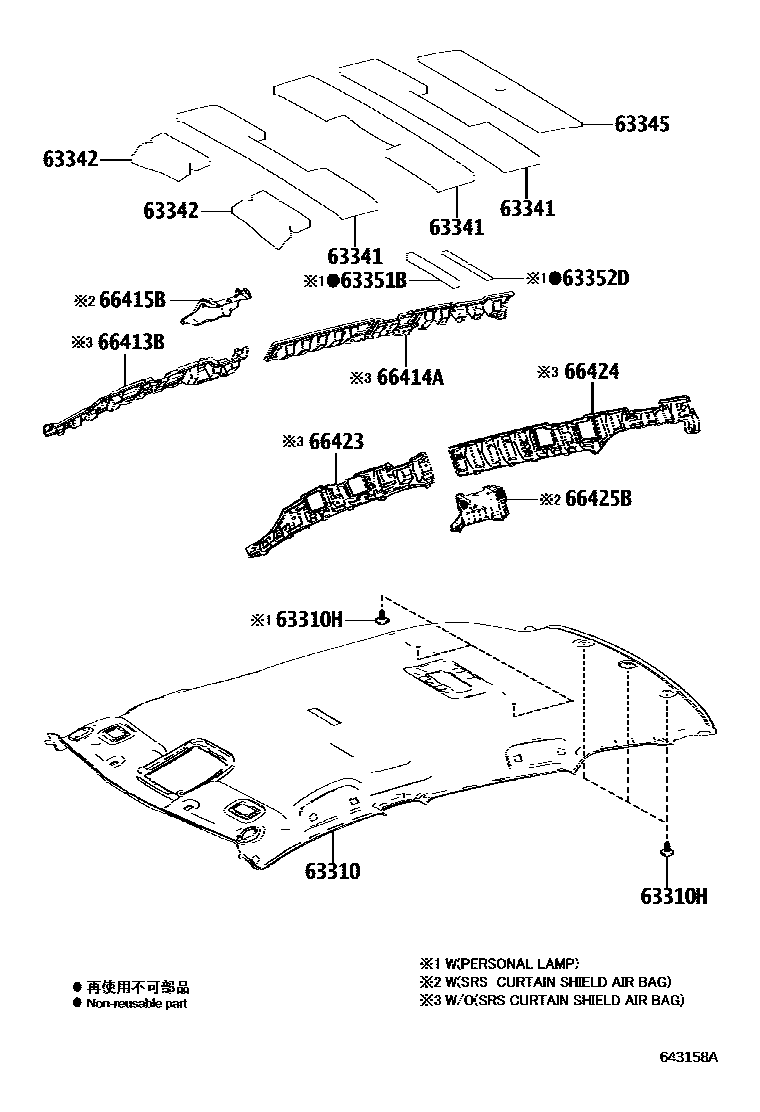

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-12350 |
| 63342 | No. 2 roof muffler pad | 63342-12290 |
| 63345 | No. 5 roof silencer mat | 63345-12040 |
| 63351B | roof lining pads | 63351-12090 |
| 63352D | No. 2 roof lining lining block | 63352-12110 |
| 66413B | Right front longitudinal member spacer | 66413-12100 |
| 66414A | Right rear longitudinal member spacer | 66414-12100 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-12050 |
| 66423 | Left front longitudinal member spacer | 66423-12100 |
| 66424 | Left rear longitudinal member spacer | 66424-12100 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-12050 |
