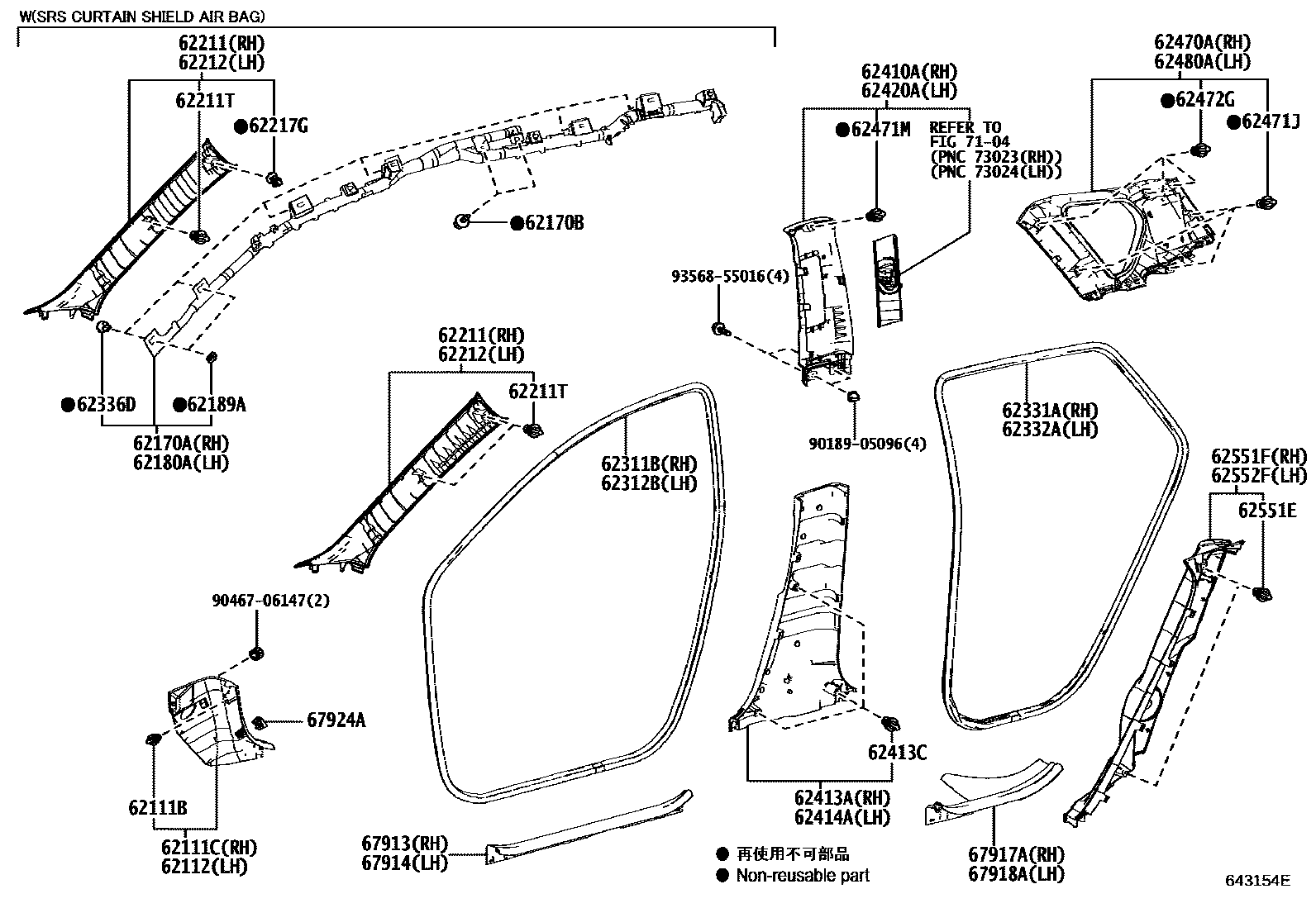

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-10161 |
| 62170A | Right curtain air bag assembly | 62170-12050 |
| 62170B | Bolts with washers | 90119-06869 |
| 62180A | Left curtain air bag assembly | 62180-12050 |
| 62189A | Curtain air bag clip spacer | 62189-33010 |
| 62211T | Clip (for front pillar decorative panel) | 90467-10161 |
| 62217G | Front pillar decorative plate clip | 62217-52120 |
| 62311B | Right front door opening waterproof tape | 62311-12250 |
| 62312B | Left front door opening waterproof tape | 62312-12250 |
| 62331A | Right rear door opening waterproof tape | 62331-12190 |
| 62332A | Left rear door opening waterproof tape | 62332-12190 |
| 62336D | card holder | 62184-06010 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 |
| 62471J | Clips (for roof side trim panels) | 90467-10161 |
| 62471M | clip | 90467-10188 |
| 62472G | Clips (for roof side trim panels) | 90467-10161 · 90467-10188 |
| 62551E | Clips (for rear seat side trim panels) | 90467-10161 |
| 67924A | Door No. 2 wear plate clip | 67924-52140 |
