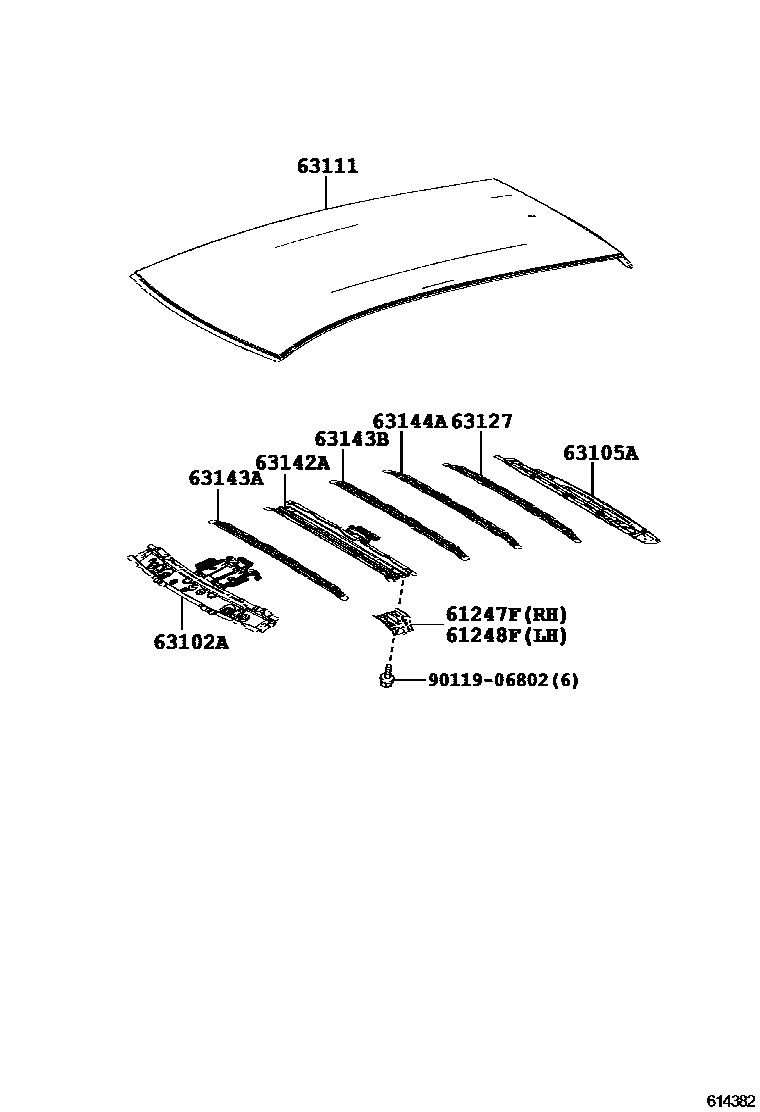

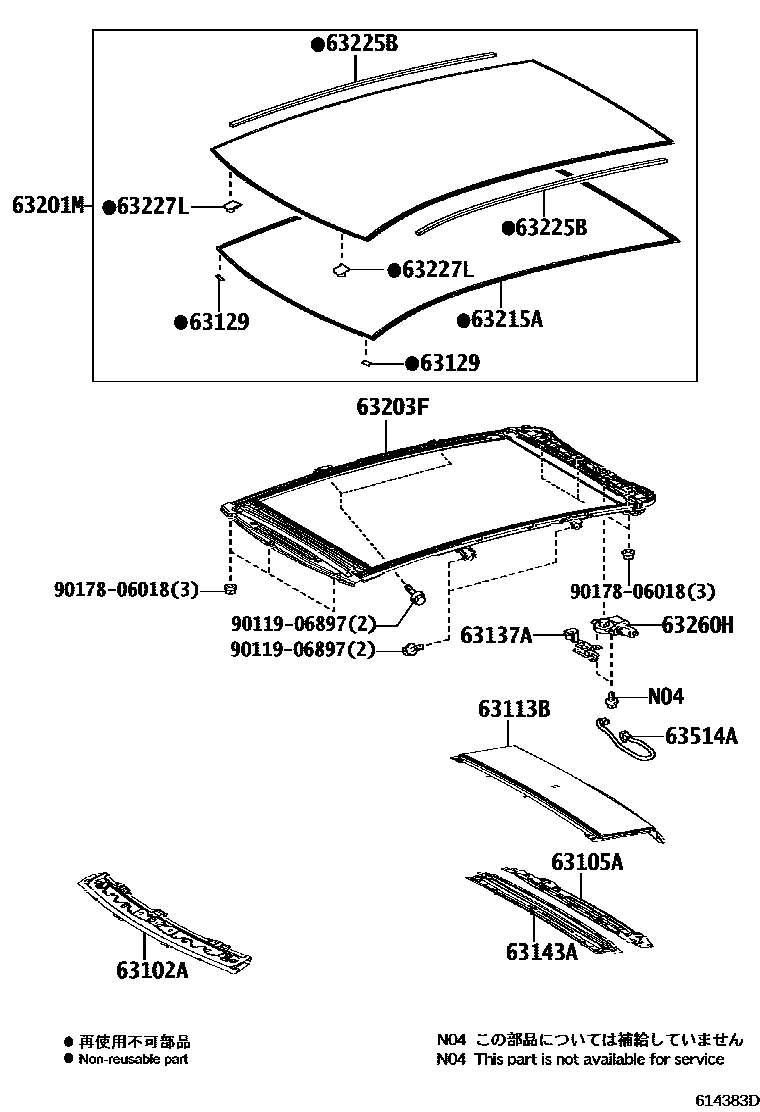

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61247F | Roof inner longitudinal beam reinforcement | 61247-12070 |
| 61248F | Roof left inner longitudinal beam reinforcement | 61247-12070 |
| 63102A | Windshield roof sub-assembly | 63102-12250 · 63102-12280 · 63102-12310 · 63102-12320 |
| 63105A | Back door opening frame sub-assembly | 63105-12300 |
| 63111 | roof panel | 63111-12A00 · 63111-12A70 |
| 63113B | rear roof panel | 63113-12020 · 63113-12030 |
| 63127 | No. 5 roof panel reinforcement | 63126-12040 |
| 63129 | Windshield roof protector | 63233-12140 |
| 63137A | No. 1 ceiling light bracket | 63137-02180 · 63137-02190 |
| 63142A | No. 2 roof panel reinforcement | 63103-12120 |
| 63143A | Roof panel reinforcement | 63143-12150 · 63143-12170 |
| 63143B | No. 3 roof panel reinforcement | 63148-12070 |
| 63144A | No. 4 roof panel reinforcement | 63144-12150 |
| 63201M | No. 1 skylight glass sub-assembly | 63201-12310 |
| 63215A | Protective strips on skylight | 63215-12020 |
| 63225B | Protective cover on skylight | 63225-12090 |
| 63227L | Skylight clip | 63227-12020 · 63228-12020 |
| 63260H | Sliding sunroof driving gear assembly | 63260-12170 |
| 63514A | Connector harness | 63514-12010 |
