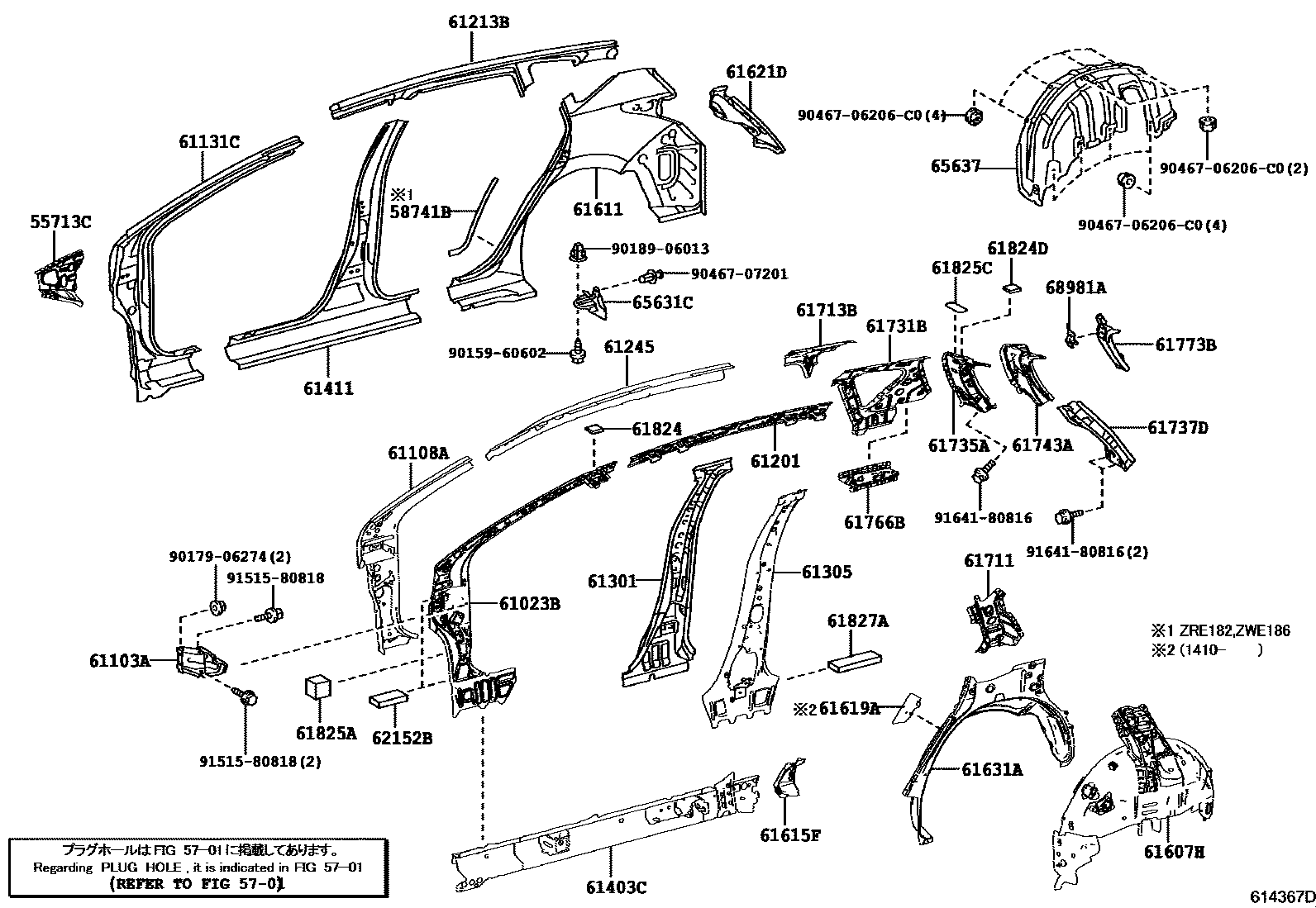

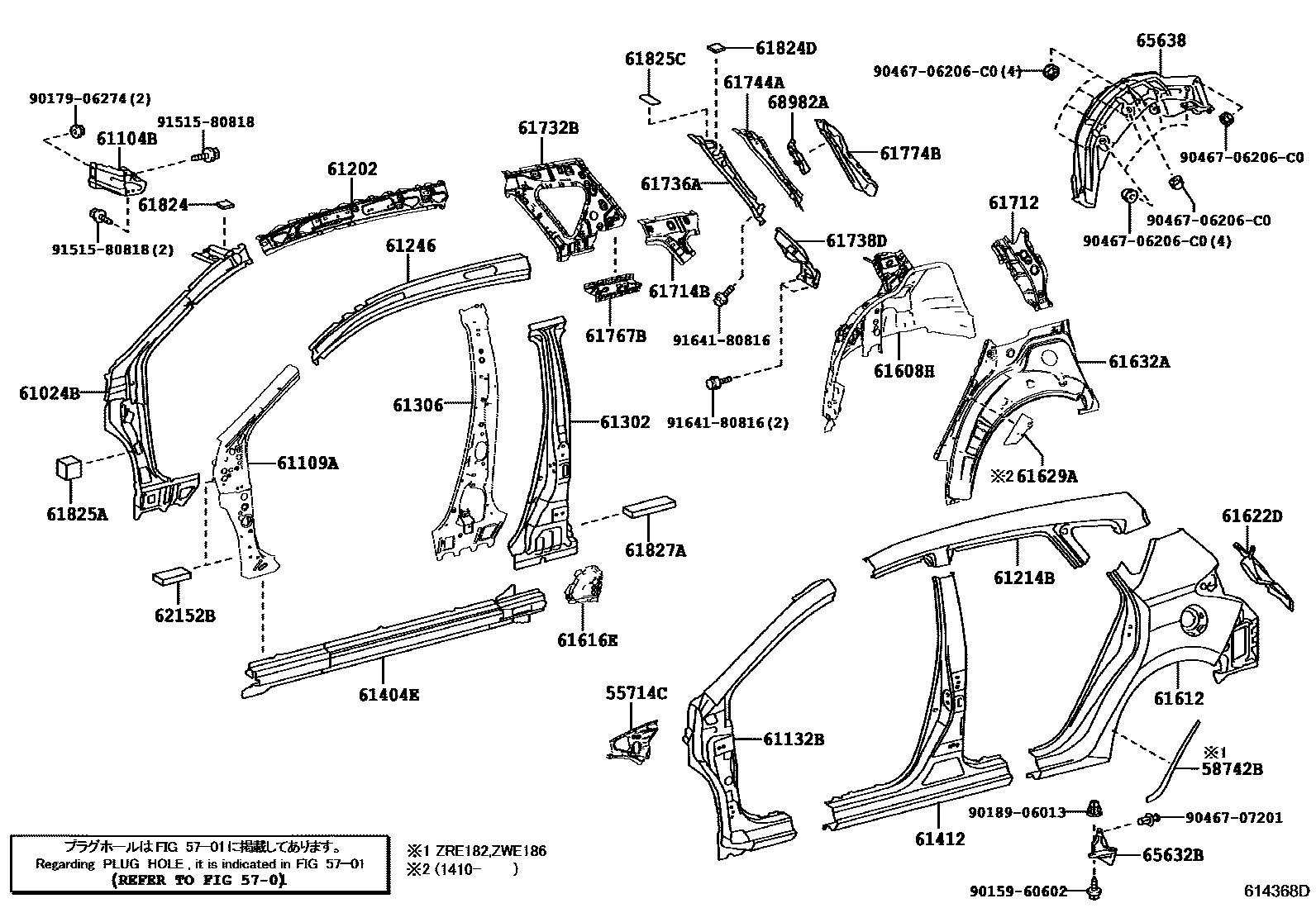

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 2 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55713C | Right front wall upper side panel | 55713-12160 |
| 55714C | Left front wall upper side panel | 55714-12160 |
| 58741B | Right side enclosure protection panel | 58741-12210 |
| 58742B | Left side enclosure protection panel | 58742-12200 |
| 61023B | Right body inner front pillar sub-assembly | 61023-12410 · 61023-12440 |
| 61024B | Left body inner front pillar sub-assembly | 61024-12410 · 61024-12440 |
| 61103A | Right front wall side reinforcement sub-assembly | 61103-12280 |
| 61104B | Left front wall side reinforcement sub-assembly | 61104-12260 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12300 · 61108-12310 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12290 · 61109-12310 |
| 61131C | Right body outer front pillar | 61131-12840 · 61131-12850 |
| 61132B | Left body outer front pillar | 61132-12810 · 61132-12820 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-12260 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-12250 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-12050 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-12050 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-12110 · 61245-12120 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-12110 · 61246-12120 |
| 61301 | Right body center pillar sub-assembly | 61301-12992 |
| 61302 | Left body center pillar sub-assembly | 61302-12993 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-12180 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-12180 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-12902 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-12902 |
| 61411 | Right door outer sill panel | 61311-12500 · 61311-12510 |
| 61412 | Left door outer sill panel | 61312-12540 · 61312-12550 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-12C60 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-12C40 |
| 61611 | Right side hoarding | 61601-12B40 · 61601-12B60 |
| 61612 | left side panel | 61602-12B40 · 61602-12B50 · 61602-12B60 |
| 61615F | Right side enclosure outer panel reinforcement | 61615-12040 |
| 61616E | Left side enclosure outer panel reinforcement | 61616-12050 |
| 61619A | Side panel reinforcement | 61619-12080 |
| 61621D | Back door right opening slot | 61621-12550 |
| 61622D | Rear door left opening slot | 61622-12550 |
| 61629A | Left side panel reinforcement | 61629-12040 |
| 61631A | Right wheel cover outer panel | 61631-12500 · 61631-12501 |
| 61632A | Left side wheel cover outer panel | 61632-12470 · 61632-12471 |
| 61711 | Roof right side outer panel | 61711-12360 |
| 61712 | Roof left outer panel | 61712-12390 |
| 61713B | Roof right outer reinforcement | 61713-12130 |
| 61714B | Roof left outer reinforcement | 61714-12120 |
| 61731B | Roof right inner panel | 61731-12750 · 61731-12751 |
| 61732B | Roof left inner panel | 61732-12770 · 61732-12771 |
| 61735A | Right rear roof inner panel | 61735-12430 |
| 61736A | Left rear roof inner panel | 61736-12430 |
| 61737D | Roof right inner reinforcement | 61737-12150 |
| 61738D | Roof left inner reinforcement | 61738-12160 |
| 61743A | Rear door opening right reinforcement | 61743-12090 |
| 61744A | Rear door opening left reinforcement | 61744-12090 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-12320 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-12270 |
| 61773B | Back door upper right opening frame | 61773-12010 |
| 61774B | Back door upper left opening frame | 61774-12010 |
| 61824 | Noise Control Panel No. 1 | 61824-12070 |
| 61824D | Noise Control Panel No. 1 | 61824-12070 |
| 61825A | Noise Control Panel No. 2 | 61825-12080 |
| 61825C | No. 2 silencer panel gasket | 61825-52060 |
| 61827A | Noise Control Panel No. 4 | 61827-12040 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 65631C | Right rear wheel house front panel | 65631-12090 |
| 65632B | Left rear wheel house front panel | 65632-12090 |
| 65637 | Right rear wheel house lining | 65637-12040 |
| 65638 | Left rear wheel house lining | 65638-12040 |
| 68981A | Back door right side support rod fixing | 68981-12070 |
| 68982A | Back door left support rod fixing | 68982-12060 |
