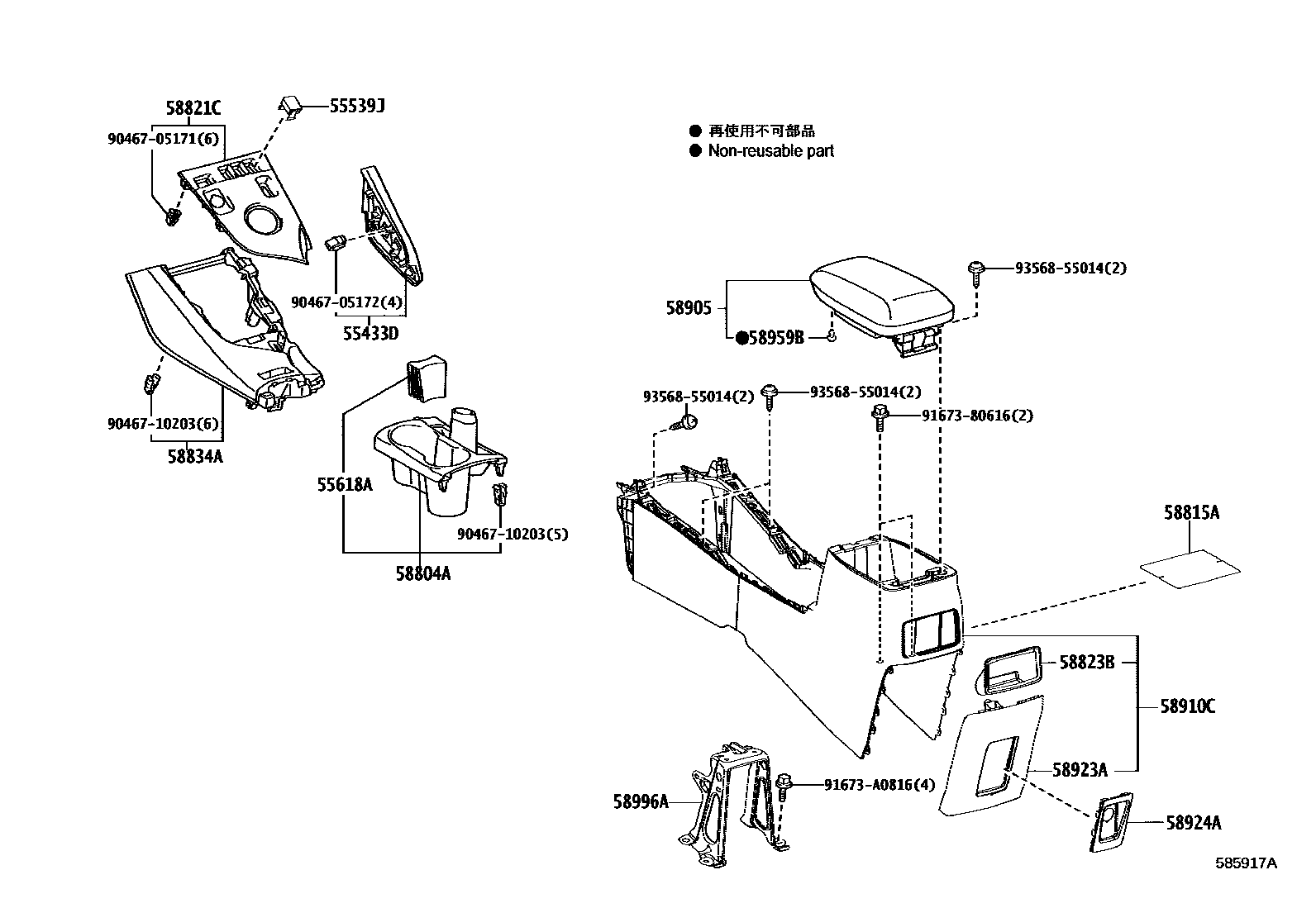

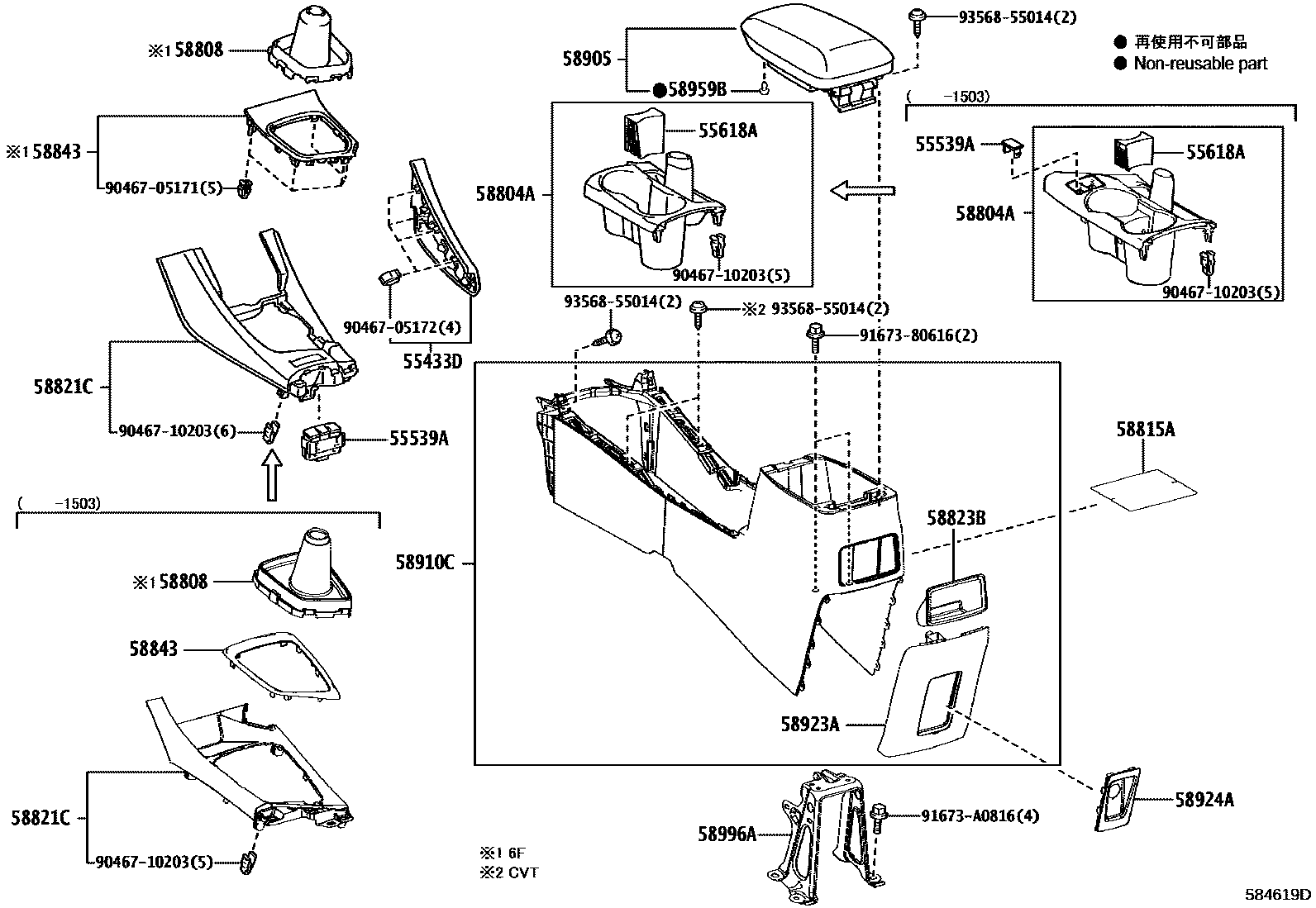

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55539A | Spare switch hole cover | 84970-12090 |
| 58808 | Shift hole cover sub-assembly | 58808-12400 |
| 58815A | Armrest box felt pad | 58815-12120 · 58815-12121 |
| 58843 | shift hole frame | 58843-12320 |
| 58959B | Armrest box cover cushion | 58959-60060 · 90541-03078 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-12230 |
