Toyota COROLLA 地板垫和地毯 — Figure 5804

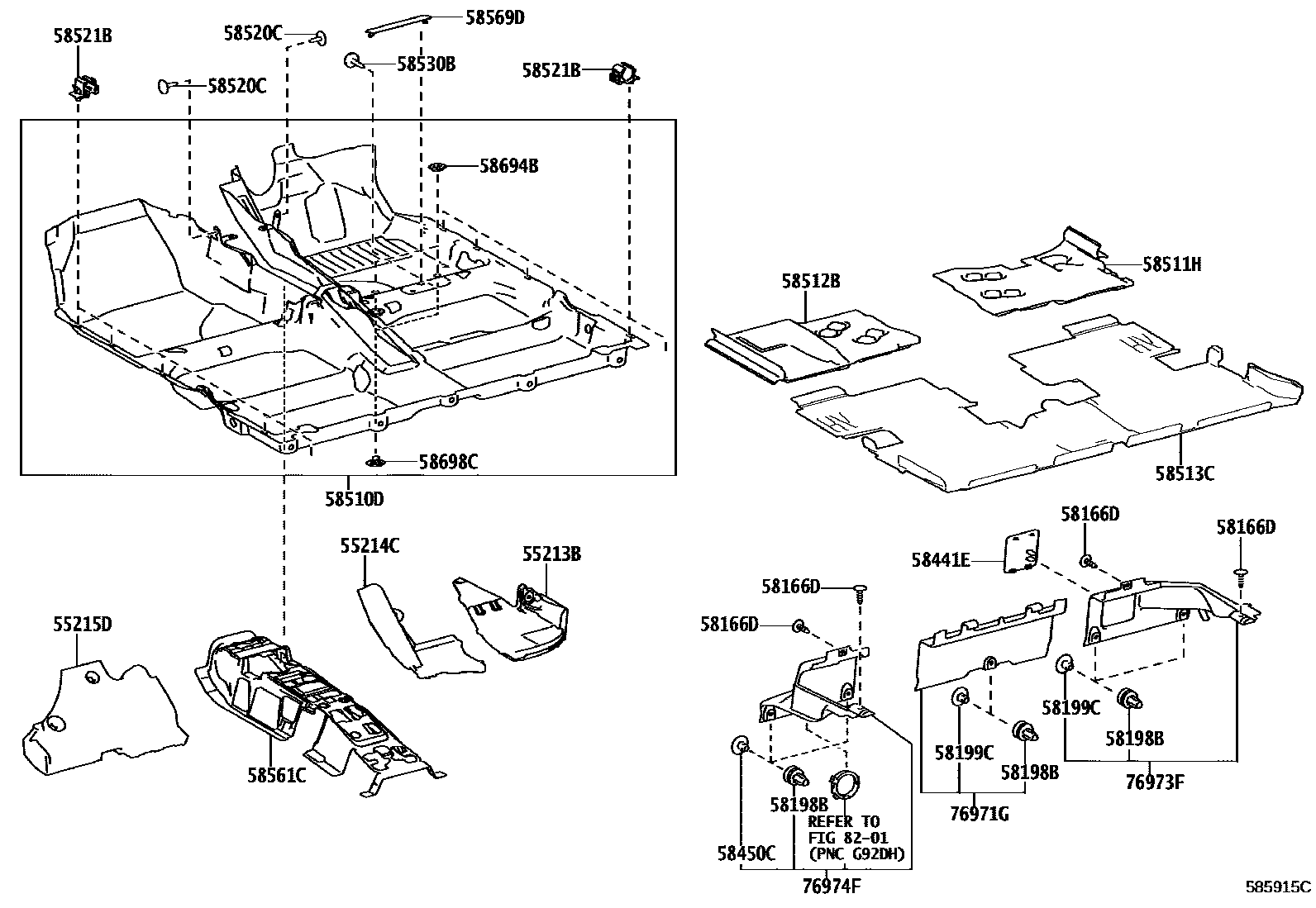

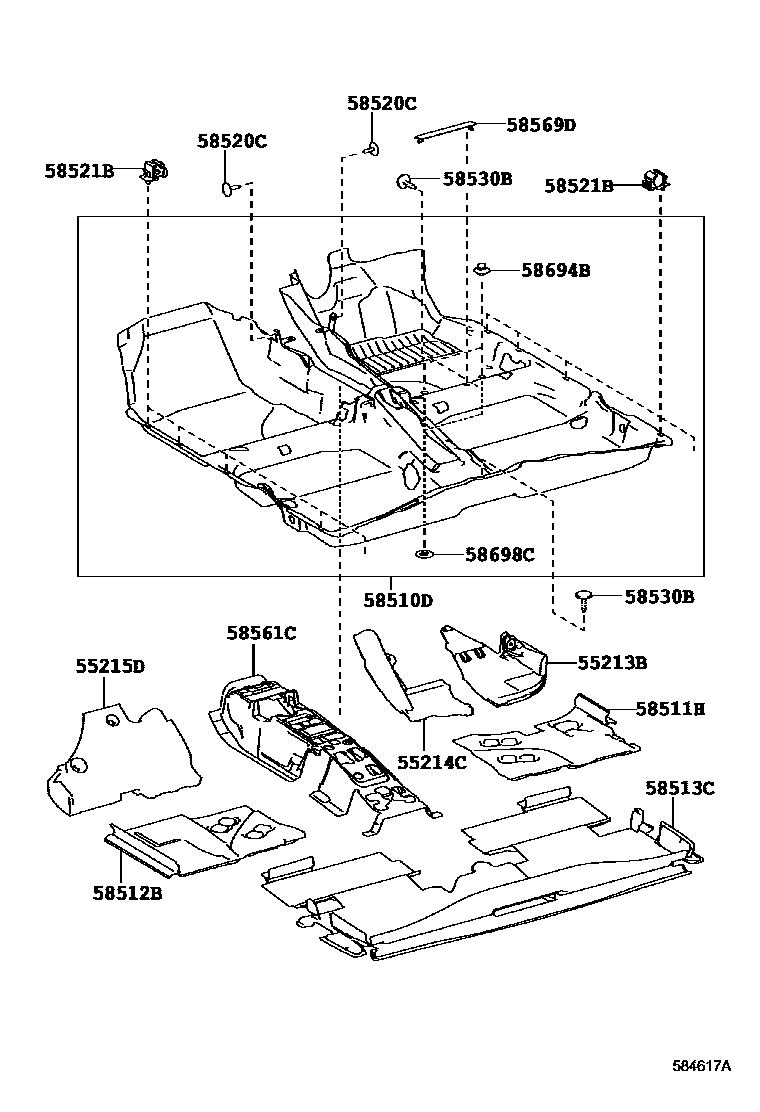

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55213B | No. 1 insulation pad for front wall panel | 55213-12690 |
| 55214C | No. 2 insulation pad for front wall panel | 55214-12020 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-12110 |
| 58198B | No. 1 footrest clip | 58198-02020 |
| 58511H | Front floor right mat | 58511-12690 · 58511-12691 |
| 58512B | Front floor left mat | 58512-12270 · 58512-12271 |
| 58513C | Front floor center mat | 58513-12270 · 58513-12271 · 58513-12310 |
| 58521B | carpet hook | 58521-12150 |
| 58561C | Front floor silencer No. 1 | 58561-12110 · 58561-12111 · 58561-12170 |
| 58694B | Pad the fixing plate | 58694-76010 · 58694-78010 |
| 58698C | Fixing plate under the pad | 58698-76010 · 58698-78010 |
